forecast

Forecast sample paths from threshold-switching dynamic regression model

Since R2021b

Syntax

YF = forecast(Mdl,Y,numPeriods)

YF = forecast(Mdl,Y,numPeriods,Name,Value)

[YF,EstCov] = forecast(___)

Description

YF = forecast(Mdl,Y,numPeriods) returns optimal one-step-ahead point forecasts YF of a fully specified threshold-switching dynamic regression model Mdl over a forecast horizon of length numPeriods. The forecasted responses represent the continuation of the response data Y.

example

YF = forecast(Mdl,Y,numPeriods,Name,Value) uses additional options specified by one or more name-value arguments. For example, forecast(Mdl,Y,10,Type="exogenous",Z=z) specifies exogenous-type forecasts and forecast-period, exogenous threshold variable data z.

example

[YF,EstCov] = forecast(___) returns simulation-based forecasts YF and corresponding forecast error covariances EstCov, using any of the input argument combinations in the previous syntaxes.

example

Examples

collapse all

Compute Optimal Point Forecasts

Open Live Script

This example shows how to compute iterative point forecasts of the conditional mean of a self-exciting threshold autoregressive (SETAR) model. Specify all parameter values (this example uses arbitrary values).

Create Fully Specified Model for DGP

Create a discrete threshold transition at level 0.

t = 0;
tt = threshold(t)

tt =
  threshold with properties:

          Type: 'discrete'
        Levels: 0
         Rates: []
    StateNames: ["1"    "2"]
     NumStates: 2

tt is a fully specified threshold object that describes the switching mechanism of the threshold-switching model.

Assume the following univariate models describe the response process of the system:

State 1: $y_{t} = - 1 + 0.6 y_{t - 1} + ε_{t}$ .
State 2: $y_{t} = 1 + 0.6 y_{t - 1} + ε_{t}$ .
$ε_{t} \sim Ν (0, 0.5)$ .

For each regime, use arima to create an AR model that describes the response process within the regime.

c1 = -1;
c2 = 1;
ar = 0.6;

mdl1 = arima(Constant=c1,AR=ar)

mdl1 =
  arima with properties:

     Description: "ARIMA(1,0,0) Model (Gaussian Distribution)"
      SeriesName: "Y"
    Distribution: Name = "Gaussian"
               P: 1
               D: 0
               Q: 0
        Constant: -1
              AR: {0.6} at lag [1]
             SAR: {}
              MA: {}
             SMA: {}
     Seasonality: 0
            Beta: [1×0]
        Variance: NaN

mdl2 = arima(Constant=c2,AR=ar)

mdl2 =
  arima with properties:

     Description: "ARIMA(1,0,0) Model (Gaussian Distribution)"
      SeriesName: "Y"
    Distribution: Name = "Gaussian"
               P: 1
               D: 0
               Q: 0
        Constant: 1
              AR: {0.6} at lag [1]
             SAR: {}
              MA: {}
             SMA: {}
     Seasonality: 0
            Beta: [1×0]
        Variance: NaN

mdl1 and mdl2 are effectively, fully specified arima objects. The innovations variances of the submodels are unspecified; the tsVAR object specifies the model-wide innovations variance.

Store the submodels in a vector with order corresponding to the regimes in tt.StateNames.

mdl = [mdl1; mdl2];

Use tsVAR to create a TAR model from the switching mechanism tt and the state-specific submodels mdl. Specify a model-wide innovations variance of 0.5.

Mdl = tsVAR(tt,mdl,Covariance=0.5)

Mdl =
  tsVAR with properties:

         Switch: [1x1 threshold]
      Submodels: [2x1 varm]
      NumStates: 2
      NumSeries: 1
     StateNames: ["1"    "2"]
    SeriesNames: "1"
     Covariance: 0.5000

Mdl.Submodels(2)

ans =
  varm with properties:

     Description: "AR-Stationary 1-Dimensional VAR(1) Model"
     SeriesNames: "Y1"
       NumSeries: 1
               P: 1
        Constant: 1
              AR: {0.6} at lag [1]
           Trend: 0
            Beta: [1×0 matrix]
      Covariance: NaN

Mdl is a fully specified tsVAR object representing a univariate two-state TAR model. tsVAR stores specified arima submodels as varm objects.

Simulate Response Data from DGP

forecast requires enough data before the forecast horizon to initialize the model. Simulate 120 observations from the DGP.

rng(1); % For reproducibility
y = simulate(Mdl,120);

y is a 120-by-1 random path of responses. The default options of simulate, and all tsVAR object functions, specify that the threshold variable is $y_{t - 1}$ .

Compute Optimal Point Forecasts

Treat the first 100 observations of the simulated response data as the presample for the forecast, and treat the last 10 observations as a holdout sample.

idx0 = 1:100;
idx1 = 101:120;
y0 = y(idx0);
y1 = y(idx1);

Compute 1- through 20-step-ahead optimal point forecasts from the model.

yf = forecast(Mdl,y0,20);

yf is a 20-by-1 vector of optimal point forecasts.

Plot the simulated response data and forecasts.

figure
hold on
plot(idx0,y0,'b');
h = plot(idx1,y1,'b--');
h1 = plot(idx1,yf,'r');
yfill = [ylim fliplr(ylim)];
xfill = [idx0(end) idx0(end) idx1(end) idx1(end)];
fill(xfill,yfill,'k','FaceAlpha',0.05)
legend([h h1],["Actual" "Optimal"],'Location','NorthWest')
title('Forecasts')
hold off

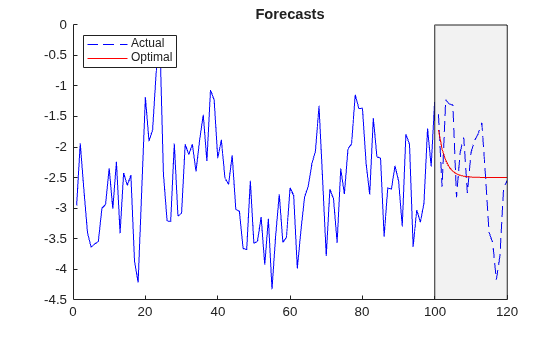

Figure contains an axes object. The axes object with title Forecasts contains 4 objects of type line, patch. These objects represent Actual, Optimal.

Compute Estimated Point Forecasts and Forecast Error Variances

Open Live Script

forecast must use Monte Carlo methods to estimate forecast error variances. Therefore, when simulate returns forecast error variances, it uses Monte Carlo methods to compute point forecasts.

Create the SETAR model in Compute Optimal Point Forecasts.

t = 0;
tt = threshold(t);
c1 = -1;
c2 = 1;
ar = 0.6;
mdl1 = arima(Constant=c1,AR=ar);
mdl2 = arima(Constant=c2,AR=ar);
mdl = [mdl1; mdl2];

Mdl = tsVAR(tt,mdl,Covariance=0.5);

forecast requires enough data before the forecast horizon to initialize the model. Simulate 120 observations from the DGP.

rng(100); % For reproducibility
fh = 20;
y = simulate(Mdl,100+fh);

Treat the first 100 observations of the simulated response data as the presample for the forecast, and treat the last 20 observations as a holdout sample.

idx0 = 1:100;
idx1 = 101:(100 + fh);
y0 = y(idx0);
y1 = y(idx1);

Compute 1- through 20-step-ahead optimal point forecasts from the model.

yf1 = forecast(Mdl,y0,fh);

yf1 is a 20-by-1 vector of optimal point forecasts.

Compute 1- through 20-step-ahead Monte Carlo point forecasts by returning the estimated forecast error variances.

[yf2,estVar] = forecast(Mdl,y0,fh);

yf2 is a 20-by-1 vector of Monte Carlo point forecasts. estVAR is a 20-by-1 vector of corresponding estimated forecast error variances.

Plot the simulated response data, forecasts, and 95% forecast intervals using the Monte Carlo estimates.

figure
hold on
plot(idx0,y0,'b');
h = plot(idx1,y1,'b--');
h1 = plot(idx1,yf1,'r');
h2 = plot(idx1,yf2,'m');
ciu = yf2 + 1.96*sqrt(estVar); % Upper 95% confidence level
cil = yf2 - 1.96*sqrt(estVar); % Lower 95% confidence level
plot(idx1,ciu,'m-.');
plot(idx1,cil,'m-.');
yfill = [ylim,fliplr(ylim)];
xfill = [idx0(end) idx0(end) idx1(end) idx1(end)];
fill(xfill,yfill,'k','FaceAlpha',0.05)
legend([h h1 h2],["Actual" "Optimal" "Estimated"],...
    'Location',"NorthWest")
title("Point and Interval Forecasts")
hold off

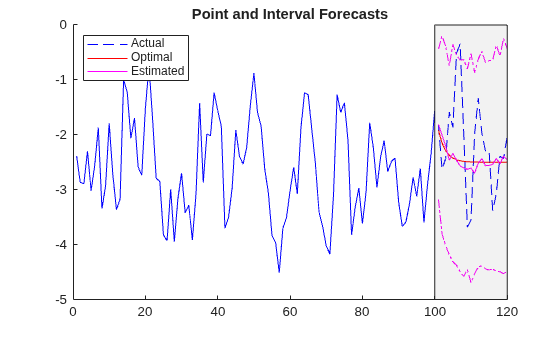

Figure contains an axes object. The axes object with title Point and Interval Forecasts contains 7 objects of type line, patch. These objects represent Actual, Optimal, Estimated.

Specify Number of Paths

Open Live Script

When forecast performs Monte Carlo methods to estimate point forecasts and forecast error covariances, you can adjust the number of paths to sample by specifying the NumPaths option.

Create the SETAR model in Compute Optimal Point Forecasts.

t = 0;
tt = threshold(t);
c1 = -1;
c2 = 1;
ar = 0.6;
mdl1 = arima(Constant=c1,AR=ar);
mdl2 = arima(Constant=c2,AR=ar);
mdl = [mdl1; mdl2];

Mdl = tsVAR(tt,mdl,Covariance=0.5);

forecast requires enough data before the forecast horizon to initialize the model. Simulate 120 observations from the DGP.

rng(100); % For reproducibility
fh = 20;
y = simulate(Mdl,100+fh);

Treat the first 100 observations of the simulated response data as the presample for the forecast, and treat the last 20 observations as a holdout sample.

idx0 = 1:100;
idx1 = 101:(100 + fh);
y0 = y(idx0);
y1 = y(idx1);

Compute 1- through 20-step-ahead optimal point forecasts from the model.

yf1 = forecast(Mdl,y0,fh);

Compute 1- through 20-step-ahead Monte Carlo point forecasts by returning the estimated forecast error variances. Specify a Monte Carlo sample of 1000 paths.

[yf2,estVar] = forecast(Mdl,y0,fh,NumPaths=1000);

yf2 is a 20-by-1 vector of Monte Carlo point forecasts. estVAR is a 20-by-1 vector of corresponding estimated forecast error variances.

Plot the simulated response data, forecasts, and 95% forecast intervals using the Monte Carlo estimates.

figure
hold on
plot(idx0,y0,'b');
h = plot(idx1,y1,'b--');
h1 = plot(idx1,yf1,'r');
h2 = plot(idx1,yf2,'m');
ciu = yf2 + 1.96*sqrt(estVar); % Upper 95% confidence level
cil = yf2 - 1.96*sqrt(estVar); % Lower 95% confidence level
plot(idx1,ciu,'m-.');
plot(idx1,cil,'m-.');
yfill = [ylim,fliplr(ylim)];
xfill = [idx0(end) idx0(end) idx1(end) idx1(end)];
fill(xfill,yfill,'k',FaceAlpha=0.05)
legend([h h1 h2],["Actual" "Optimal" "Estimated"],Location="NorthWest")
title("Point and Interval Forecasts")
hold off

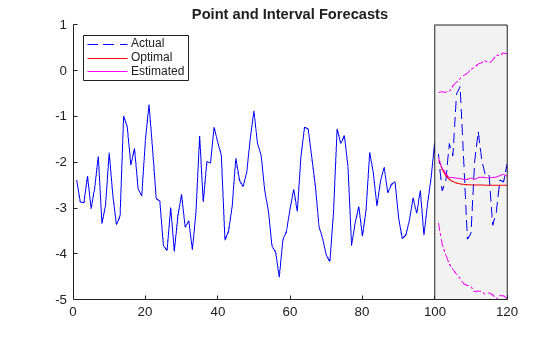

Figure contains an axes object. The axes object with title Point and Interval Forecasts contains 7 objects of type line, patch. These objects represent Actual, Optimal, Estimated.

Forecast LSTAR with Exogenous Threshold Variable

Open Live Script

Consider a logistic threshold-switching model (LSTAR) for the real US GDP growth rate, where each submodel is AR(4) and the threshold variable is the unemployment growth rate.

Create a partially specified threshold transition for the unemployment growth rate. Specify the logistic transition function, and an unknown, estimable mid-level and rate. Label the states "Contraction" and "Expansion".

tt = threshold(NaN,Type="logistic",Rates=NaN,...
    StateNames=["Contraction" "Expansion"]);

tt is a partially specified threshold object, and it is agnostic of the variable and data it represents.

Create a threshold-switching model for the real US GDP growth rate.

p = 4;
mdl = [arima(ARLags=p); arima(ARLags=p)];
Mdl = tsVAR(tt,mdl);

Mdl is a partially specified tsVAR object specifying the structure of the model and which parameters are estimable.

Load the quarterly US macroeconomic data set Data_USEconModel. Remove leading missing values in the series. Compute the real GDP percent growth and unemployment growth.

load Data_USEconModel
DataTimeTable = rmmissing(DataTimeTable,DataVariables=["GDP" "GDPDEF" "UNRATE"]);
RGDP = DataTimeTable.GDP./DataTimeTable.GDPDEF;
rRGDP = price2ret(RGDP);            % Response data
gUNRATE = diff(DataTimeTable.UNRATE);   % Exogenous thresold data
dts = DataTimeTable.Time(2:end);
T = numel(dts);

Hold out the following sets from estimation:

The first four observations as a presample for estimation.
The final 25% as a forecast horizon to compare with the forecasts.

fh = ceil(0.25*T);
idxPre = 1:p;
idxEst = (idxPre(end)+1):(T-fh);
idxF = (T-fh+1):T;

To initialize the estimation procedure, fully specify a threshold transition that has the same structure as tt, but set the mid-level to 0 and a rate of 1 (the default).

tt0 = threshold(0,Type=tt.Type);

Fit the LSTAR model to the estimation period of the US GDP growth rate series. Specify the following parameters:

Set Y0 to the responses before the estimation period to initialize the AR submodel components.
Set Type to "exogenous" to characterize the threshold variable.
Set Z to the threshold variable data gUNRATE in the estimation period.

EstMdl = estimate(Mdl,tt0,rRGDP(idxEst),Y0=rRGDP(idxPre), ...
    Type="exogenous",Z=gUNRATE(idxEst));

Forecast the real GDP growth rate series into the forecast horizon. Initialize the forecasts by specifying all responses in the estimation period (forecast uses only the latest, required observations). Characterize the threshold variable and provide its data in the forecast horizon.

yF = forecast(EstMdl,rRGDP(idxEst),fh,Type="exogenous",Z=gUNRATE(idxF));

Plot the real GDP growth rate series with the forecasts.

figure
hold on
h1 = plot(dts(idxEst),rRGDP(idxEst),'b');
h2 = plot(dts(idxF),rRGDP(idxF),'b--');
h3 = plot(dts(idxF),yF,'r');
yfill = [ylim,fliplr(ylim)];
xfill = dts([idxEst(end) idxEst(end) idxF(end) idxF(end)]);
fill(xfill,yfill,'k',FaceAlpha=0.05)
legend([h1 h2 h3],["Data (estimation)" "Data (hold out)" "Forecasts"],...
    Location="NorthWest")
title("Real GDP Growth Rate Point Forecasts")
hold off

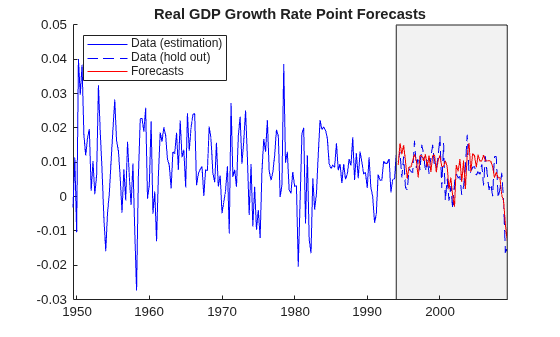

Figure contains an axes object. The axes object with title Real GDP Growth Rate Point Forecasts contains 4 objects of type line, patch. These objects represent Data (estimation), Data (hold out), Forecasts.

Forecast Multivariate LSETAR Model

Open Live Script

Consider the following 2-D LSETAR model.

State 1, "Low": $y_{t} = [\begin{array}{cccccccccccccccccccc} 1 \\ - 1 \end{array}] + ε_{1, t},$ where $ε_{1, t} \sim N ([\begin{array}{cccccccccccccccccccc} 0 \\ 0 \end{array}], [\begin{array}{cccccccccccccccccccc} 1 & - 0.1 \\ - 0.1 & 1 \end{array}]) .$
State 2 , "Med": $y_{t} = [\begin{array}{cccccccccccccccccccc} 2 \\ - 2 \end{array}] + [\begin{array}{cccccccccccccccccccc} 0.5 & 0.1 \\ 0.5 & 0.5 \end{array}] y_{t - 1} + ε_{2, t},$ where $ε_{2, t} \sim N ([\begin{array}{cccccccccccccccccccc} 0 \\ 0 \end{array}], [\begin{array}{cccccccccccccccccccc} 2 & - 0.2 \\ - 0.2 & 2 \end{array}]) .$
State 3, "High": $y_{t} = [\begin{array}{cccccccccccccccccccc} 3 \\ - 3 \end{array}] + [\begin{array}{cccccccccccccccccccc} 0.25 & 0 \\ 0 & 0 \end{array}] y_{t - 1} + [\begin{array}{cccccccccccccccccccc} 0 & 0 \\ 0.25 & 0 \end{array}] y_{t - 2} + ε_{3, t},$ where $ε_{3, t} \sim N ([\begin{array}{cccccccccccccccccccc} 0 \\ 0 \end{array}], [\begin{array}{cccccccccccccccccccc} 3 & - 0.3 \\ - 0.3 & 3 \end{array}]) .$
The system is in state 1 when $y_{2, t - 4} < - 1$ , the system is in state 2 when $- 1 \leq y_{2, t - 4} < 1$ , and the system is in state 3 otherwise.
The transition function is logistic. The transition rate from state 1 to 2 is 3.5, and the transition rate from state 1 to 3 is 1.5.

Create logistic threshold transitions at mid-levels -1 and 1 with rates 3.5 and 1.5, respectively. Label the states.

t = [-1 1];
r = [3.5 1.5];
stateNames = ["Low" "Med" "High"];
tt = threshold(t,Type="logistic",Rates=[3.5 1.5],StateNames=stateNames);

Create the VAR submodels by using varm. Store the submodels in a vector with order corresponding to the regimes in tt.StateNames.

% Constants (numSeries x 1 vectors)
C1 = [1; -1];
C2 = [2; -2];
C3 = [3; -3];

% Autoregression coefficients (numSeries x numSeries matrices)
AR1 = {};                            % 0 lags
AR2 = {[0.5 0.1; 0.5 0.5]};          % 1 lag
AR3 = {[0.25 0; 0 0] [0 0; 0.25 0]}; % 2 lags

% Innovations covariances (numSeries x numSeries matrices)
Sigma1 = [1 -0.1; -0.1 1];
Sigma2 = [2 -0.2; -0.2 2];
Sigma3 = [3 -0.3; -0.3 3];

% VAR Submodels
mdl1 = varm('Constant',C1,'AR',AR1,'Covariance',Sigma1);
mdl2 = varm('Constant',C2,'AR',AR2,'Covariance',Sigma2);
mdl3 = varm('Constant',C3,'AR',AR3,'Covariance',Sigma3);

mdl = [mdl1; mdl2; mdl3];

Create an LSETAR model from the switching mechanism tt and the state-specific submodels mdl. Label the series Y1 and Y2.

Mdl = tsVAR(tt,mdl,SeriesNames=["Y1" "Y2"])

Mdl =
  tsVAR with properties:

         Switch: [1x1 threshold]
      Submodels: [3x1 varm]
      NumStates: 3
      NumSeries: 2
     StateNames: ["Low"    "Med"    "High"]
    SeriesNames: ["Y1"    "Y2"]
     Covariance: []

Mdl is a fully specified tsVAR object representing a multivariate three-state LSETAR model. tsVAR object functions enable you to specify threshold variable characteristics and data.

Simulate Responses for Forecast Presample

You must specify enough presample observations to initialize all AR components in the VAR models and the endogenous threshold variable. The largest AR component order is 2 and the threshold variable delay is 4. Therefore, simulate and forecast require four presample observations per series and path.

Simulate one 2-D path of 100 observations from the model. Specify the endogenous threshold variable and its delay, $y_{2, t - 4}$ .

rng(1)  % For reproducibility
numObs = 100;
Y0F = simulate(Mdl,numObs,Delay=4,Index=2);

Y0F is a 100-by-2 matrix representing one random path simulated from Mdl.

Forecast Responses

Forecast the LSETAR model into a 50-period horizon. Specify the endogenous threshold variable and its delay.

fh = 50;
YF = forecast(Mdl,Y0F,fh,Index=2,Delay=4);

Y is a 20-by-2 matrix of 20 stepwise forecasted responses from Mdl.

Plot the simulated path and forecasts for each variable on separate plots.

tiledlayout(2,1)
nexttile
plot(1:100,Y0F(:,1),"b",101:(100+fh),YF(:,1),"r--")
title("Y1")
legend(["Presample" "Forecasts"])
nexttile
plot(1:100,Y0F(:,2),"b",101:(100+fh),YF(:,2),"r--")
legend(["Presample" "Forecasts"])
title("Y2")

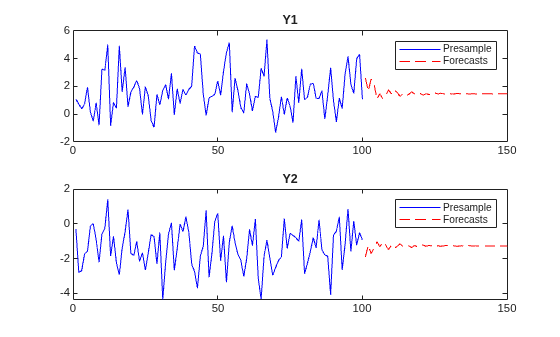

Figure contains 2 axes objects. Axes object 1 with title Y1 contains 2 objects of type line. These objects represent Presample, Forecasts. Axes object 2 with title Y2 contains 2 objects of type line. These objects represent Presample, Forecasts.

Forecast Model Containing Regression Component

Open Live Script

Consider including regression components for exogenous variables in each submodel of the threshold-switching dynamic regression model in Forecast Multivariate LSETAR Model.

Fully Specify LSETAR Model

Create logistic threshold transitions at mid-levels -1 and 1, with rates 3.5 and 1.5, respectively. Label the states.

t = [-1 1];
r = [3.5 1.5];
stateNames = ["Low" "Med" "High"];
tt = threshold(t,Type="logistic",Rates=[3.5 1.5],StateNames=stateNames)

tt =
  threshold with properties:

          Type: 'logistic'
        Levels: [-1 1]
         Rates: [3.5000 1.5000]
    StateNames: ["Low"    "Med"    "High"]
     NumStates: 3

Assume the following VARX models describe the response processes of the system:

State 1: $y_{t} = [\begin{array}{cccccccccccccccccccc} 1 \\ - 1 \end{array}] + [\begin{array}{cccccccccccccccccccc} 1 \\ - 1 \end{array}] x_{1, t} + ε_{1, t},$ where $ε_{1, t} \sim N ([\begin{array}{cccccccccccccccccccc} 0 \\ 0 \end{array}], [\begin{array}{cccccccccccccccccccc} 1 & - 0.1 \\ - 0.1 & 1 \end{array}]) .$
State 2: $y_{t} = [\begin{array}{cccccccccccccccccccc} 2 \\ - 2 \end{array}] + [\begin{array}{cccccccccccccccccccc} 2 & 2 \\ - 2 & - 2 \end{array}] x_{2, t} + [\begin{array}{cccccccccccccccccccc} 0.5 & 0.1 \\ 0.5 & 0.5 \end{array}] y_{t - 1} + ε_{2, t},$ where $ε_{2, t} \sim N ([\begin{array}{cccccccccccccccccccc} 0 \\ 0 \end{array}], [\begin{array}{cccccccccccccccccccc} 2 & - 0.2 \\ - 0.2 & 2 \end{array}]) .$
State 3: $y_{t} = [\begin{array}{cccccccccccccccccccc} 3 \\ - 3 \end{array}] + [\begin{array}{cccccccccccccccccccc} 3 & 3 & 3 \\ - 3 & - 3 & - 3 \end{array}] x_{3, t} + [\begin{array}{cccccccccccccccccccc} 0.25 & 0 \\ 0 & 0 \end{array}] y_{t - 1} + [\begin{array}{cccccccccccccccccccc} 0 & 0 \\ 0.25 & 0 \end{array}] y_{t - 2} + ε_{3, t},$ where $ε_{3, t} \sim N ([\begin{array}{cccccccccccccccccccc} 0 \\ 0 \end{array}], [\begin{array}{cccccccccccccccccccc} 3 & - 0.3 \\ - 0.3 & 3 \end{array}]) .$

$x_{1, t}$ represents a single exogenous variable, $x_{2, t}$ represents two exogenous variables, and $x_{3, t}$ represents three exogenous variables. Store the submodels in a vector.

% Constants (numSeries x 1 vectors)
C1 = [1; -1];
C2 = [2; -2];
C3 = [3; -3];

% Regression coefficients (numSeries x numRegressors matrices)
Beta1 = [1; -1];            % 1 regressor
Beta2 = [2 2; -2 -2];       % 2 regressors
Beta3 = [3 3 3; -3 -3 -3];  % 3 regressors

% Autoregression coefficients (numSeries x numSeries matrices)
AR1 = {};
AR2 = {[0.5 0.1; 0.5 0.5]};
AR3 = {[0.25 0; 0 0] [0 0; 0.25 0]};

% Innovations covariances (numSeries x numSeries matrices)
Sigma1 = [1 -0.1; -0.1 1];
Sigma2 = [2 -0.2; -0.2 2];
Sigma3 = [3 -0.3; -0.3 3];

% VARX submodels
mdl1 = varm(Constant=C1,AR=AR1,Beta=Beta1,Covariance=Sigma1);
mdl2 = varm(Constant=C2,AR=AR2,Beta=Beta2,Covariance=Sigma2);
mdl3 = varm(Constant=C3,AR=AR3,Beta=Beta3,Covariance=Sigma3);

mdl = [mdl1; mdl2; mdl3];

Create an LSETAR model from the switching mechanism tt and the state-specific submodels mdl. Label the series Y1 and Y2.

Mdl = tsVAR(tt,mdl,SeriesNames=["Y1" "Y2"]);

Forecast Responses Ignoring Regression Component

If you do not supply exogenous data, forecast ignores the regression components in the submodels.

Obtain a presample, from which to forecast, by simulating one 2-D path of 100 observations from the model. Specify the endogenous threshold variable and its delay, $y_{2, t - 4}$ .

rng(1)  % For reproducibility
numObs = 100;
Y0F = simulate(Mdl,numObs,Delay=4,Index=2);

Forecast the LSETAR model into a 50-period horizon. Specify the endogenous threshold variable and its delay.

fh = 50;
YF = forecast(Mdl,Y0F,fh,Index=2,Delay=4);

Plot the simulated path and forecasts for each variable on separate plots.

figure;
plot(1:numObs,Y0F(:,1),"b",(numObs+1):(numObs+fh),YF(:,1),"r--")
title("Y1")
legend(["Presample" "Forecasts"])
nexttile

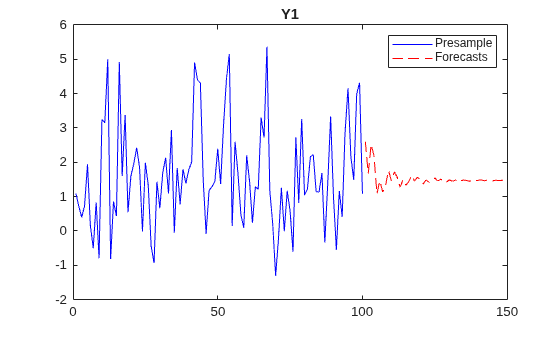

Figure contains an axes object. The axes object with title Y1 contains 2 objects of type line. These objects represent Presample, Forecasts.

plot(1:numObs,Y0F(:,2),"b",(numObs+1):(numObs+fh),YF(:,2),"r--")
legend(["Presample" "Forecasts"])
title("Y2")

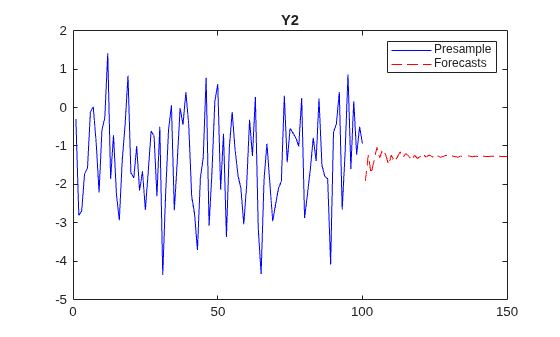

Figure contains an axes object. The axes object with title Y2 contains 2 objects of type line. These objects represent Presample, Forecasts.

Simulate Data Including Regression Component

To generate random paths from the model, forecast requires expgenous data.

Assume the following AR models for the regressors:

$x_{1, t} = 1 + 0.1 x_{1, t - 1} + ν_{1, t}$ , where $ν_{1, t} \sim Ν (0, 1)$ .
$x_{2, t} = 2 + 0.2 x_{2, t - 2} + ν_{2, t}$ , where $ν_{2, t} \sim Ν (0, 2)$ .
$x_{3, t} = 3 + 0.3 x_{3, t - 3} + ν_{3, t}$ , where $ν_{1, t} \sim Ν (0, 3)$ .

MdlX1 = arima(Constant=1,AR={0.1},Variance=1);
MdlX2 = arima(Constant=2,AR={0 0.2},Variance=2);
MdlX3 = arima(Constant=3,AR={0 0 0.3},Variance=3);

Simulate 100 observations from each model to represent in-sample data for the exogenous predictors.

X10F = simulate(MdlX1,numObs);
X20F = simulate(MdlX2,numObs);
X30F = simulate(MdlX3,numObs);
X0F = [X10F X20F X30F];

Forecast 50 observations from each model to represent exogenous data in the forecast horizon. Specify the simulated in-sample data as a presample.

X1F = forecast(MdlX1,numObs,Y0=X10F);
X2F = forecast(MdlX2,numObs,Y0=X20F);
X3F = forecast(MdlX3,numObs,Y0=X30F);
XF = [X1F X2F X3F];

Obtain presample response data, from which to forecast, by simulating one 2-D path of 100 observations from the model. Specify the endogenous threshold variable and its delay, and specify the simulated exogenous data.

Y0FX = simulate(Mdl,numObs,Delay=4,Index=2,X=X0F);

Forecast the LSETAR model into a 50-period horizon. Specify the endogenous threshold variable and its delay, and specify the exogenous data in the forecast horizon.

YFX = forecast(Mdl,Y0FX,fh,Index=2,Delay=4,X=XF);

figure;
plot(1:numObs,Y0FX(:,1),"b",(numObs+1):(numObs+fh),YFX(:,1),"r--")
title("Y1")
legend(["Presample" "Forecasts"])
nexttile

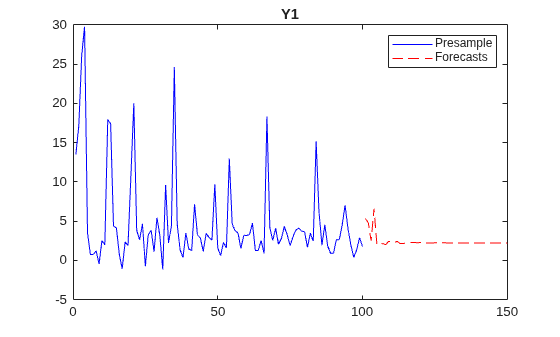

Figure contains an axes object. The axes object with title Y1 contains 2 objects of type line. These objects represent Presample, Forecasts.

plot(1:numObs,Y0FX(:,2),"b",(numObs+1):(numObs+fh),YFX(:,2),"r--")
legend(["Presample" "Forecasts"])
title("Y2")

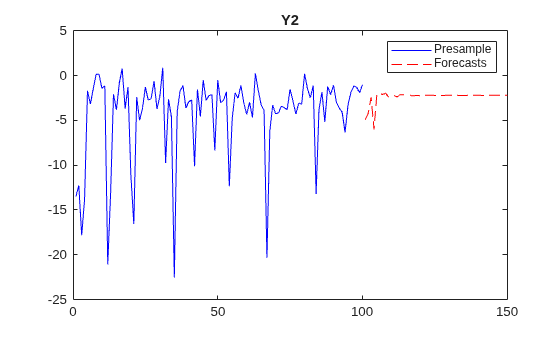

Figure contains an axes object. The axes object with title Y2 contains 2 objects of type line. These objects represent Presample, Forecasts.

Input Arguments

collapse all

`Mdl` — Fully specified threshold-switching dynamic regression model
`tsVAR` model object

Fully specified threshold-switching dynamic regression model, specified as an tsVAR model object returned by tsVAR or estimate. Properties of a fully specified model object do not contain NaN values.

`Y` — Response data
numeric matrix

Response data that provides initial values for the forecasts, specified as a numObs-by-numSeries numeric matrix.

numObs is the sample size. numSeries is the number of response variables (Mdl.NumSeries).

Rows correspond to observations, and the last row contains the latest observation. Columns correspond to individual response variables.

Y must contain enough observations to initialize AR terms of all submodels. For self-exciting models, Y must also contain enough observations to initialize the delayed response y_j,t−d.

The forecasts YF represent the continuation of Y.

Data Types: double

`numPeriods` — Forecast horizon
positive integer

Forecast horizon, or the number of time points in the forecast period, specified as a positive integer.

Data Types: double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'X',X uses the matrix X as exogenous data in the forecast horizon to evaluate regression components in the model.

`Type` — Type of threshold variable data
`"endogenous"` (default) | `"exogenous"`

Type of threshold variable data, specified as a value in this table.

Value Description

Value	Description
`"endogenous"`	The model is self-exciting with threshold variable data $z_{t} = y_{j, (t - d)},$ generated by response j, where The name-value argument `'Delay'` specifies the delay d. The name-value argument `'Index'` specifies the component j of the multivariate response variable.
`"exogenous"`	The threshold variable is exogenous to the system. The name-value argument `'Z'` specifies the threshold variable data and is required.

"endogenous"

The model is self-exciting with threshold variable data $z_{t} = y_{j, (t - d)},$ generated by response j, where

The name-value argument 'Delay' specifies the delay d.
The name-value argument 'Index' specifies the component j of the multivariate response variable.

"exogenous" The threshold variable is exogenous to the system. The name-value argument 'Z' specifies the threshold variable data and is required.

Example: Type="exogenous",Z=z specifies the data z for the exogenous threshold variable.

Example: Type="endogenous",Index=2,Delay=4 specifies the endogenous threshold variable as y_2,t−4, whose data is Y(:,2).

Data Types: char | string | cell

`Z` — Threshold variable data z_t
empty array (`[]`) (default) | numeric vector | numeric matrix

Threshold variable data in the forecast horizon, for forecasts of type "exogenous", specified as a numeric vector of length numPeriods.

Data Types: double

`Delay` — Threshold variable delay d in y_j,t−d
`1` (default) | positive integer

Threshold variable delay d in y_j,t−d, for forecasts of type "endogenous", specified as a positive integer.

Example: Delay=4 specifies that the threshold variable is y_2,t−d, where j is the value of Index.

Data Types: double

`Index` — Threshold variable index j in y_j,t−d
`1` (default) | scalar in `1:Mdl.NumSeries`

Threshold variable index j in y_j,t−d, for forecasts of type "endogenous", specified as a scalar in 1:Mdl.NumSeries.

forecast ignores Index for univariate AR models.

Example: Index=2 specifies that the threshold variable is y_2,t−d, where d is the value of Delay.

Data Types: double

`X` — Predictor data
numeric matrix | cell vector of numeric matrices

Predictor data in the forecast horizon used to evaluate regression components in all submodels of Mdl, specified as a numeric matrix or a cell vector of numeric matrices. The first row of X contains observations in the period after the period represented by the last observation in Y.

To use a subset of the same predictors in each state, specify X as a matrix with numPreds columns and at least numPeriods rows. Columns correspond to distinct predictor variables. Submodels use initial columns of the associated matrix, in order, up to the number of submodel predictors. The number of columns in the Beta property of Mdl.SubModels(j) determines the number of exogenous variables in the regression component of submodel j. If the number of rows exceeds numPeriods, then forecast uses the earliest observations.

To use different predictors in each state, specify a cell vector of such matrices with length numStates.

By default, forecast ignores the regression components in Mdl.

Data Types: double

`NumPaths` — Number of sample paths to generate
`100` (default) | positive integer

Number of sample paths to generate for the simulation, specified as a positive integer. If forecast returns only YF, it ignores NumPaths.

Example: NumPaths=1000

Data Types: double

Output Arguments

collapse all

`YF` — Point forecasts
numeric matrix

Point forecasts, returned as a numPeriods-by-numSeries numeric matrix.

If forecast returns only YF, represents stepwise-optimal forecasts. Otherwise, forecast uses Monte Carlo simulation to estimate YF.

`EstCov` — Forecast error covariances
numeric column vector | numeric array

Forecast error covariances, returned as a numeric column vector or numeric array.

If the submodels Mdl.SubModels represent univariate ARX models, EstCov is a numPeriods-by-1 vector. If Mdl.SubModels represent multivariate VARX models, EstCov is a numSeries-by-numSeries-by-numPeriods array.

forecast performs Monte Carlo simulation to compute EstCov.

Note

Forecast methods for STAR models are discussed in [6].
One-step forecasts are minimum-mean-squared-error optimal, but they can become biased over extended horizons [1].
Simulation-based forecasts often perform better for extended forecasts [2], [3], [4].

Tips

Models with exogenous threshold variables or regression components require data 'Z' or 'X', respectively, in the forecast period. If such data is available only during the sampling period for Y, use arima object functions to model, estimate, and forecast exogenous series.

References

[1] Brown, Bryan W., and Roberto S. Mariano. "Predictors in Dynamic Nonlinear Models: Large-Sample Behavior." Econometric Theory, 5 (December 1989): 430–52. https://doi.org/10.1017/S0266466600012603.

[2] Clements, Michael P., and Jeremy Smith. "The Performance of Alternative Forecasting Methods for SETAR Models." International Journal of Forecasting, 13 (December 1997): 463–75. https://doi.org/10.1016/S0169-2070(97)00017-4.

[3] Hyndman, Rob J. "Highest-Density Forecast Regions for Nonlinear and Non-Normal Time Series Models." Journal of Forecasting, 14 (September 1995): 431–41. https://doi.org/10.1002/for.3980140503.

[4] Lin, Jin-Lung, and Clive W. J. Granger. "Forecasting from Non-Linear Models in Practice." Journal of Forecasting, 3 (January 1994): 1–9. https://doi.org/10.1002/for.3980130102.

[5] Teräsvirta, Tima. "Modelling Economic Relationships with Smooth Transition Regressions." In A. Ullahand and D.E.A. Giles (eds.), Handbook of Applied Economic Statistics, 507–552. New York: Marcel Dekker, 1998.

[6] van Dijk, Dick. Smooth Transition Models: Extensions and Outlier Robust Inference. Rotterdam, Netherlands: Tinbergen Institute Research Series, 1999.

Version History

Introduced in R2021b

forecast

Syntax

Description

Examples

Compute Optimal Point Forecasts

Compute Estimated Point Forecasts and Forecast Error Variances

Specify Number of Paths

Forecast LSTAR with Exogenous Threshold Variable

Forecast Multivariate LSETAR Model

Forecast Model Containing Regression Component

Input Arguments

`Mdl` — Fully specified threshold-switching dynamic regression model
`tsVAR` model object

`Y` — Response data
numeric matrix

`numPeriods` — Forecast horizon
positive integer

Name-Value Arguments

`Type` — Type of threshold variable data
`"endogenous"` (default) | `"exogenous"`

`Z` — Threshold variable data z_t
empty array (`[]`) (default) | numeric vector | numeric matrix

`Delay` — Threshold variable delay d in y_j,t−d
`1` (default) | positive integer

`Index` — Threshold variable index j in y_j,t−d
`1` (default) | scalar in `1:Mdl.NumSeries`

`X` — Predictor data
numeric matrix | cell vector of numeric matrices

`NumPaths` — Number of sample paths to generate
`100` (default) | positive integer

Output Arguments

`YF` — Point forecasts
numeric matrix

`EstCov` — Forecast error covariances
numeric column vector | numeric array

Tips

References

Version History

See Also

Objects

Functions

Topics

forecast

Syntax

Description

Examples

Compute Optimal Point Forecasts

Compute Estimated Point Forecasts and Forecast Error Variances

Specify Number of Paths

Forecast LSTAR with Exogenous Threshold Variable

Forecast Multivariate LSETAR Model

Forecast Model Containing Regression Component

Input Arguments

Mdl — Fully specified threshold-switching dynamic regression model tsVAR model object

Y — Response data numeric matrix

numPeriods — Forecast horizon positive integer

Name-Value Arguments

Type — Type of threshold variable data "endogenous" (default) | "exogenous"

Z — Threshold variable data zt empty array ([]) (default) | numeric vector | numeric matrix

Delay — Threshold variable delay d in yj,t−d 1 (default) | positive integer

Index — Threshold variable index j in yj,t−d 1 (default) | scalar in 1:Mdl.NumSeries

X — Predictor data numeric matrix | cell vector of numeric matrices

NumPaths — Number of sample paths to generate 100 (default) | positive integer

Output Arguments

YF — Point forecasts numeric matrix

EstCov — Forecast error covariances numeric column vector | numeric array

Tips

References

Version History

See Also

Objects

Functions

Topics

`Mdl` — Fully specified threshold-switching dynamic regression model
`tsVAR` model object

`Y` — Response data
numeric matrix

`numPeriods` — Forecast horizon
positive integer

`Type` — Type of threshold variable data
`"endogenous"` (default) | `"exogenous"`

`Z` — Threshold variable data z_t
empty array (`[]`) (default) | numeric vector | numeric matrix

`Delay` — Threshold variable delay d in y_j,t−d
`1` (default) | positive integer

`Index` — Threshold variable index j in y_j,t−d
`1` (default) | scalar in `1:Mdl.NumSeries`

`X` — Predictor data
numeric matrix | cell vector of numeric matrices

`NumPaths` — Number of sample paths to generate
`100` (default) | positive integer

`YF` — Point forecasts
numeric matrix

`EstCov` — Forecast error covariances
numeric column vector | numeric array
