bollinger

Time series Bollinger band

collapse all in page

Syntax

[middle,upper,lower] = bollinger(Data)
[middle,upper,lower] = bollinger(___,Name,Value)

Description

[middle,upper,lower] = bollinger(Data) calculates the middle, upper, and lower bands that make up the Bollinger bands from a series of data. A Bollinger band chart plots actual asset data along with three other bands of data: the upper band that is two standard deviations above a user-specified moving average; the lower band that is two standard deviations below that moving average; and the middle band that is the moving average itself.

example

[middle,upper,lower] = bollinger(___,Name,Value) adds optional name-value pair arguments.

example

Examples

collapse all

Open Live Script

Load the file SimulatedStock.mat, which provides a timetable (TMW) for financial data for TMW stock.

load SimulatedStock.mat
[middle,upper,lower]= bollinger(TMW);
CloseBolling = [middle.Close, upper.Close,...
lower.Close];
plot(middle.Time,CloseBolling)
title('Bollinger Bands for TMW Closing Prices')

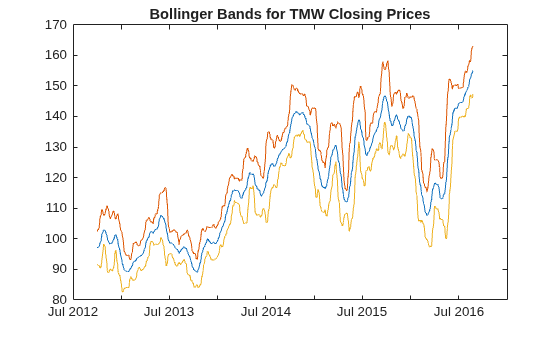

Figure contains an axes object. The axes object with title Bollinger Bands for TMW Closing Prices contains 3 objects of type line.

Input Arguments

collapse all

Data for market prices, specified as a matrix, table, or timetable. For matrix input, Data must be column-oriented.

Data Types: double | table | timetable

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: [middle,upper,lower] = bollinger(TMW_CLOSE,'WindowSize',10,'Type',1)

Number of observations of the input series to include in the moving average in periods, specified as the comma-separated pair consisting of 'WindowSize' and a scalar positive integer.

Data Types: double

Type of moving average to compute, specified as the comma-separated pair consisting of 'Type' and a scalar integer with a value of 0 (simple) or 1 (linear).

Data Types: double

Number of standard deviations for the upper and lower bounds, specified as the comma-separated pair consisting of 'NumStd' and a scalar positive integer.

Data Types: double

Output Arguments

collapse all

Moving average series representing the middle band, returned with the same number of rows (M) and the same type (matrix, table, or timetable) as the input Data.

Moving average series representing the upper band, returned with the same number of rows (M) and the same type (matrix, table, or timetable) as the input Data.

Moving average series representing the lower band, returned with the same number of rows (M) and the same type (matrix, table, or timetable) as the input Data.

References

[1] Achelis, S. B. Technical Analysis from A to Z. Second Edition. McGraw-Hill, 1995, pp. 72–74.

Version History

Introduced before R2006a
