renko

Renko

collapse all in page

Syntax

renko(Data)
renko(Data,Threshold,)
h = renko(ax,___)

Description

renko(Data) plots a Renko chart from a series of prices of a security.

example

renko(Data,Threshold,) adds an optional argument for Threshold.

example

h = renko(ax,___) adds an optional argument for ax.

example

Examples

collapse all

Open Live Script

Load the file SimulatedStock.mat, which provides a timetable (TMW) for financial data for TMW stock. This example shows how to plot a Renko chart for the most recent 21 days. Note that the variable name of asset price is renamed to 'Price' (case insensitive).

load SimulatedStock.mat
TMW.Properties.VariableNames{'Close'} = 'Price';
renko(TMW(end-8:end,:),2)
title('Renko Chart for TMW')

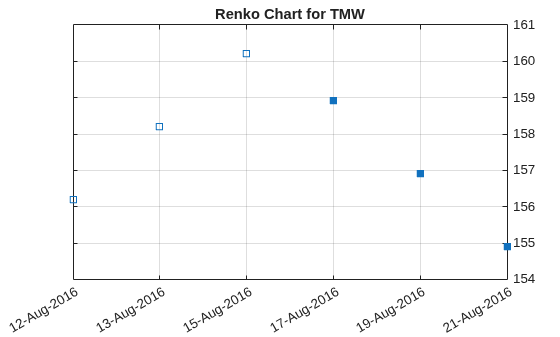

Figure contains an axes object. The axes object with title Renko Chart for TMW contains 2 objects of type line. One or more of the lines displays its values using only markers

Input Arguments

collapse all

Data for a series of prices, specified as a matrix, table, or timetable. Timetables and tables with M rows must contain a variable named 'Price' (case insensitive).

Data Types: double | table | timetable

Least price change value when adding a new box, specified as a scalar positive numeric value.

Data Types: double

(Optional) Valid axis object, specified as an axes object. The renko plot is created in the axes specified by ax instead of in the current axes (ax = gca). The option ax can precede any of the input argument combinations.

Data Types: object

Output Arguments

collapse all

Graphic handle of the figure, returned as a handle object.

Version History

Introduced in R2008a
