Scalarization of Vector Ports in Generated VHDL Code

Open Script

This example shows how to flatten the vector signals in a Simulink® model into a structure of scalar signals in the generated VHDL® code.

Specify Scalarization of Vector Ports

When you generate Verilog code, by default, the vector signals are flattened into scalars by default. When you generate VHDL code, you can specify whether to flatten the vector signals on the entire model or at the DUT level. Flattening the vector ports at only the DUT level speeds up code generation, especially for large models that have many vector inputs.

When generating HDL code from MATLAB® and Simulink, you can scalarize the vector ports into scalars. For the MATLAB® to HDL workflow, in the HDL Code Generation task, on the Clocks & Ports tab, set Scalarize ports to dutlevel or on.

To scalarize the vector ports when generating HDL code for a Simulink model:

  • In the Configuration Parameters dialog box, on the HDL Code Generation > Global Settings > Ports tab, set Scalarize Ports parameter to dutlevel or on.

  • In the HDL Workflow Advisor, on the HDL Code Generation > Set Code Generation Options > Set Advanced Options > Ports tab, set Scalarize ports parameter to dutlevel or on.

  • At the MATLAB command prompt, set the ScalarizePorts property to on or dutlevel by using hdlset_param or makehdl.

Vector Sum Model

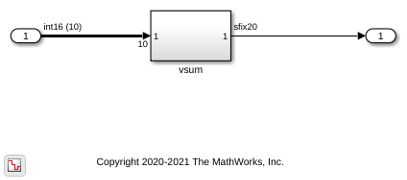

To see the flattening of vector ports, open the model hdlcoder_hdlcoder_vector_sum_nested. The model is driven by a vector input of width 10 and has a scalar output.

open_system('hdlcoder_vector_sum_nested')
set_param('hdlcoder_vector_sum_nested','SimulationCommand','update')

This model is the same as the simplevectorsum model and consists of a Subsystem, vsum_mid, inside the vsum subsystem.

open_system('hdlcoder_vector_sum_nested/vsum')

The vsum_mid subsystem contains a Sum of Elements block that is configured for vector summation. The model is configured to use the Tree implementation when generating HDL code for the Sum of Elements block within the vsum subsystem. This implementation is optimized for minimal latency, generates a tree-shaped structure of adders for the block.

open_system('hdlcoder_vector_sum_nested/vsum/vsum_mid')

Scalarize Vector Ports

By default, the ScalarizePorts property is off. HDL Coder™ generates a type definition and port declaration for the vector port In1, as shown in this code.

PACKAGE simplevectorsum_pkg IS
  TYPE vector_of_std_logic_vector16 IS ARRAY (NATURAL RANGE <>)
     OF std_logic_vector(15 DOWNTO 0);
  TYPE vector_of_signed16 IS ARRAY (NATURAL RANGE <>) OF signed(15 DOWNTO 0);
END simplevectorsum_pkg;

...

ENTITY vsum IS
  PORT( In1     :  IN    vector_of_std_logic_vector16(0 TO 9);  -- int16 [10]
        Out1    :  OUT   std_logic_vector(19 DOWNTO 0)  -- sfix20
      );
END vsum;

To scalarize the vector ports when generating HDL code, either set the Scalarize ports parameter in the Configuration Parameters dialog box or set the ScalarizePorts property to on or dutlevel by using the hdlset_param or makehdl functions. When you set ScalarizePorts to dutlevel, only the vector signals at the DUT are flattened into scalars. The scalars are input to the vsim_mid subsystem as vectors.

makehdl('hdlcoder_vector_sum_nested/vsum', 'ScalarizePorts', 'dutlevel')

ENTITY vsum IS
  PORT( In1_0                :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_1                :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_2                :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_3                :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_4                :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_5                :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_6                :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_7                :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_8                :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_9                :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        Out1                 :   OUT   std_logic_vector(19 DOWNTO 0)  -- sfix20
        );
END vsum;

ENTITY vsum_mid IS
  PORT( In1                               :   IN    vector_of_std_logic_vector16(0 TO 9);  -- int16 [10]
        Out1                              :   OUT   std_logic_vector(19 DOWNTO 0)  -- sfix20
        );
END vsum_mid;

You can change the starting index for the names of scalarized vector ports from Zero-based to One-based by setting the model configuration parameter Indexing for scalarized port naming to One-based.

To flatten the vector ports on the entire model, set ScalarizePorts to on. The vector ports at vsum_mid and the inputs to the Sum of Elements block are also flattened into scalars.

makehdl('hdlcoder_vector_sum_nested/vsum', 'ScalarizePorts', 'on')

ENTITY vsum_mid IS
  PORT( In1_0                             :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_1                             :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_2                             :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_3                             :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_4                             :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_5                             :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_6                             :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_7                             :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_8                             :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        In1_9                             :   IN    std_logic_vector(15 DOWNTO 0);  -- int16
        Out1                              :   OUT   std_logic_vector(19 DOWNTO 0)  -- sfix20
        );
END vsum_mid;

Usage Notes and Restrictions

  • When you use the ScalarizePorts property for a protected model, you must use the same value for this property as the value specified for this parameter in the top model from which it is referenced.

  • When you use the IP Core Generation and FPGA-in-the-Loop workflows, vector ports are not supported. Set ScalarizePorts as on or dutlevel. For faster code generation, set ScalarizePorts to dutlevel.

  • Vector or matrix ports as input to a model reference interface must be scalarized before generating HDL code. Set ScalarizePorts to dutlevel.

  • By default, Generate VHDL code for model references into a single library is enabled. The VHDL code is generated in a single library instead of separate libraries. In this case, set the ScalarizePorts property to off before generating HDL code.

  • When generating code, if you encounter typing or naming conflicts between vector ports when interfacing two or more generated VHDL code modules, use the ScalarizePorts property to generate non-conflicting port definitions.
