data2state

Map past data to states of state-space and nonlinear ARX models

Description

X = data2state(sys,PastData) maps the past data to the states of a state-space or a nonlinear ARX model sys.

PastData can be a timetable, a comma-separated input/output matrix pair, or a time-domain iddata object.

For timetables and data objects, data2state matches the input/output channels based on the channel names in sys and ignores nonmatching channels.

X contains the state values at the time instant immediately after the most recent data sample in PastData. The software computes the state estimates by minimizing the 1-step ahead prediction error between predicted response and output signal in PastData.

data2state is useful for continued model simulation. That is, suppose you have simulated a model up to a certain time instant and would like to then simulate the model for future inputs. Use data2state to estimate states of the model at the beginning of the second simulation.

example

[X,XCov] = data2state(sys,PastData) returns the estimated covariance, XCov, of the current states.

example

Examples

collapse all

Compute the mapped states of an identified model, and use the states as initial state values for model simulation.

Load estimation data.

load iddata3 z3

Estimate a second-order state-space model using the data.

sys = ssest(z3,2);

Simulate the model using the entire input signal in z3.

Input = z3(:,[],:); % |iddata| object containing only the input signal
y_all = sim(sys,Input);

sim uses zero initial conditions to compute y_all.

Now simulate the model using only the first-half of the input signal.

Input1 = Input(1:150);
y_1 = sim(sys,Input1);

Continue the simulation with the second-half of the input signal such that the results show no discontinuity owing to initial-condition-induced transients. To do so, first construct a past data set comprising of the input and simulated output from the first-half of the input signal. Then calculate the state values corresponding to the start of the second-half of the input signal (t = 151).

PastData = [y_1,Input1];
X = data2state(sys,PastData);

X contains the state values at the time instant immediately after the most recent data sample in PastData. This time point is also the start of the future data (second-half of the input signal).

FutureData = Input(151:end);

Simulate the model using the second-half of the input signal and X as initial conditions.

opt = simOptions('InitialCondition',X);
y_2 = sim(sys,FutureData,opt);

Verify that y_2 matches the second half of y_all.

plot(y_all,y_2,'r.')
legend('Simulation using all input data',...
    'Separate simulation of second-half of input data')

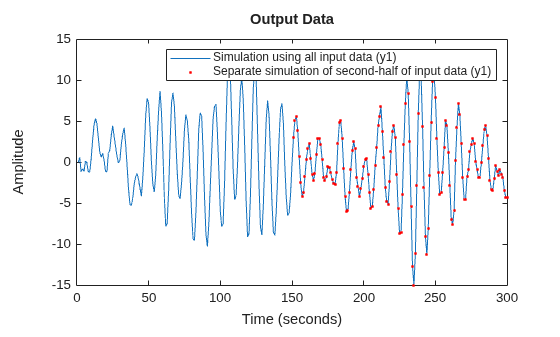

Figure contains an axes object. The axes object with title y1 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Simulation using all input data, Separate simulation of second-half of input data.

Load the past data.

load iddata1 z1
PastData = z1;

Estimate an ARX model.

sys = arx(PastData,[1 1 0]);

Convert the model to a state-space model.

sys2 = idss(sys);

Calculate the mapped states and covariance of states using PastData.

[X,XCov] = data2state(sys2,PastData);

X is the state value at the time instant immediately after the most recent data sample in PastData.

Load your data and create a data object.

load motorizedcamera;
z = iddata(y,u,0.02,'Name','Motorized Camera','TimeUnit','s');

Estimate a nonlinear ARX model.

mw1 = nlarx(z,[ones(2,2),ones(2,6),ones(2,6)],'idWaveletNetwork');

The estimated model has six inputs and two outputs.

Determine the model order, nx.

nx = order(mw1);

Use the first nx samples of data to generate initial conditions.

PastData = struct('Input', z.u(1:nx,:),'Output',z.y(1:nx,:));

Compute the mapped states of the model.

X = data2state(mw1,PastData);

X is the state value at the time instant immediately after the most recent data sample in PastData.

Simulate the model using the remaining input data, and specify the initial conditions for simulation.

InputSignal = z.u(nx+1:end,:);
opt = simOptions;
opt.InitialCondition = X;
sim(mw1,InputSignal,opt)

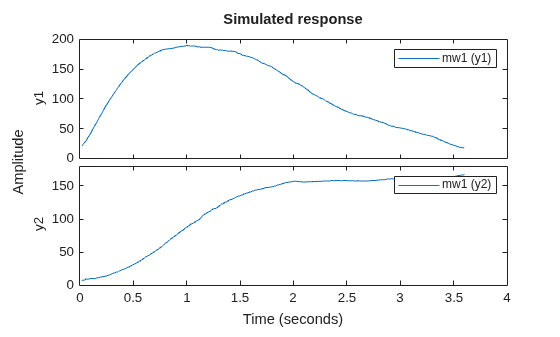

Figure contains 2 axes objects. Axes object 1 with title y1 contains an object of type line. This object represents mw1. Axes object 2 with title y2 contains an object of type line. This object represents mw1.

Input Arguments

collapse all

Identified model whose current states are estimated, specified as one of the following:

Past input-output data that contains a number of samples that is greater than or equal to the model order. To determine the model order, use order.

Specify PastData as one of the following:

  • Timetable that uses a regularly spaced time vector. For the timetable data type, PastData contains variables representing the input and output channels.

  • Comma-separated pair of input and output matrices with dimensions Ns-by-Nu for the input matrix and Ns-by-Ny for the output matrix

    Use matrix data only for discrete-time systems.

  • iddata object

    X is the value of model states at time PastData.SamplingInstants(end) + PastData.Ts.

  • Structure — Specified as a structure with the following fields:

    • Input — Past input data, specified as an N-by-Nu matrix, where N is great than or equal to the model order.

    • Output — Past output data, specified as an N-by-Ny matrix, where N is great than or equal to the model order.

    Specify PastData as a structure only when sys is a discrete-time model.

When sys is continuous-time, specify PastData as a timetable or an iddata object. X then corresponds to the discretized (c2d) version of the model, where the discretization method is stored in the InterSample property of PastData.

The data samples in PastData should be in the order of increasing time. That is, the last row in PastData should correspond to the latest time.

Output Arguments

collapse all

Mapped states of model, returned as a row vector of size equal to the number of states. X contains the state value at the time instant immediately after the most recent data sample in PastData. That is, if PastData is an iddata object, X is the state value at time t = PastData.SamplingInstants(end)+PastData.Ts.

Estimated covariance of state values, returned as a matrix of size Nx-by-Nx, where Nx is the number of states.

XCov is empty if sys is a nonlinear ARX model.
