meshlsrm

3-D lighted shaded relief of regular data grid on axesm-based map

Syntax

meshlsrm(Z,R) meshlsrm(Z,R,[azim elev]) meshlsrm(Z,R,[azim elev],cmap) meshlsrm(Z,R,[azim elev],cmap,clim) h = meshlsrm(...)

Description

meshlsrm(Z,R) displays the regular data grid Z colored according to elevation and surface slopes. Specify R as a GeographicCellsReference object or a GeographicPostingsReference object. The RasterSize property of R must be consistent with size(Z).

meshlsrm(Z,R,[azim elev]) displays the regular data grid Z with the light coming from the specified azimuth and elevation. Angles are specified in degrees, with the azimuth measured clockwise from North, and elevation up from the zero plane of the surface.

meshlsrm(Z,R,[azim elev],cmap) displays the regular data grid Z using the specified colormap. The number of grayscales is chosen to keep the size of the shaded colormap below 256. If the vector of azimuth and elevation is empty, the default locations are used. Color axis limits are computed from the data.

meshlsrm(Z,R,[azim elev],cmap,clim) uses the provided color axis limits, which by default are computed from the data.

h = meshlsrm(...) returns the handle to the surface drawn.

Examples

Load elevation data and a geographic cells reference object for the Korean peninsula. Create a world map using appropriate latitude and longitude limits for the peninsula. Then, display a lighted shaded relief map. By default, meshlsrm applies a colormap appropriate for elevation data.

load korea5c
worldmap(korea5c,korea5cR)
meshlsrm(korea5c,korea5cR,[45 65])

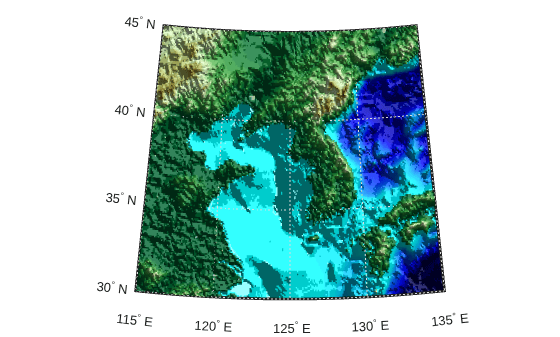

Lighted shaded relief map of an area surrounding the Korean peninsula

Tips

This function effectively multiplies two colormaps, one with color based on elevation, the other with a grayscale based on the slope of the surface, to create a new colormap. This produces an effect similar to using a light on a surface, but with all of the visible colors actually in the colormap. Lighting calculations are performed on the unprojected data.

Version History

Introduced before R2006a

expand all

R2024b: `meshlsrm` does not accept referencing vectors or referencing matrices as input

The meshlsrm function does not accept referencing vectors or referencing matrices as input. Use a geographic raster reference object, specified as a GeographicCellsReference or GeographicPostingsReference object, as input instead. Reference objects have several advantages over referencing vectors and referencing matrices.

Unlike referencing vectors and referencing matrices, reference objects have properties that document the size of the associated raster, its geographic limits, and the direction of its rows and columns.
You can manipulate the limits of geographic rasters associated with reference objects using the geocrop function.
You can manipulate the size and resolution of geographic rasters associated with reference objects using the georesize function.

To update your code, create a geographic reference object.

Create a geographic reference object for a raster of cells by using the georefcells function.
Create a geographic reference object for a raster of regularly posted samples by using the georefpostings function.
Convert from a referencing vector to a geographic reference object by using the refvecToGeoRasterReference function.
Convert from a referencing matrix to a geographic reference object by using the refmatToGeoRasterReference function.

Once you have created a reference object, replace uses of the referencing vector or referencing matrix in your code with the reference object.

R2023b: `meshlsrm` will not accept referencing vectors or referencing matrices as input

When you specify a referencing vector or referencing matrix as input, the meshlsrm function issues a warning that it will not accept referencing vectors or referencing matrices as input in a future release.
