transreduction

Transitive reduction

collapse all in page

Syntax

H = transreduction(G)

Description

H = transreduction(G) returns the transitive reduction of graph G as a new graph, H. The nodes in H are the same as those in G, but H has different edges. H contains the fewest number of edges such that if there is a path from node i to node j in G, then there is also a path from node i to node j in H.

example

Examples

collapse all

Open Live Script

Create and plot a complete graph of order four.

G = digraph([1 1 1 2 2 2 3 3 3 4 4 4],[2 3 4 1 3 4 1 2 4 1 2 3]);

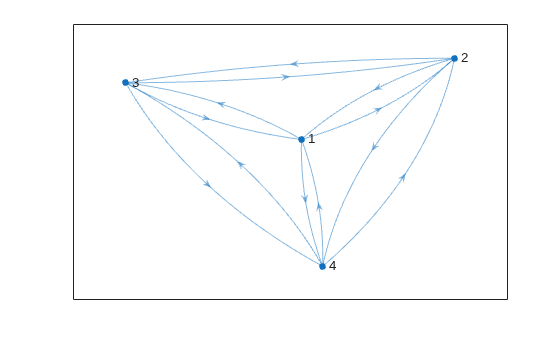

plot(G)

Figure contains an axes object. The axes object contains an object of type graphplot.

Find the transitive reduction and plot the resulting graph. Since the reachability in a complete graph is extensive, there are theoretically several possible transitive reductions, as any cycle through the four nodes is a candidate.

H = transreduction(G);

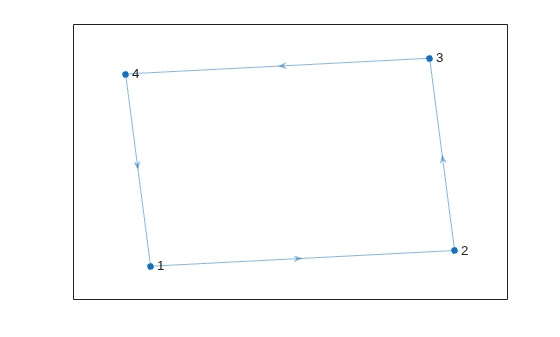

plot(H)

Figure contains an axes object. The axes object contains an object of type graphplot.

Two graphs with the same reachability also have the same transitive reduction. Therefore, any cycle of four nodes produces the same transitive reduction as H.

Create a directed graph that contains a different four node cycle: (1,3,4,2,1).

G1 = digraph([1 3 4 2],[3 4 2 1]);
plot(G1)

Figure contains an axes object. The axes object contains an object of type graphplot.

Find the transitive reduction of G1. The cycle in G1 is reordered so that the transitive reductions H and H1 have the same cycle, (1,2,3,4,1).

H1 = transreduction(G1);

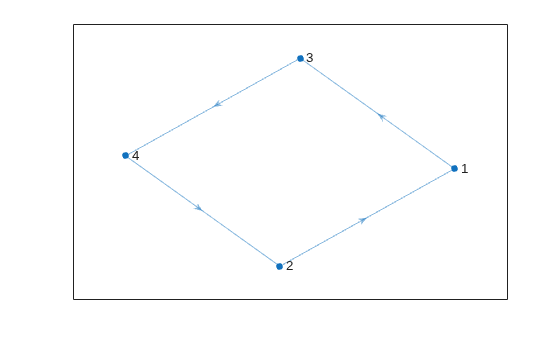

plot(H1)

Figure contains an axes object. The axes object contains an object of type graphplot.

Open Live Script

Create and plot a directed acyclic graph.

s = [1 1 1 1 2 3 3 4];
t = [2 3 4 5 4 4 5 5];
G = digraph(s,t);

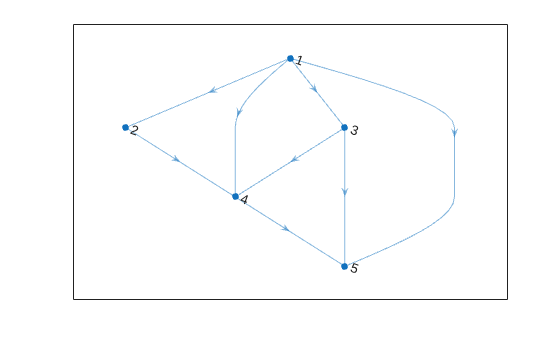

plot(G)

Figure contains an axes object. The axes object contains an object of type graphplot.

Confirm that G does not contain any cycles.

tf = isdag(G)
tf = logical
   1

Find the transitive reduction of the graph. Since the graph does not contain cycles, the transitive reduction is unique and is a subgraph of G.

H = transreduction(G);

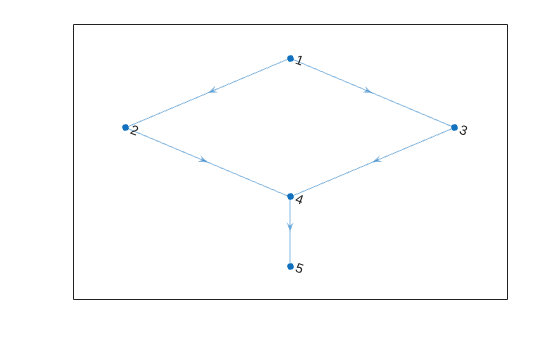

plot(H)

Figure contains an axes object. The axes object contains an object of type graphplot.

Input Arguments

collapse all

Input graph, specified as a digraph object. Use digraph to create a directed graph object.

Example: G = digraph([1 2],[2 3])

Output Arguments

collapse all

Transitive reduction of G, returned as a digraph object. The table G.Nodes is copied to H, but any properties in G.Edges are dropped. H might contain new edges not present in G.

H contains the fewest number of edges that still preserve the reachability of graph G. In other words, transclosure(H) is the same as transclosure(G).

If isdag(G) is true, then H is unique and is a subgraph of G.

More About

collapse all

Transitive Reduction

The transitive reduction of graph G is the graph with the fewest edges that still shares the same reachability as G. Therefore, of all the graphs that have the same transitive closure as G, the transitive reduction is the one with the fewest edges. If two directed graphs have the same transitive closure, they also have the same transitive reduction.

Version History

Introduced in R2015b
