degree

Degree of graph nodes

collapse all in page

Syntax

D = degree(G)
D = degree(G,nodeIDs)

Description

D = degree(G) returns the degree of each node in graph G. The degree is the number of edges connected to each node.

example

D = degree(G,nodeIDs) returns the degree of the nodes specified by nodeIDs.

example

Examples

collapse all

Open Live Script

Create and plot a graph, and then use degree to find the degree of each node in the graph.

s = [1 1 1 4 4 6 6 6];
t = [2 3 4 5 6 7 8 9];
G = graph(s,t);
plot(G)

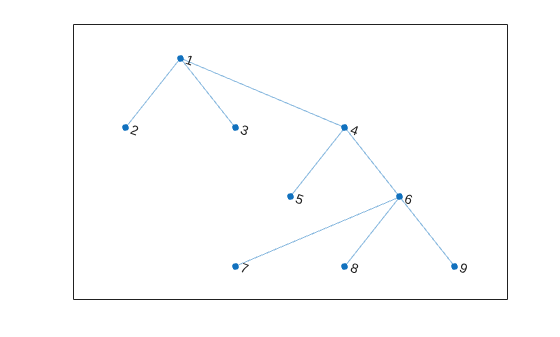

Figure contains an axes object. The axes object contains an object of type graphplot.

deg = degree(G)
deg = 9×1

     3
     1
     1
     3
     1
     4
     1
     1
     1

deg(j) indicates the degree of node j.

Open Live Script

Create and plot a graph, and then find the degree of the first, third, and fifth nodes.

s = {'a' 'a' 'a' 'd' 'd' 'f' 'f' 'f'};
t = {'b' 'c' 'd' 'e' 'f' 'g' 'h' 'i'};
G = graph(s,t);
plot(G)

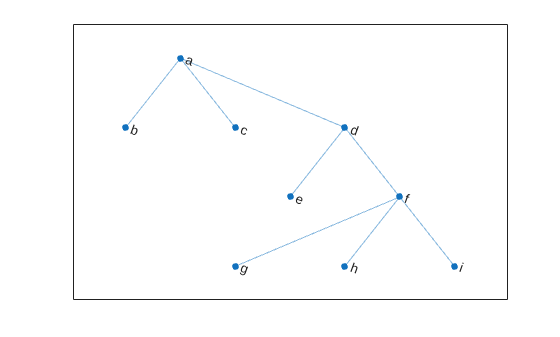

Figure contains an axes object. The axes object contains an object of type graphplot.

nodeIDs = {'a' 'c' 'e'}';
deg = degree(G,nodeIDs)
deg = 3×1

     3
     1
     1

deg(j) indicates the degree of node nodeIDs(j).

Input Arguments

collapse all

Input graph, specified as a graph object. Use graph to create an undirected graph object.

Example: G = graph(1,2)

Node identifiers, specified as one or more node indices or node names.

This table shows the different ways to refer to one or more nodes either by their numeric node indices or by their node names.

FormSingle NodeMultiple Nodes
Node index

Scalar

Example: 1

Vector

Example: [1 2 3]

Node name

Character vector

Example: 'A'

Cell array of character vectors

Example: {'A' 'B' 'C'}

String scalar

Example: "A"

String array

Example: ["A" "B" "C"]

Example: D = degree(G,[3 4])

Example: D = degree(G,{'LAX','ALB'})

Output Arguments

collapse all

Degree of nodes, returned as a numeric array. D is a column vector unless you specify nodeIDs, in which case D has the same size as nodeIDs.

A node that is connected to itself by an edge (a self-loop) is listed as its own neighbor only once, but the self-loop adds 2 to the total degree of the node.

Extended Capabilities

Thread-Based Environment
Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

Version History

Introduced in R2015b
