matlab.system.display.Table Class

Namespace: matlab.system.display

Table for MATLAB System block

Since R2026a

expand all in page

Description

Use the matlab.system.display.Table class to specify table data in the Block Parameters dialog box for a MATLAB System block.

Creation

Description

table = matlab.system.display.Table(myTab,Columns) creates a table parameter in the Block Parameters dialog box of a MATLAB System block with column properties set by Columns.

example

Properties

expand all

Property name of the property in the system object file, specified as character vector or string.

Data Types: cell

Column properties of the table, specified as a cell array of matlab.system.display.TableColumn objects.

Data Types: cell

Examples

Create Table Parameter for MATLAB System Block

Create a table parameter for a MATLAB System block that stores the name, gender, age, and vote status of three individuals:

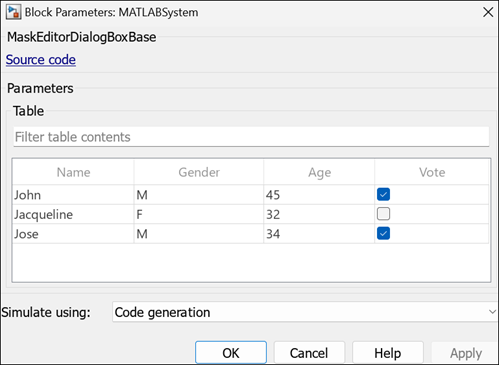

Table showing four columns

Open the Block Parameters dialog box of a MATLAB System block, and click New to open a new class definition template. In the public properties section, define the column properties of the table myTab, and assign values to the table using the MATLAB table function.

properties
    tab{matlab.system.display.Table(myTab,...
      {"matlab.system.display.TableColumn('Type','edit','Evaluate',true)", ...
      "matlab.system.display.TableColumn('Type','popup','TypeOptions',{'M','F'})", ...
      "matlab.system.display.TableColumn('Type','edit')",...
      "matlab.system.display.TableColumn('Type','checkbox')"})}...
      = table({'John';'Jacqueline';'Jose'},{'M';'F';'M'},[45;32;34],...
      {'true';'false';'true'},'VariableNames',{'Name','Gender','Age','Vote'})
end

Version History

Introduced in R2026a
