ruler2num
将数据从特定的标尺转换为数值数据
说明
示例
将日期值转换为等效的数值
将日期值转换为等效的数值,以便设置文本对象的 Position
属性。

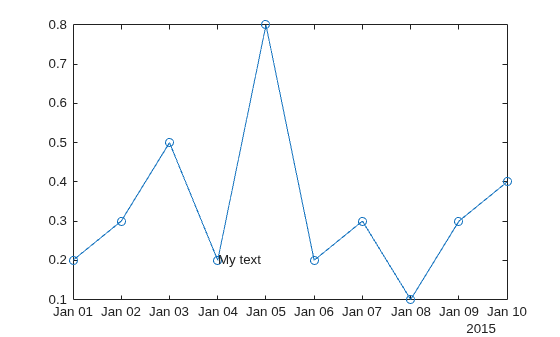

创建 x 轴为日期值的绘图。为第四个数据点添加文本说明,并返回文本对象。
t = datetime(2015,1,1:10); y = [.2 .3 .5 .2 .8 .2 .3 .1 .3 .4]; plot(t,y,'-o') txt = text(t(4),y(4),'My text');

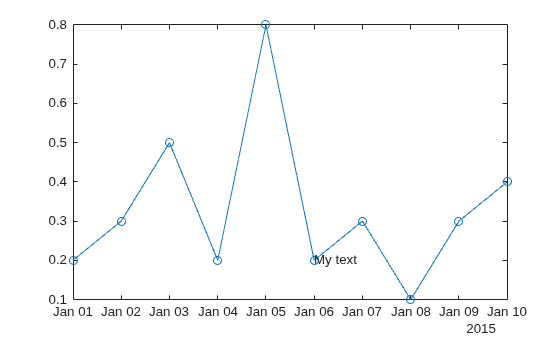

通过设置文本对象的 Position
属性,将文本的位置更改到第六个数据点。由于 Position
属性只接受数值,因此需要将第六个数据点的日期时间值转换为等效的数值。
ax = gca; x6 = ruler2num(t(6),ax.XAxis); txt.Position = [x6 y(6)];
输入参数
data
— 输入数组
标量 | 向量 | 矩阵
输入数组,指定为标量、向量或矩阵。如果 data
已经是数值,则输出 num
等于输入 data
。
ruler
— 标尺
DurationRuler
对象 | DatetimeRuler
对象 | NumericRuler
对象 | CategoricalRuler
对象 | GeographicRuler
对象
与输入数据相关联的标尺,指定为以下标尺对象类型之一:
DurationRuler
对象 - 将data
中的持续时间值转换为数值。DatetimeRuler
对象 - 将data
中的日期时间值转换为数值。要控制如何将日期时间值转换为double
值,请将标尺的ReferenceDate
属性设置为具有所需时区的日期时间值。NumericRuler
对象 - 大多数情况下不转换。但是,如果输入数据不是数值,则输出是num = full(double(data))
。CategoricalRuler
对象 - 将data
中的分类值转换为数值。要控制类别的顺序,请设置标尺的Categories
属性。GeographicRuler
对象 - 不转换。输出等于输入。
将标尺对象指定为 Axes
对象的 XAxis
、YAxis
或 ZAxis
属性。例如:
ax = gca; num = ruler2num(data,ax.XAxis)
版本历史记录
在 R2016b 中推出
