mpcmoveopt

Option set for mpcmove function

expand all in page

Description

To specify options for the mpcmove, mpcmoveAdaptive, and mpcmoveMultiple functions, use an mpcmoveopt object.

Using this object, you can specify run-time values for a subset of controller properties, such as tuning weights and constraints. If you do not specify a value for one of the mpcmoveopt properties, the value of the corresponding controller option is used instead.

Creation

Syntax

options = mpcmoveopt

Description

options = mpcmoveopt creates a default set of options for the mpcmove function. To modify the property values, use dot notation.

example

Properties

expand all

Output variable tuning weights that replace the Weights.OutputVariables property of the controller at run time, specified as a vector or array of nonnegative values.

To use the same weights across the prediction horizon, specify a row vector of length Ny, where Ny is the number of output variables.

To vary the tuning weights over the prediction horizon from time k+1 to time k+p, specify an array with Ny columns and up to p rows. Here, k is the current time and p is the prediction horizon. Each row contains the output variable tuning weights for one prediction horizon step. If you specify fewer than p rows, the weights in the final row are used for the remaining steps of the prediction horizon.

The format of OutputWeights must match the format of the Weights.OutputVariables property of the controller object. For example, you cannot specify constant weights across the prediction horizon in the controller object, and then specify time-varying weights using mpcmoveopt.

Manipulated variable tuning weights that replace the Weights.ManipulatedVariables property of the controller at run time, specified as a vector or array of nonnegative values.

To use the same weights across the prediction horizon, specify a row vector of length Nmv, where Nmv is the number of manipulated variables.

To vary the tuning weights over the prediction horizon from time k to time k+p-1, specify an array with Nmv columns and up to p rows. Here, k is the current time and p is the prediction horizon. Each row contains the manipulated variable tuning weights for one prediction horizon step. If you specify fewer than p rows, the weights in the final row are used for the remaining steps of the prediction horizon.

The format of MVWeights must match the format of the Weights.ManipulatedVariables property of the controller object. For example, you cannot specify constant weights across the prediction horizon in the controller object, and then specify time-varying weights using mpcmoveopt.

Manipulated variable rate tuning weights that replace the Weights.ManipulatedVariablesRate property of the controller at run time, specified as a vector or array of nonnegative values.

To use the same weights across the prediction horizon, specify a row vector of length Nmv, where Nmv is the number of manipulated variables.

To vary the tuning weights over the prediction horizon from time k to time k+p-1, specify an array with Nmv columns and up to p rows. Here, k is the current time and p is the prediction horizon. Each row contains the manipulated variable rate tuning weights for one prediction horizon step. If you specify fewer than p rows, the weights in the final row are used for the remaining steps of the prediction horizon.

The format of MVRateWeights must match the format of the Weights.ManipulatedVariablesRate property of the controller object. For example, you cannot specify constant weights across the prediction horizon in the controller object, and then specify time-varying weights using mpcmoveopt.

Slack variable tuning weight that replaces the Weights.ECR property of the controller at run time, specified as a positive scalar.

Output variable lower bounds, specified as a row vector of length Ny or as a matrix with Ny columns, where Ny is the number of output variables.

If you did not specify the OutputVariables(i).Min property of the mpc object, then specifying OutputMin results in an error when you execute mpcmove.

To change the bounds over the prediction horizon from time k+1 to time k+p, specify a matrix with Ny columns and up to p rows. Here, Ny is the number of plant outputs, k is the current time, and p is the prediction horizon. Each row contains the bounds for one prediction horizon step. If you specify fewer than p rows, the bounds in the final row are used for the remaining steps of the prediction horizon.

OutputMin(:,i) replaces the OutputVariables(i).Min property of the mpc object at run time. The replacement behavior depends on the dimensions of both variables.

Scalar OutputVariables(i).Min in the mpc object (a constant bound for the ith plant output to be applied to all prediction steps)

OutputMin DimensionReplacement Behavior
Scalar OutputMin (single output, constant bound)OutputMin replaces the constant bound defined in OutputVariables(i).Min.
Column vector OutputMin (single output, time-varying bound)OutputMin replaces the constant bound defined in OutputVariables(i).Min with a time-varying bound.
Row vector OutputMin (multiple outputs, constant bounds)OutputMin(i) replaces the constant bound defined in OutputVariables(i).Min.
Matrix OutputMin (multiple outputs, time-varying bounds)OutputMin(:,i) replaces the constant bound defined in OutputVariables(i).Min with a time-varying bound.

Vector OutputVariables(i).Min in the mpc object (a time-varying bound for the ith plant output with different values at different prediction steps)

OutputMin DimensionReplacement Behavior
Scalar OutputMin (single output, constant bound)OutputMin replaces the first finite entry in OutputVariables.Min and the remaining entries in OutputVariables.Min shift up or down with the same amount of displacement to retain the profile defined by the original OutputVariables.Min vector.
Column vector OutputMin (single output, time-varying bound)OutputMin replaces the time-varying bound defined in OutputVariables(i).Min, and the original bound profile is discarded.
Row vector OutputMin (multiple outputs, constant bounds)OutputMin(i) replaces the first finite entry in OutputVariables(i).Min and the remaining entries in OutputVariables(i).Min shift up or down with the same amount of displacement to retain the profile defined by the original OutputVariables(i).Min vector.
Matrix OutputMin (multiple outputs, time-varying bounds).OutputMin(:,i) replaces the time-varying bound defined in OutputVariables(i).Min, and the original bound profile is discarded.

Output variable upper bounds, specified as a row vector of length Ny or as a matrix with Ny columns, where Ny is the number of output variables.

If you did not specify the OutputVariables(i).Max property of the mpc object, then specifying OutputMax results in an error when you execute mpcmove.

To change the bounds over the prediction horizon from time k+1 to time k+p, specify a matrix with Ny columns and up to p rows. Here, Ny is the number of plant outputs, k is the current time, and p is the prediction horizon. Each row contains the bounds for one prediction horizon step. If you specify fewer than p rows, the bounds in the final row are used for the remaining steps of the prediction horizon.

OutputMax(:,i) replaces the OutputVariables(i).Max property of the mpc object at run time. The replacement behavior depends on the dimensions of both variables.

Scalar OutputVariables(i).Max in the mpc object (a constant bound for the ith plant output to be applied to all prediction steps)

OutputMax DimensionReplacement Behavior

Scalar OutputMax (single output, constant bound)

OutputMax replaces the constant bound defined in OutputVariables(i).Max

Column vector OutputMax (single output, time-varying bound)

OutputMax replaces the constant bound defined in OutputVariables(i).Max with a time-varying bound.

Row vector OutputMax (multiple outputs, constant bounds)

OutputMax(i) replaces the constant bound defined in OutputVariables(i).Max

Matrix OutputMax (multiple outputs, time-varying bounds)

OutputMax(:,i) replaces the constant bound defined in OutputVariables(i).Max with a time-varying bound.

Vector OutputVariables(i).Max in the mpc object (a time-varying bound for the ith plant output with different values at different prediction steps)

OutputMax DimensionReplacement Behavior
Scalar OutputMax (single output, constant bound)OutputMax replaces the first finite entry in OutputVariables.Max and the remaining entries in OutputVariables.Max shift up or down with the same amount of displacement to retain the profile defined by the original OutputVariables.Max vector.
Column vector OutputMax (single output, time-varying bound)OutputMax replaces the time-varying bound defined in OutputVariables(i).Max, and the original bound profile is discarded.
Row vector OutputMax (multiple outputs, constant bounds)OutputMax(i) replaces the first finite entry in OutputVariables(i).Max and the remaining entries in OutputVariables(i).Max shift up or down with the same amount of displacement to retain the profile defined by the original OutputVariables(i).Max vector.
Matrix OutputMax (multiple outputs, time-varying bounds).OutputMax(:,i) replaces the time-varying bound defined in OutputVariables(i).Max, and the original bound profile is discarded.

Manipulated variable lower bounds, specified as a row vector of length Nmv or as a matrix with Nmv columns, where Nmv is the number of output variables.

If you did not specify the ManipulatedVariables(i).Min property of the mpc object, then specifying MVMin results in an error when you execute mpcmove.

To change the bounds over the prediction horizon from time k to time k+p-1, specify a matrix with Nmv columns and up to p rows. Here, Nmv is the number of manipulated variables, k is the current time, and p is the prediction horizon. Each row contains the bounds for one prediction horizon step. If you specify fewer than p rows, the bounds in the final row are used for the remaining steps of the prediction horizon.

MVMin(:,i) replaces the ManipulatedVariables(i).Min property of the mpc object at run time. The replacement behavior depends on the dimensions of both variables.

Scalar ManipulatedVariables(i).Min in the mpc object (a constant bound for the ith manipulated variable to be applied to all prediction steps)

MVMin DimensionReplacement Behavior
Scalar MVMin (single output, constant bound)MVMin replaces the constant bound defined in ManipulatedVariables(i).Min
Column vector MVMin (single output, time-varying bound)MVMin replaces the constant bound defined in ManipulatedVariables(i).Min with a time-varying bound.
Row vector MVMin (multiple outputs, constant bounds)MVMin(i) replaces the constant bound defined in ManipulatedVariables(i).Min
Matrix MVMin (multiple outputs, time-varying bounds)MVMin(:,i) replaces the constant bound defined in ManipulatedVariables(i).Min with a time-varying bound.

Vector ManipulatedVariables(i).Min in the mpc object (a time-varying bound for the ith manipulated variable with different values at different prediction steps)

MVMin DimensionReplacement Behavior
Scalar MVMin (single output, constant bound)MVMin replaces the first finite entry in ManipulatedVariables.Min and the remaining entries in ManipulatedVariables.Min shift up or down with the same amount of displacement to retain the profile defined by the original ManipulatedVariables.Min vector.
Column vector MVMin (single output, time-varying bound)MVMin replaces the time-varying bound defined in ManipulatedVariables(i).Min, and the original bound profile is discarded.
Row vector MVMin (multiple outputs, constant bounds)MVMin(i) replaces the first finite entry in ManipulatedVariables(i).Min and the remaining entries in ManipulatedVariables(i).Min shift up or down with the same amount of displacement to retain the profile defined by the original ManipulatedVariables(i).Min vector.
Matrix MVMin (multiple outputs, time-varying bounds).MVMin(:,i) replaces the time-varying bound defined in ManipulatedVariables(i).Min, and the original bound profile is discarded.

Manipulated variable upper bounds, specified as a row vector of length Nmv or as a matrix with Nmv columns, where Nmv is the number of output variables.

If you did not specify the ManipulatedVariables(i).Max property of the mpc object, then specifying MVMax results in an error when you execute mpcmove.

To change the bounds over the prediction horizon from time k to time k+p-1, specify a matrix with Nmv columns and up to p rows. Here, Nmv is the number of manipulated variables, k is the current time, and p is the prediction horizon. Each row contains the bounds for one prediction horizon step. If you specify fewer than p rows, the bounds in the final row are used for the remaining steps of the prediction horizon.

MVMax(:,i) replaces the ManipulatedVariables(i).Max property of the mpc object at run time. The replacement behavior depends on the dimensions of both variables.

Scalar ManipulatedVariables(i).Max in the mpc object (a constant bound for the ith manipulated variable to be applied to all prediction steps)

MVMax DimensionReplacement Behavior
Scalar MVMax (single output, constant bound)MVMax replaces the constant bound defined in ManipulatedVariables(i).Max.
Column vector MVMax (single output, time-varying bound)MVMax replaces the constant bound defined in ManipulatedVariables(i).Max with a time-varying bound.
Row vector MVMax (multiple outputs, constant bounds)MVMax(i) replaces the constant bound defined in ManipulatedVariables(i).Max.
Matrix MVMax (multiple outputs, time-varying bounds)MVMax(:,i) replaces the constant bound defined in ManipulatedVariables(i).Max with a time-varying bound.

Vector ManipulatedVariables(i).Max in the mpc object (a time-varying bound for the ith manipulated variable with different values at different prediction steps)

MVMax DimensionReplacement Behavior
Scalar MVMax (single output, constant bound)MVMax replaces the first finite entry in ManipulatedVariables.Max and the remaining entries in ManipulatedVariables.Max shift up or down with the same amount of displacement to retain the profile defined by the original ManipulatedVariables.Max vector.
Column vector MVMax (single output, time-varying bound)MVMax replaces the time-varying bound defined in ManipulatedVariables(i).Max, and the original bound profile is discarded.
Row vector MVMax (multiple outputs, constant bounds)MVMax(i) replaces the first finite entry in ManipulatedVariables(i).Max and the remaining entries in ManipulatedVariables(i).Max shift up or down with the same amount of displacement to retain the profile defined by the original ManipulatedVariables(i).Max vector.
Matrix MVMax (multiple outputs, time-varying bounds).MVMax(:,i) replaces the time-varying bound defined in ManipulatedVariables(i).Max, and the original bound profile is discarded.

Custom mixed input/output constraints, specified as a structure with the following fields. These constraints replace the mixed input/output constraints previously set using setconstraint.

Manipulated variable constraint constant, specified as an Nc-by-Nmv array, where Nc is the number of constraints, and Nmv is the number of manipulated variables.

Controlled output constraint constant, specified as an Nc-by-Ny array, where Ny is the number of controlled outputs (measured and unmeasured).

Mixed input/output constraint constant, specified as a column vector of length Nc.

Measured disturbance constraint constant, specified as an Nc-by-Nmd array, where Nmd is the number of measured disturbances.

Option to return only the value of the cost function in the info solution details output structure returned by mpcmove. Specify it as one of the following:

  • 0 — mpcmove returns all the detailed solution information in its second output argument.

  • 1 — mpcmove returns only the predicted value of the cost function. This saves some computational effort as the predicted optimal plant state and output sequences do not need to be calculated. Note that if mpcmove is not called with a second output argument these sequences are not calculated either.

Manipulated variable values used in the plant during the previous control interval, specified as a row vector of length Nmv, where Nmv is the number of manipulated variables. If you do not specify MVused, the mpvmove uses the LastMove property of its current controller state input argument, x.

Manipulated variable targets, specified as a row vector of length Nmv, where Nmv is the number of manipulated variables. MVTarget(i) replaces the ManipulatedVariables(i).Target property of the controller at run time.

Prediction horizon, which replaces the PredictionHorizon property of the controller at run time, specified as a positive integer. If you specify PredictionHorizon, you must also specify ControlHorizon.

Specifying PredictionHorizon changes the:

  • Number of rows in the optimal sequences returned by the mpcmove and mpcmoveAdaptive functions

  • Maximum dimensions of the Plant and Nominal input arguments of mpcmoveAdaptive

This parameter is ignored by the mpcmoveMultiple function.

Control horizon, which replaces the ControlHorizon property of the controller at run time, specified as one of the following:

  • Positive integer, m, between 1 and p, inclusive, where p is equal to PredictionHorizon. In this case, the controller computes m free control moves occurring at times k through k+m-1, and holds the controller output constant for the remaining prediction horizon steps from k+m through k+p-1. Here, k is the current control interval. For optimal trajectory planning set m equal to p.

  • Vector of positive integers, [m1, m2, …], where the sum of the integers equals the prediction horizon, p. In this case, the controller computes M blocks of free moves, where M is the length of the ControlHorizon vector. The first free move applies to times k through k+m1-1, the second free move applies from time k+m1 through k+m1+m2-1, and so on. Using block moves can improve the robustness of your controller compared to the default case.

If you specify ControlHorizon, you must also specify PredictionHorizon.

This parameter is ignored by the mpcmoveMultiple function.

Object Functions

mpcmoveCompute optimal control action and update controller states
mpcmoveAdaptiveCompute optimal control with prediction model updating
mpcmoveMultipleCompute gain-scheduling MPC control action at a single time instant

Examples

collapse all

Open Live Script

Vary a manipulated variable upper bound during a simulation.

Define the plant, which includes a 4-second input delay. Convert to a delay-free, discrete, state-space model using a 2-second control interval. Create the corresponding default controller, and specify MV bounds at +/-2.

Ts = 2;
Plant = absorbDelay(c2d(ss(tf(0.8,[5 1],InputDelay=4)),Ts));
mpcobj = mpc(Plant,Ts);
-->"PredictionHorizon" is empty. Assuming default 10.
-->"ControlHorizon" is empty. Assuming default 2.
-->"Weights.ManipulatedVariables" is empty. Assuming default 0.00000.
-->"Weights.ManipulatedVariablesRate" is empty. Assuming default 0.10000.
-->"Weights.OutputVariables" is empty. Assuming default 1.00000.

mpcobj.MV(1).Min = -2;
mpcobj.MV(1).Max = 2;

Create an empty mpcmoveopt object. During simulation, you can set properties of the object to specify controller parameters.

options = mpcmoveopt;

Pre-allocate storage and initialize the controller state.

v = [];
t = [0:Ts:20];
N = length(t);
y = zeros(N,1);
u = zeros(N,1);
x = mpcstate(mpcobj);
-->Assuming output disturbance added to measured output #1 is integrated white noise.
-->"Model.Noise" is empty. Assuming white noise on each measured output.

Use mpcmove to simulate the following:

  • Reference (setpoint) step change from initial condition r = 0 to r = 1 (servo response)

  • MV upper bound step decrease from 2 to 1, occurring at t = 10

r = 1;
for i = 1:N
    y(i) = Plant.C*x.Plant;
    if t(i) >= 10
        options.MVMax = 1;
    end
    [u(i),Info] = mpcmove(mpcobj,x,y(i),r,v,options);
end

As the loop executes, the value of options.MVMax is reset to 1 for all iterations that occur after t = 10. Prior to that iteration, options.MVMax is empty. Therefore, the controller's value for MVMax is used, mpcobj.MV(1).Max = 2.

Plot the results of the simulation.

[Ts,us] = stairs(t,u);
plot(Ts,us,'b-',t,y,'r-')
legend('MV','OV')
xlabel(sprintf('Time, %s',Plant.TimeUnit))

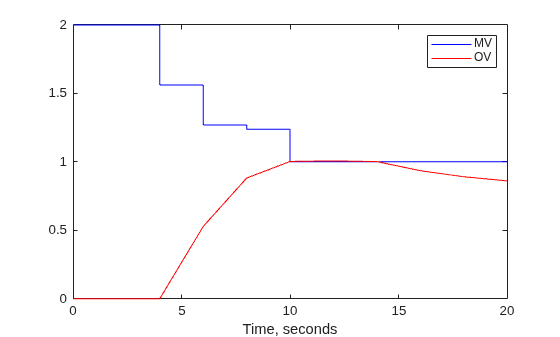

Figure contains an axes object. The axes object with xlabel Time, seconds contains 2 objects of type line. These objects represent MV, OV.

From the plot, you can observe that the original MV upper bound is active until t = 4. After the input delay of 4 seconds, the output variable (OV) moves smoothly to its new target of r = 1, reaching the target at t = 10. The new MV bound imposed at t = 10 becomes active immediately. This forces the OV below its target, after the input delay elapses.

Now assume that you want to impose an OV upper bound at a specified location relative to the OV target. Consider the following constraint design command:

mpcobj.OV(1).Max = [Inf,Inf,0.4,0.3,0.2];

This is a horizon-varying constraint. The known input delay makes it impossible for the controller to satisfy an OV constraint prior to the third prediction-horizon step. Therefore, a finite constraint during the first two steps would be poor practice. For illustrative purposes, the previous constraint also decreases from 0.4 at step 3 to 0.2 at step 5 and thereafter.

The following commands produce the same results shown in the previous plot. The OV constraint is never active because it is being varied in concert with the setpoint, r.

x = mpcstate(mpcobj);
-->Assuming output disturbance added to measured output #1 is integrated white noise.
-->"Model.Noise" is empty. Assuming white noise on each measured output.

OPTobj = mpcmoveopt;
for i = 1:N
    y(i) = Plant.C*x.Plant;
    if t(i) >= 10
        OPTobj.MVMax = 1;
    end
    OPTobj.OutputMax = r + 0.4;
    [u(i),Info] = mpcmove(mpcobj,x,y(i),r,v,OPTobj);
end

The scalar value r + 0.4 replaces the first finite value in the mpcobj.OV(1).Max vector, and the remaining finite values adjust to maintain the original profile, that is, the numerical difference between these values is unchanged. r = 1 for the simulation, so the previous use of the mpcmoveopt object is equivalent to the command

mpcobj.OV(1).Max = [Inf, Inf, 1.4, 1.3, 1.2];

However, using the mpcmoveopt object involves much less computational overhead.

Tips

  • If a variable is unconstrained in the initial controller design, you cannot constrain it using mpcmoveopt. The controller ignores any such specifications.

  • You cannot remove a constraint from a variable that is constrained in the initial controller design. However, you can change it to a large (or small) value such that it is unlikely to become active.
