plan

Plan path between two states

collapse all in page

Syntax

path = plan(planner,startState,goalState)
[path,solutionInfo] = plan(planner,startState,goalState)

Description

path = plan(planner,startState,goalState) returns a path from the start state to the goal state.

[path,solutionInfo] = plan(planner,startState,goalState) also returns solutionInfo that contains the solution information of the path planning.

example

Examples

collapse all

Open Live Script

Create a state space.

ss = stateSpaceSE2;

Create an occupancyMap-based state validator using the created state space.

sv = validatorOccupancyMap(ss);

Create an occupancy map from an example map and set map resolution as 10 cells/meter.

load exampleMaps
map = occupancyMap(simpleMap,10);
sv.Map = map;

Set validation distance for the validator.

sv.ValidationDistance = 0.01;

Update state space bounds to be the same as map limits.

ss.StateBounds = [map.XWorldLimits;map.YWorldLimits;[-pi pi]];

Create the path planner and increase the maximum connection distance.

planner = plannerRRT(ss,sv,MaxConnectionDistance=0.3);

Set the start and goal states.

start = [0.5 0.5 0];
goal = [2.5 0.2 0];

Plan a path with default settings.

rng(100,'twister'); % for repeatable result
[pthObj,solnInfo] = plan(planner,start,goal);

Visualize the results.

show(map)
hold on
% Tree expansion
plot(solnInfo.TreeData(:,1),solnInfo.TreeData(:,2),'.-')
% Draw path
plot(pthObj.States(:,1),pthObj.States(:,2),'r-','LineWidth',2)

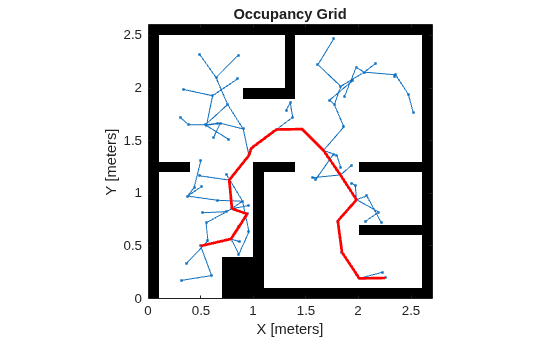

Figure contains an axes object. The axes object with title Occupancy Grid, xlabel X [meters], ylabel Y [meters] contains 3 objects of type image, line.

Open Live Script

Load a 3-D occupancy map of a city block into the workspace. Specify the threshold to consider cells as obstacle-free.

mapData = load("dMapCityBlock.mat");
omap = mapData.omap;
omap.FreeThreshold = 0.5;

Inflate the occupancy map to add a buffer zone for safe operation around the obstacles.

inflate(omap,1)

Create an SE(3) state space object with bounds for state variables.

ss = stateSpaceSE3([0 220;0 220;0 100;inf inf;inf inf;inf inf;inf inf]);

Create a 3-D occupancy map state validator using the created state space. Assign the occupancy map to the state validator object. Specify the sampling distance interval.

sv = validatorOccupancyMap3D(ss, ...
     Map = omap, ...
     ValidationDistance = 0.1);

Create a RRT path planner with increased maximum connection distance and reduced maximum number of iterations. Specify a custom goal function that determines that a path reaches the goal if the Euclidean distance to the target is below a threshold of 1 meter.

planner = plannerRRT(ss,sv, ...
          MaxConnectionDistance = 50, ...
          MaxIterations = 1000, ...
          GoalReachedFcn = @(~,s,g)(norm(s(1:3)-g(1:3))<1), ...
          GoalBias = 0.1);

Specify start and goal poses.

start = [40 180 25 0.7 0.2 0 0.1];
goal = [150 33 35 0.3 0 0.1 0.6];

Configure the random number generator for repeatable result.

rng(1,"twister");

Plan the path.

[pthObj,solnInfo] = plan(planner,start,goal);

Visualize the planned path.

show(omap)
axis equal
view([-10 55])
hold on
% Start state
scatter3(start(1,1),start(1,2),start(1,3),"g","filled")
% Goal state
scatter3(goal(1,1),goal(1,2),goal(1,3),"r","filled")
% Path
plot3(pthObj.States(:,1),pthObj.States(:,2),pthObj.States(:,3), ...
      "r-",LineWidth=2)

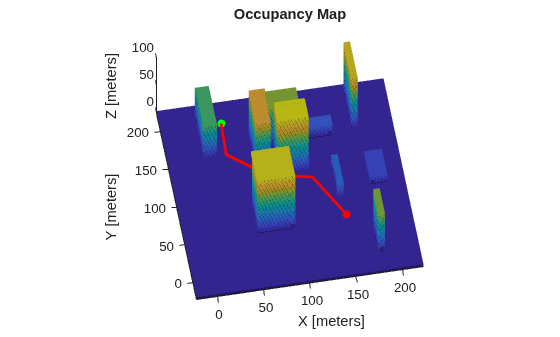

Figure contains an axes object. The axes object with title Occupancy Map, xlabel X [meters], ylabel Y [meters] contains 4 objects of type patch, scatter, line.

Input Arguments

collapse all

Path planner, specified as a plannerRRT object or a plannerRRTStar object.

Start state of the path, specified as an N-element real-valued vector. N is the dimension of the state space.

Example: [1 1 pi/6]

Example: [40 180 25 0.7 0.2 0 0.1]

Data Types: single | double

Goal state of the path, specified as an N-element real-valued vector. N is the dimension of the state space.

Example: [2 2 pi/3]

Example: [150 33 35 0.3 0 0.1 0.6]

Data Types: single | double

Output Arguments

collapse all

An object that holds the planned path information, returned as a navPath object.

Solution Information, returned as a structure. The fields of the structure are:

Fields of solutionInfo

FieldsDescription
IsPathFoundIndicates whether a path is found. It returns as 1 if a path is found. Otherwise, it returns 0.
ExitFlag

Indicates the terminate status of the planner, returned as

  • 1 — if the goal is reached

  • 2 — if the maximum number of iterations is reached

  • 3 — if the maximum number of nodes is reached

NumNodesNumber of nodes in the search tree when the planner terminates (excluding the root node).
NumIterationsNumber of "extend" routines executed.
TreeDataA collection of explored states that reflects the status of the search tree when planner terminates. Note that NaN values are inserted as delimiters to separate each individual edge.
PathCosts

Contains the cost of the path at each iteration. Value for iterations when path has not reached the goal is denoted by a NaN. Size of the array is NumIterations-by-1. Last element contains the cost of the final path.

Note

This field is applicable only for plannerRRTStar object.

Data Types: structure

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2019b
