Minimize Energy of Piecewise Linear Mass-Spring System Using Cone Programming, Problem-Based

Mathematical Formulation

The location of mass $$i$$ is $$x(i)$$, with the horizontal coordinate $$x_1(i)$$ and vertical coordinate $$x_2(i)$$. Mass $$i$$ has potential energy due to gravity of $$gm(i)x_2(i)$$. The potential energy in spring $$i$$ is $$k(i)(d(i)-l(i){)}^2/2$$, where $$d(i)$$ is the length of the spring between mass $$i$$ and mass $$i-1$$. Take anchor point 1 as the position of mass 0, and anchor point 2 as the position of mass $$n+1$$. The preceding energy calculation shows that the potential energy of spring $$i$$ is

$$Energy(i)=\frac{k(i)(\Vert x(i)-x(i-1)\Vert -l(i){)}^2}{2}$$.

Reformulating this potential energy problem as a second-order cone programming problem requires the introduction of some new variables, as described in Lobo [1]. Create variables $$t(i)$$ equal to the square root of the term $$Energy(i)$$.

Let $$e$$ be the unit column vector $$\left[\genfrac{}{}{0ex}{}{0}{1}\right]$$. Then $$x_2(i)=e^{T}x(i)$$. The problem becomes

$$\underset{x,t}{\min }(\sum _{i}gm(i)e^{T}x(i)+\Vert t{\Vert }^2).$$               (1)

Now consider $$t$$ as a free vector variable, not given by the previous equation for $$t(i)$$. Incorporate the relationship between $$x(i)$$ and $$t(i)$$ in the new set of cone constraints

$$\Vert x(i)-x(i-1)\Vert -l(i)\le \sqrt{\frac{2}{k(i)}}t(i).$$   (2)

The objective function is not yet linear in its variables, as required for coneprog. Introduce a new scalar variable $$y$$. Notice that the inequality $$\Vert t{\Vert }^2\le y$$ is equivalent to the inequality

$$\Vert \left[\genfrac{}{}{0ex}{}{2t}{1-y}\right]\Vert \le 1+y$$.                               (3)

Now the problem is to minimize

$$\underset{x,t,y}{\min }(\sum _{i}gm(i)e^{T}x(i)+y)$$                     (4)

subject to the cone constraints on $$x(i)$$ and $$t(i)$$ listed in (2) and the additional cone constraint (3). Cone constraint (3) ensures that $$\Vert t{\Vert }^2\le y$$. Therefore, problem (4) is equivalent to problem (1).

The objective function and cone constraints in problem (4) are suitable for solution with coneprog.

MATLAB® Formulation

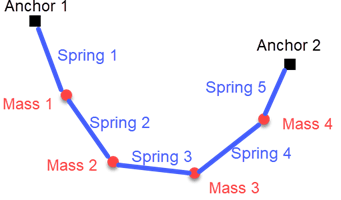

Define six spring constants $$k$$, six length constants $$l$$, and five masses $$m$$.

k = 40*(1:6);
l = [1 1/2 1 2 1 1/2];
m = [2 1 3 2 1];
g = 9.807;

Define optimization variables corresponding to the mathematical problem variables. For simplicity, set the anchor points as two virtual mass points x(1,:) and x(end,:). This formulation allows each spring to stretch between two masses.

nmass = length(m) + 2;
% k and l have nmass-1 elements
% m has nmass - 2 elements
x = optimvar('x',[nmass,2]);
t = optimvar('t',nmass-1,'LowerBound',0);
y = optimvar('y','LowerBound',0);

Create an optimization problem and set the objective function to the expression in (4).

prob = optimproblem;
obj = dot(x(2:(end-1),2),m)*g + y;
prob.Objective = obj;

Create the cone constraints corresponding to expression (2).

conecons = optimineq(nmass - 1);
for ii = 1:(nmass-1)
    conecons(ii) = norm(x(ii+1,:) - x(ii,:)) - l(ii) <= sqrt(2/k(ii))*t(ii);
end
prob.Constraints.conecons = conecons;

Specify the anchor points anchor0 and anchorn. Create equality constraints specifying that the two virtual end masses are located at the anchor points.

anchor0 = [0 5];
anchorn = [5 4];
anchorcons = optimeq(2,2);
anchorcons(1,:) = x(1,:) == anchor0;
anchorcons(2,:) = x(end,:) == anchorn;
prob.Constraints.anchorcons = anchorcons;

Create the cone constraint corresponding to expression (3).

ycone = norm([2*t;(1-y)]) <= 1 + y;
prob.Constraints.ycone = ycone;

Solve Problem

The problem formulation is complete. Solve the problem by calling solve.

[sol,fval,eflag,output] = solve(prob);

Solving problem using coneprog.
Optimal solution found.

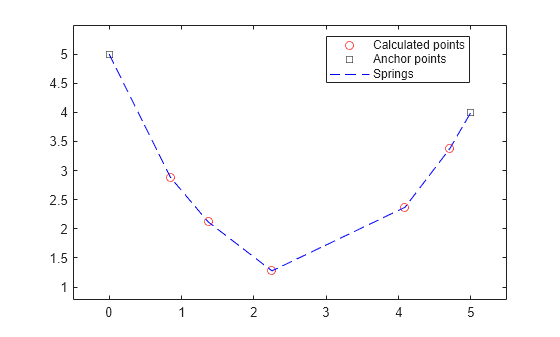

Plot the solution points and the anchors.

plot(sol.x(2:(nmass-1),1),sol.x(2:(nmass-1),2),'ro')
hold on
plot([sol.x(1,1),sol.x(end,1)],[sol.x(1,2),sol.x(end,2)],'ks')
plot(sol.x(:,1),sol.x(:,2),'b--')
legend('Calculated points','Anchor points','Springs','Location',"best")
xlim([sol.x(1,1)-0.5,sol.x(end,1)+0.5])
ylim([min(sol.x(:,2))-0.5,max(sol.x(:,2))+0.5])
hold off

You can change the values of the parameters m, l, and k to see how they affect the solution. You can also change the number of masses; the code takes the number of masses from the data you supply.
