findBoundaryConditions

Find boundary condition assignment for a geometric region

collapse all in page

Syntax

BCregion = findBoundaryConditions(BCs,RegionType,RegionID)

Description

BCregion = findBoundaryConditions(BCs,RegionType,RegionID) returns boundary condition BCregion assigned to the specified region.

example

Examples

collapse all

Open Live Script

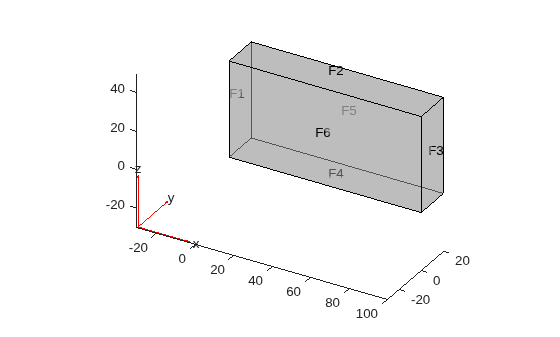

Create a PDE model and import a simple block geometry. Plot the geometry displaying the face labels.

model = createpde(3);
importGeometry(model,"Block.stl");
pdegplot(model,"FaceLabels","on","FaceAlpha",0.5)

Figure contains an axes object. The axes object contains 6 objects of type quiver, text, patch, line.

Set zero Dirichlet conditions on faces 1 and 2 for all equations.

applyBoundaryCondition(model,"dirichlet","Face",1:2,"u",[0,0,0]);

On face 3, set the Neumann boundary condition for equation 1 and Dirichlet boundary condition for equations 2 and 3.

h = [0 0 0;0 1 0;0 0 1];
r = [0;3;3];
q = [1 0 0;0 0 0;0 0 0];
g = [10;0;0];
applyBoundaryCondition(model,"mixed","Face",3,"h",h,"r",r,"g",g,"q",q);

Set Neumann boundary conditions with opposite signs on faces 5 and 6 for all equations.

applyBoundaryCondition(model,"neumann","Face",4:5,"g",[1;1;1]);
applyBoundaryCondition(model,"neumann","Face",6,"g",[-1;-1;-1]);

Check the boundary condition specification on face 1.

findBoundaryConditions(model.BoundaryConditions,"Face",1)
ans =
  BoundaryCondition with properties:

           BCType: 'dirichlet'
       RegionType: 'Face'
         RegionID: [1 2]
                r: []
                h: []
                g: []
                q: []
                u: [0 0 0]
    EquationIndex: []
       Vectorized: 'off'

Check the boundary condition specification on face 3.

findBoundaryConditions(model.BoundaryConditions,"Face",3)
ans =
  BoundaryCondition with properties:

           BCType: 'mixed'
       RegionType: 'Face'
         RegionID: 3
                r: [3x1 double]
                h: [3x3 double]
                g: [3x1 double]
                q: [3x3 double]
                u: []
    EquationIndex: []
       Vectorized: 'off'

Check the boundary condition specification on face 5.

findBoundaryConditions(model.BoundaryConditions,"Face",5)
ans =
  BoundaryCondition with properties:

           BCType: 'neumann'
       RegionType: 'Face'
         RegionID: [4 5]
                r: []
                h: []
                g: [3x1 double]
                q: []
                u: []
    EquationIndex: []
       Vectorized: 'off'

Input Arguments

collapse all

Boundary conditions of a PDE model, specified as the BoundaryConditions property of PDEModel.

Example: model.BoundaryConditions

Geometric region type, specified as "Face" for 3-D geometry or "Edge" for 2-D geometry.

Example: findBoundaryConditions(model.BoundaryConditions,"Face",3)

Data Types: char | string

Geometric region ID, specified as a vector of positive integers. Find the region IDs by using pdegplot with the "FaceLabels" (3-D) or "EdgeLabels" (2-D) value set to "on".

Example: findBoundaryConditions(model.BoundaryConditions,"Face",3)

Data Types: double

Output Arguments

collapse all

Boundary condition for a particular region, returned as a BoundaryCondition object.

Version History

Introduced in R2016b

See Also

|

Topics
