geometryFromEdges
Create 2-D geometry from decomposed geometry matrix
Description
Examples
Create a decomposed solid geometry model representing a rectangle and include it in a PDE model.
Create a default scalar PDE model.
model = createpde;
Define a geometry representing a rectangle.
R1 = [3,4,-1,1,1,-1,0.5,0.5,-0.75,-0.75]';
Decompose the geometry into minimal regions.
g = decsg(R1);
Create the geometry from the decomposed geometry matrix.
geometryFromEdges(model,g);
Plot the geometry.

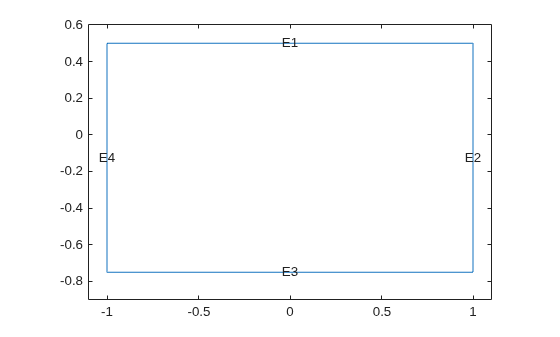

pdegplot(model,EdgeLabels="on") axis equal xlim([-1.1,1.1]) ylim([-0.9,0.6])
Create a decomposed solid geometry model and include it in a PDE model.
Create a default scalar PDE model.
model = createpde;
Define a circle in a rectangle, place these in one matrix, and create a set formula that subtracts the circle from the rectangle.
R1 = [3,4,-1,1,1,-1,0.5,0.5,-0.75,-0.75]';
C1 = [1,0.5,-0.25,0.25]';
C1 = [C1;zeros(length(R1) - length(C1),1)];
gm = [R1,C1];
sf = 'R1-C1';
Create the geometry.
ns = char('R1','C1'); ns = ns'; g = decsg(gm,sf,ns);
Include the geometry in the model and plot it.

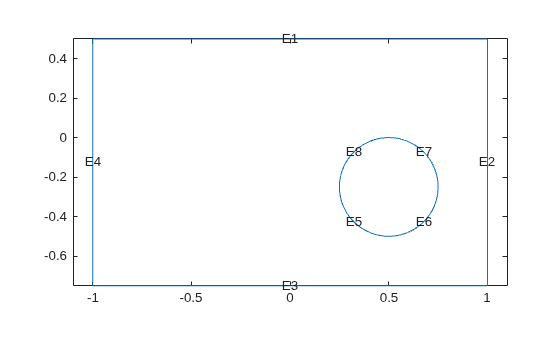

geometryFromEdges(model,g); pdegplot(model,EdgeLabels="on") axis equal xlim([-1.1,1.1])

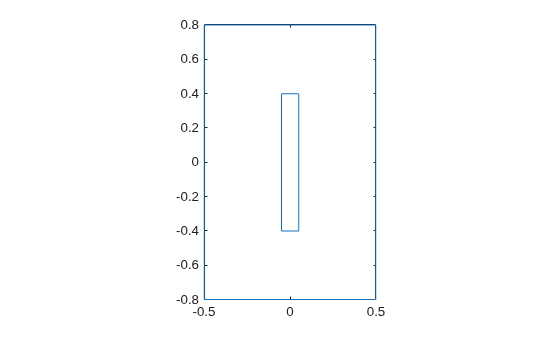

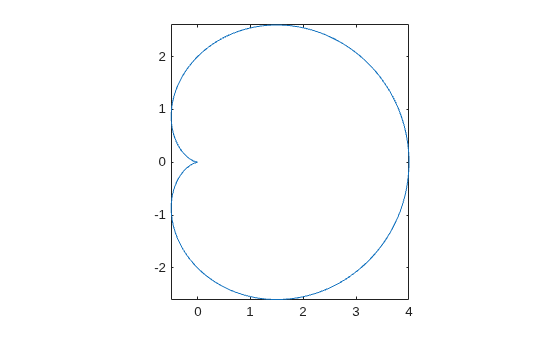

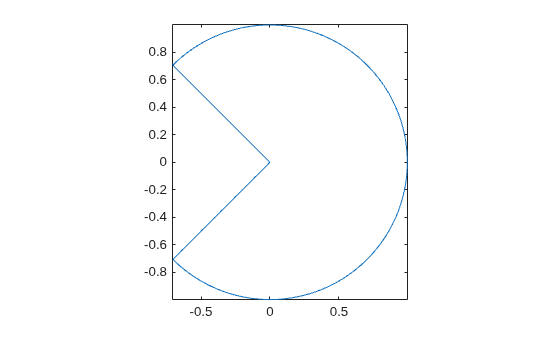

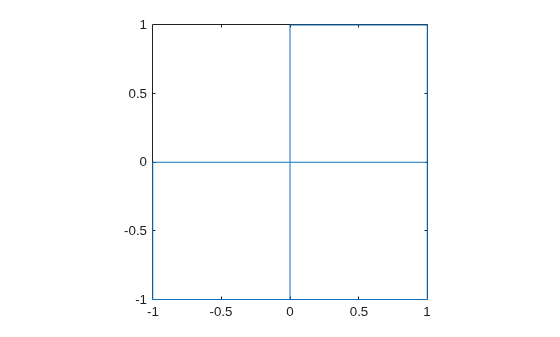

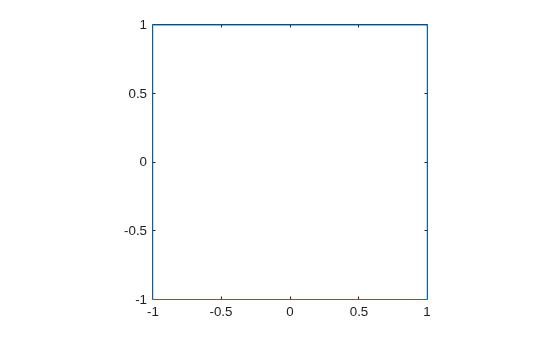

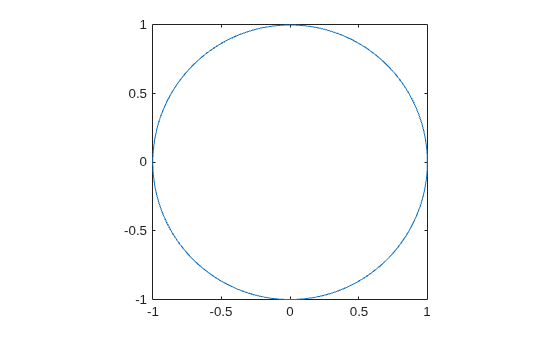

The toolbox provides the several geometry functions. Specify them by using the following function handles.
model = createpde; g = geometryFromEdges(model,@cardg); pdegplot(model)
clear model
model = createpde;
g = geometryFromEdges(model,@circleg);
pdegplot(model)
clear model
model = createpde;
g = geometryFromEdges(model,@cirsg);
pdegplot(model)
clear model
model = createpde;
g = geometryFromEdges(model,@crackg);
pdegplot(model)
clear model
model = createpde;
g = geometryFromEdges(model,@lshapeg);
pdegplot(model)
clear model

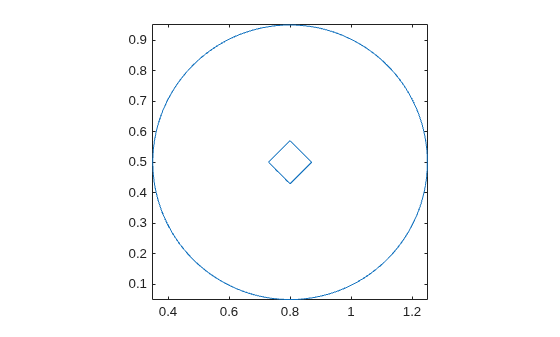

model = createpde;
g = geometryFromEdges(model,@scatterg);
pdegplot(model)
clear model
model = createpde;
g = geometryFromEdges(model,@squareg);
pdegplot(model)
Input Arguments
Model container, specified as a PDEModel
object.
Example: model = createpde(3)
Geometry description, specified as a decomposed geometry matrix, as the
name of a geometry function, or as a handle to a geometry function. For
details about a decomposed geometry matrix, see decsg
.
A geometry function must return the same result for the same input arguments in every function call. Thus, it must not contain functions and expressions designed to return a variety of results, such as random number generators.
Example: geometryFromEdges(model,@circleg)
Data Types: double
| char
| function_handle
Output Arguments
Geometry object, returned as an AnalyticGeometry
object. This
object is stored in model.Geometry
.
Version History
Introduced in R2015ageometryFromEdges
will no longer accept
StructuralModel
, ThermalModel
, and
ElectromagneticModel
. These objects will be removed. To
create a geometry for structural, thermal, or electromagnetic analysis, use femodel
or
fegeometry
.
geometryFromEdges
will continue accepting
PDEModel
.
The unified finite element model workflow defines the type of a problem and all of
its parameters as the properties of an femodel
object. This
object enables you to specify physical parameters for structural, thermal, and
electromagnetic types of analyses. The solver in the unified workflow uses only the
parameters (properties) appropriate for the current analysis type while ignoring all
other properties. If you switch the analysis type by setting the
AnalysisType
property of the model, the solver uses the
appropriate set of properties corresponding to the new analysis type.
For more help migrating your existing code that uses
StructuralModel
, ThermalModel
, or
ElectromagneticModel
to the unified finite element workflow,
see Migration from Domain-Specific to Unified Workflow.
