evaluateHeatFlux
Evaluate heat flux of thermal solution at nodal or arbitrary spatial locations
Syntax
Description
[
returns the heat
flux for a 2-D problem at the nodal points of the triangular mesh.qx
,qy
]
= evaluateHeatFlux(thermalresults
)
[
returns the heat
flux for a 3-D thermal problem at the nodal points of the tetrahedral
mesh.qx
,qy
,qz
]
= evaluateHeatFlux(thermalresults
)
[
returns the heat flux for a thermal problem at the 2-D points specified in
qx
,qy
]
= evaluateHeatFlux(thermalresults
,xq
,yq
)xq
and yq
. This syntax is valid for
both the steady-state and transient thermal models.
[___] = evaluateHeatFlux(
returns the heat flux for a thermal problem at the 2-D or 3-D points specified
in thermalresults
,querypoints
)querypoints
. This syntax is valid for both the
steady-state and transient thermal models.
[___] = evaluateHeatFlux(___,
returns the heat flux for a thermal problem at the times specified in
iT
)iT
. You can specify iT
after the
input arguments in any of the previous syntaxes.
The first dimension of qx
, qy
, and,
in the 3-D case, qz
represents the node indices or
corresponds to query points. The second dimension corresponds to time steps
iT
.
Examples
Heat Flux for 2-D Steady-State Thermal Model
For a 2-D steady-state thermal model, evaluate heat flux at the nodal locations and at the points specified by x
and y
coordinates.
Create a thermal model for steady-state analysis.
thermalmodel = createpde("thermal");

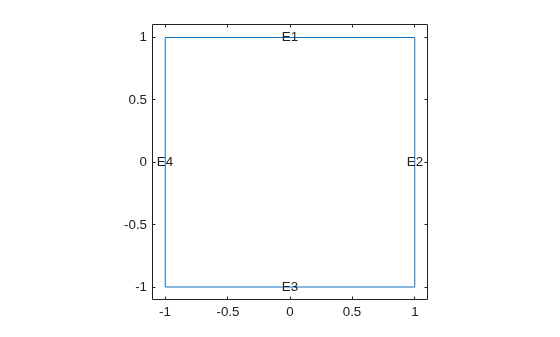

Create the geometry and include it in the model.
R1 = [3,4,-1,1,1,-1,1,1,-1,-1]'; g = decsg(R1,'R1',('R1')'); geometryFromEdges(thermalmodel,g); pdegplot(thermalmodel,"EdgeLabels","on") xlim([-1.5 1.5]) axis equal
Assuming that this geometry represents an iron plate, the thermal conductivity is .
thermalProperties(thermalmodel,"ThermalConductivity",79.5,"Face",1);
Apply a constant temperature of 500 K to the bottom of the plate (edge 3). Also, assume that the top of the plate (edge 1) is insulated, and apply convection on the two sides of the plate (edges 2 and 4).
thermalBC(thermalmodel,"Edge",3,"Temperature",500); thermalBC(thermalmodel,"Edge",1,"HeatFlux",0); thermalBC(thermalmodel,"Edge",[2 4], ... "ConvectionCoefficient",25, ... "AmbientTemperature",50);
Mesh the geometry and solve the problem.
generateMesh(thermalmodel); results = solve(thermalmodel)
results = SteadyStateThermalResults with properties: Temperature: [1529x1 double] XGradients: [1529x1 double] YGradients: [1529x1 double] ZGradients: [] Mesh: [1x1 FEMesh]

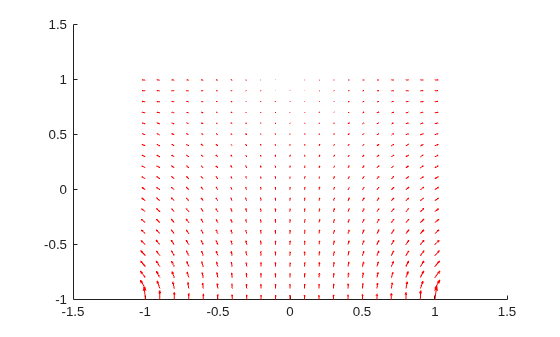

Evaluate heat flux at the nodal locations.
[qx,qy] = evaluateHeatFlux(results);
figure
pdeplot(thermalmodel,"FlowData",[qx qy])
Create a grid specified by x
and y
coordinates, and evaluate heat flux to the grid.
v = linspace(-0.5,0.5,11); [X,Y] = meshgrid(v); [qx,qy] = evaluateHeatFlux(results,X,Y);

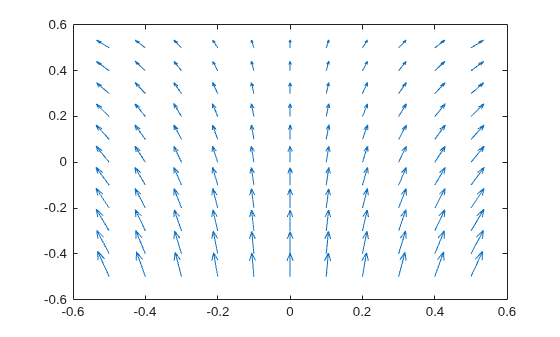

Reshape the qTx
and qTy
vectors, and plot the resulting heat flux.
qx = reshape(qx,size(X)); qy = reshape(qy,size(Y)); figure quiver(X,Y,qx,qy)
Alternatively, you can specify the grid by using a matrix of query points.
querypoints = [X(:) Y(:)]'; [qx,qy] = evaluateHeatFlux(results,querypoints); qx = reshape(qx,size(X)); qy = reshape(qy,size(Y)); figure quiver(X,Y,qx,qy)
Heat Flux for 3-D Steady-State Thermal Model
For a 3-D steady-state thermal model, evaluate heat flux at the nodal locations and at the points specified by x
, y
, and z
coordinates.
Create a thermal model for steady-state analysis.
thermalmodel = createpde(thermal="steadystate");
Create the following 3-D geometry and include it in the model.
importGeometry(thermalmodel,"Block.stl"); pdegplot(thermalmodel,FaceLabels="on",FaceAlpha=0.5) title("Copper block, cm") axis equal
Assuming that this is a copper block, the thermal conductivity of the block is approximately .
thermalProperties(thermalmodel,ThermalConductivity=4);
Apply a constant temperature of 373 K to the left side of the block (face 1) and a constant temperature of 573 K to the right side of the block (face 3).
thermalBC(thermalmodel,Face=1,Temperature=373); thermalBC(thermalmodel,Face=3,Temperature=573);
Apply a heat flux boundary condition to the bottom of the block.
thermalBC(thermalmodel,Face=4,HeatFlux=-20);
Mesh the geometry and solve the problem.
generateMesh(thermalmodel); thermalresults = solve(thermalmodel)
thermalresults = SteadyStateThermalResults with properties: Temperature: [12756x1 double] XGradients: [12756x1 double] YGradients: [12756x1 double] ZGradients: [12756x1 double] Mesh: [1x1 FEMesh]
Evaluate heat flux at the nodal locations.
[qx,qy,qz] = evaluateHeatFlux(thermalresults); figure pdeplot3D(thermalresults.Mesh,FlowData=[qx qy qz])
Create a grid specified by x
, y
, and z
coordinates, and evaluate heat flux to the grid.
[X,Y,Z] = meshgrid(1:26:100,1:6:20,1:11:50); [qx,qy,qz] = evaluateHeatFlux(thermalresults,X,Y,Z);
Reshape the qx
, qy
, and qz
vectors, and plot the resulting heat flux.
qx = reshape(qx,size(X)); qy = reshape(qy,size(Y)); qz = reshape(qz,size(Z)); figure quiver3(X,Y,Z,qx,qy,qz)
Alternatively, you can specify the grid by using a matrix of query points.
querypoints = [X(:) Y(:) Z(:)]'; [qx,qy,qz] = evaluateHeatFlux(thermalresults,querypoints); qx = reshape(qx,size(X)); qy = reshape(qy,size(Y)); qz = reshape(qz,size(Z)); figure quiver3(X,Y,Z,qx,qy,qz)
Heat Flux for Transient Thermal Model on Square
Solve a 2-D transient heat transfer problem on a square domain, and compute heat flow across a convective boundary.
Create a thermal model for this problem.
thermalmodel = createpde("thermal","transient");
Create the geometry and include it in the model.
g = @squareg; geometryFromEdges(thermalmodel,g); pdegplot(thermalmodel,"EdgeLabels","on") xlim([-1.2 1.2]) ylim([-1.2 1.2]) axis equal
Assign the following thermal properties: thermal conductivity is , mass density is , and specific heat is .
thermalProperties(thermalmodel,"ThermalConductivity",100, ... "MassDensity",7800, ... "SpecificHeat",500);
Apply insulated boundary conditions on three edges and the free convection boundary condition on the right edge.
thermalBC(thermalmodel,"Edge",[1 3 4],"HeatFlux",0); thermalBC(thermalmodel,"Edge",2,... "ConvectionCoefficient",5000, ... "AmbientTemperature",25);
Set the initial conditions: uniform room temperature across domain and higher temperature on the top edge.
thermalIC(thermalmodel,25);
thermalIC(thermalmodel,100,"Edge",1);
Generate a mesh and solve the problem using 0:1000:200000
as a vector of times.
generateMesh(thermalmodel); tlist = 0:1000:200000; thermalresults = solve(thermalmodel,tlist);
Create a grid specified by x
and y
coordinates, and evaluate heat flux to the grid.
v = linspace(-1,1,11); [X,Y] = meshgrid(v); [qx,qy] = evaluateHeatFlux(thermalresults,X,Y,1:length(tlist));

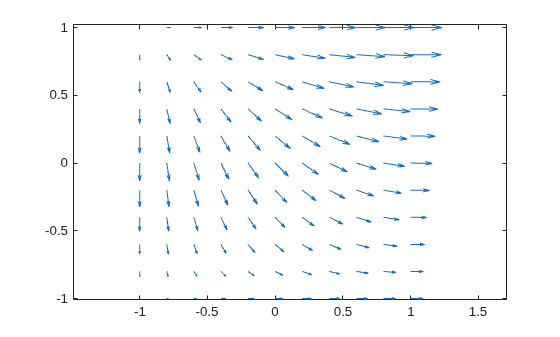

Reshape qx
and qy
, and plot the resulting heat flux for the 25th solution step.
tlist(25)
ans = 24000
figure
quiver(X(:),Y(:),qx(:,25),qy(:,25));
xlim([-1,1])
axis equal
Heat Flux for Transient Thermal Model on Two Squares Made of Different Materials
Solve the heat transfer problem for the following 2-D geometry consisting of a square and a diamond made of different materials. Compute the heat flux, and plot it as a vector field.
Create a thermal model for transient analysis.
thermalmodel = createpde("thermal","transient");

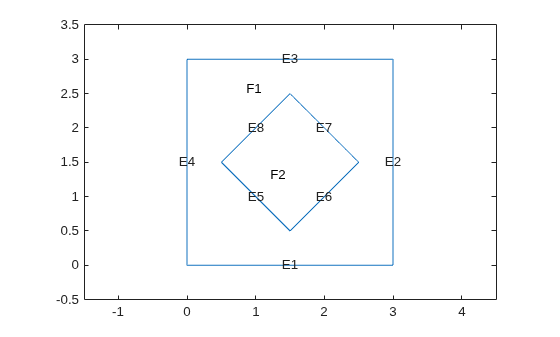

Create the geometry and include it in the model.
SQ1 = [3; 4; 0; 3; 3; 0; 0; 0; 3; 3]; D1 = [2; 4; 0.5; 1.5; 2.5; 1.5; 1.5; 0.5; 1.5; 2.5]; gd = [SQ1 D1]; sf = 'SQ1+D1'; ns = char('SQ1','D1'); ns = ns'; dl = decsg(gd,sf,ns); geometryFromEdges(thermalmodel,dl); pdegplot(thermalmodel,"EdgeLabels","on","FaceLabels","on") xlim([-1.5 4.5]) ylim([-0.5 3.5]) axis equal
For the square region, assign the following thermal properties: thermal conductivity is , mass density is , and specific heat is .
thermalProperties(thermalmodel,"ThermalConductivity",10, ... "MassDensity",2, ... "SpecificHeat",0.1, ... "Face",1);
For the diamond-shaped region, assign the following thermal properties: thermal conductivity is , mass density is , and specific heat is .
thermalProperties(thermalmodel,"ThermalConductivity",2, ... "MassDensity",1, ... "SpecificHeat",0.1, ... "Face",2);
Assume that the diamond-shaped region is a heat source with the density of .
internalHeatSource(thermalmodel,4,"Face",2);
Apply a constant temperature of to the sides of the square plate.
thermalBC(thermalmodel,"Temperature",0,"Edge",[1 2 7 8]);
Set the initial temperature to .
thermalIC(thermalmodel,0);
Mesh the geometry and solve the problem.
generateMesh(thermalmodel);
The dynamic for this problem is very fast: the temperature reaches steady state in about 0.1 seconds. To capture the interesting part of the dynamics, set the solution time to logspace(-2,-1,10)
. This gives 10 logarithmically spaced solution times between 0.01 and 0.1. Solve the equation.
tlist = logspace(-2,-1,10); thermalresults = solve(thermalmodel,tlist); temp = thermalresults.Temperature;

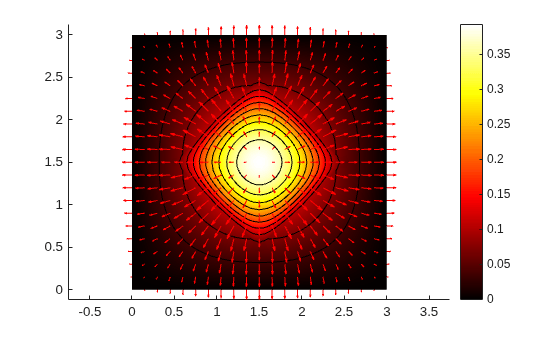

Compute the heat flux density. Plot the solution with isothermal lines using a contour plot, and plot the heat flux vector field using arrows.
[qTx,qTy] = evaluateHeatFlux(thermalresults); figure pdeplot(thermalmodel,"XYData",temp(:,10),"Contour","on", ... "FlowData",[qTx(:,10) qTy(:,10)], ... "ColorMap","hot")
Input Arguments
thermalresults
— Solution of thermal problem
SteadyStateThermalResults
object | TransientThermalResults
object
Solution of a thermal problem, specified as a SteadyStateThermalResults
object or
a TransientThermalResults
object.
Create thermalresults
using the
solve
function.
Example: thermalresults =
solve(thermalmodel)
xq
— x-coordinate query points
real array
x-coordinate query points, specified as a real array.
evaluateHeatFlux
evaluates the heat flux at the 2-D
coordinate points [xq(i) yq(i)]
or at the 3-D coordinate
points [xq(i) yq(i) zq(i)]
. So xq
,
yq
, and (if present) zq
must
have the same number of entries.
evaluateHeatFlux
converts query points to column
vectors xq(:)
, yq(:)
, and (if present)
zq(:)
. It returns the heat flux in a form of a column
vector of the same size. To ensure that the dimensions of the returned
solution are consistent with the dimensions of the original query points,
use reshape
. For example, use qx =
reshape(qx,size(xq))
.
Data Types: double
yq
— y-coordinate query points
real array
y-coordinate query points, specified as a real array.
evaluateHeatFlux
evaluates the heat flux at the 2-D
coordinate points [xq(i) yq(i)]
or at the 3-D coordinate
points [xq(i) yq(i) zq(i)]
. So xq
,
yq
, and (if present) zq
must
have the same number of entries.
evaluateHeatFlux
converts query points to column
vectors xq(:)
, yq(:)
, and (if present)
zq(:)
. It returns the heat flux in a form of a column
vector of the same size. To ensure that the dimensions of the returned
solution is consistent with the dimensions of the original query points, use
reshape
. For example, use qy =
reshape(qy,size(yq))
.
Data Types: double
zq
— z-coordinate query points
real array
z-coordinate query points, specified as a real array.
evaluateHeatFlux
evaluates the heat flux at the 3-D
coordinate points [xq(i) yq(i) zq(i)]
. So
xq
, yq
, and
zq
must have the same number of entries.
evaluateHeatFlux
converts query points to column
vectors xq(:)
, yq(:)
, and (if present)
zq(:)
. It returns the heat flux in a form of a column
vector of the same size. To ensure that the dimensions of the returned
solution is consistent with the dimensions of the original query points, use
reshape
. For example, use qz =
reshape(qz,size(zq))
.
Data Types: double
querypoints
— Query points
real matrix
Query points, specified as a real matrix with two rows for 2-D geometry or
three rows for 3-D geometry. evaluateHeatFlux
evaluates the heat flux at the coordinate
points querypoints(:,i)
, so each column of
querypoints
contains exactly one 2-D or 3-D query
point.
Example: For 2-D geometry, querypoints = [0.5 0.5 0.75 0.75; 1 2 0
0.5]
Data Types: double
iT
— Time indices
vector of positive integers
Time indices, specified as a vector of positive integers. Each
entry in iT
specifies a time index.
Example: iT = 1:5:21
specifies every fifth
time-step up to 21.
Data Types: double
Output Arguments
qx
— x-component of the heat flux
array
x-component of the heat flux, returned as an array. The first array dimension represents the node index or corresponds to the query point. The second array dimension represents the time step.
For query points that are outside the geometry,
qx
= NaN
.
qy
— y-component of the heat flux
array
y-component of the heat flux, returned as an array. The first array dimension represents the node index or corresponds to the query point. The second array dimension represents the time step.
For query points that are outside the geometry,
qy
= NaN
.
qz
— z-component of the heat flux
array
z-component of the heat flux, returned as an array. The first array dimension represents the node index or corresponds to the query point. The second array dimension represents the time step.
For query points that are outside the geometry,
qz
= NaN
.
Version History
Introduced in R2017a
