phased.ScenarioViewer

Display motion of radars and targets

Description

The phased.ScenarioViewer System object™ creates a 3-D viewer to display the motion of radars and targets that you model in your radar simulation. You can display current positions and velocities, object tracks, position and speed annotations, radar beam directions, and other object parameters. You can change radar features such as beam range and beam width during the simulation. You can use the phased.Platform System object to model moving objects or you can supply your own dynamic models.

This figure shows a four-object scenario consisting of a ground radar, two airplanes, and a ground vehicle. You can view the code that generated this figure in the Visualize Multiplatform Scenario example.

To create a scenario viewer:

Define and set up the phased.ScenarioViewer System object. See Construction. You can set System object properties at construction time or leave them to their default values. Some properties that you set at construction time can be changed later. These properties are tunable.
Call the step method to update radar and target displayed positions according to the properties of the phased.ScenarioViewer System object. You can change tunable properties at any time.

Note

Starting in R2016b, instead of using the step method to perform the operation defined by the System object, you can call the object with arguments, as if it were a function. For example, y = step(obj,x) and y = obj(x) perform equivalent operations.

Construction

sIS = phased.ScenarioViewer creates a scenario viewer System object, sIS having default property values.

sIS = phased.ScenarioViewer(Name,Value) returns a scenario viewer System object, sIS, with any specified property Name set to a specified Value. Name must appear inside single quotes (''). You can specify several name-value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Properties

expand all

`Name` — Window caption name
`'Scenario Viewer'` (default) | character vector

Window caption name, specified as a character vector. The Name property and the Title property are different.

Example: 'Multitarget Viewer'

Data Types: char

`ReferenceRadar` — Reference radar index
`1` (default) | positive integer

Reference radar index, specified as a positive integer. This property selects one of the radars as the reference radar. Its value must be less than or equal to the number of radars that you specify in the radar_pos argument of the step method. This property is tunable. Target range, radial speed, azimuth, and elevation are defined with respect to this radar.

Example: 2

Data Types: double

`ShowBeam` — Show radar beams
`'ReferenceRadar'` (default) | `'None'` | `'All'`

Enable the display of radar beams, specified as 'ReferenceRadar', 'None', or 'All'. This option determines which radar beams to show.

Option	Beams to show
`'ReferenceRadar'`	Show the beam of the radar specified in the `ReferenceRadar` property.
`'None'`	Do not show any radar beams.
`'All'`	Show the beams for all radars.

This property is tunable.

Example: 'All'

Data Types: char

`BeamWidth` — Vertical and horizontal radar beam widths
15 (default) | positive, real-valued scalar | positive, real-valued 2-element column vector | positive, real-valued N-element row vector | positive, real-valued 2-by-N matrix

Vertical and horizontal radar beam widths, specified as a positive real-valued scalar, a 2-element column vector, an N-element row vector, or a 2-by-N matrix. N is the number of radars. All scalar, vector, and matrix entries are positive, real-valued numbers between 0–360°. Units are in degrees.

Value Specification	Interpretation
Scalar	The horizontal and vertical radar beam widths are equal and identical for all radars.
2-element column vector	The first row specifies the horizontal beam width. The second row specifies the vertical beam width. These values are identical for all radars.
N-element row vector	Each element applies to one radar. Vertical and horizontal beam widths for each radar are equal.
2-by-N matrix	Each column applies to one radar. The first row specifies the horizontal beam width and the second row specifies the vertical beam width for each radar.

When CameraPerspective is set to 'Radar', the System object uses this property to calculate the value of CameraViewAngle. This property is tunable.

Example: [20 10; 18 9]

Data Types: double

`BeamRange` — Radar beam range
1000 (default) | positive scalar | real-valued N- element row vector of positive values

Radar beam range, specified as a positive scalar or an N-element row vector, where N is the number of radars. Units are in meters. When specified as a scalar, all radars have the same beam range. When specified as a vector, each element corresponds to one radar. This property is tunable.

Example: [1000 1500 850]

Data Types: double

`BeamSteering` — Beam steering direction
`[0;0]` (default) | positive real-valued 2-element column vector | positive real-valued N-element row vector

Beam steering directions of radars, specified as a real-valued 2-element column vector of positive values or 2-by-N real-valued matrix of positive values. N is the number of radars. Beam steering angles are relative to the local coordinate axes of each radar. Units are in degrees. Each column takes the form [azimuthangle;elevationangle]. When only one column is specified, the beam steering directions of all radars are the same. Azimuth angles are from –180° to 180°, and the elevation angles are from –90° to 90°. This property is tunable.

Example: [20 60 35; 5 0 10]

Data Types: double

`VelocityInputPort` — Enable velocity input
`true` (default) | `false`

Enable the velocity input arguments, radar_velocity and tgt_velocity, of the step method, specified as true or false. Setting this property to true enables the input arguments. When this property is false, velocity vectors are estimated from the position change between consecutive updates divided by the update interval. The update interval is the inverse of the UpdateRate value.

Example: false

Data Types: logical

`OrientationInputPort` — Enable orientation input
`false` (default) | `true`

Enable the input of local coordinate system orientation axes, radar_laxes and tgt_laxes, to the step method, specified as false or true. Setting this property to true enables the input arguments. When this property is false, the orientation axes are aligned with the global coordinate axes.

Example: true

Data Types: logical

`UpdateRate` — Update rate of scenario viewer
`1` (default) | `positive scalar`

Update rate of scenario viewer, specified as a positive scalar. Units are in hertz.

Example: 2.5

Data Types: double

`Title` — Display title
`''` (default) | character vector

Display title, specified as a character vector. The Title property and the Name property are different. The display title appears within the figure at the top. The name appears at the top of the figure window. This property is tunable.

Example: 'Radar and Target Display'

Data Types: char

`PlatformNames` — Names of radars and targets
`'Auto'` (default) | 1-by-(N+M) cell array of character vectors

Names assigned to radars and targets, specified as a 1-by-(N+M) cell array of character vectors. N is the number of radars and M is the number of targets. Order the cell entries by radar names, followed by target names. Names appear in the legend and annotations. When you set PlatformNames to 'Auto', names are created sequentially starting from 'Radar 1' for radars and 'Target 1' for targets.

Example: {'Stationary Radar','Mobile Radar','Airplane'}

Data Types: cell

`TrailLength` — Length of visible tracks
`500` (default) | positive integer | (N+M)-length vector of positive integers

Length of the visibility of object tracks, specified as a positive integer or (N+M)-length vector of positive integers. N is the number of radars and M is the number of targets. When TrailLength is a scalar, all tracks have the same length. When TrailLength is a vector, each element of the vector specifies the length of the corresponding radar or target trajectory. Order the entries by radars, followed by targets. Each call to the step method generates a new visible point. This property is tunable.

Example: [100,150,100]

Data Types: double

`CameraPerspective` — Camera perspective
`'Auto'` (default) | `'Custom'` | `'Radar'`

Camera perspective, specified as 'Auto', 'Custom', or 'Radar'. When you set this property to 'Auto', the System object estimates appropriate values for the camera position, orientation, and view angle to show all tracks. When you set this property to 'Custom', you can set the camera position, orientation, and angles using camera properties or the camera toolbar. When you set this property to 'Radar', the System object determines the camera position, orientation, and angles from the radar position and the radar beam steering direction. This property is tunable.

Example: 'Radar'

Data Types: char

`CameraPosition` — Camera position
`[x,y,z]` vector of real-values

Camera position, specified as an [x,y,z] vector of real values. Units are in meters. This property applies when you set CameraPerspective to 'Custom'. When you do not specify this property, the System object chooses values based on your display configuration. This property is tunable.

Example: [100,50,40]

Data Types: double

`CameraOrientation` — Camera orientation
`[pan,tilt,roll]` vector of positive, real values

Camera orientation, specified as a [pan,tilt,roll] vector of positive, real values. Units are in degrees. Pan and roll angles take values from –180° to 180°. The tilt angle takes values from –90° to 90°. Camera rotations are performed in the order: pan, tilt, and roll. This property applies when you set CameraPerspective to 'Custom'. When you do not specify this property, the System object chooses values based on your display configuration. This property is tunable.

Example: [180,45,30]

Data Types: double

`CameraViewAngle` — Camera view angle
real-valued scalar from 0° to 360°

Camera view angle, specified as a real-valued scalar. Units are in degrees. View angle values are in the range 0° to 360°. This property applies when you set CameraPerspective to 'Custom'. When you do not specify this property, the System object chooses values based on your display configuration. This property is tunable.

Example: 75

Data Types: double

`ShowLegend` — Show viewer legend
`false` (default) | `true`

Option to show the viewer legend, specified as false or true. This property is tunable.

Example: true

Data Types: logical

`ShowGround` — Show ground plane of scenario
`true` (default) | `false`

Option to show the ground plane of the viewer scenario, specified as true or false. This property is tunable.

Example: false

Data Types: logical

`ShowName` — Option to annotate radar and target tracks with names
`true` (default) | `false`

Annotate radar and target tracks with names, specified as true or false. You can define custom platform names using PlatformNames. This property is tunable.

Example: false

Data Types: logical

`ShowPosition` — Annotate radar and target tracks with positions
`false` (default) | `true`

Option to annotate radar and target tracks with positions, specified as false or true. This property is tunable.

Example: true

Data Types: logical

`ShowRange` — Annotate radar and target tracks with ranges
`false` (default) | `true`

Option to annotate radar and target tracks with the range from the reference radar, specified as false or true. This property is tunable.

Example: true

Data Types: logical

`ShowAltitude` — Annotate radar and target tracks with altitude
`false` (default) | `true`

Option to annotate radar and target tracks with altitude, specified as false or true. This property is tunable.

Example: true

Data Types: logical

`ShowSpeed` — Annotate radar and target tracks with speed
`false` (default) | `true`

Option to annotate radar and target tracks with speed, specified as false or true. This property is tunable.

Example: true

Data Types: logical

`ShowRadialSpeed` — Annotate radar and target tracks with radial speed
`false` (default) | `true`

Option to annotate radar and target tracks with radial speed, specified as false or true. Radial speed is relative to the reference radar. This property is tunable.

Example: true

Data Types: logical

`ShowAzEl` — Annotate radar and target tracks with azimuth and elevation
`false` (default) | `true`

Option to annotate radar and target tracks with azimuth and elevation angles relative to the reference radar, specified as false or true. This property is tunable.

Example: true

Data Types: logical

`Position` — Viewer window size and position
`[left bottom width height]` vector of positive, real values

Scenario viewer window size and position, specified as a [left bottom width height] vector of positive, real values. Units are in pixels.

left sets the position of the left edge of the window.
bottom sets the position of the bottom edge of the window.
width sets the width of the window.
height sets the height of the window.

When you do not specify this property, the window is positioned at the center of the screen, with width and height taking the values 410 and 300 pixels, respectively. This property is tunable.

Example: [100,200,800,500]

Data Types: double

`ReducePlotRate` — Enable reduced plot rate
`true` (default) | `false`

Option to reduce the plot rate to improve performance, specified as true or false. Set this property to true to update the viewer at a reduced rate. Set this property to false to update the viewer with each call to the step method. This mode adversely affects viewer performance. This property is tunable.

Example: false

Data Types: logical

Methods

hide	Hide scenario viewer window
reset	Reset state of the System object
show	Show scenario viewer window
step	Update scenario viewer display

Common to All System Objects
`release`	Allow System object property value changes

Examples

collapse all

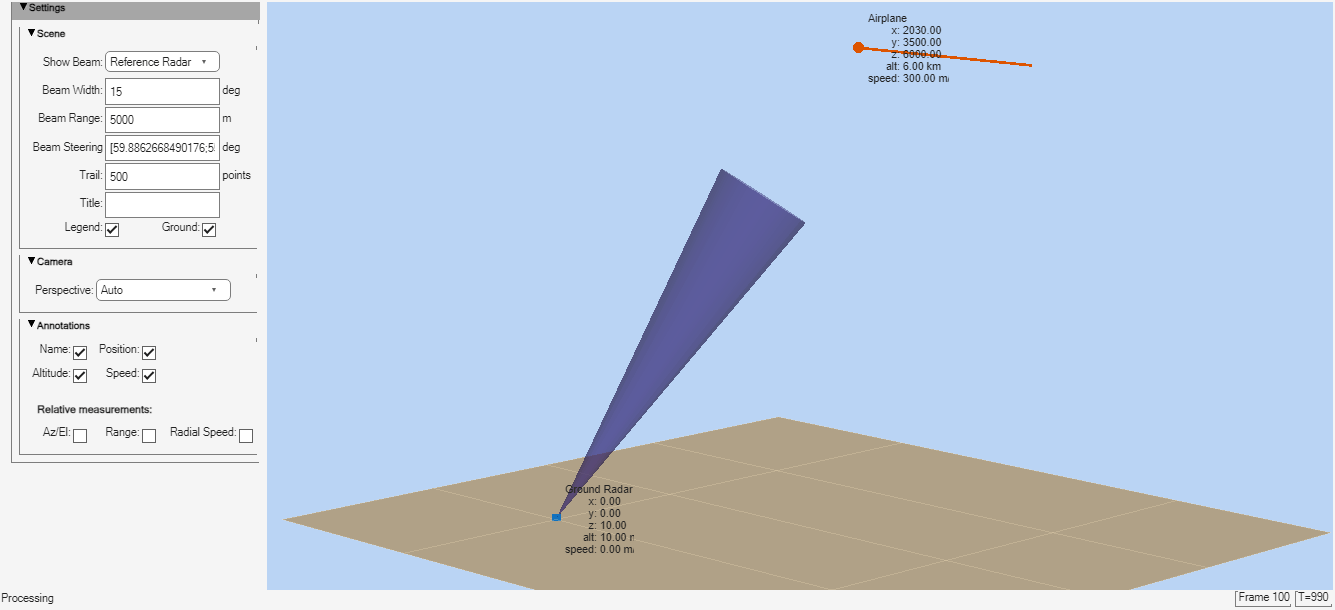

View Tracks of Stationary Radar and One Target

Open Script

Visualize the tracks of a radar and a single airplane target. The radar is stationary and the airplane is moving in a straight line. Maintain the radar beam pointing at the airplane.

Create the radar and airplane platform System objects™. Set the update rate to 0.1 s.

updateRate = 0.1;
radarPlatform = phased.Platform(...
    'InitialPosition',[0;0;10], ...
    'Velocity',[0;0;0]);
airplanePlatforms = phased.Platform(...
    'InitialPosition',[5000.0;3500.0;6000.0],...
    'Velocity',[-300;0;0]);

Create the phased.ScenarioViewer System object. Show the radar beam and annotate the tracks with position, speed, and altitude.

sSV = phased.ScenarioViewer('BeamRange',5000.0,'UpdateRate',updateRate,...
    'PlatformNames',{'Ground Radar','Airplane'},'ShowPosition',true,...
    'ShowSpeed',true,'ShowAltitude',true,'ShowLegend',true);

Run the scenario. At each step, compute the angle to the target. Use that angle to steer the radar beam toward the target.

for i = 1:100
    [radar_pos,radar_vel] = step(radarPlatform,updateRate);
    [tgt_pos,tgt_vel] = step(airplanePlatforms,updateRate);
    [rng,ang] = rangeangle(tgt_pos,radar_pos);
    sSV.BeamSteering = ang;
    step(sSV,radar_pos,radar_vel,tgt_pos,tgt_vel);
    pause(0.1);
end

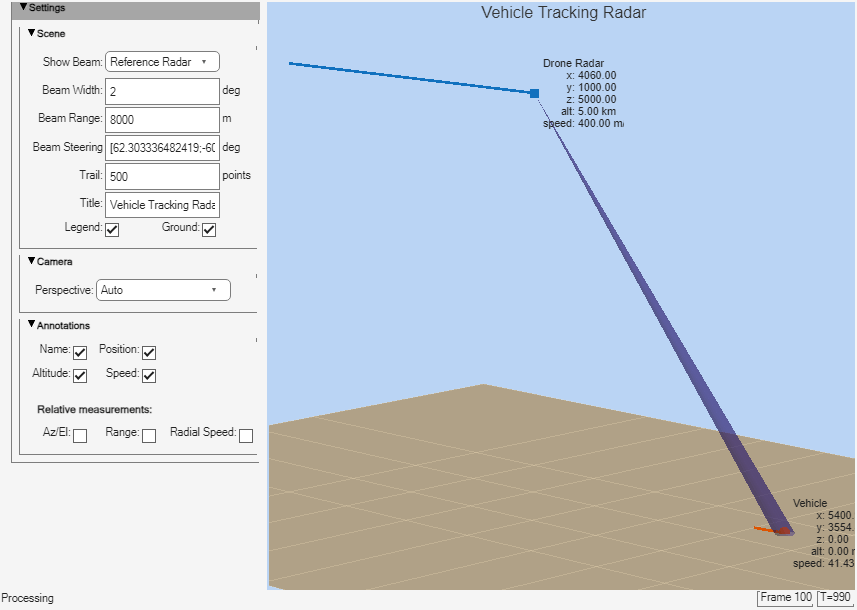

View Tracks of Airborne Radar and Ground Target

Open Script

Visualize the tracks of an airborne radar and a ground vehicle target. The airborne radar is carried by a drone flying at an altitude of 5 km.

Create the drone radar and ground vehicle using phased.Platform System objects™. Set the update rate to 0.1 s.

updateRate = 0.1;
drone = phased.Platform(...
    'InitialPosition',[100;1000;5000], ...
    'Velocity',[400;0;0]);
vehicle = phased.Platform('MotionModel','Acceleration',...
    'InitialPosition',[5000.0;3500.0;0.0],...
    'InitialVelocity',[40;5;0],'Acceleration',[0.1;0.1;0]);

Create the phased.ScenarioViewer System object. Show the radar beam and annotate the tracks with position, speed, and altitude.

viewer = phased.ScenarioViewer('BeamRange',8000.0,'BeamWidth',2,'UpdateRate',updateRate,...
    'PlatformNames',{'Drone Radar','Vehicle'},'ShowPosition',true,...
    'ShowSpeed',true,'ShowAltitude',true,'ShowLegend',true,'Title','Vehicle Tracking Radar');

Run the scenario. At each step, compute the angle to the target. Use that angle to steer the radar beam toward the target.

for i = 1:100
    [radar_pos,radar_vel] = step(drone,updateRate);
    [tgt_pos,tgt_vel] = step(vehicle,updateRate);
    [rng,ang] = rangeangle(tgt_pos,radar_pos);
    viewer.BeamSteering = ang;
    viewer(radar_pos,radar_vel,tgt_pos,tgt_vel)
    pause(.1)
end

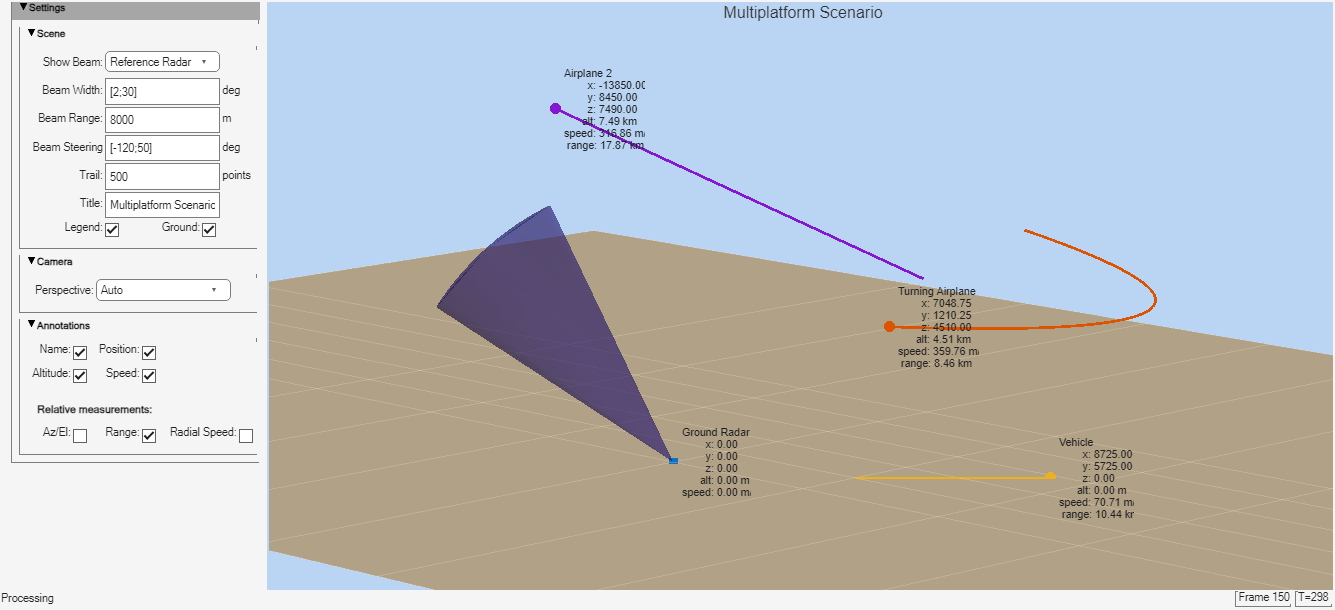

Visualize Multiplatform Scenario

Open Script

This example shows how to create and display a multiplatform scenario containing a ground-based stationary radar, a turning airplane, a constant-velocity airplane, and a moving ground vehicle. The turning airplane follows a parabolic flight path while descending at a rate of 20 m/s.

Specify the scenario refresh rate at 0.5 Hz. For 150 steps, the time duration of the scenario is 300 s.

updateRate = 0.5;
N = 150;

Set up the turning airplane using the Acceleration model of the phased.Platform System object™. Specify the initial position of the airplane by range and azimuth from the ground-based radar and its elevation. The airplane is 10 km from the radar at 60° azimuth and has an altitude of 6 km. The airplane is accelerating at 10 m/s² in the negative x-direction.

airplane1range = 10.0e3;
airplane1Azimuth = 60.0;
airplane1alt = 6.0e3;
airplane1Pos0 = [cosd(airplane1Azimuth)*airplane1range;...
    sind(airplane1Azimuth)*airplane1range;airplane1alt];
airplane1Vel0 = [400.0;-100.0;-20];
airplane1Accel = [-10.0;0.0;0.0];
airplane1platform = phased.Platform('MotionModel','Acceleration',...
    'AccelerationSource','Input port','InitialPosition',airplane1Pos0,...
    'InitialVelocity',airplane1Vel0,'OrientationAxesOutputPort',true,...
    'InitialOrientationAxes',eye(3));

Set up the stationary ground radar at the origin of the global coordinate system. To simulate a rotating radar, change the ground radar beam steering angle in the processing loop.

groundRadarPos = [0,0,0]';
groundRadarVel = [0,0,0]';
groundradarplatform = phased.Platform('MotionModel','Velocity',...
    'InitialPosition',groundRadarPos,'Velocity',groundRadarVel,...
    'InitialOrientationAxes',eye(3));

Set up the ground vehicle to move at a constant velocity.

groundVehiclePos = [5e3,2e3,0]';
groundVehicleVel = [50,50,0]';
groundvehicleplatform = phased.Platform('MotionModel','Velocity',...
    'InitialPosition',groundVehiclePos,'Velocity',groundVehicleVel,...
    'InitialOrientationAxes',eye(3));

Set up the second airplane to also move at constant velocity.

airplane2Pos = [8.5e3,1e3,6000]';
airplane2Vel = [-300,100,20]';
airplane2platform = phased.Platform('MotionModel','Velocity',...
    'InitialPosition',airplane2Pos,'Velocity',airplane2Vel,...
    'InitialOrientationAxes',eye(3));

Set up the scenario viewer. Specify the radar as having a beam range of 8 km, a vertical beam width of 30°, and a horizontal beam width of 2°. Annotate the tracks with position, speed, altitude, and range.

BeamSteering = [0;50];
viewer = phased.ScenarioViewer('BeamRange',8.0e3,'BeamWidth',[2;30],'UpdateRate',updateRate,...
    'PlatformNames',{'Ground Radar','Turning Airplane','Vehicle','Airplane 2'},'ShowPosition',true,...
    'ShowSpeed',true,'ShowAltitude',true,'ShowLegend',true,'ShowRange',true,...
    'Title','Multiplatform Scenario','BeamSteering',BeamSteering);

Step through the display processing loop, updating radar and target positions. Rotate the ground-based radar steering angle by four degrees at each step.

for n = 1:N
    [groundRadarPos,groundRadarVel] = groundradarplatform(updateRate);
    [airplane1Pos,airplane1Vel,airplane1Axes] = airplane1platform(updateRate,airplane1Accel);
    [vehiclePos,vehicleVel] = groundvehicleplatform(updateRate);
    [airplane2Pos,airplane2Vel] = airplane2platform(updateRate);
    viewer(groundRadarPos,groundRadarVel,[airplane1Pos,vehiclePos,airplane2Pos],...
        [airplane1Vel,vehicleVel,airplane2Vel]);
    BeamSteering = viewer.BeamSteering(1);
    BeamSteering = mod(BeamSteering + 4,360.0);
    if BeamSteering > 180.0
        BeamSteering = BeamSteering - 360.0;
    end
    viewer.BeamSteering(1) = BeamSteering;
    pause(0.2);
end

Version History

Introduced in R2016a

phased.ScenarioViewer

Description

Construction

Properties

`Name` — Window caption name
`'Scenario Viewer'` (default) | character vector

`ReferenceRadar` — Reference radar index
`1` (default) | positive integer

`ShowBeam` — Show radar beams
`'ReferenceRadar'` (default) | `'None'` | `'All'`

`BeamWidth` — Vertical and horizontal radar beam widths
15 (default) | positive, real-valued scalar | positive, real-valued 2-element column vector | positive, real-valued N-element row vector | positive, real-valued 2-by-N matrix

`BeamRange` — Radar beam range
1000 (default) | positive scalar | real-valued N- element row vector of positive values

`BeamSteering` — Beam steering direction
`[0;0]` (default) | positive real-valued 2-element column vector | positive real-valued N-element row vector

`VelocityInputPort` — Enable velocity input
`true` (default) | `false`

`OrientationInputPort` — Enable orientation input
`false` (default) | `true`

`UpdateRate` — Update rate of scenario viewer
`1` (default) | `positive scalar`

`Title` — Display title
`''` (default) | character vector

`PlatformNames` — Names of radars and targets
`'Auto'` (default) | 1-by-(N+M) cell array of character vectors

`TrailLength` — Length of visible tracks
`500` (default) | positive integer | (N+M)-length vector of positive integers

`CameraPerspective` — Camera perspective
`'Auto'` (default) | `'Custom'` | `'Radar'`

`CameraPosition` — Camera position
`[x,y,z]` vector of real-values

`CameraOrientation` — Camera orientation
`[pan,tilt,roll]` vector of positive, real values

`CameraViewAngle` — Camera view angle
real-valued scalar from 0° to 360°

`ShowLegend` — Show viewer legend
`false` (default) | `true`

`ShowGround` — Show ground plane of scenario
`true` (default) | `false`

`ShowName` — Option to annotate radar and target tracks with names
`true` (default) | `false`

`ShowPosition` — Annotate radar and target tracks with positions
`false` (default) | `true`

`ShowRange` — Annotate radar and target tracks with ranges
`false` (default) | `true`

`ShowAltitude` — Annotate radar and target tracks with altitude
`false` (default) | `true`

`ShowSpeed` — Annotate radar and target tracks with speed
`false` (default) | `true`

`ShowRadialSpeed` — Annotate radar and target tracks with radial speed
`false` (default) | `true`

`ShowAzEl` — Annotate radar and target tracks with azimuth and elevation
`false` (default) | `true`

`Position` — Viewer window size and position
`[left bottom width height]` vector of positive, real values

`ReducePlotRate` — Enable reduced plot rate
`true` (default) | `false`

Methods

Examples

View Tracks of Stationary Radar and One Target

View Tracks of Airborne Radar and Ground Target

Visualize Multiplatform Scenario

Version History

See Also

Topics

phased.ScenarioViewer

Description

Construction

Properties

Name — Window caption name 'Scenario Viewer' (default) | character vector

ReferenceRadar — Reference radar index 1 (default) | positive integer

ShowBeam — Show radar beams 'ReferenceRadar' (default) | 'None' | 'All'

BeamWidth — Vertical and horizontal radar beam widths 15 (default) | positive, real-valued scalar | positive, real-valued 2-element column vector | positive, real-valued N-element row vector | positive, real-valued 2-by-N matrix

BeamRange — Radar beam range 1000 (default) | positive scalar | real-valued N- element row vector of positive values

BeamSteering — Beam steering direction [0;0] (default) | positive real-valued 2-element column vector | positive real-valued N-element row vector

VelocityInputPort — Enable velocity input true (default) | false

OrientationInputPort — Enable orientation input false (default) | true

UpdateRate — Update rate of scenario viewer 1 (default) | positive scalar

Title — Display title '' (default) | character vector

PlatformNames — Names of radars and targets 'Auto' (default) | 1-by-(N+M) cell array of character vectors

TrailLength — Length of visible tracks 500 (default) | positive integer | (N+M)-length vector of positive integers

CameraPerspective — Camera perspective 'Auto' (default) | 'Custom' | 'Radar'

CameraPosition — Camera position [x,y,z] vector of real-values

CameraOrientation — Camera orientation [pan,tilt,roll] vector of positive, real values

CameraViewAngle — Camera view angle real-valued scalar from 0° to 360°

ShowLegend — Show viewer legend false (default) | true

ShowGround — Show ground plane of scenario true (default) | false

ShowName — Option to annotate radar and target tracks with names true (default) | false

ShowPosition — Annotate radar and target tracks with positions false (default) | true

ShowRange — Annotate radar and target tracks with ranges false (default) | true

ShowAltitude — Annotate radar and target tracks with altitude false (default) | true

ShowSpeed — Annotate radar and target tracks with speed false (default) | true

ShowRadialSpeed — Annotate radar and target tracks with radial speed false (default) | true

ShowAzEl — Annotate radar and target tracks with azimuth and elevation false (default) | true

Position — Viewer window size and position [left bottom width height] vector of positive, real values

ReducePlotRate — Enable reduced plot rate true (default) | false

Methods

Examples

View Tracks of Stationary Radar and One Target

View Tracks of Airborne Radar and Ground Target

Visualize Multiplatform Scenario

Version History

See Also

Topics

`Name` — Window caption name
`'Scenario Viewer'` (default) | character vector

`ReferenceRadar` — Reference radar index
`1` (default) | positive integer

`ShowBeam` — Show radar beams
`'ReferenceRadar'` (default) | `'None'` | `'All'`

`BeamWidth` — Vertical and horizontal radar beam widths
15 (default) | positive, real-valued scalar | positive, real-valued 2-element column vector | positive, real-valued N-element row vector | positive, real-valued 2-by-N matrix

`BeamRange` — Radar beam range
1000 (default) | positive scalar | real-valued N- element row vector of positive values

`BeamSteering` — Beam steering direction
`[0;0]` (default) | positive real-valued 2-element column vector | positive real-valued N-element row vector

`VelocityInputPort` — Enable velocity input
`true` (default) | `false`

`OrientationInputPort` — Enable orientation input
`false` (default) | `true`

`UpdateRate` — Update rate of scenario viewer
`1` (default) | `positive scalar`

`Title` — Display title
`''` (default) | character vector

`PlatformNames` — Names of radars and targets
`'Auto'` (default) | 1-by-(N+M) cell array of character vectors

`TrailLength` — Length of visible tracks
`500` (default) | positive integer | (N+M)-length vector of positive integers

`CameraPerspective` — Camera perspective
`'Auto'` (default) | `'Custom'` | `'Radar'`

`CameraPosition` — Camera position
`[x,y,z]` vector of real-values

`CameraOrientation` — Camera orientation
`[pan,tilt,roll]` vector of positive, real values

`CameraViewAngle` — Camera view angle
real-valued scalar from 0° to 360°

`ShowLegend` — Show viewer legend
`false` (default) | `true`

`ShowGround` — Show ground plane of scenario
`true` (default) | `false`

`ShowName` — Option to annotate radar and target tracks with names
`true` (default) | `false`

`ShowPosition` — Annotate radar and target tracks with positions
`false` (default) | `true`

`ShowRange` — Annotate radar and target tracks with ranges
`false` (default) | `true`

`ShowAltitude` — Annotate radar and target tracks with altitude
`false` (default) | `true`

`ShowSpeed` — Annotate radar and target tracks with speed
`false` (default) | `true`

`ShowRadialSpeed` — Annotate radar and target tracks with radial speed
`false` (default) | `true`

`ShowAzEl` — Annotate radar and target tracks with azimuth and elevation
`false` (default) | `true`

`Position` — Viewer window size and position
`[left bottom width height]` vector of positive, real values

`ReducePlotRate` — Enable reduced plot rate
`true` (default) | `false`
