rangeangle

Range and angle calculation

collapse all in page

Syntax

[rng,ang] = rangeangle(pos)
[rng,ang] = rangeangle(pos,refpos)
[rng,ang] = rangeangle(pos,refpos,refaxes)
[rng,ang] = rangeangle(___,model)

Description

The function rangeangle determines the propagation path length and path direction of a signal from a source point or set of source points to a reference point. The function supports two propagation models – the free space model and the two-ray model. The free space model is a single line-of-sight path from a source point to a reference point. The two-ray multipath model generates two paths. The first path follows the free-space path. The second path is a reflected path off a boundary plane at z = 0. Path directions are defined with respect to either the global coordinate system at the reference point or a local coordinate system at the reference point. Distances and angles at the reference point do not depend upon which direction the signal is travelling along the path.

[rng,ang] = rangeangle(pos) returns the propagation path length, rng, and direction angles, ang, of a signal path from a source point or set of source points, pos, to the origin of the global coordinate system. The direction angles are the azimuth and elevation with respect to the global coordinate axes at the origin. Signals follow a line-of-sight path from the source point to the origin. The line-of-sight path corresponds to the geometric straight line between the points.

example

[rng,ang] = rangeangle(pos,refpos) also specifies a reference point or set of reference points, refpos. rng now contains the propagation path length from the source points to the reference points. The direction angles are the azimuth and elevation with respect to the global coordinate axes at the reference points. You can specify multiple points and multiple reference points.

example

[rng,ang] = rangeangle(pos,refpos,refaxes) also specifies local coordinate system axes, refaxes, at the reference points. Direction angles are the azimuth and elevation with respect to the local coordinate axes centered at refpos.

example

[rng,ang] = rangeangle(___,model), also specifies a propagation model. When model is set to "freespace", the signal propagates along a line-of-sight path from source point to reception point. When model is set to "two-ray", the signal propagates along two paths from source point to reception point. The first path is the line-of-sight path. The second path is the reflecting path. In this case, the function returns the distances and angles for two paths for each source point and corresponding reference point.

example

Examples

collapse all

Open Live Script

Compute the range and angle of a target located at (1000,2000,50) meters from the origin.

TargetLoc = [1000;2000;50];
[tgtrng,tgtang] = rangeangle(TargetLoc)
tgtrng =
2.2366e+03

tgtang = 2×1

   63.4349
    1.2810
Open Live Script

Compute the range and angle of a target located at (1000,2000,50) meters with respect to a local origin at (100,100,10) meters.

TargetLoc = [1000;2000;50];
Origin = [100;100;10];
[tgtrng,tgtang] = rangeangle(TargetLoc,Origin)
tgtrng =
2.1028e+03

tgtang = 2×1

   64.6538
    1.0900
Open Live Script

Compute the range and angle of a target located at (1000,2000,50) meters but with respect to a local coordinate system origin at (100,100,10) meters. Choose a local coordinate reference frame that is rotated about the z-axis by 45° from the global coordinate axes.

targetpos = [1000;2000;50];
origin = [100;100;10];
refaxes = [1/sqrt(2) -1/sqrt(2) 0; 1/sqrt(2) 1/sqrt(2) 0; 0 0 1];
[tgtrng,tgtang] = rangeangle(targetpos,origin,refaxes)
tgtrng =
2.1028e+03

tgtang = 2×1

   19.6538
    1.0900
Open Live Script

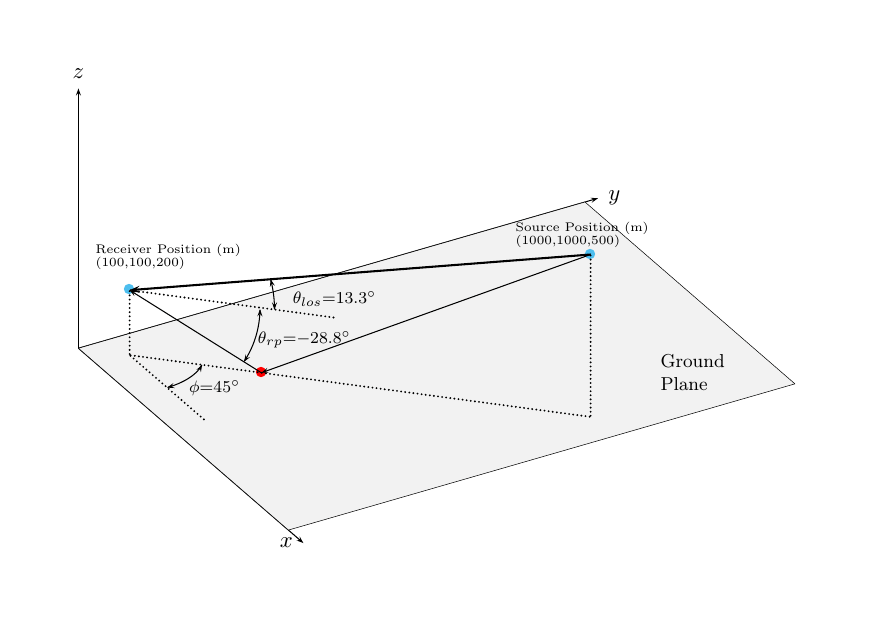

Compute the two-ray propagation distances and arrival angles of rays from a source located at (1000, 1000, 500) meters from the origin. The receiver is located at (100, 100, 200) meters from the origin.

sourceLoc = [1000;1000;500];
receiverLoc = [100;100;200];
[sourcerngs,sourceangs] = rangeangle(sourceLoc,receiverLoc,"two-ray")
sourcerngs = 1×2
103 ×

    1.3077    1.4526


sourceangs = 2×2

   45.0000   45.0000
   13.2627  -28.8096

Find the range and angle of the same target with the same origin but with respect to a local coordinate axes. The local coordinate axes are rotated around the z-axis by 45 degrees from the global coordinate axes.

refaxes = rotz(45);
[sourcerngs,sourceangs] = rangeangle(sourceLoc,receiverLoc,refaxes,"two-ray")
sourcerngs = 1×2
103 ×

    1.3077    1.4526


sourceangs = 2×2

         0         0
   13.2627  -28.8096
Open Live Script

Compute the ranges and angles of two targets located at (1000,200,500) and (2500,80,-100) meters with respect to two local origins at (100,300,-40) and (500,-60,10) meters. Specify two different sets of local axes.

targetPos = [1000,2500;200,80;500,-100];
origins = [100,500;300,-60;-40,10];
ax(:,:,1) = rotx(40)*rotz(10);
ax(:,:,2) = roty(5)*rotx(10);
[tgtrng,tgtang] = rangeangle(targetPos,origins,ax)
tgtrng = 1×2
103 ×

    1.0543    2.0079


tgtang = 2×2

    6.7285    4.2597
   26.9567    1.1254

Input Arguments

collapse all

Source point position in meters, specified as a real-valued 3-by-1 vector or a real-valued 3-by-N matrix. A matrix represents multiple source points. The columns contain the Cartesian coordinates of N points in the form [x;y;z].

When pos is a 3-by-N matrix, you must specify refpos as a 3-by-N matrix for N reference positions. If all the reference points are identical, you can specify refpos by a single 3-by-1 vector.

Example: [1000;2000;50]

Data Types: double

Reference point position in meters, specified as a real-valued 3-by-1 vector or a real-valued 3-by-N matrix. A matrix represents multiple reference points. The columns contain the Cartesian coordinates of N points ins the form [x;y;z].

When refpos is a 3-by-N matrix, you must specify pos as a 3-by-N matrix for N source positions. If all the source points are identical, you can specify pos by a single 3-by-1 vector.

Position units are meters.

Example: [100;100;10]

Data Types: double

Local coordinate system axes, specified as a real-valued 3-by-3 matrix or a 3-by-3-by-N array. For an array, each page corresponds to a local coordinate axes at each reference point. The columns in refaxes specify the direction of the coordinate axes for the local coordinate system in Cartesian coordinates. N must match the number of columns in pos or refpos when these dimensions are greater than one.

Example: rotz(45)

Data Types: double

Propagation model, specified as "freespace" or "two-ray". Choosing "freespace" invokes the free space propagation model. Choosing "two-ray" invokes the two-ray propagation model.

Data Types: char | string

Output Arguments

collapse all

Propagation range in meters, returned as a real-valued 1-by-N vector or real-valued 1-by-2N vector.

  • When model is set to "freespace", the size of rng is 1-by-N. The propagation range is the length of the direct path from the position defined in pos to the corresponding reference position defined in refpos.

  • When model is set to "two-ray", rng contains the ranges for the direct path and the reflected path. Alternate columns of rng refer to the line-of-sight path and reflected path, respectively for the same source-reference point pair.

Azimuth and elevation angles, in degrees, returned as a 2-by-N matrix or 2-by-2N matrix. Each column represents a direction angle in the form [azimuth;elevation].

  • When model is set to "freespace", ang is a 2-by-N matrix and represents the angle of the path from a source point to a reference point.

  • When model is set to "two-ray", ang is a 2-by-2N matrix. Alternate columns of ang refer to the line-of-sight path and reflected path, respectively.

More About

collapse all

Angles in Local and Global Coordinate Systems

The rangeangle function returns the path distance and path angles in either the global or local coordinate systems. Every antenna or microphone element and array has a gain pattern that is expressed in local angular coordinates of azimuth and elevation. As the element or array moves or rotates, the gain pattern is carried with it. To determine the strength of a signal, you must know the angle that the signal path makes with respect to the local angular coordinates of the element or array. By default, the rangeangle function determines the angle a signal path makes with respect to global coordinates. If you add the refaxes argument, you can compute the angles with respect to local coordinates. As an illustration, this figure shows a 5-by-5 uniform rectangular array (URA) rotated from the global coordinates (xyz) using refaxes. The x' axis of the local coordinate system (x'y'z') is aligned with the main axis of the array and moves as the array moves. The path length is independent of orientation. The global coordinate system defines the azimuth and elevation angles (Φ,θ) and the local coordinate system defines the azimuth and elevations angles (Φ',θ').

Local and Global Coordinate Axes

Free Space Propagation Model

The free-space signal propagation model states that a signal propagating from one point to another in a homogeneous, isotropic medium travels in a straight line, called the line-of-sight or direct path. The straight line is defined by the geometric vector from the radiation source to the destination. Similar assumptions are made for sonar but the term isovelocity channel is used in place of free space.

Two-Ray Propagation Model

A two-ray propagation channel is the next step up in complexity from a free-space channel and is the simplest case of a multipath propagation environment. The free-space channel models a straight-line line-of-sight path from point 1 to point 2. In a two-ray channel, the medium is specified as a homogeneous, isotropic medium with a reflecting planar boundary. The boundary is always set at z = 0. There are at most two rays propagating from point 1 to point 2. The first ray path propagates along the same line-of-sight path as in the free-space channel (see the phased.FreeSpace System object™). The line-of-sight path is often called the direct path. The second ray reflects off the boundary before propagating to point 2. According to the Law of Reflection , the angle of reflection equals the angle of incidence. In short-range simulations such as cellular communications systems and automotive radars, you can assume that the reflecting surface, the ground or ocean surface, is flat.

The figure illustrates two propagation paths. From the source position, ss, and the receiver position, sr, you can compute the arrival angles of both paths, θ′los and θ′rp. The arrival angles are the elevation and azimuth angles of the arriving radiation with respect to a local coordinate system. In this case, the local coordinate system coincides with the global coordinate system. You can also compute the transmitting angles, θlos and θrp. In the global coordinates, the angle of reflection at the boundary is the same as the angles θrp and θ′rp. The reflection angle is important to know when you use angle-dependent reflection-loss data. You can determine the reflection angle by using the rangeangle function and setting the reference axes to the global coordinate system. The total path length for the line-of-sight path is shown in the figure by Rlos which is equal to the geometric distance between source and receiver. The total path length for the reflected path is Rrp= R1 + R2. The quantity L is the ground range between source and receiver.

You can easily derive exact formulas for path lengths and angles in terms of the ground range and object heights in the global coordinate system.

R→=x→s−x→rRlos=|R→|=(zr−zs)2+L2R1=zrzr+zz(zr+zs)2+L2R2=zszs+zr(zr+zs)2+L2Rrp=R1+R2=(zr+zs)2+L2tanθlos=(zs−zr)Ltanθrp=−(zs+zr)Lθ′los=−θlosθ′rp=θrp
