addCursor

Add cursor to polar plot angle

collapse all in page

Syntax

addCursor(p,angle)
addCursor(p,angle,index)
id = addCursor(___)

Description

addCursor(p,angle) adds a cursor to the active polar plot, p, at the data point closest to the specified angle. Angle units are in degrees.

The first cursor added is called 'C1', the second 'C2', and so on.

example

addCursor(p,angle,index) adds a cursor at a specified data set index. index can be a vector of indices.

example

id = addCursor(___) returns a cell array with one ID for each cursor created. You can specify any of the arguments from the previous syntaxes.

Examples

collapse all

Open Live Script

Create a cosine antenna and plot the polar pattern of its directivity at 75 MHz. Then add cursors at two 150° and 270°.

cosineantenna = phased.CosineAntennaElement('FrequencyRange',[1.0e0 100.0e9],...
    'CosinePower',[2,2]);
p = pattern(cosineantenna,75.0e6,[-90:90],0,'Type','Directivity');
P = polarpattern([-90:90],p);
addCursor(P,[45 135]);

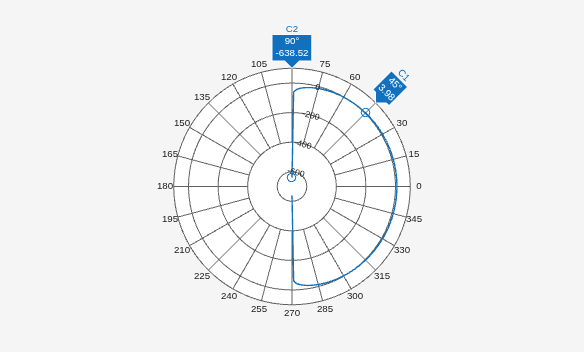

Figure Polar Measurement contains an axes object. The hidden axes object contains an object of type line.

Open Live Script

Create a cosine antenna and plot the polar pattern of its directivity at 75 MHz. Then create an isotropic antenna. Also calculate the directivity of this antenna at 75 MHz. Add the directivity plot of the isotropic antenna to the directivity plot of the cosine antenna. Then add cursors at several points.

cosineantenna = phased.CosineAntennaElement('FrequencyRange',[1.0e0 100.0e9],...
    'CosinePower',[2,2]);
p1 = pattern(cosineantenna,75.0e6,[-90:90],0,'Type','Directivity');
P = polarpattern([-90:90],p1);
isoantenna = phased.IsotropicAntennaElement('FrequencyRange',...
    [1.0e0 100.0e9]);
p2 = pattern(isoantenna,75.0e6,[-180:180],0,'Type','Directivity');
add(P,[-180:180],p2);

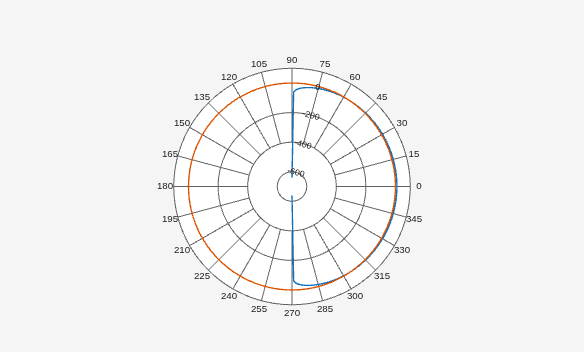

Figure Polar Measurement contains an axes object. The hidden axes object contains 2 objects of type line.

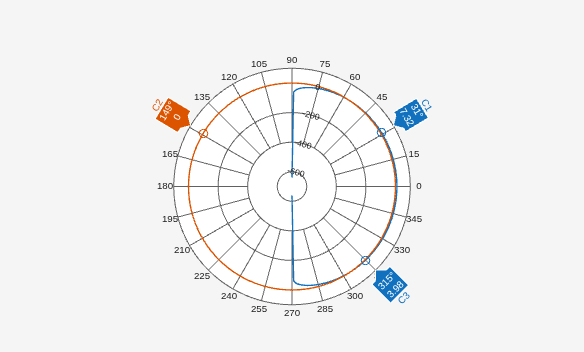

Add a cursor at approximately 30° to the cosine antenna pattern (designated by index 1) and at 150° and 270° to the isotropic polar pattern (designated by index 2).

addCursor(P,[30.5 149.0 314.7],[1 2 1]);

Figure Polar Measurement contains an axes object. The hidden axes object contains 2 objects of type line.

Input Arguments

collapse all

Polar plot, specified as a scalar handle.

Example: polarpattern

Angle values at which the cursor is added, specified as a scalar or a vector in degrees.

Example: [45 60]

Data set index, specified as a scalar or a vector.

Example: [1 10]

Version History

Introduced in R2016a
