createLabels

Create legend labels for polar plot

collapse all in page

Syntax

createLabels(p,format,array)

Description

createLabels(p,format,array) adds the specified format label to each array of the polar plot p. The labels are stored as a cell array in the LegendLabels property of p.

example

Examples

collapse all

Open Live Script

Create a polar plot of cosine powers rotated in 30° increments. Generate a legend label for this plot.

az = [0:359]';
a1 = abs(cosd(az).^5);
a2 = abs(cosd(az - 30).^5);
a3 = abs(cosd(az - 60).^5);
a4 = abs(cosd(az - 90).^5);
P = polarpattern([a1,a2,a3,a4],'Style','filled');
createLabels(P,'az = %d#deg',0:30:90)

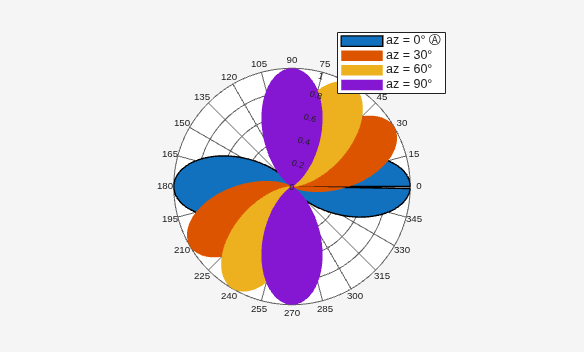

Figure Polar Measurement contains an axes object. The hidden axes object contains 4 objects of type patch. These objects represent az = 0° Ⓐ , az = 30° , az = 60° , az = 90° .

Input Arguments

collapse all

Polar plot, specified as a scalar handle.

Example: polarpattern

Format for legend label added to the polar plot, specified as a cell array. For more information on legend label format see, legend.

Example: "az=%d#deg"

Data Types: string

Values to apply the format, specified as an array. The values can be an array of angles or array of magnitudes.

Example: [0 15 30 45]

Data Types: double
