transform

R2026b

Transform geometric models between coordinate frames

Since R2026b

collapse all in page

    Syntax

    modelOut = transform(modelIn,tform)

    Description

    modelOut = transform(modelIn,tform) transforms the input model modelIn by applying the specified transformation tform, and returns the transformed model modelOut. The function does not modify the input model.

    example

    Examples

    collapse all

    Open Live Script

    Read a point cloud and select a region of interest (ROI) to focus on a subset of the scene.

    ptCloud = pcread("highwayScene.pcd");
roi = [-30 30 -20 30 -8 13];

indices = findPointsInROI(ptCloud,roi);
ptCloud = select(ptCloud,indices);

    Fit a cuboid model to a smaller region that contains an object within the selected point cloud.

    cuboidROI = [9.6 13.8 7.9 9.3 -2.5 3];
sampleIndices = findPointsInROI(ptCloud,cuboidROI);
model = pcfitcuboid(ptCloud,sampleIndices);

    Create a rigid transformation that rotates the model about the z‑axis and translates it along the x-axis.

    angles = [0 0 20];
translation = [3 0 0];
tform = rigidtform3d(angles,translation);

    Apply the transformation to the cuboid model. To visualize the cuboid model in the transformed coordinate frame, apply the same transformation to the point cloud.

    transformedModel = transform(model,tform);
transformedPtCloud = pctransform(ptCloud,tform);

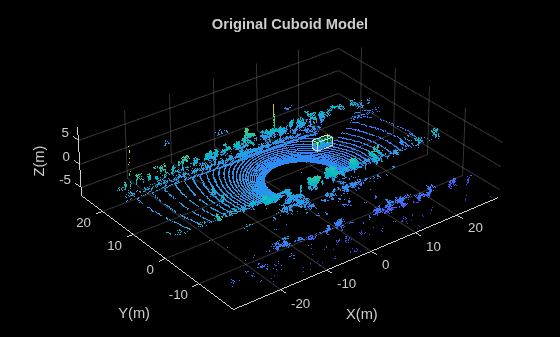

    Visualize the original cuboid model overlaid on the original point cloud.

    figure
pcshow(ptCloud)
hold on
plot(model,Color="green")
xlabel("X(m)")
ylabel("Y(m)")
zlabel("Z(m)")
title("Original Cuboid Model")

    Figure contains an axes object. The axes object with title Original Cuboid Model, xlabel X(m), ylabel Y(m) contains 2 objects of type scatter, patch.

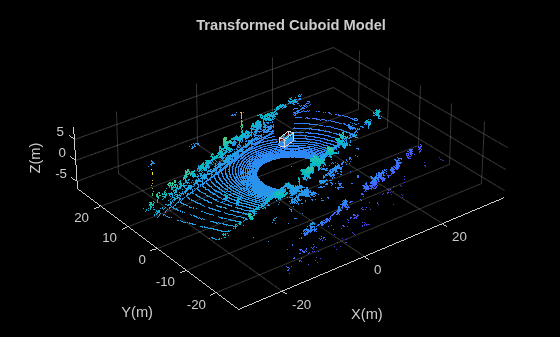

    Visualize the transformed cuboid model overlaid on the transformed point cloud.

    figure
pcshow(transformedPtCloud)
hold on
plot(transformedModel,Color="red")
xlabel("X(m)")
ylabel("Y(m)")
zlabel("Z(m)")
title("Transformed Cuboid Model")

    Figure contains an axes object. The axes object with title Transformed Cuboid Model, xlabel X(m), ylabel Y(m) contains 2 objects of type scatter, patch.

    Input Arguments

    collapse all

    Geometric model to transform, specified as a cuboidModel, planeModel, cylinderModel, or sphereModel object.

    Three-dimensional transformation, specified as a rigidtform3d, simtform3d, or transltform3d object.

    Output Arguments

    collapse all

    Transformed geometric model, returned as a cuboidModel, planeModel, cylinderModel, or sphereModel object. The output model has the same object type as the input model.

    Extended Capabilities

    expand all

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    GPU Code Generation
    Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

    Version History

    Introduced in R2026b
