# Train PG Agent with Custom Networks to Control Discrete Double Integrator

This example shows how to train a policy gradient (PG) agent with baseline to control a discrete action space second-order dynamic system modeled in MATLAB®.

For more information on the basic PG agent with no baseline, see the example Train PG Agent to Balance Discrete Cart-Pole System.

### Fix Random Seed Generator to Improve Reproducibility

The example code may involve computation of random numbers at various stages such as initialization of the agent, creation of the actor and critic, resetting the environment during simulations, generating observations (for stochastic environments), generating exploration actions, and sampling min-batches of experiences for learning. Fixing the random number stream preserves the sequence of the random numbers every time you run the code and improves reproducibility of results. You will fix the random number stream at various locations in the example.

Fix the random number stream with the seed 0 and random number algorithm Mersenne twister. For more information on random number generation, see `rng`

.

`previousRngState = rng(0, "twister");`

The output previousRngState is a structure that contains information about the previous state of the stream. You will restore the state at the end of the example.

### Discrete Action Space Double Integrator MATLAB Environment

The reinforcement learning environment for this example is a second-order double integrator system with a gain and a discrete action space. The training goal is to control the position of a mass in the second-order system by applying a force input.

For this environment:

The mass starts at an initial position between –2 and 2 units.

The agent can apply one of three possible force values to the mass: -2, 0, or 2 N.

The observations from the environment are the position and velocity of the mass.

The episode terminates if the mass moves more than 5 m from the original position or if $\left|\mathit{x}\right|<0.01$.

The reward ${\mathit{r}}_{\mathit{t}}$, provided at every time step, is a discretization of $\mathit{r}\left(\mathit{t}\right)$:

$$\mathit{r}\left(\mathit{t}\right)=-\left({\mathit{x}\left(\mathit{t}\right)}^{\prime}\text{\hspace{0.17em}}\mathit{Q}\text{\hspace{0.17em}}\mathit{x}\left(\mathit{t}\right)+{\mathit{u}\left(\mathit{t}\right)}^{\prime}\text{\hspace{0.17em}}\mathit{R}\text{\hspace{0.17em}}\mathit{u}\left(\mathit{t}\right)\right)$$

Here:

$\mathit{x}$ is the state vector of the mass.

$\mathit{u}$ is the force applied to the mass.

$\mathit{Q}$ is the weights on the control performance; $\mathit{Q}=\left[10\text{\hspace{0.17em}}0;0\text{\hspace{0.17em}}1\right]$.

$\mathit{R}$ is the weight on the control effort; $\mathit{R}=0.01$.

For more information on this model, see Load Predefined Control System Environments.

### Create Environment Object

Create a predefined environment interface for the pendulum.

`env = rlPredefinedEnv("DoubleIntegrator-Discrete")`

env = DoubleIntegratorDiscreteAction with properties: Gain: 1 Ts: 0.1000 MaxDistance: 5 GoalThreshold: 0.0100 Q: [2x2 double] R: 0.0100 MaxForce: 2 State: [2x1 double]

Obtain the observation and action information from the environment interface.

obsInfo = getObservationInfo(env); actInfo = getActionInfo(env);

### Create Actor With Custom Network

The actor network of the PG agent are initialized randomly. Fix the random number stream.

`rng(0, "twister");`

For policy gradient agents, the actor executes a stochastic policy, which for discrete action spaces is approximated by a discrete categorical actor. This actor must take the observation signal as input and return a probability for each action.

To approximate the policy within the actor, use a neural network. Define the network as an array of layer objects with one input (the observation) and one output (the action), and get the dimension of the observation space and the number of possible actions from the environment specification objects. For more information on creating a deep neural network value function representation, see Create Policies and Value Functions.

actorNet = [ featureInputLayer(obsInfo.Dimension(1)) fullyConnectedLayer(numel(actInfo.Elements)) ];

Convert to `dlnetwork`

and display the number of weights.

actorNet = dlnetwork(actorNet); summary(actorNet)

Initialized: true Number of learnables: 9 Inputs: 1 'input' 2 features

Create the actor representation using the neural network and the environment specification objects. For more information, see `rlDiscreteCategoricalActor`

.

actor = rlDiscreteCategoricalActor(actorNet,obsInfo,actInfo);

To return the probability distribution of the possible actions as a function of a random observation, and given the current network weights, use `evaluate`

.

prb = evaluate(actor,{rand(obsInfo.Dimension)})

`prb = `*1x1 cell array*
{3x1 single}

prb{1}

`ans = `*3x1 single column vector*
0.4994
0.3770
0.1235

### Create Baseline With Custom Network

The baseline network of the PG agent are initialized randomly. Fix the random number stream.

`rng(0, "twister");`

The PG Agent algorithm, (also known as REINFORCE) returns can be compared to a baseline that depends on the state. Using a basellline can reduce the variance of the expected value of the update and thus improve the speed of learning. A possible choice for the baseline is an estimate of the state value function [1].

A value-function approximator object must accept an observation as input and return a single scalar (the estimated discounted cumulative long-term reward) as output. Use a neural network as approximation model. Define the network as an array of layer objects, and get the dimension of the observation space and the number of possible actions from the environment specification objects.

baselineNet = [ featureInputLayer(obsInfo.Dimension(1)) fullyConnectedLayer(8) reluLayer fullyConnectedLayer(1) ];

Convert to `dlnetwork`

and display the number of weights.

baselineNet = dlnetwork(baselineNet);

Create the baseline value function approximator `baselineNet`

, and the observation specification. For more information, see `rlValueFunction`

.

baseline = rlValueFunction(baselineNet,obsInfo);

Check the baseline with a random observation input.

getValue(baseline,{rand(obsInfo.Dimension)})

`ans = `*single*
1.5300

### Configure Agent Options and Create Agent

Specify options for the actor. For more information, see `rlOptimizerOptions`

. Alternatively, you can change agent (including actor and critic) options using dot notation after the agent is created.

actorOpts = rlOptimizerOptions( ... LearnRate=5e-3, ... GradientThreshold=1);

Specify some options for the baseline.

baselineOpts = rlOptimizerOptions( ... LearnRate=5e-3, ... GradientThreshold=1);

Specify the PG agent options using `rlPGAgentOptions`

and set the `UseBaseline`

option set to `true`

.

agentOpts = rlPGAgentOptions(... UseBaseline=true, ... ActorOptimizerOptions=actorOpts, ... CriticOptimizerOptions=baselineOpts);

Create the agent using the specified actor representation, baseline representation, and agent options. For more information, see `rlPGAgent`

.

agent = rlPGAgent(actor,baseline,agentOpts);

Check the agent with a random observation input.

getAction(agent,{rand(obsInfo.Dimension)})

`ans = `*1x1 cell array*
{[0]}

### Configure Training Options

Set up an evaluator object to evaluate the agent five times without exploration every 50 episodes.

evl = rlEvaluator(NumEpisodes=5,EvaluationFrequency=50);

Configure the training options. For this example, use the following options.

Run at most 1000 episodes, with each episode lasting at most 200 time steps.

Display the training progress in the Reinforcement Learning Training Monitor dialog box (set the

`Plots`

option) and disable the command line display (set the`Verbose`

option).Stop training when the average reward in the evaluation episodes is greater than –40. At this point, the agent can control the position of the mass using minimal control effort.

For more information, see `rlTrainingOptions`

.

trainOpts = rlTrainingOptions(... MaxEpisodes=1000, ... MaxStepsPerEpisode=200, ... Verbose=false, ... Plots="training-progress",... StopTrainingCriteria="EvaluationStatistic",... StopTrainingValue=-40);

### Train Agent

Fix the random number stream.

`rng(0, "twister");`

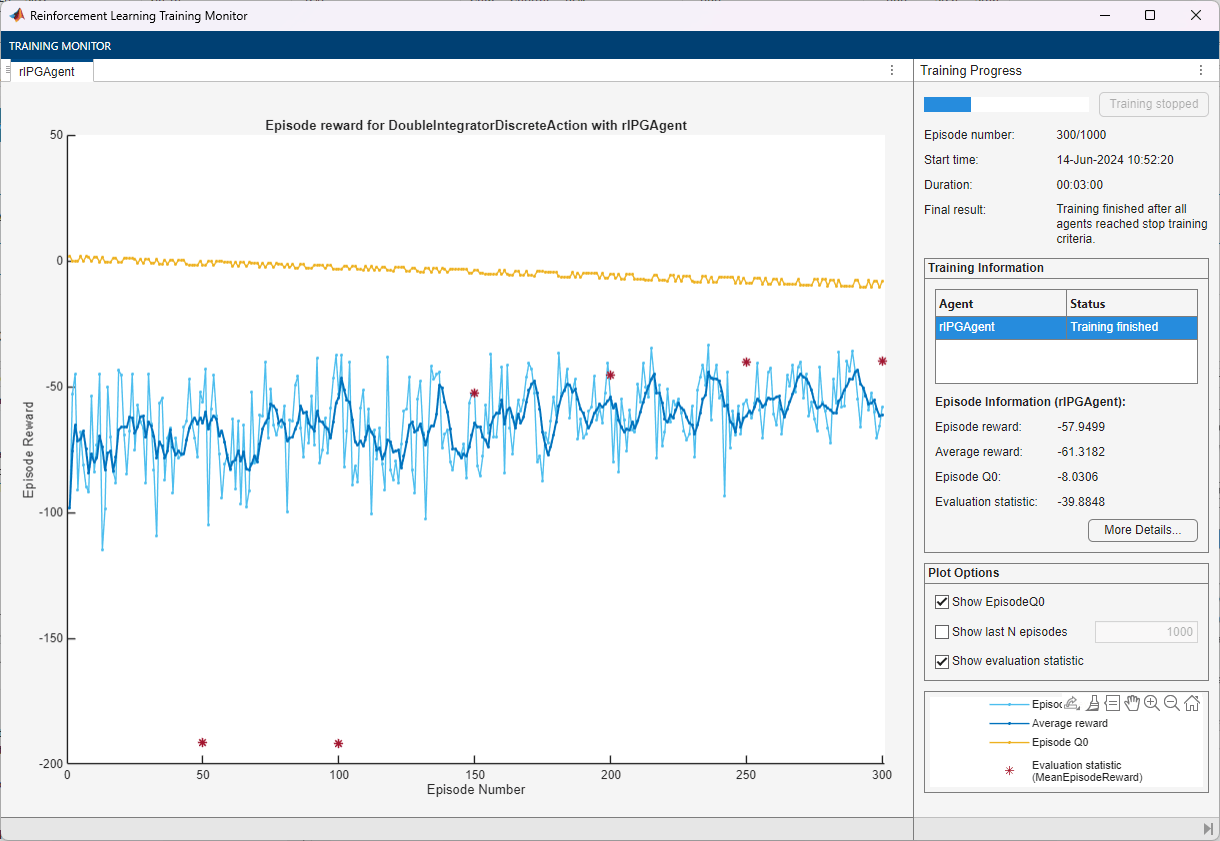

Train the agent using the `train`

function. Training this agent is a computationally intensive process that takes several minutes to complete. To save time while running this example, load a pretrained agent by setting `doTraining`

to `false`

. To train the agent yourself, set `doTraining`

to `true`

.

doTraining = false; if doTraining % Train the agent. trainingStats = train(agent,env,trainOpts,Evaluator=evl); else % Load the pretrained parameters for the example. load("DoubleIntegPGBaseline.mat"); end

### Simulate Agent

Fix the random number stream.

`rng(0, "twister");`

You can visualize the double integrator system using the `plot`

function during training or simulation.

plot(env)

To validate the performance of the trained agent, simulate it within the double integrator environment. For more information on agent simulation, see `rlSimulationOptions`

and `sim`

.

simOptions = rlSimulationOptions(MaxSteps=500); experience = sim(env,agent,simOptions);

totalReward = sum(experience.Reward)

totalReward = -63.8540

Restore the random number stream using the information stored in `previousRngState`

.

rng(previousRngState)

### References

[1] Sutton, Richard S., and Andrew G. Barto. *Reinforcement Learning: An Introduction*. Second edition. Adaptive Computation and Machine Learning Series. Cambridge, MA: The MIT Press, 2018.
