ringAnnular

Create annular ring on X-Y plane

Since R2021b

expand all in page

Description

Use the ringAnnular object to create an annular ring on the X-Y plane.

Creation

Syntax

ring = ringAnnular

ring = ringAnnular(Name=Value)

Description

ring = ringAnnular creates an annular ring on the X-Y plane.

example

ring = ringAnnular(Name=Value) sets Properties using one or more name-value arguments. For example, ringAnnular(Center=[1 1]) creates an annular ring shape centered at [1 1]. Properties not specified retain their default values.

example

Properties

expand all

`Name` — Name of annular ring
`'myringAnnular'` (default) | character vector | string scalar

Name of the annular ring, specified as a character vector or string scalar.

Example: ring = ringAnnular(Name='ringannular1')

Data Types: char | string

`Center` — Center of annular ring
`[0 0]` (default) | two-element vector

Center of the annular ring in Cartesian coordinates, specified as a two-element vector.

Example: ring = ringAnnular(Center=[1 1])

Data Types: double

`InnerRadius` — Inner radius of annular ring
`0.0050` (default) | positive scalar

Inner radius of the annular ring, specified as a positive scalar in meters.

Example: ring = ringAnnular(InnerRadius=0.006)

Data Types: double

`Width` — Width of annular ring
`0.0020` (default) | positive scalar

Width of the annular ring, specified as a positive scalar in meters.

Example: ring = ringAnnular(Width=3)

Data Types: double

Object Functions

`add`	Boolean unite operation on two RF PCB shapes
`and`	Shape1 & Shape2 for RF PCB shapes
`area`	Calculate area of RF PCB shape in square meters
`intersect`	Boolean intersection operation on two RF PCB shapes
`mesh`	Change and view mesh properties of metal or dielectric in PCB component
`minus`	Shape1 - Shape2 for RF PCB shapes
`mirrorX`	Mirror shape along X-axis
`mirrorY`	Mirror shape along Y-axis
`plus`	Shape1 + Shape2 for RF PCB shapes
`rotate`	Rotate RF PCB shape about defined axis
`rotateX`	Rotate RF PCB shape about x-axis
`rotateY`	Rotate RF PCB shape about y-axis and angle
`rotateZ`	Rotate RF PCB shape about z-axis
`subtract`	Boolean subtraction operation on two RF PCB shapes
`scale`	Change size of RF PCB shape by fixed amount
`show`	Display PCB component structure or PCB shape
`translate`	Move RF PCB shape to new location

Examples

collapse all

Create Default Annular Ring Shape

Open Live Script

Create an annular ring shape with default properties.

ring = ringAnnular

ring =
  ringAnnular with properties:

           Name: 'myringAnnular'
         Center: [0 0]
          Width: 0.0020
    InnerRadius: 0.0050

View the shape.

show(ring)

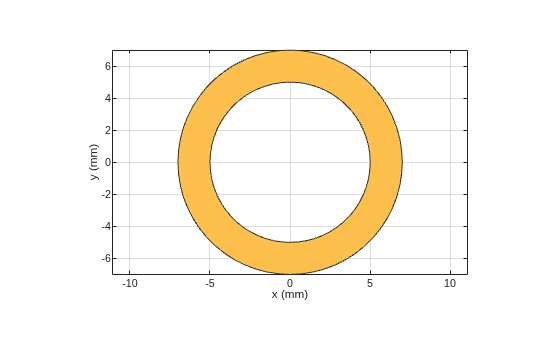

Figure contains an axes object. The axes object with xlabel x (mm), ylabel y (mm) contains 2 objects of type patch. These objects represent PEC, myringAnnular.

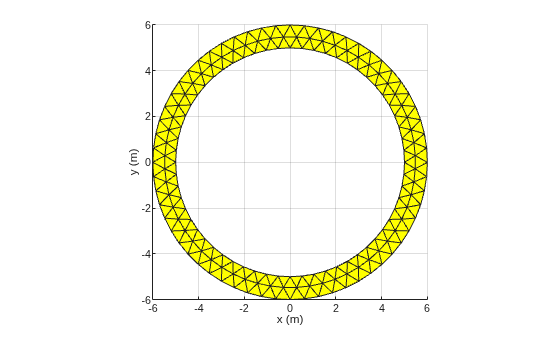

Mesh Annular Ring Shape

Open Live Script

Create an annular ring shape of inner radius 5 m and width 1 m.

ring = ringAnnular(InnerRadius=5,Width=1);
show(ring)

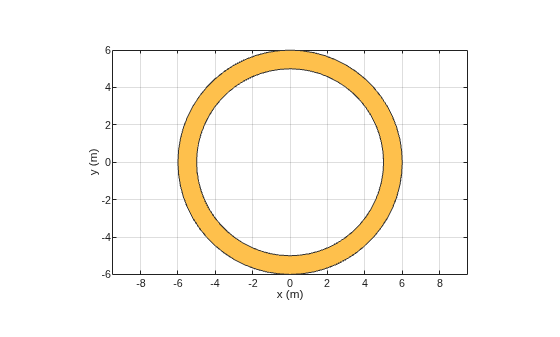

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, myringAnnular.
