applyTransform

Apply forward transformation to mesh vertices

Since R2022a

collapse all in page

Syntax

transformedMesh = applyTransform(mesh,T)

Description

transformedMesh = applyTransform(mesh,T) applies the forward transformation matrix T to the vertices of the object mesh.

example

Examples

collapse all

Open Live Script

Create an extendedObjectMesh object and transform the object by using a transformation matrix.

Create a cuboid mesh of unit dimensions.

cuboid = extendedObjectMesh('cuboid');

Create a transformation matrix that is a combination of a translation, a scaling, and a rotation.

tform = makehgtform('translate',[0.2 -0.5 0.5], ...
    'scale',[0.5 0.6 0.7], ...
    'xrotate',pi/4);

Transform the mesh.

transformedCuboid = applyTransform(cuboid,tform);

Visualize the meshes.

subplot(1,2,1);
show(cuboid);
title('Initial Mesh')

subplot(1,2,2);
show(transformedCuboid);
title('Transformed Mesh')

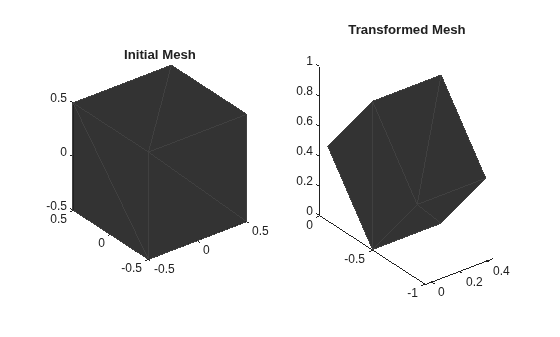

Figure contains 2 axes objects. Axes object 1 with title Initial Mesh contains an object of type patch. Axes object 2 with title Transformed Mesh contains an object of type patch.

Input Arguments

collapse all

Extended object mesh, specified as an extendedObjectMesh object.

Transformation matrix applied on the object mesh, specified as a 4-by-4 matrix. The 3-D coordinates of each point in the object mesh is transformed according to this formula:

[xT; yT; zT; 1] = T*[x; y; z; 1]

xT, yT, and zT are the transformed 3-D coordinates of the point.

Data Types: single | double

Output Arguments

collapse all

Transformed object mesh, returned as an extendedObjectMesh object.

Version History

Introduced in R2022a
