plot

Display laser or lidar scan readings

Description

plot(scanMsg) plots the laser scan readings specified in the input LaserScan object message. Axes are automatically scaled to the maximum range that the laser scanner supports.

Note

plot will be removed. Use rosPlot instead. For more information, see ROS Message Structure Functions

example

plot(scanObj) plots the lidar scan readings specified in scanObj.

example

plot(___,Name,Value) provides additional options specified by one or more Name,Value pair arguments.

example

linehandle = plot(___) returns a column vector of line series handles, using any of the arguments from previous syntaxes. Use linehandle to modify properties of the line series after it is created.

When plotting ROS laser scan messages, MATLAB® follows the standard ROS convention for axis orientation. This convention states that positive x is forward, positive y is left, and positive z is up. For more information, see Axis Orientation on the ROS Wiki.

Examples

collapse all

Connect to ROS network. Subscribe to a laser scan topic, and receive a message.

rosinit('192.168.17.129')
Initializing global node /matlab_global_node_90279 with NodeURI http://192.168.17.1:50889/
sub = rossubscriber('/scan');
scan = receive(sub);

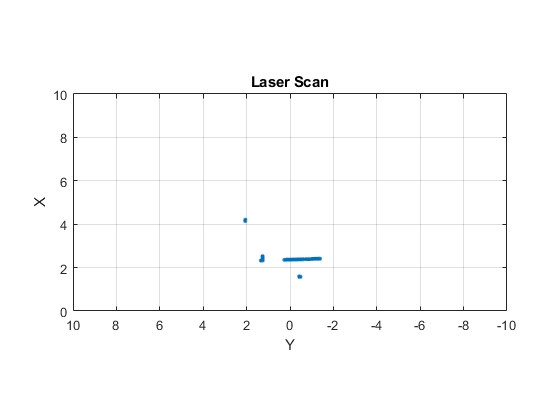

Plot the laser scan.

plot(scan)

Shutdown ROS network.

rosshutdown
Shutting down global node /matlab_global_node_90279 with NodeURI http://192.168.17.1:50889/

Connect to ROS network. Subscribe to a laser scan topic, and receive a message.

rosinit('192.168.17.129')
Initializing global node /matlab_global_node_31712 with NodeURI http://192.168.17.1:51463/
sub = rossubscriber('/scan');
scan = receive(sub);

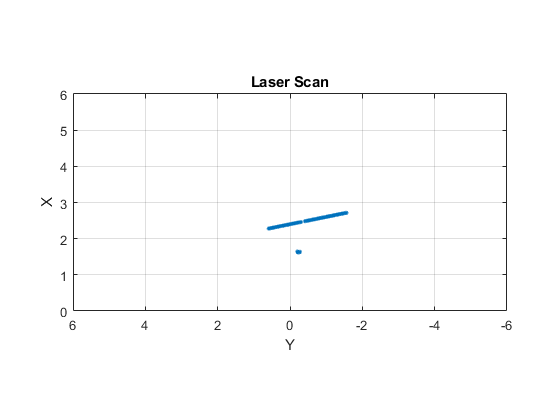

Plot the laser scan specifying the maximum range.

plot(scan,'MaximumRange',6)

Shutdown ROS network.

rosshutdown
Shutting down global node /matlab_global_node_31712 with NodeURI http://192.168.17.1:51463/

Specify lidar data as vectors of ranges and angles. These values include readings outside of the sensor range.

x = linspace(-2,2);
ranges = abs((1.5).*x.^2 + 5);
ranges(45:55) = 3.5;
angles = linspace(-pi/2,pi/2,numel(ranges));

Create a lidar scan by specifying the ranges and angles. Plot all points of the lidar scan.

scan = lidarScan(ranges,angles);
plot(scan)

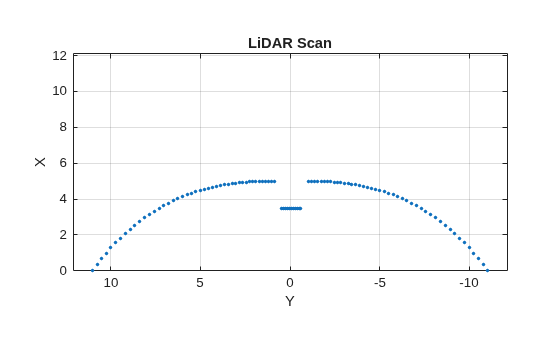

Figure contains an axes object. The axes object with title LiDAR Scan, xlabel X, ylabel Y contains a line object which displays its values using only markers.

Remove invalid points based on a specified minimum and maximum range.

minRange = 0.1;
maxRange = 7;
scan2 = removeInvalidData(scan,'RangeLimits',[minRange maxRange]);
hold on
plot(scan2)
legend('All Points','Valid Points')

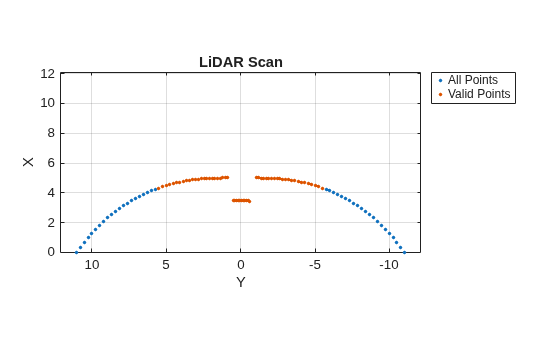

Figure contains an axes object. The axes object with title LiDAR Scan, xlabel X, ylabel Y contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent All Points, Valid Points.

Input Arguments

collapse all

sensor_msgs/LaserScan ROS message, specified as a LaserScan object handle.

Lidar scan readings, specified as a lidarScan (Navigation Toolbox) object.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: "MaximumRange",5

Parent of axes, specified as the comma-separated pair consisting of "Parent" and an axes object in which the laser scan is drawn. By default, the laser scan is plotted in the currently active axes.

Range of laser scan, specified as the comma-separated pair consisting of "MaximumRange" and a scalar. When you specify this name-value pair argument, the minimum and maximum x-axis and the maximum y-axis limits are set based on a specified value. The minimum y-axis limit is automatically determined by the opening angle of the laser scanner.

This name-value pair works only when you input scanMsg as the laser scan.

Outputs

collapse all

One or more chart line objects, returned as a scalar or a vector. These are unique identifiers, which you can use to query and modify properties of a specific chart line.

Version History

Introduced in R2019b
