slreportgen.utils.sortBlocks
语法
说明
按名称字母顺序对 sortedList
= slreportgen.utils.sortBlocks(unsortedBlocks
)unsortedBlocks
中的元素进行排序。在使用 sortBlocks
函数之前,您必须加载包含模块的模型。该函数忽略并排除无效元素。
使用 sortedList
= slreportgen.utils.sortBlocks(unsortedBlocks
,sortMethod
)sortMethod
对 unsortedBlocks
中的元素进行排序。
示例
从左到右对 Simulink 模块进行排序
此示例显示如何使用 slreportgen.utils.sortBlocks
函数按模型布局中的位置从左到右对模型模块进行排序。
导入这些包,这样您就不必使用长而完全限定的函数和类名。
import slreportgen.finder.* import slreportgen.utils.*

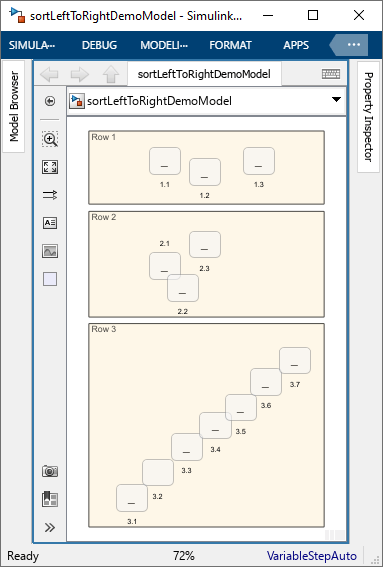

打开并观察模型,看看模块是如何分成行的,以及每行是如何从左到右排序的。
model_name = "sortLeftToRightDemoModel";
open_system(model_name);
使用 slreportgen.finder.BlockFinder
对象在模型中查找模块元素。将模块列表保存在变量 unsortedBlocks
中。
unsortedBlocks = find(BlockFinder(model_name));
使用 slreportgen.utils.sortBlocks
函数按照 leftToRight
排序方法对模块进行排序,并显示排序后的模块名称。验证模块是否排序正确。
sortedBlocks = sortBlocks(unsortedBlocks,"leftToRight");
disp([sortedBlocks.Name]');
"1.1" "1.2" "1.3" "2.1" "2.2" "2.3" "3.1" "3.2" "3.3" "3.4" "3.5" "3.6" "3.7"
从上到下对 Simulink 模块进行排序
此示例显示如何使用 slreportgen.utils.sortBlocks
函数按模型布局中的位置从上到下对模型模块进行排序。
导入这些命名空间,这样您就不必使用长而完全限定的函数和类名。
import slreportgen.finder.* import slreportgen.utils.*

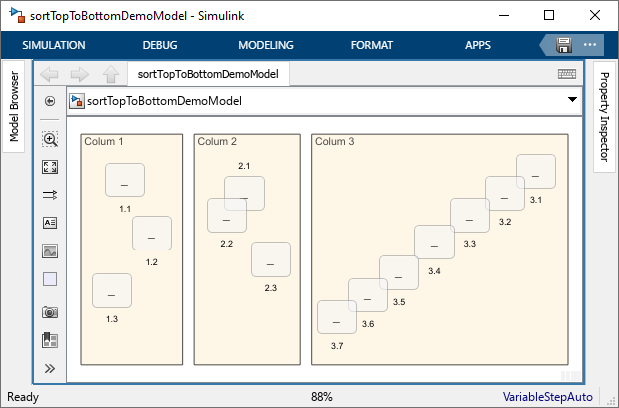

打开并观察模型,看看模块是如何分成几列的,以及每列是如何从上到下排序的。
model_name = "sortTopToBottomDemoModel";
open_system(model_name);
使用 slreportgen.finder.BlockFinder
对象在模型中查找模块元素。将模块列表保存在变量 unsortedBlocks
中。
unsortedBlocks = find(BlockFinder(model_name));
使用 slreportgen.utils.sortBlocks
函数按照 topToBottom
排序方法对模块进行排序,并显示排序后的模块名称。验证模块是否排序正确。
sortedBlocks = sortBlocks(unsortedBlocks,"topToBottom");
disp([sortedBlocks.Name]');
"1.1" "1.2" "1.3" "2.1" "2.2" "2.3" "3.1" "3.2" "3.3" "3.4" "3.5" "3.6" "3.7"
输入参数
unsortedBlocks
— 要排序的模块列表
字符串数组 | 句柄数组 | 搜索结果对象数组
运行以下命令访问本示例中使用的支持文件。
openExample('rptgenext/SimulinkReportGeneratorFilesExample');
要排序的 Simulink® 和 Stateflow® 模块列表,指定为以下值之一:
值 | 示例 |
---|---|
模块路径的字符串数组 | unsortedBlocks = ["slrgex_f14/Actuator Model",... "slrgex_f14/Aircraft Dynamics Model",... "slrgex_f14/alpha (rad)"]; |
模块句柄数组 | load_system("slrgex_f14"); unsortedList = find_system("slrgex_f14",... findall=true,type="block"); |
搜索结果对象数组,由 slreportgen.finder 包中的 DiagramFinder 、BlockFinder 、ChartDiagramFinder 对象返回 | import slreportgen.finder.* load_system("sf_car"); load_system("slrgex_f14"); diagFinder = DiagramFinder("slrgex_f14"); blockFinder = BlockFinder("sf_car"); unsortedBlocks = [find(diagFinder),find(blockFinder)]; |
sortMethod
— 排序方法
"alphabetical"
| "systemAlpha"
| "fullPathAlpha"
| "blockType"
| "depth"
| "leftToRight"
| "topToBottom"
| "runtime"
排序方法,指定为以下值之一:
值 | 描述 |
---|---|
"alphabetical" | 按名称的字母顺序对模块进行排序。 |
"systemAlpha" | 按父系统名称的字母顺序对模块进行排序。 |
"fullPathAlpha" | 根据完整模块路径的字母顺序对块进行排序。 |
"blockType" | 根据模块类型的字母顺序对块进行排序。 |
"depth" | 按模型层次结构的深度对模块进行排序,其中一个子系统位于包含它的子系统之前。 |
"leftToRight" | 使用从左到右的行对对象按照其在模型布局中的位置进行排序。模型中的一行模块是位于两条水平线之间的模块子组。最小行是不能分成子行的行。 该算法首先将模块分组为最少的行,然后从左到右对每行进行排序。然后,算法将已排序的行从上到下连接起来。 有关示例,请参阅从左到右对 Simulink® 模块进行排序。 |
"topToBottom" | 使用从上到下的列按模型布局中的位置对对象进行排序。模型中的一列模块是位于两条垂直线之间的模块子组。最小列是不能分成子列的列。 该算法首先将模块分组为最小列,然后从上到下对每列进行排序。然后,算法将已排序列从左到右连接起来。 有关示例,请参阅从上到下对 Simulink® 模块进行排序。 |
"runtime" | 仅对包含 |
输出参量
sortedList
— 排序列表
字符串数组 | 句柄数组 | 搜索结果对象数组
排序列表,以字符串数组、句柄数组或搜索结果对象数组的形式返回。返回的数组与 unsortedList
类型相同。
版本历史记录
在 R2022b 中推出
