isallpass

Determine whether filter is allpass

collapse all in page

    Syntax

    flag = isallpass(b,a)
    flag = isallpass(sos)
    flag = isallpass(d)
    flag = isallpass(___,tol)

    Description

    flag = isallpass(b,a) returns a logical output equal to 1 if the specified filter is allpass. Specify a filter with numerator coefficients b and denominator coefficients a.

    example

    flag = isallpass(sos) returns 1 if the filter specified by the second-order sections matrix sos is allpass.

    flag = isallpass(d) returns 1 if the digital filter d is allpass.

    flag = isallpass(___,tol) specifies a tolerance tol to determine when two numbers are close enough to be considered equal.

    Examples

    collapse all

    Open Live Script

    Create an allpass filter and verify that the frequency response is allpass.

    b = [1/3 1/4 1/5 1];
a = fliplr(b);
flag = isallpass(b,a)
    flag = logical
   1


    freqz(b,a)

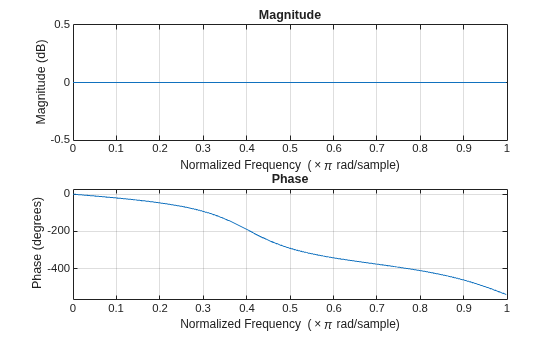

    Figure contains 2 axes objects. Axes object 1 with title Phase, xlabel Normalized Frequency (\times\pi rad/sample), ylabel Phase (degrees) contains an object of type line. Axes object 2 with title Magnitude, xlabel Normalized Frequency (\times\pi rad/sample), ylabel Magnitude (dB) contains an object of type line.

    Create a lattice allpass filter and verify that the filter is allpass.

    k = [1/2 1/3 1/4 1/5];
[b,a] = latc2tf(k,"allpass");
flag_isallpass = isallpass(b,a)
    flag_isallpass = logical
   1


    freqz(b,a)

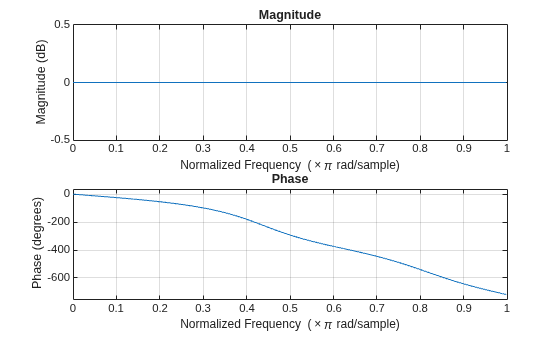

    Figure contains 2 axes objects. Axes object 1 with title Phase, xlabel Normalized Frequency (\times\pi rad/sample), ylabel Phase (degrees) contains an object of type line. Axes object 2 with title Magnitude, xlabel Normalized Frequency (\times\pi rad/sample), ylabel Magnitude (dB) contains an object of type line.

    Input Arguments

    collapse all

    Filter coefficients, specified as a vector. The values of b and a represent the numerator and denominator polynomial coefficients, respectively.

    Example: [b,a] = cheby2(5,30,0.7) creates a digital 5th-order Butterworth lowpass filter with coefficients b and a, having a normalized 3 dB frequency of 0.7π rad/sample and 30 dB attenuation at stopband.

    Data Types: single | double
    Complex Number Support: Yes

    Second-order section representation, specified as an L-by-6 matrix, where L is the number of second-order sections. The matrix

    sos=[b01b11b211a11a21b02b12b221a12a22⋮⋮⋮⋮⋮⋮b0Lb1Lb2L1a1La2L]

    represents the second-order sections of H(z):

    H(z)=∏k=1LHk(z)=∏k=1Lb0k+b1kz−1+b2kz−21+a1kz−1+a2kz−2.

    Example: [z,p,k] = butter(3,1/32); sos = zp2sos(z,p,k) specifies a third-order Butterworth filter with a normalized 3 dB frequency of π/32 rad/sample.

    Data Types: single | double
    Complex Number Support: Yes

    Digital filter, specified as a digitalFilter object. Use designfilt to generate d based on frequency-response specifications.

    Example: designfilt("lowpassfir",FilterOrder=10,CutoffFrequency=0.55) generates a digitalFilter object for a 10th order FIR lowpass filter with a normalized 3 dB frequency of 0.55π rad/sample.

    Data Types: digitalFilter

    Tolerance to distinguish between close numbers, specified as a positive scalar. The tolerance value determines when two numbers are close enough to be considered equal.

    Data Types: single | double

    Output Arguments

    collapse all

    Allpass filter flag, returned as a logical scalar. The function returns 1 when the input is an allpass filter.

    Version History

    Introduced in R2013a
