isstable

Determine whether filter is stable

Description

example

flag = isstable(b,a) returns a logical output equal to 1 if the filter specified by numerator coefficients b and denominator coefficients a is stable.

example

flag = isstable(sos) returns 1 if the filter specified by second order sections matrix sos is stable.

flag = isstable(d) returns 1 if the digital filter d is stable. Use designfilt to generate d based on frequency-response specifications.

Examples

collapse all

Design a sixth-order Butterworth highpass IIR filter using second order sections. Specify a normalized 3-dB frequency of 0.7. Determine if the filter is stable.

[z,p,k] = butter(6,0.7,"high");
SOS = zp2sos(z,p,k);
flag = isstable(SOS)
flag = logical
   1

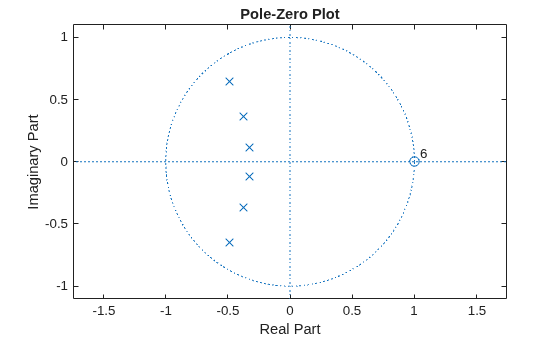

zplane(z,p)

Figure contains an axes object. The axes object with title Pole-Zero Plot contains 4 objects of type line, text.

Redesign the filter using designfilt and check it for stability.

d = designfilt("highpassiir",DesignMethod="butter",FilterOrder=6, ...
               HalfPowerFrequency=0.7);
dflg = isstable(d)
dflg = logical
   1

zplane(d)

{"String":"Figure Figure 1: Pole-Zero Plot contains an axes object. The axes object with title Pole-Zero Plot contains 4 objects of type line, text.","Tex":"Pole-Zero Plot","LaTex":[]}

Create a filter and determine its stability at double and single precision.

b = [1 -0.5];
a = [1 -0.999999999];
act_flag1 = isstable(b,a)
act_flag1 = logical
   1

act_flag2 = isstable(single(b),single(a))
act_flag2 = logical
   0

Input Arguments

collapse all

Filter coefficients, specified as vectors.

Data Types: single | double

Second order sections, specified as a k-by-6 matrix where the number of sections k must be greater than or equal to 2. Each row of sos corresponds to the coefficients of a second order (biquad) filter. The ith row of the matrix corresponds to [bi(1) bi(2) bi(3) ai(1) ai(2) ai(3)].

Data Types: double

Digital filter, specified as a digitalFilter object.

Output Arguments

collapse all

Logical output, returned as 1 or 0. If the poles lie on or outside the circle, the function returns 0. If the poles are inside the circle, the function returns 1.
