Build Model of Battery Pack for Grid Application

Create Battery Pack Object in MATLAB

This section shows how to programmatically generate a battery Pack object from the MATLAB® Command Window.

Create Cell Object

To create the battery Pack object, first create a Cell object of prismatic format.

The PrismaticGeometry object allows you to define the pouch geometrical arrangement of the battery cell. To create the PrismaticGeometry object, use the batteryPrismaticGeometry function. Specify the height as the first argument, the length as the second argument, and the thickness as the third argument.

prismaticGeometry = batteryPrismaticGeometry(simscape.Value(0.2,"m"),...
    simscape.Value(0.35,"m"),simscape.Value(0.07,"m"));

For more information on the possible geometrical arrangements of a battery cell, see the CylindricalGeometry and PouchGeometry documentation pages.

Now use this PrismaticGeometry object to create a prismatic battery cell.

prismaticCell = batteryCell(prismaticGeometry)

prismaticCell =
  Cell with properties:

            Geometry: [1×1 simscape.battery.builder.PrismaticGeometry]
    CellModelOptions: [1×1 simscape.battery.builder.CellModelBlock]
                Mass: 0.1000 (kg)
            Capacity: 5 (A*hr)
              Energy: 50 (W*hr)

Show all properties

For more information, see the Cell documentation page.

The Cell object allows you to simulate the thermal effects of the battery cell by using a simple 1-D model. To simulate the thermal effects of the battery cell, in the BlockParameters property of the CellModelOptions property of the Cell object, set the thermal_port parameter to "model".

prismaticCell.CellModelOptions.BlockParameters.thermal_port = "model";

Create ParallelAssembly Object

A battery parallel assembly comprises multiple battery cells connected electrically in parallel under a specific topological configuration or geometrical arrangement. In this example, you create a parallel assembly of one prismatic cell.

To create the ParallelAssembly object, use the batteryParallelAssembly function. Specify the Cell object as the first argument and the number of cells in parallel as the second argument.

parallelAssembly = batteryParallelAssembly(prismaticCell,1)

parallelAssembly =
  ParallelAssembly with properties:

    NumParallelCells: 1
                Cell: [1×1 simscape.battery.builder.Cell]
            Topology: "SingleStack"
                Rows: 1
     ModelResolution: "Lumped"

Show all properties

For more information, see the ParallelAssembly documentation page.

Create Module Object

A battery module comprises multiple parallel assemblies connected in series. In this example, you create a battery module of 22 parallel assemblies with an intergap between each assembly of 0.005 meters.

To create the Module object, use the batteryModule function. Specify the ParallelAssembly object as the first argument and the number of parallel assemblies in series as the second argument. To define the gap between each assembly, use the InterParallelAssemblyGap name-value argument.

module = batteryModule(parallelAssembly,22,...
    InterParallelAssemblyGap=simscape.Value(0.005,"m"), ...
    ModelResolution="Lumped")

module =
  Module with properties:

    NumSeriesAssemblies: 22
       ParallelAssembly: [1×1 simscape.battery.builder.ParallelAssembly]
        ModelResolution: "Lumped"
         SeriesGrouping: 22
       ParallelGrouping: 1

Show all properties

For more information, see the Module documentation page.

Create ModuleAssembly Object

A battery module assembly comprises multiple battery modules connected in series or in parallel. In this example, you create a battery module assembly of ten identical modules stacked on ten different levels, with an intergap between each module equal to 0.05 meters. By default, the ModuleAssembly object electrically connects the modules in series.

To create the ModuleAssembly object, use the batteryModule function and specify the Module objects as the first argument. To define the additional properties, use the InterModuleGap and NumLevels name-value arguments.

moduleAssembly = batteryModuleAssembly(repmat(module,1,10),...
    InterModuleGap=simscape.Value(0.05,"m"), ...
    NumLevels=10)

moduleAssembly =
  ModuleAssembly with properties:

    Module: [1×10 simscape.battery.builder.Module]

Show all properties

For more information, see the ModuleAssembly documentation page.

Create Pack Object

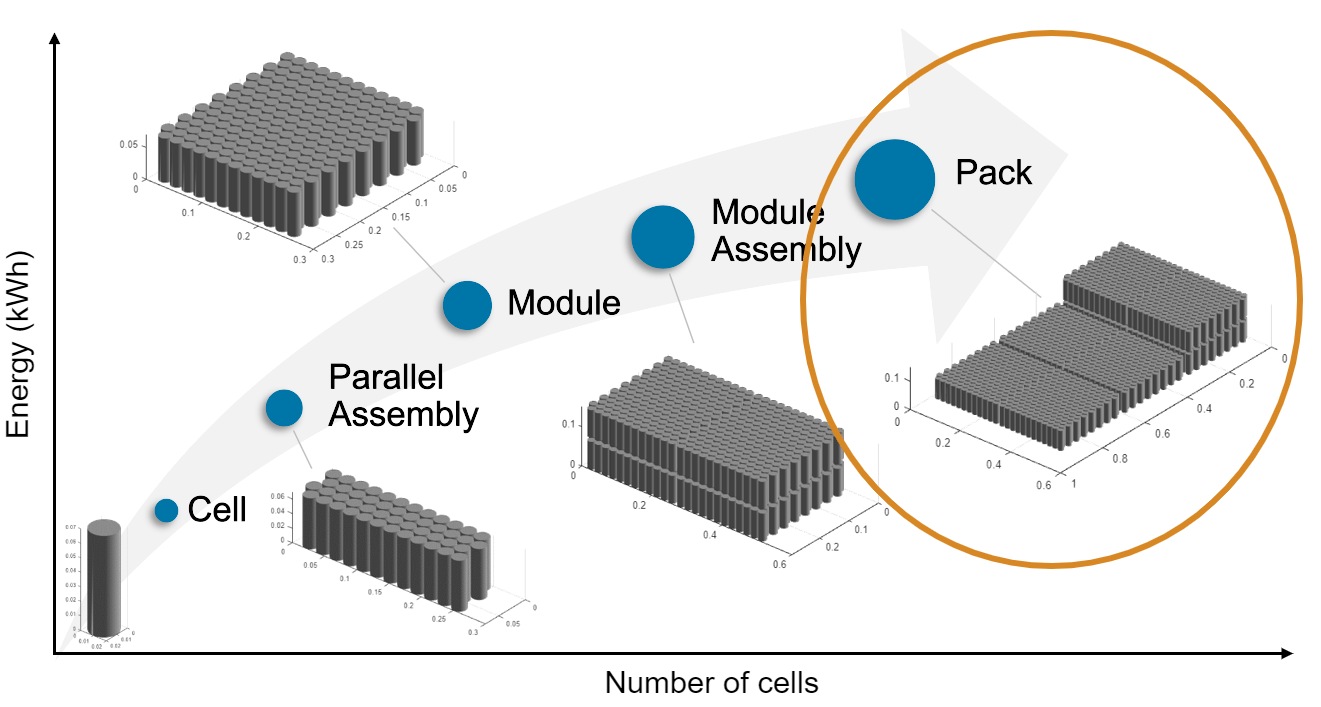

You now have all the foundational elements to create your battery pack. A battery pack comprises multiple module assemblies connected in series or in parallel. In this example, you create a battery pack of one module assembly.

To create the Pack object, use the batteryPack function and define the ModuleAssembly object as the first argument.

pack = batteryPack(moduleAssembly)

pack =
  Pack with properties:

    ModuleAssembly: [1×1 simscape.battery.builder.ModuleAssembly]

Show all properties

For more information, see the Pack documentation page.

Visualize Battery Pack and Check Model Resolution

To visualize the battery pack before you build the system model and to view its model resolution, create the figure where you want to visualize your pack and then use the batteryChart function. To view the model resolution of the module, define the SimulationStrategyVisible name-value argument as "On".

f = figure(Color="w",Position=[0 0 1500 1500]);
packChart = batteryChart(f,pack, ...
    SimulationStrategyVisible="on");

To add default axis labels to the battery plot, use the setDefaultLabels method of the BatteryChart object.

For more information, see the batteryChart documentation page.

Build Simscape Model for the Battery Pack Object

After you have created your battery objects, you need to convert them into Simscape models to use them in block diagrams. You can then use these models as reference for your system integration and requirement evaluation, cooling system design, control strategy development, hardware-in-the-loop, and many more applications.

To create a library that contains the Simscape Battery model of the Pack object you created in this example, use the buildBattery function.

buildBattery(pack,LibraryName="packGridExample");

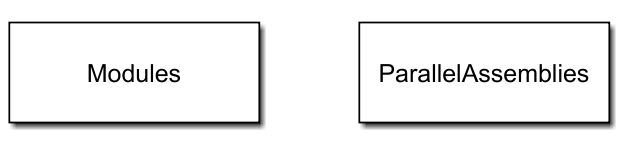

This function creates the packGridExample_lib and packGridExample SLX library files in your working directory. The packGridExample_lib library contains the Modules and ParallelAssemblies sublibraries.

To access the Simscape models of your Module and ParallelAssembly objects, open the packGridExample_lib SLX file, double-click the sublibrary, and drag the Simscape blocks in your model.

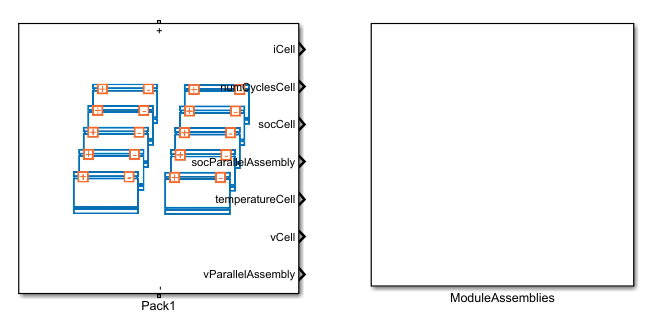

The packGridExample library contains the Simscape models of your ModuleAssembly and Pack objects.

The Simscape models of your ModuleAssembly and Pack objects are subsystems. You can look inside these subsystems by opening the packLibrary SLX file and double-click the subsystem.

For more information, see the buildBattery documentation page.

Explore Battery Pack and Build Model in Battery Builder App

In this example, you programmatically created the battery pack and all its subcomponents by calling the relevant objects and functions in the MATLAB Command Window. Alternatively, if you prefer a more interactive and visual approach, you can use the Battery Builder app. Using this app, you can interactively import existing battery objects or build them from scratch, explore and edit properties, and view the battery hierarchy and 3-D visualization. You can then build the Simscape system model of your objects and use it as a reference in your simulations. You can also export the objects in your workspace. To learn how to use the Battery Builder app to generate battery objects and build Simscape models, see the Get Started with Battery Builder App example.

Explore the battery pack that you created in this example. Open the Battery Builder app. On the Apps tab, under Simscape, click the Battery Builder icon. Alternatively, you can open the app from the command line:

batteryBuilder

Import the battery pack object from the packGridExample MAT file. Under the Battery Builder tab, in the Import section of the toolstrip, click Import. Then click Import from MAT-file and load the packGridExample MAT file.

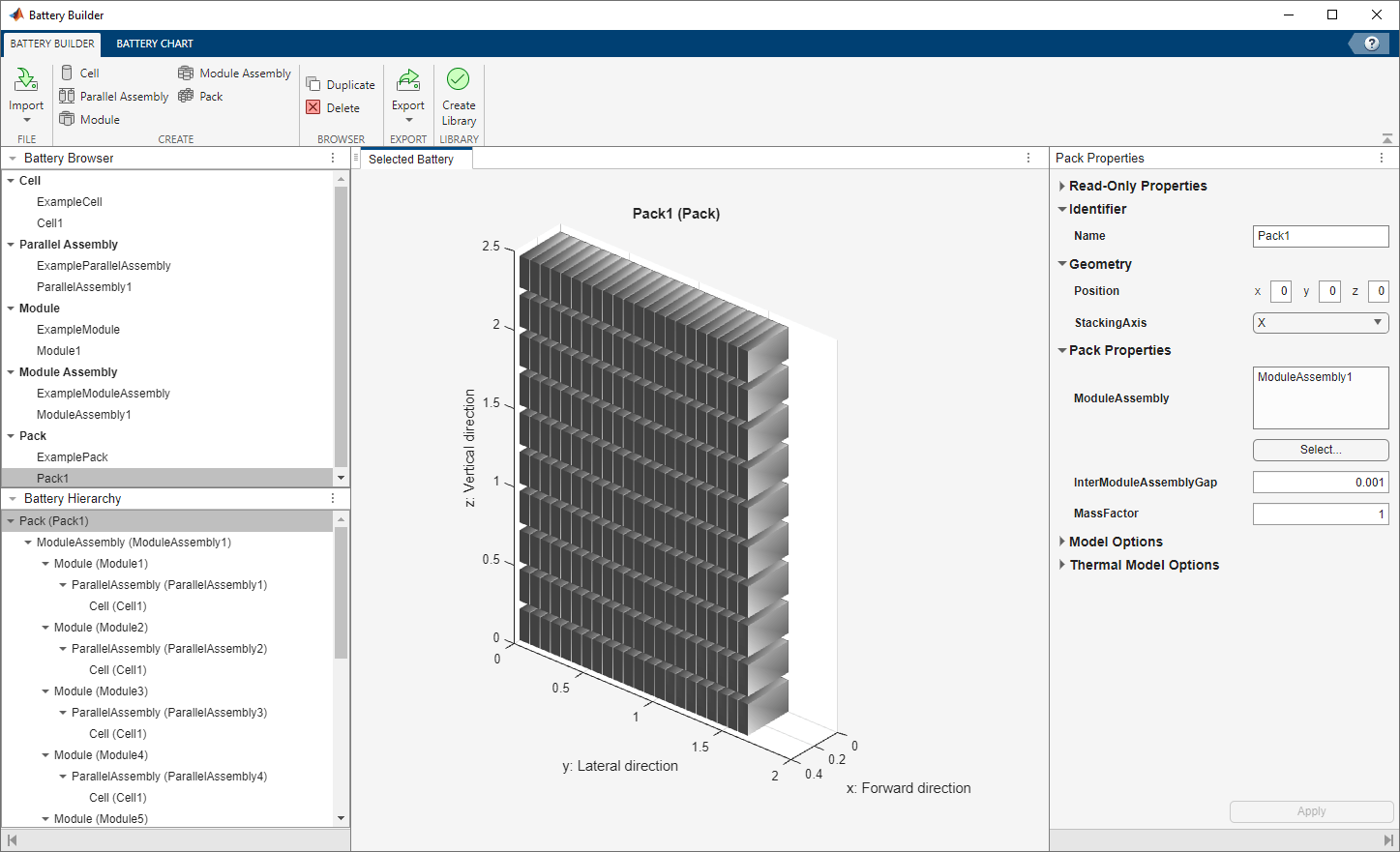

The Battery Builder app now comprises a Pack object and each of its subcomponents.

The Battery Browser panel on the left of the app contains all the battery objects in the current active session of the app. You can select an object, visualize it in the Selected Battery tab, check its hierarchy and child objects in the Battery Hierarchy panel, and edit its properties in the Properties panel on the right of the app.

You can edit properties of the plot under the Battery Chart tab, such as the axes labels, axes direction, title of the plot, and lights. You can also check the current simulation strategy and model resolution of the selected battery object. To visualize the simulation strategy in the plot, in the Simulation Strategy section of the toolstrip, check the Visible box.

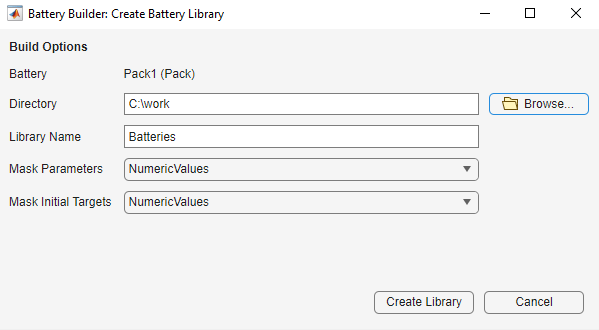

Finally, if you modified your battery object and you want to create a library model of the updated Pack object, under the Battery Builder tab, in the Library section of the toolstrip, click Create Library. In the new window, specify the folder in which you want to save the library, the library name, and whether to use numeric values or variable names for the mask parameters and mask initial targets.

Click Create Library to generate the updated library model of your battery object in the specified folder. Open this model to access your battery objects as Simscape blocks that you can use as a starting point for architecture evaluation in early development stages, software and hardware development, system integration and requirement evaluation, cooling system design, control strategy development, hardware-in-the-loop, and many more applications.
