FMU 导入

（可选）使用功能模型单元 (FMU) 模块将第三方功能集成到 Simulink® 中

FMU 模块允许您将 FMU 中包含的应用程序导入 Simulink 中。该模块有两种模式，分别用于集成实现以下接口的 FMU：

  • FMI 协同仿真接口。这些 FMU 包含本地求解器。

  • FMI 模型交换接口。这些 FMU 不包含本地求解器，

模块

FMUInclude Functional Mockup Unit (FMU) in model

函数

fmudialog.createBusTypeCreate all FMU bus objects required for structured input or output ports in workspace

主题

导入 FMU

将您的 FMU 导入 Simulink。

实现 FMU 模块

使用您的 FMU 在 Simulink 中实现模块。

特色示例

Importing a Co-Simulation FMU into Simulink

Importing a Co-Simulation FMU into Simulink

How to use the FMU Import block to load an FMU file. The FMU file supports execution in co-simulation mode. Simulink supports stepping back and forth, tuning parameters in between, and saving states for the FMU Import block as long as the FMU itself supports these features.

打开模型
Importing a Model Exchange FMU into Simulink

Importing a Model Exchange FMU into Simulink

Model showing how to use the FMU Import block to load an FMU file. The FMU file supports execution in Model Exchange mode.

打开模型

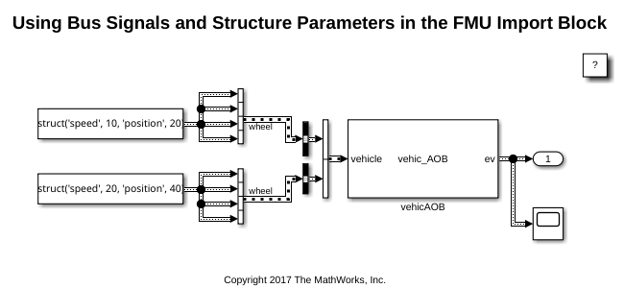

Using Bus Signals and Structure Parameters in the FMU Import Block

Using Bus Signals and Structure Parameters in the FMU Import Block

How to use bus signals and structure parameters in an FMU Import block. The FMU supports execution in Model Exchange mode.

打开模型
