Sign
指示输入的符号
库:
Simulink /
Math Operations
HDL Coder /
HDL Floating Point Operations
HDL Coder /
Math Operations
描述
对于实数输入,Sign 模块将输出输入的符号:
输入 | 输出 |
---|---|
大于零 | 1 |
等于零 | 0 |
小于零 | -1 |
当输入 u
为复数标量时,模块输出与 MATLAB® 结果匹配:
sign(u) = u./ abs(u) | (1) |

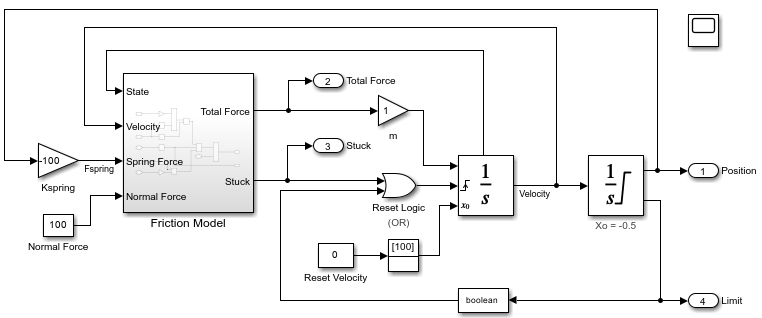

示例
端口
输入
Port_1 — 输入信号
标量 | 向量 | 矩阵
输入信号,其符号将决定输出。
模块仅支持浮点数据类型(即 double
和 single
)的复输入信号。
数据类型: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
复数支持: 是
输出
Port_1 — 输出信号
标量 | 向量 | 矩阵
输出信号,它是输入信号的符号。
数据类型: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
复数支持: 是
参数
启用过零检测 — 启用过零检测
on
(默认) | off
采样时间(-1 表示继承) — 采样之间的时间间隔
-1
(默认) | 标量 | 向量
指定采样时间间隔。要继承采样时间,请将此参数设置为 -1
。有关详细信息,请参阅指定采样时间。
依存关系
仅当您将此参数设置为 -1
以外的值时才可见。要了解详细信息,请参阅不建议设置采样时间的模块。
编程用法
模块参数:SampleTime |
类型:字符串标量或字符向量 |
默认值:"-1" |
模块特性
数据类型 |
|
直接馈通 |
|
多维信号 |
|
可变大小信号 |
|
过零检测 |
|
扩展功能
C/C++ 代码生成
使用 Simulink® Coder™ 生成 C 代码和 C++ 代码。
HDL 代码生成
使用 HDL Coder™ 为 FPGA 和 ASIC 设计生成 VHDL、Verilog 和 SystemVerilog 代码。
HDL Coder™ 提供影响 HDL 实现和综合逻辑的额外配置选项。
此模块具有一个默认 HDL 架构。
ConstrainedOutputPipeline | 通过移动设计中现有延迟的方式来放置在输出端的寄存器的数量。分布式流水线不会重新分发这些寄存器。默认值为 |
InputPipeline | 要在生成的代码中插入的输入流水线阶段数。分布式流水线和受限输出流水线可以移动这些寄存器。默认值为 |
OutputPipeline | 要在生成的代码中插入的输出流水线阶段数。分布式流水线和受限输出流水线可以移动这些寄存器。默认值为 |
此模块支持复信号的代码生成。
PLC 代码生成
使用 Simulink® PLC Coder™ 生成结构化文本代码。
定点转换
使用 Fixed-Point Designer™ 设计和仿真定点系统。
版本历史记录
在 R2006a 之前推出
