Signal Editor

Display, create, edit, and switch interchangeable scenarios

Libraries:
Simulink / Sources

Description

The Signal Editor block displays, creates, and edits interchangeable scenarios, which contain signals. Signals can be:

MATLAB^® timeseries objects. timeseries objects cannot have empty Data properties.
timetable objects. timetable objects cannot represent multiple variables.
Structure of MATLAB timeseries or timetable objects.
Two-dimensional matrices.

The block creates one port for each signal.

To create and edit scenarios and the signals contained in the scenarios, click Open Signal Editor (). You can also use the Signal Editor block to switch scenarios in and out of models.

The Signal Editor block supports MAT files that contain signals as one or more scalar Simulink.SimulationData.Dataset objects.

Create and Edit Scenarios and Signals

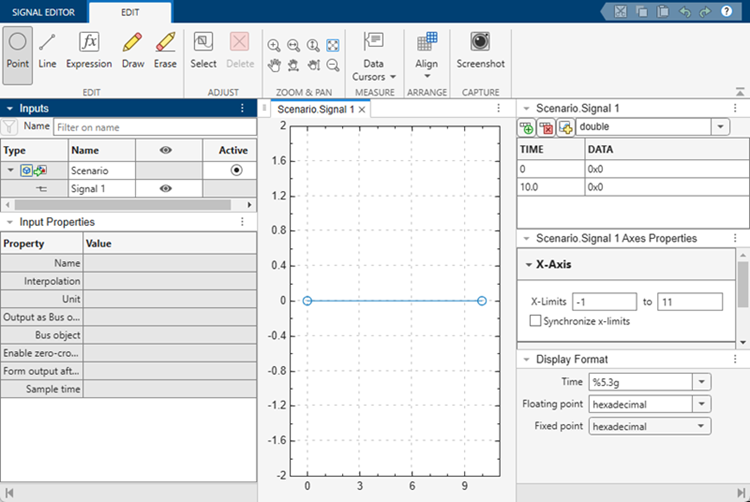

To create and edit scenarios and the signals contained in them, open the Signal Editor tool by clicking . The Signal Editor tool enables you to easily manipulate signals in these ways:

Create and edit multiple signals in multiple data sets. By default, the Signal Editor creates timeseries format data.
Use signal notations to create more complicated signals using MATLAB expressions. You can use the Author and Insert dialog box or manually enter simple MATLAB expressions in the tabular area.
Use existing scenarios to get existing data sets for which you can edit and create signals.
Create and edit multidimensional signals.

For more information on the Signal Editor tool, see Create and Edit Signal Data.

Programmatic Interactions

To programmatically get the total number of scenarios and signals in the Signal Editor block, use the get_param function with the NumberOfScenarios and NumberOfSignals parameters, respectively. These read-only parameters contain the values as character vectors. To convert these values to doubles, use the str2double function.

To programmatically enable the Signal Editor block to label output signal lines, set PreserveSignalName to 'on' (default) with the set_param function.

set_param(gcb,'PreserveSignalName','on')

For more information on programmatic interactions, see Parameters and Replace Programmatic Use of signalbuilder.

Import and Export

The Signal Editor supports custom file types, such as Microsoft^® Excel^®, by letting you:

Edit signals imported from registered custom file types. For more information, see Import Custom File Type.
Export signals from Signal Editor to your registered custom file types. For more information, see Export Signals to Custom Registered File Types.

Migrating from Signal Builder Blocks

You can port Signal Builder block configurations to the Signal Editor block using the signalBuilderToSignalEditor function. For more information, see Replace Signal Builder Block with Signal Editor Block and Migrate from Signal Builder Block to Signal Editor Block.

Fast Restart

The Signal Editor block supports fast restart. With fast restart enabled, you can still:

Change the active scenario.
Change the active signal.
While you can change the active signal, you cannot edit the signal properties in the block.
Open the Signal Editor and edit data.

Examples

Parallel Simulations Using Parsim: Test-Case Sweep

Run multiple Simulink® simulations corresponding to different test cases in the Signal Editor block using SimulationInput objects and the parsim command. The parsim command uses Parallel Computing Toolbox™, if it is available, to run simulations in parallel, otherwise the simulations are run in serial.

Open Model

Parallel Simulations Using Parsim: Parameter Sweep in Rapid Accelerator Mode

Run multiple simulations of a Monte Carlo study in parallel by using Parallel Computing Toolbox™. Parallel execution leverages the multiple cores of your host machine to run many simulations more quickly. These simulations could also be run in parallel on computer clusters using the MATLAB® Parallel Server™. This example will work even if the Parallel Computing Toolbox™ or the MATLAB Parallel Server is not available, but the simulations will run in serial.

Open Model

Model an Automatic Transmission Controller

Model an automotive drivetrain with Simulink®. Stateflow® enhances the Simulink model with its representation of the transmission control logic. Simulink provides a powerful environment for the modeling and simulation of dynamic systems and processes. In many systems, though, supervisory functions like changing modes or invoking new gain schedules must respond to events that may occur and conditions that develop over time. As a result, the environment requires a language capable of managing these multiple modes and developing conditions. In the following example, Stateflow shows its strength in this capacity by performing the function of gear selection in an automatic transmission. This function is combined with the drivetrain dynamics in a natural and intuitive manner by incorporating a Stateflow block in the Simulink block diagram.

Open Model

Limitations

The Signal Editor block does not support:

Function-calls
Ground signals

The Signal Editor block supports dynamic strings. It does not support strings with maximum length. In addition, strings in the Signal Editor block cannot output:

Non-scalar MATLAB strings.
String data that contains missing values.
String data that contains non-ASCII characters.

Ports

Output Arguments

expand all

Signal1 — Signals in scenario
scalar | vector | matrix | array

One or more signals, returned as a scalar, vector, matrix, array, a bus, or an array of buses (since R2021a). The block creates one port per signal.

The port label depends on the associated variable in the data set MAT file.

In rapid accelerator mode, the Signal Editor block does not support int64 and uint64 data types when the Interpolate data parameter is selected. For more information, see Array of buses support.

Parameters

expand all

To create and edit scenarios, open Signal Editor user interface — Option to open Signal Editor tool
button

To open the Signal Editor, click Open Signal Editor (). The Signal Editor opens with all the active scenario signals plotted.

To see the signal data changes from the Signal Editor tool, click the Save button in the Signal Editor tool toolstrip.

Programmatic Use

To open the Signal Editor, use the signalEditor function. For more information. see Signal Editor.

File name — Data set file
`untitled.mat` (default) | character vector

Data set file, specified as character vector, containing one or more scalar Simulink.SimulationData.Dataset objects. Do not use a filename from one locale in a different locale. When using the block on multiple platforms, consider specifying just the MAT filename and having the MAT file be on the MATLAB path.

To create a MAT file, click . This button opens the Signal Editor, which lets you create and edit scenario MAT files.

Programmatic Use

Block Parameter: Filename

Type: character vector

Values: character vector

Default: 'untitled.mat'

Active scenario — Active scenario
`Scenario` (default) | character vector

Active scenario, specified as a character vector. You can switch the active scenario as necessary.

If you create this block by using the signalBuilderToSignalEditor function or the Check model for Signal Builder blocks Upgrade Advisor check to convert a Signal Builder block to a Signal Editor block, the active scenario name is the data set variable name in the MAT file. However, if you pause on this parameter, the original Signal Builder group name is displayed.

Dependencies

To enable this parameter, ensure that the specified MAT file exists.

Programmatic Use

Block Parameter: ActiveScenario

Type: character vector | numeric

Values: character vector | index value

Default: 'Scenario'

Use properties from — Signal property source
`Dialog parameters` (default) | `Signal data in MAT file`

Signal property source, specified as:

Dialog parameters — Use signal properties from the block dialog.
Signal data in MAT file — Use signal properties from the MAT file specified in File name. If the signal does not have unit or interpolation properties, the signal property defaults to the Signal Editor block dialog setting. These properties include:
- Unit
- Interpolate data

Dependencies

To enable this parameter, ensure that the specified MAT file exists.

Programmatic Use

Block Parameter: 'SignalPropertySource'

Type: character vector

Values:

Dialog
                                    parameters

Signal data in MAT
                                    file

Default: 'SignalPropertySource'

Active signal — Signal to configure
`Signal 1` (default) | character vector

Signal to configure, specified as a signal name. This signal is considered the active signal.

Dependencies

To enable this parameter, ensure that the specified MAT file exists.

This parameter has no effect when the Apply signal properties to all signals parameter is selected.

Programmatic Use

Block Parameter: ActiveSignal

Type: character vector | numeric

Values: character vector | index vector

Default:

'Signal
                                    1'

Do not use the set_param function to set ActiveSignal in combination with another name-value argument of the Signal Editor block.

Apply signal properties to all scenarios — Option to apply specified signal properties to active signal
`on` (default) | `off`

Option to apply the specified signal properties.

on — Apply the specified signal properties to the active signal in all scenarios.
off — Apply signal properties only in the current active scenario.

Dependencies

To enable this parameter, set the Use properties from parameter to Dialog parameters.
If the Apply signal properties to all signals parameter is also selected, the block applies the signal properties to all signals in all scenarios.

Programmatic Use

Block Parameter: ApplySigPropsToAllScenarios

Type: character vector

Values:

'off' |
                                    'on'

Default: 'on'

Apply signal properties to all signals — Option to apply signal properties to all signals
`off` (default) | `on`

Option to apply the specified signal properties.

on — Apply the specified signal properties to all the signals in the active scenario. There is no concept of an active signal.
off — Do not apply signal property to all signals.

Dependencies

To enable this parameter, set the Use properties from parameter to Dialog parameters.
If the Apply signal properties to all scenarios parameter is also selected, the block applies the signal properties to all signals in all scenarios.

Programmatic Use

Block Parameter: ApplySigPropsToAllSignals

Type: character vector

Values:

'off' |
                                    'on'

Default: 'off'

Output a bus signal — Configure signal as bus
`off` (default) | `on`

To configure a signal as a bus, select this parameter.

Select this parameter only if the active signal is a MATLAB structure whose fields are the same as an existing bus object, or create a new matching bus object. If you select this parameter for an active signal that is not a MATLAB structure, simulation returns an error.

Dependencies

To enable this parameter, ensure that the specified MAT file exists.

Programmatic Use

Block Parameter: IsBus

Type: character vector

Values:

'off' |
                                    'on'

Default: 'off'

Select bus object — Bus object
`Bus: BusObject` (default) | bus object name

Select or enter the bus object name. To edit the bus object or create a bus object using the Data Type Assistant, click >>. The active signal must be a MATLAB structure whose fields are the same as this bus object.

Dependencies

To enable this parameter, select Output a bus signal.

Programmatic Use

Block Parameter: OutputBusObjectStr

Type: character vector

Values: bus object name

Default:

'Bus:
                                    BusObject'

Mode — Bus object mode
`Bus object` (default) | bus object data type

Specify the bus object name. If you do not have a bus object, create one by clicking Edit, which opens the Type Editor. For more information, see Create Simulink Bus Objects.

Unit — Physical unit
`inherit` (default) | supported physical unit

Physical unit of the signal, specified as an allowed unit. To specify a unit, begin typing in the text box. As you type, the parameter displays potential matching units. For more information, see Unit Specification in Simulink Models. For a list of supported units, see Allowed Unit Systems.

To constrain the unit system, click the link to the right of the parameter:

If a Unit System Configuration block exists in the component, its dialog box opens. Use that dialog box to specify allowed and disallowed unit systems for the component.
If a Unit System Configuration block does not exist in the component, the model Configuration Parameters dialog box displays. Use that dialog box to specify allowed and disallowed unit systems for the model.

Dependencies

To enable this parameter, set the Use properties from parameter to Dialog parameters.
If the Apply signal properties to all scenarios parameter is also selected, the block applies the signal properties to all signals in all scenarios.

Programmatic Use

Block Parameter: Unit

Type: character vector

Values: 'inherit' | supported physical unit

Default: 'inherit'

Sample time — Time interval between samples
`0` (default) | `-1` | sample time in seconds

Time interval between samples, specified in seconds.

Dependencies

To enable this parameter, ensure that the specified MAT file exists.

Programmatic Use

Block Parameter: SampleTime

Type: character vector

Values: -1 | sample time in seconds

Default: '0'

Interpolate data — Linearly interpolate data
`on` (default) | `off`

Linearly interpolate data at time hits for which no corresponding workspace data exist.

on — Linearly interpolate at time hits for which no corresponding workspace data exist.
Note
If the Signal Editor block is the source for a new Simulink^® Test™ or Simulink Design Verifier™ test harness model, the Interpolate data parameter is off by default.
off — The current output equals the output at the most recent time for which data exists.

The Signal Editor block interpolates by using the two corresponding workspace samples.

For double data, the Signal Editor block linearly interpolates the value by using the two corresponding samples.
For Boolean data, the Signal Editor block uses false for the first half of the time between two time values and true for the second half.
For a built-in data type other than double or Boolean, the Signal Editor block:
- Upcasts the data to double
- Performs linear interpolation (as described for double data)
- Downcasts the interpolated value to the original data type

When you load enumerated, fixed-point, variable-size signal, or string data, clear the Interpolate data parameter.

The block uses the value of the last known data point as the value of time hits that occur after the last known data point.

To determine the block output after the last time hit for which data is available, combine the settings of these parameters:

Interpolate data
Form output after final data value by

For details, see Form output after final data value by.

In rapid accelerator mode, the Signal Editor block does not support int64 and uint64 data types when the Interpolate data parameter is selected.

Dependencies

To enable this parameter, set the Use properties from parameter to Dialog parameters.
If the Apply signal properties to all scenarios parameter is also selected, the block applies the signal properties to all signals in all scenarios.

Programmatic Use

Block Parameter: Interpolate

Type: character vector

Values:

'off' |
                                    'on'

Default: 'on'

Enable zero-crossing detection — Detect zero-crossings
`off` (default) | `on`

If you select Enable zero-crossing detection, the Signal Editor block detects a zero crossing when the input array contains multiple entries for the same time value. For example, suppose that the block loads this input data.

time:     0 1 2 2 3
signal:   2 3 4 5 6

At time 2, a zero crossing occurs because of the discontinuity in the input data. For more information, see Zero-Crossing Detection.

When you load input data for a bus, the Signal Editor block detects zero crossings for all leaf bus elements.

This block supports zero-crossing detection only in simulations that use a variable-step solver. When you use a fixed-step solver for simulation, the software does not detect or locate zero crossings for this block.

Dependencies

To enable this parameter, ensure that the specified MAT file exists.

Programmatic Use

Block Parameter: ZeroCross

Type: character vector

Values:

'off' |
                                    'on'

Default: 'off'

Form output after final data value by — Block output after the last time hit for which data is available
`Setting to zero` (default) | `Extrapolation` | `Holding final value`

To determine the block output after the last time hit for which workspace data is available, combine the settings of these parameters:

Interpolate data
Form output after final data value by

This table lists the block output, based on the values of the two options.

Setting for Form Output After Final Data Value By	Setting for Interpolate Data	Block Output After Final Data
`Extrapolation`	On	Extrapolated from final data value
`Extrapolation`	Off	Error
`Setting to zero`	On	Zero
`Setting to zero`	Off	Zero
`Holding final value`	On	Final value from workspace
`Holding final value`	Off	Final value from workspace

For example, the block uses the last two known data points to extrapolate data points that occur after the last known point if you:

Select Interpolate data.
Set Form output after final data value by to Extrapolation.

Dependencies

To enable this parameter, ensure that the specified MAT file exists.

Programmatic Use

Block Parameter: OutputAfterFinalValue

Type: character vector

Values:

'Setting to
                                    zero' | 'Extrapolation' | 'Holding final
                                value'

Default:

'Setting to
                                    zero'

Block Characteristics

Data Types	`Boolean` \| `bus` \| `double` \| `enumerated` \| `fixed point` \| `half` \| `integer` \| `single` \| `string`
Direct Feedthrough	`no`
Multidimensional Signals	`yes`
Variable-Size Signals	`no`
Zero-Crossing Detection	`yes`

Extended Capabilities

expand all

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Not recommended for production code.

HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ has additional configuration options that affect HDL implementation and synthesized logic.

You can generate code that has multiple test benches from your subsystem. To generate multiple test benches:

Create and edit multiple signals in multiple data sets by using the Signal Editor tool. By default, the Signal Editor creates timeseries data. For more information, see Create and Edit Signal Data.
Set up a scenario in the Signal Editor block parameter dialog box by specifying the MAT file that contains the list of scenarios and selecting the Active scenario from the drop-down list.
Generate the test bench by using the HDL Workflow Advisor. In the HDL Code Generation > Generate RTL Code and Testbench task, select Generate RTL testbench and click Apply.

Limitations

Code generation does not support designs that use buses.
Code generation does not support designs that include multiple Signal Editor blocks.
Multi-file test cases and simulations support designs only if you connect all the input signals to the same Signal Editor block.

Restrictions

Connect the Signal Editor block to the DUT ports to use it as a source block in your model, but ensure it is not placed inside the DUT subsystem.

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced in R2017b

expand all

R2025a: Signal Editor block updates

Starting in R2025a, the Signal Editor block has these updates:

The Interpolate data parameter is now enabled by default.
Note
If the Signal Editor block is the source for a new Simulink Test or Simulink Design Verifier test harness model, the Interpolate data parameter is off by default.
The new Use properties from lets you specify the source of signal property definitions.

R2024b: Signal Editor block updates

The Signal Editor block has these updates:

When you open the Signal Editor tool from the Signal Editor block, the Signal Editor tool now opens with all the active scenario signals already plotted.
The Signal Editor block supports loading input signal data values that have an int64 or uint64 data type. When you use the Signal Editor block to load int64 or uint64 signal data:
- Only the signal values can have the int64 or uint64 data type. Time values must have double data type.
- Use a format other than array, such as timetable, timeseries, or structure. Array format does not support any data type other than double.
While loading int64 and uint64 signal data is supported in all simulation modes, interpolation of int64 and uint64 data is not supported in rapid accelerator simulations. To load int64 or uint64 data into a rapid accelerator simulation:
1. Clear the Interpolate data parameter.
2. Set the Form output after final data value by parameter to any value except Extrapolation.

R2023b: Signal Editor block updates

The Signal Editor block dialog box has these updates:

In the Signal properties section, the new Apply signal properties to all signals check box lets you apply the specified signal properties to all signals.
When you pause on the Active scenario parameter, a tooltip displays the Name property of the data set object. If the block is converted from a Signal Builder block using the signalBuilderToSignalEditor function, the Name property is the same as the Signal Builder block Group name.

R2023a: Signal Editor block updates

The Signal Editor block dialog box has these updates:

The Launch Signal Editor button has moved to the top of the block parameters dialog box.
The Signal properties section is reorganized.
In the Signal properties section, the new Apply properties to active signal in all scenarios check box lets you apply the specified signal properties to the active signal with the same name in all scenarios.

R2021a: Array of buses support

The Signal Editor block supports loading data for an array of buses. A Signal Editor block in the top model can load data for an array of buses in normal or accelerator mode simulations. Loading data for an array of buses using a Signal Editor block in a referenced model is supported only when the referenced model executes in normal mode.

Signal Editor

Description

Create and Edit Scenarios and Signals

Programmatic Interactions

Import and Export

Migrating from Signal Builder Blocks

Fast Restart

Examples

Parallel Simulations Using Parsim: Test-Case Sweep

Parallel Simulations Using Parsim: Parameter Sweep in Rapid Accelerator Mode

Model an Automatic Transmission Controller

Limitations

Ports

Output Arguments

Signal1 — Signals in scenario scalar | vector | matrix | array

Parameters

To create and edit scenarios, open Signal Editor user interface — Option to open Signal Editor tool button

Programmatic Use

File name — Data set file untitled.mat (default) | character vector

Programmatic Use

Active scenario — Active scenario Scenario (default) | character vector

Dependencies

Programmatic Use

Use properties from — Signal property source Dialog parameters (default) | Signal data in MAT file

Dependencies

Programmatic Use

Active signal — Signal to configure Signal 1 (default) | character vector

Dependencies

Programmatic Use

Apply signal properties to all scenarios — Option to apply specified signal properties to active signal on (default) | off

Dependencies

Programmatic Use

Apply signal properties to all signals — Option to apply signal properties to all signals off (default) | on

Dependencies

Programmatic Use

Output a bus signal — Configure signal as bus off (default) | on

Dependencies

Programmatic Use

Select bus object — Bus object Bus: BusObject (default) | bus object name

Dependencies

Programmatic Use

Mode — Bus object mode Bus object (default) | bus object data type

Unit — Physical unit inherit (default) | supported physical unit

Dependencies

Programmatic Use

Sample time — Time interval between samples 0 (default) | -1 | sample time in seconds

Dependencies

Programmatic Use

Interpolate data — Linearly interpolate data on (default) | off

Dependencies

Programmatic Use

Enable zero-crossing detection — Detect zero-crossings off (default) | on

Dependencies

Programmatic Use

Form output after final data value by — Block output after the last time hit for which data is available Setting to zero (default) | Extrapolation | Holding final value

Dependencies

Programmatic Use

Block Characteristics

Extended Capabilities

C/C++ Code Generation Generate C and C++ code using Simulink® Coder™.

HDL Code Generation Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

PLC Code Generation Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

R2025a: Signal Editor block updates

R2024b: Signal Editor block updates

R2023b: Signal Editor block updates

R2023a: Signal Editor block updates

R2021a: Array of buses support

See Also

Functions

Tools

Checks

Topics

Signal1 — Signals in scenario
scalar | vector | matrix | array

To create and edit scenarios, open Signal Editor user interface — Option to open Signal Editor tool
button

File name — Data set file
`untitled.mat` (default) | character vector

Active scenario — Active scenario
`Scenario` (default) | character vector

Use properties from — Signal property source
`Dialog parameters` (default) | `Signal data in MAT file`

Active signal — Signal to configure
`Signal 1` (default) | character vector

Apply signal properties to all scenarios — Option to apply specified signal properties to active signal
`on` (default) | `off`

Apply signal properties to all signals — Option to apply signal properties to all signals
`off` (default) | `on`

Output a bus signal — Configure signal as bus
`off` (default) | `on`

Select bus object — Bus object
`Bus: BusObject` (default) | bus object name

Mode — Bus object mode
`Bus object` (default) | bus object data type

Unit — Physical unit
`inherit` (default) | supported physical unit

Sample time — Time interval between samples
`0` (default) | `-1` | sample time in seconds

Interpolate data — Linearly interpolate data
`on` (default) | `off`

Enable zero-crossing detection — Detect zero-crossings
`off` (default) | `on`

Form output after final data value by — Block output after the last time hit for which data is available
`Setting to zero` (default) | `Extrapolation` | `Holding final value`

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
