Create and edit input signals

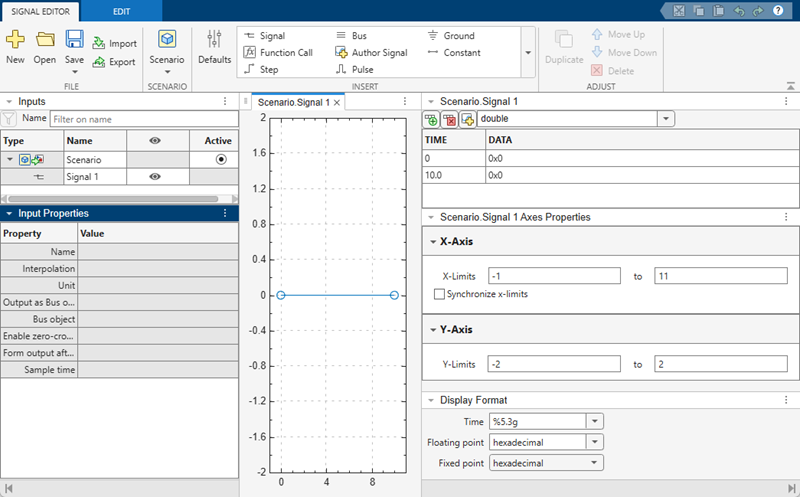

The Signal Editor tool lets you create and edit input signals that you can organize for multiple simulations.
Mouse, Keyboard, and Touchscreen Shortcuts
You can use these keyboard shortcuts to interact with the Signal Editor.
This table shows edit actions:
Pan and pinch
Click and draw
Select a point
Click , then click and select point or area
To select all areas, double-click
Pan and pinch
To select all areas, double-tap
Move a point
Click and drag
Tap and move
|Continuously delete points on a line|
|Fit to view if zoom action is selected|
Three mouse clicks
|Zoom out if zoom action is selected|
Two mouse clicks
|Expand along the x-axis|
|Expand along the y-axis|
This table shows zoom actions:
|Type of Zoom or Pan||Action|
Zoom in along the T and Y axes.
Zoom in along the time axis. After selecting the icon, on the graph, drag the mouse to select an area to enlarge.
Zoom in along the data value axis. After selecting the icon, on the graph, drag the mouse to select an area to enlarge.
Zoom only in x while zooming in xy.
|Zoom in xy while pressing Ctrl|
Zoom only in y while zooming in xy.
|Zoom in xy while pressing Shift|
Zoom out from the graph.
Fit the plot to the graph. After selecting the icon, click the graph to enlarge the plot to fill the graph.
Pan the graph up, down, left, or right. Select the icon. On the graph, hold the left mouse button and move the mouse to the area of the graph that you want to view.
Snap to Grid for Alignment
You can use these alignment commands to snap to the plot grid for accuracy.
|Action||Snap to Grid|
Snap values to x grid lines for point and line insertion and movement and zooming.
Snap X to Grid
Snap values to y grid lines for point and line insertion and movement and zooming.
Snap Y to Grid
Snap values to x minor grid lines for point and line insertion and movement and zooming.
Snap X to Tick
Snap values to y grid lines for point and line insertion and movement and zooming.
Snap Y to Tick
Snap to incremental value in X grid.
Snap X to Increment
Snap to incremental value in Y grid.
Snap Y to Increment
Turn plot markers on and off.
Open the Signal Editor
MATLAB® Command Window: Enter
Root Inport Mapper: To create a MAT-file for your new signal data, select Signals > New MAT-File. To link in an existing signal data file from an existing scenario and edit the signals in that file, use the Signals > Edit MAT-File.
Signal Editor block: Click .
Simulink® Editor toolstrip:
In the Prepare section of the Simulation tab, click the expander.
Click Inputs & Parameter Tuning > Signal Editor.
Change Signal Names and Hierarchy Orders
In the Inputs pane, you can change signal names and hierarchy order, create duplicates of signals, and delete signals. The software ignores leading and trailing spaces in signal names.
To change a signal name, double-click the name and enter a new name.
To change the unit or interpolation of a signal, in the Inputs pane, select the signal you want to edit, then navigate to the Input Properties pane, and update the Unit or Interpolation value.
To change the order of a signal in the hierarchy, drag and release the signal. For example, you can drag and release signals into a bus.
Alternatively, in the Adjust section, use the Move Up and Move Down buttons.
To copy a signal and paste it under the original, right-click the signal and select Duplicate Signal.
Alternatively, in the Adjust section, use the Duplicate button. You can also adjust the default properties of the signal you duplicate. For more information, see Create Signals with the Same Properties.
To copy a signal and paste it elsewhere in hierarchy, select Copy and then Paste.
Create Signals with the Same Properties
To create signals of the same predefined type, in the Adjust section, use the Duplicate button. To change the predefined signal type, click the Defaults icon . The Properties for Insertion dialog box opens.
On the Signals tab:
Data type — From the list, select the signal data type.
Enumeration — When you select the
Enumdata type, this parameter displays. Enter the class name of your enumeration.
If you define an enumeration class that contains the same integer value multiple times, the Signal Editor treats the first enumeration value as the canonical value and equates all subsequent instances of the same underlying integer to the enumerated name. In this example,
Red(118)) is canonical, so
classdef(Enumeration) hEnumColors_duplicateValues < Simulink.IntEnumType enumeration Red(118) Yellow(-14) Blue(90) Green(87) White(-14) Black(198) Brown(90) Pink(118) Purple(90) end methods (Static = true) function retVal = getDefaultValue() retVal = hEnumColors_duplicateValues.Blue; end end end
Interpolation — From the list,select
zero order hold.
Unit — Enter an appropriate unit expression. For a suggested list of unit expressions, see Allowed Units.
Dimensions — Enter the number of dimensions for the signal.
Signal type — From the list, select
Variable type — From the list, select
Logged timeseries, or
Valueproperty is of data type
On the Buses tab:
Bus object — From the list, select the bus object for which to define the dimensions. If you leave the Bus object parameter as the default
<object name>, the Signal Editor adds empty buses.
Dimensions — Enter the number of dimensions for the bus object.
On the Constant tab:
Value — Enter constant value to output.
Time — Enter sample time.
On the Step tab:
Initial value — Enter output value before step.
Final value — Enter output value after step.
Start time — Enter time when step starts.
Step time — Enter time increment when step occurs.
Step final time — Enter final step time.
On the Pulse tab:
Initial value — Enter initial default value of signal.
Value at trigger — Enter value of signal at pulse trigger.
Pulse duration — Enter length of time of pulse.
Step time — Enter time when step occurs.
Trigger time — Enter time when pulse trigger occurs.
Modify Multiple Scenarios or Signals Simultaneously
In the Inputs section, you can select multiple scenarios or signals simultaneously and perform actions on them.
Start Signal Editor.
In the toolstrip, add two scenarios. Click Scenario twice.
To the first
Scenario, add a basic signal and step. In
Insert, click Signal and
By default, basic signals are created with linear interpolation while step signals are created with zero-order hold (ZOH) interpolation.
Change the interpolation of both signals to linear. In the
Inputs pane, select both
Step. Observe that in the Input Properties
pane, the Interpolation field now shows
In the Interpolation field, type
Step and observe
that they now both have linear interpolation.
Add the same signal types to both scenarios. In the Inputs
Scenario1. Then in the
Insert pane, click Function Call.
Cut, Copy, or Paste Data Between Signal Editor and Excel Spreadsheets
Exchange rows and columns of data between Signal Editor and Excel® spreadsheets using cut, copy, and paste operations.
If you do not have an existing Excel spreadsheet, create an Excel spreadsheet and data.
Select and copy two adjacent items, such as
In Signal Editor, create a signal and double-click the hide icon ().
In the Signal pane, select two adjacent cells.
Paste the contents from the spreadsheet to the Signal Editor data table.
You can cut, copy, and paste directly into a spreadsheet or Signal Editor data table. However, if you cut, copy, and paste to a selected target area, the selected target area must be the same size as the source area.
Create Signal Data Using Standard Waveforms
In the Signal Editor tab, create signal data from the standard waveform options.
Constant — Straight line waveform with a default value of 1.
Step — Step waveform with default initial value of
0and final value of
Pulse — Pulse waveform with default initial value of
0, pulse at trigger
5, and pulse duration of 1.
To change the data from these waveforms, you can manually modify them in the plot. If you want to create multiple waveform plots with the same set of initial data, you can change the default signal properties for the waveform.
Start Signal Editor.
In the toolstrip, click Scenario.
To add a pulse waveform to the scenario, select the scenario and from the Insert section, select Pulse.
In the signal hierarchy, click the Pulse check box.
To change the default of the pulse waveform and its data, in the toolstrip, click Defaults ().
In the Properties for Insertion dialog box, on the Pulse tab, change the values as desired.
To add a second pulse waveform to the scenario, select the scenario, and from the Insert section, click Pulse.
Work with Data in Signals
You can add and delete data to the signals in a linked scenario. To create a model to work with, see Add Signals to Scenarios.
In the MATLAB Command Window, create data by entering this command:
ts = timeseries([0;20],[0;10]);
Add a scenario. Click Scenario.
In the Signal Editor, in the File section, click Import.
In the Import window, in the Select signals to import pane,
ts signal and click OK.
ts signal into the scenario.
In the Signal Editor, in the Inputs pane, double-click the hide
icon () for the signal
The focus moves to the Edit tab.
Add data to the signal
In the Scenario.ts pane, click the add row icon (), and add signals. To add a signal row between other signals, click the signal above, then click the add row icon.
When done, click anywhere in the pane to update the plot. To reorient the plot, click Fit to View.
Remove the time 20 line from the signal. Select
20 and click .
Alternatively, if you want to replace all the signal data for
with a signal defined with signal notations, click the replace button
and use the Author and Replace Signal Data dialog box
to define new data.
New — Start new Signal Editor session
Open a new Signal Editor session.
Open — Open MAT-file containing signals
Open MAT-file containing signals to be displayed and edited in Signal Editor.
Save — Save signal data to MAT-file
Save the contents of Signal Editor.
Import — Import signals from registered file type
Import signals from registered file types that Signal Editor supports. For more information, see Import Custom File Type.
Export — Save signals to registered file type
Save signals to registered file types that Signal Editor supports. For more information, see Export Signals to Custom Registered File Types.
Scenario — Create scenario
Create scenario to contain signals.
Defaults — Change predefine signal types and properties
Change the predefined signal type and properties by clicking .
Signal — Insert basic signal
Insert basic signal by clicking . For more information, see Work with Basic Signal Data.
Function Call — Insert function-call signal
Insert function-call signal by clicking .
If you need a function-call signal for a root inport with explicit periodic sample time, insert a ground signal instead. Simulink then executes the function-call automatically.
Constant — Instant constant signal
Insert constant signal with value of 1 by clicking .
Bus — Insert bus
Insert bus by clicking . To the bus you can add signals using any of the other signal insertions techniques.
Author Signal — Author signal using MATLAB expressions or workspace variables
Author signal using MATLAB expressions or workspace variables by clicking . The dialog box displays:
Time — Enter the range of time for the data.
Data — Enter the MATLAB expression for the signal.
Data type — Select or enter the signal data type.
Enum: <class name>
If you enter your time and data and then select a fixed-point data type, the Signal Editor displays a fixed-point proposed data type for your data.
To help you select a fixed-point data type, click the Show Histogram button (). Clicking this button displays a plot of the signal data using the selected fixed-point data type. The graph displays:
Column Information Values The negative, positive, and zero signal values. Potential Overflows Bins the signal values that may overflow. In-Range Bins the signal values that are within acceptable range. Potential Underflows Bins the signal values that may underflow.
To see the difference that a data type may have on the histogram, select:
Slope & Bias Scaling
For more information, see Histogram Plot of Signal (Fixed-Point Designer).
To apply the proposed fixed-point data type to your data, click the Use proposed data type button ().
For more information, see Create Signals with MATLAB Expressions and Variables.
Step — Insert step waveform signal
Insert step waveform signal with an initial value of
0 and a
final value of
1 by clicking .
Ground — Insert ground signal
Insert ground signal by clicking .
Pulse — Insert pulse waveform signal
Insert pulse signal waveform signal with an initial value of
trigger value of
1, and initial pulse duration of
1 by clicking .
Duplicate — Copy signal
Copy signal and paste it under original signal.
Move Up — Move signal up the signal hierarchy
Move signal up the signal hierarchy in a bus or scenario by clicking the signal and then clicking Move Up.
Move Down — Move signal down the signal hierarchy
Move signal down the signal hierarchy in a bus or scenario by clicking the signal and then clicking Move Down.
Delete — Delete signal
Delete signal by selecting one or more signals and clicking .
signalEditor opens the Signal Editor from the MATLAB Command Window.
Introduced in R2017b
