Zero-Pole

Model system using zero-pole-gain transfer function

Libraries:
Simulink / Continuous

Description

The Zero-Pole block models a system that you define by specifying the zeros, poles, and gain of a Laplace-domain transfer function. You can use this block to model single-input single-output (SISO) and single-input multiple-output (SIMO) systems.

The Zero-Pole block has these requirements:

The transfer function must have the form

$H (s) = K \frac{Z (s)}{P (s)} = K \frac{(s - Z (1)) (s - Z (2)) \dots (s - Z (m))}{(s - P (1)) (s - P (2)) \dots (s - P (n))},$
where Z represents the zeros, P represents the poles, and K represents the gain of the transfer function.
The number of poles must be greater than or equal to the number of zeros.
Complex poles and zeros must be complex-conjugate pairs.
For a multiple-output system, all transfer functions must have the same poles. The zeros can differ in value, but the number of zeros for each transfer function must be the same.

Tip

To model a multiple-output system in which the transfer functions have different numbers of zeros or a single zero each, use multiple Zero-Pole blocks.

Model Single-Output Systems

A single-output system has scalar time-domain input and output signals. To model this type of system:

Enter a vector for the zeros of the transfer function in the Zeros field.
Enter a vector for the poles of the transfer function in the Poles field.
Enter a scalar for the gain of the transfer function in the Gain field.

Model Multiple-Output Systems

A multiple-output system has a scalar time-domain input signal and a vector time-domain output signal. Each element in the vector output is an output of the system. To model this type of system:

Enter a matrix of zeros in the Zeros field.
Each column of the matrix contains the zeros of a transfer function that relates the system input signal to one of the elements in the output signal.
Enter a vector for the poles common to all transfer functions of the system in the Poles field.
Enter a vector of gains in the Gain field.
Each element is the gain of the corresponding transfer function in the zeros matrix.

Examples

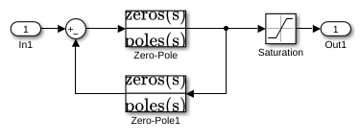

Prevent Block Windup in Multiloop Control

Use signal tracking to prevent block windup in a two-loop control system.

Open Model

Bumpless Control Transfer

This example shows how to use signal tracking to achieve bumpless control transfer in a system that switches between a PID Controller block and another controller.

Open Model

Ports

Input

expand all

Port_1 — Input signal
scalar

The scalar time-domain input signal for the system.

Data Types: double

Output

expand all

Port_1 — Output signal
scalar | vector

Output of the system modeled as a zero-pole-gain transfer function, provided as a scalar or vector signal.

When modeling a single-output system, the block produces a scalar time-domain signal.
When modeling a multiple-output system, the block produces a vector, where each element of the vector is an output of the system.

Data Types: double

Parameters

expand all

Zeros — Matrix of zeros
`[1]` (default) | vector | matrix

Define the matrix of zeros.

For a single-output system, enter a vector for the zeros of the transfer function.
For a multiple-output system, enter a matrix. Each column of this matrix contains the zeros for a transfer function that relates the system input to an element of the output vector.
To model a system without zeros, enter [].

Programmatic Use

Block Parameter: Zeros

Type: string | character vector

Value: vector | matrix

Default: '[1]'

Poles — Vector of poles
`[0 -1]` (default) | vector

Define the vector of poles.

For a single-output system, enter a vector for the poles of the transfer function.
For a multiple-output system, enter a vector for the poles common to all transfer functions of the system.

Programmatic Use

Block Parameter: Poles

Type: string | character vector

Value: vector

Default: '[0 -1]'

Gain — Vector of gains
`[1]` (default) | vector

Define the vector of gains.

For a single-output system, enter a 1-by-1 vector for the gain of the transfer function.
For a multiple-output system, enter a vector of gains. Each element is the gain of the corresponding transfer function in the zeros matrix.

Programmatic Use

Block Parameter: Gain

Type: string | character vector

Value: vector

Default: '[1]'

Parameter tunability — Tunable representation of block parameters in code
`Auto` (default) | `Optimized` | `Unconstrained`

Specify whether the zeros, poles, and gains are tunable in accelerator and rapid accelerator simulations and in simulations deployed using Simulink^® Compiler™.

Auto — The software determines the level of parameter tunability.
Optimized — The software generates an optimized representation of the zeros, poles, and gain for accelerator, rapid accelerator, and deployed simulations. The zeros, poles, and gain values in the optimized representation are not tunable.
Unconstrained — The values of the Zeros, Poles, and Gain parameters are tunable between accelerator, rapid accelerator, and deployed simulations.

Programmatic Use

Block Parameter: ParameterTunability

Type: string | character vector

Values: 'Auto' | 'Optimized' | 'Unconstrained'

Default: 'Auto'

Absolute tolerance — Absolute tolerance for computing block states
`auto` (default) | scalar | vector

Variable-step solvers use absolute and relative tolerances when choosing the step size to determine whether the error in state calculations is acceptable.

To inherit the absolute tolerance from the Absolute tolerance configuration parameter, specify this parameter value as auto or -1.

To specify an absolute tolerance for this block that overrides the value specified for the Absolute tolerance configuration parameter:

Enter a real, positive scalar value to use to compute all block states.
Enter a real vector with dimensions that match the dimensions of the continuous states for the block.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	`AbsoluteTolerance`
Values:	`'auto'` (default) \| `'-1'` \| positive real scalar number \| vector of positive real scalar numbers
Data Types:	`char` \| `string`

Example: set_param("MyModel/Descriptor State-Space",AbsoluteTolerance="-1")

State Name (e.g., 'position') — Option to assign unique names to states
`''` (default) | character vector | cell array of character vectors | MATLAB^® variable | ...

Use this parameter to optionally assign names to the states of this block. The names you assign apply only to the states of this block.

To use default state names, leave this field blank ('').
To assign a single name to a single state, enter the name between quotes. For example, to name a single state position, enter 'position'.
To assign names to multiple states, specify this parameter value as a cell array of character vectors. Each name in the cell array must be unique. For example, to assign the names a, b, and c, enter {'a','b','c'}.
To specify the names using a MATLAB variable, enter the name of the variable without quotes. For example, to use the variable names to specify the state names, enter names.

You can specify a number of names that is less than the number of states in the block. In this case, the state names are used for multiple states, and the number of states must divide evenly into the number of state names. For example, when you specify two names for a block that has four states, the first name is used for the first two states, and the second name is used for the last two states.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	`ContinuousStateAttributes`
Values:	`''` (default) \| valid MATLAB variable name
Data Types:	`char` \| `string` \| `cell`

Example: set_param("MyModel/Descriptor State-Space",ContinuousStateAttributes={'position','velocity'})

Block Characteristics

Data Types	`double`
Direct Feedthrough	`yes`
Multidimensional Signals	`no`
Variable-Size Signals	`no`
Zero-Crossing Detection	`no`

Tips

The appearance of the transfer function in the Zero-Pole block icon depends on how you specify the zero, pole, and gain parameters.

If you specify each parameter as an expression or a vector, the block shows the transfer function with the specified zeros, poles, and gain. If you specify a variable in parentheses, the block evaluates the variable.
For example, the image shows how the block looks when you specify the Zeros parameter as [3 2 1], the Poles parameter as (poles), where poles is a variable with the value [7 5 3 1], and the Gain parameter as gain.
If you specify each parameter as a variable, the block shows the name of the variable that defines the value for the Gain parameter followed by a generic transfer function.
For example, the image shows how the block looks when you specify the Zeros parameter as the variable zeros, the Poles parameter as the variable poles, and the Gain parameter as the variable gain.
When the block is not large enough to display the transfer function using the parameter values, the transfer function is shown with a numerator of zeros(s) and a denominator of poles(s).

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Not recommended for production code, due to resource limits and restrictions on speed and memory often found in embedded systems. The generated code can contain:

Dynamic allocation and freeing of memory
Recursion
Additional memory overhead
Widely-varying execution times

While the code is functionally valid and acceptable in resource-rich environments, smaller embedded targets often cannot support such code.

In general, consider using the Model Discretizer to map continuous blocks to discrete equivalents that support production code generation. To start the Model Discretizer, in the Simulink Editor, on the Apps tab, under Control Systems, click Model Discretizer.

For the Second-Order Integrator block, the Model Discretizer produces an approximate discretization.

Version History

Introduced before R2006a
