Create Simulink Bus Objects

Create Bus Objects Using Type Editor

How you open the Type Editor depends on whether you want the Type Editor docked in your current model window.

To create Simulink.Bus objects in the Type Editor, use one of these options.

For example, create three empty Simulink.Bus objects named interface, sinusoidal, and nonsinusoidal.

To add Simulink.BusElement objects in the Type Editor, use one of these options.

For example, add these Simulink.BusElement objects to the Simulink.Bus objects.

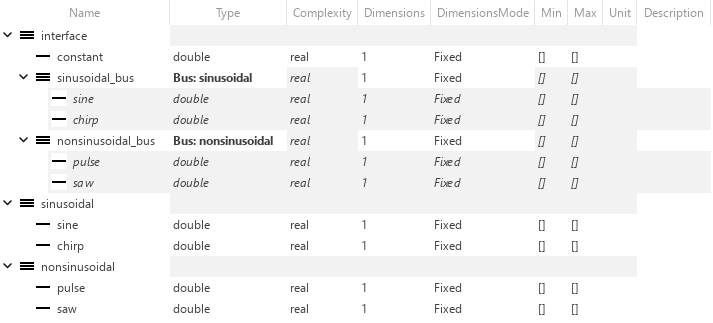

To create a hierarchy of bus objects, nest the bus objects named sinusoidal and nonsinusoidal in the bus object named interface.

When you set the data type of a Simulink.BusElement object to a Simulink.Bus object, the Bus: prefix is optional.

Create Bus Objects from Bus Element Objects

To specify a reusable set of properties for a bus hierarchy, create a hierarchy of Simulink.Bus objects using arrays of Simulink.BusElement objects.

Create an array that contains bus element objects named Chirp and Sine in the base workspace.

elems(1) = Simulink.BusElement;
elems(1).Name = 'Chirp';

elems(2) = Simulink.BusElement;
elems(2).Name = 'Sine';

Array indexing lets you create and access the elements of the array. Dot notation lets you access property values of the elements.

Create a bus object named Sinusoidal that contains the elements defined in the elems array.

Sinusoidal = Simulink.Bus;
Sinusoidal.Elements = elems;
clear elems

To create a hierarchy of bus objects, create a bus object that references the Sinusoidal bus object.

Create an array that contains bus element objects named NestedBus and Step. Specify the Sinusoidal bus object as the data type of the NestedBus element.

elems(1) = Simulink.BusElement;
elems(1).Name = 'NestedBus';
elems(1).DataType = 'Bus: Sinusoidal';

elems(2) = Simulink.BusElement;
elems(2).Name = 'Step';

Create a bus object named TopBus that contains the elements defined in the elems array.

TopBus = Simulink.Bus;
TopBus.Elements = elems;
clear elems

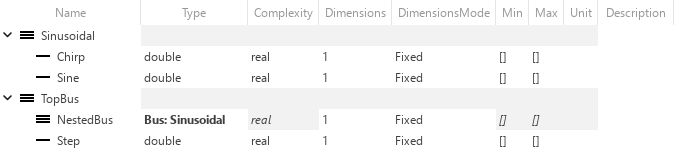

To view the objects, open the Type Editor.

typeeditor

Create Simulink.Bus Objects from Bus Creator Block

Create Simulink.Bus objects from a Bus Creator block that creates a bus with multiple levels of hierarchy.

Open the example model named BusHierarchy.

mdl = "BusHierarchy";
open_system(mdl)

Create a Simulink.Bus object from the Bus Creator block named Bus Creator1. This block receives input from a source block and another Bus Creator block.

block = "BusHierarchy/Bus Creator1";
busInfo = Simulink.Bus.createObject(mdl,block);

This command creates Simulink.Bus objects named TopBus and NestedBus in the base workspace. Each bus object represents a bus in the bus hierarchy.

To view the Simulink.Bus objects, open the Type Editor.

typeeditor

Create Simulink.Bus Objects from Bus Element Port

Create Simulink.Bus objects from a bus element port, which Out Bus Element blocks represent.

Open the example model named BusOutput.

mdl = "BusOutput";
open_system(mdl)

The output bus has multiple levels of hierarchy. The top-level bus contains a nested bus and a signal. The nested bus contains two signals.

Create and assign Simulink.Bus objects that define the bus hierarchy at the output port named OutBus.

Alternatively, to create the bus objects programmatically, use the Simulink.Bus.createObject function.

port = "BusOutput/OutBus";
busInfo = Simulink.Bus.createObject(mdl,port);

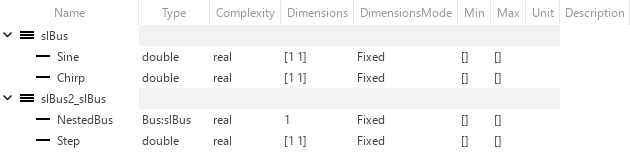

To view the objects, open the Type Editor.

typeeditor

Create Simulink.Bus Objects from Cell Array of Bus Information

This example shows how to create and use a cell array to generate Simulink.Bus objects in the base workspace.

To define the elements that the Simulink.Bus object contains, create an array of Simulink.BusElement objects or a cell array of the property values for the Simulink.BusElement objects.

When you define the elements in an array, specify the values that differ from the default.

elementsArray(1) = Simulink.BusElement;

elementsArray(2) = Simulink.BusElement;
elementsArray(2).Name = "b";
elementsArray(2).Min = -3;
elementsArray(2).Max = 3;
elementsArray(2).Unit = "m";

When you define the elements in a cell array of property values, specify the element name, dimensions, data type, complexity, and sampling mode. Optionally, specify the dimensions mode, minimum, maximum, units, and description.

elementsCellArray = {{'a',1,'double','real','Sample'}; ...
    {'b',1,'double','real','Sample','Fixed',-3,3,'m',''}};

In this example, elementsArray and elementsCellArray create identical Simulink.BusElement objects.

To create multiple Simulink.Bus objects at once, create a cell array with two subordinate cell arrays that define the Simulink.Bus objects. For each Simulink.Bus object, specify the bus name, header file, description, data scope, alignment, preservation of element dimensions, and elements.

busCell = {{'BusObjArray','','','Auto','-1','0',elementsArray}, ...
    {'BusObjCellArray','','','Auto','-1','0',elementsCellArray}};

Create the Simulink.Bus objects in the base workspace from the cell array of cell arrays.

Simulink.Bus.cellToObject(busCell)

To compare the Simulink.Bus objects, open the Type Editor.

typeeditor

The Simulink.Bus objects are identical other than their names.

Create Simulink.Bus Objects from MATLAB Structures

When you create a nonvirtual bus with a Constant block, you must specify a MATLAB structure for Constant value and a Simulink.Bus object as the Output data type.

For this example, create a structure that contains other structures.

bus_struct.A.A1 = 0;
bus_struct.A.A2 = [0 + 0i;0 + 0i;0 + 0i;0 + 0i;0 + 0i];
bus_struct.B = 5;
bus_struct.C.C1 = 0;
bus_struct.C.C2.A1 = 0;
bus_struct.C.C2.A2 = [0 + 0i;0 + 0i;0 + 0i;0 + 0i;0 + 0i];

Create the Simulink.Bus objects that correspond with the structure.

busInfo = Simulink.Bus.createObject(bus_struct);

The function creates four Simulink.Bus objects. The object named slBus1 corresponds to the top-level structure and uses a default name. The objects named A, C, and C2 correspond to the nested structures.

To view the objects, open the Type Editor.

typeeditor

Import C Structure as Simulink.Bus Object

To generate Simulink representations of a C structure type (struct) from a header file, use the Simulink.importExternalCTypes function.

typedef struct {
    double coeff;
    double init;
} params_T;

Simulink.importExternalCTypes("BusType.h");

typeeditor
