Create Moving Average Filter Block with System Object

movingAverageFilter System Object

This example extends the movingAverageFilter System object built in Create Moving Average System Object. The movingAverageFilter System object computes the unweighted mean of a specified number of previous inputs. Use the WindowLength property to specify how many previous samples to use.

Use in Simulink

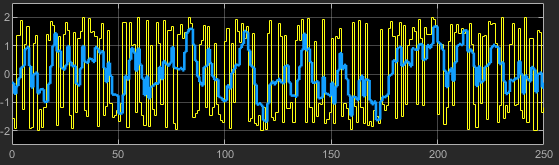

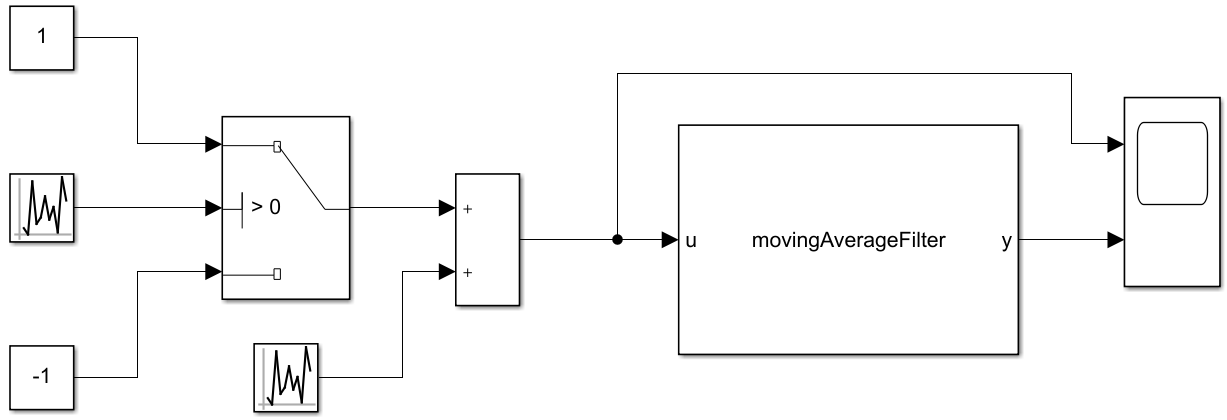

The object is already ready to use in Simulink. Create a Simulink model and add a MATLAB System block. Specify movingAverageFilter as the System object name. For example, this model uses the moving average filter to eliminate noise from a signal.

model = 'movingaveragefilter_sl';
open_system(model);

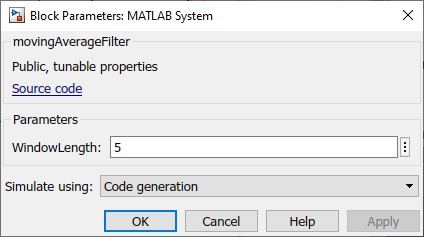

The block dialog window shows the public, tunable parameters:

Customize MATLAB System Block

Optionally, you can customize the block appearance and block dialog for a MATLAB System block by adding methods to the System object.

Add Simulink Block Icon Customization Method

By default the block icon shows the name of the System object, in this case movingAverageFilter. Customize the Moving Average Filter block icon with a cleaner name. In the Editor toolstrip, select the System Block dropdown button, then select Add Text Icon. The getIconImpl method is added to movingAverageFilter. Inside getIconImpl, set icon equal to the string array ["Moving","Average","Filter"];

function icon = getIconImpl(~)
    % Define icon for the System block.
    icon = ["Moving","Average","Filter"];
end

Customize Block Dialog

You can also customize the block dialog by adding methods and comments to the System object. For details about block dialog customization, see Customize System Block Appearance Programmatically. In this example, rename the WindowLength property in the dialog box and add a method to customize the description.

By default, all public properties appear as parameters in the block dialog with their property names. In this example, add comments before the WindowLength property so that it appears as Moving window length in the dialog. Add a comments above the property in the form: PropertyName Name in dialog

 % WindowLength Moving window length
 WindowLength (1,1){mustBeInteger,mustBePositive} = 5

To specify the header and description in the block dialog, in the toolstrip select System Block > Specify Dialog Header. This option adds the getHeaderImpl method to movingAverageFilter. Modify the call to matlab.system.display.Header to this:

methods(Access = protected, Static)
    function header = getHeaderImpl
        % Define header panel for System block dialog
        header = matlab.system.display.Header('movingAverageFilter',...
            'Title','Moving Average Filter',...
            'Text', 'Unweighted moving average filter of 1- or 2D input.');
    end
end

You can see a preview of the block dialog by clicking the button in the toolstrip above System Block.

Customized Block in Simulink

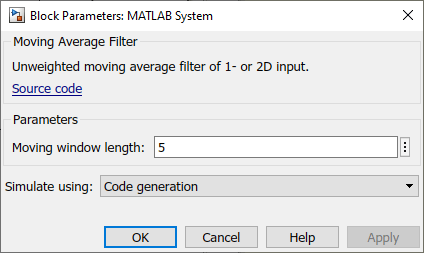

This is the block with the added customizations:

model = 'movingaveragefilter_sl_extended';
open_system(model);

To see the completed System object with the Simulink customization methods, type:

edit movingAverageFilter_extended.m
