Standalone Perturbation Signal Generation

Generate perturbation signals for custom frequency response estimation applications

Simulink^® Control Design™ software enables you to generate standalone perturbation signals in Simulink for desktop simulations and hardware implementations with code generation. You can inject these signals into your plant models to collect and analyze response data, allowing you to perform custom offline or online frequency response estimation and identify plant characteristics. With the available blocks, you can generate pseudorandom binary sequence (PRBS), superimposed sinusoidal, and sequential sinusoidal perturbation signals. Additionally, the sinusoidal signal generator blocks allow you to generate three-phase sinusoidal perturbation signals to identify the frequency response of three-phase AC power systems.

Blocks

Start-Stop Generator	Generate start-stop signal used by signal generation, estimation, and autotuning blocks (Since R2024a)
PRBS Signal Generator	Generate PRBS input signal for plant frequency response estimation (Since R2024a)
Sinestream Signal Generator	Generate sinestream input signal for plant frequency response estimation (Since R2024a)
Superposition Signal Generator	Generate superposition input signal for plant frequency response estimation (Since R2024b)

Topics

Use Sinestream Signal Generator Block for Offline Frequency Response Estimation
Estimate frequency responses offline using the Sinestream Signal Generator block. (Since R2024a)
Generate PRBS Input Signals Using PRBS Signal Generator Block
Estimate frequency responses offline using the PRBS Signal Generator block. (Since R2024a)
Use Superposition Signal Generator Block for Offline Frequency Response Estimation
Estimate frequency responses offline using the Superposition Signal Generator block. (Since R2024b)

Featured Examples

Use Start-Stop Generator and PRBS Signal Generator Blocks for Estimation at Multiple Operating Points

Perform frequency response estimation at multiple operating points using Start-Stop Generator and PRBS Signal Generator blocks.

Since R2024a
Open Live Script

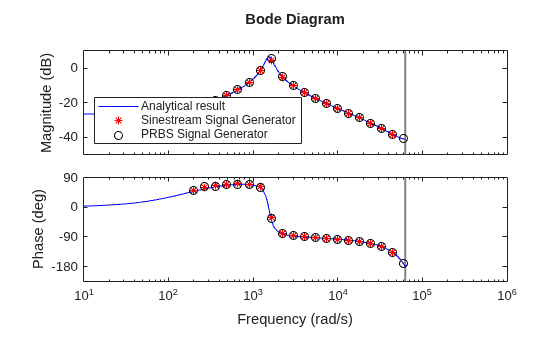

Measure Boost Converter Output Impedance Using Signal Generator Blocks

Use the Sinestream Signal Generator and PRBS Signal Generator blocks to create input signals to measure the output impedance of a boost converter through an offline frequency response estimation experiment.

Since R2024a
Open Live Script

New

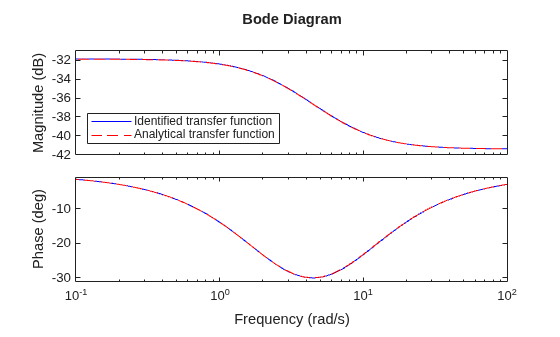

Estimate Battery Impedance Using Signal Generator Blocks

Use frequency response estimation to estimate the impedance of a battery modeled using Simscape™ Battery™ software.

Since R2024b
Open Live Script

New

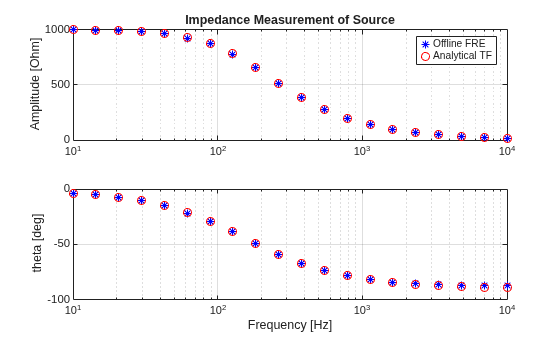

Measure Three-Phase Electric Circuit Impedance Using Sinestream Signal Generator Block

Measure the three-phase electric circuit impedance through an offline frequency response estimation experiment.

Since R2024b
Open Live Script
