Extremum Seeking Control
Compute controller parameters in real time by maximizing objective function
Since R2021a
Libraries:
Simulink Control Design /
Adaptive Control
Description
The Extremum Seeking Control block tunes controller parameters to maximize an objective function. Extremum seeking controllers are model-free adaptive controllers that are useful for adapting to unknown system dynamics and unknown mappings from control parameters to an objective function. When seeking multiple parameters, the Extremum Seeking Control block uses a separate tuning loop for each parameter.
The Extremum Seeking Control block searches for optimal control parameters by modulating (perturbing) the parameters with sinusoidal signals and demodulating the resulting perturbed objective function.
To configure the extremum seeking algorithm, set appropriate forcing frequencies, demodulation and modulation signals, learning rates, and parameter initial conditions. When configuring the block, ensure that the system dynamics are on the fastest time scale, the perturbation forcing frequencies are on the medium time scale, and the filter cutoff frequencies are on the slowest time scale.
You can implement both continuous-time and discrete-time extremum seeking controllers. Changing the time-domain of the controller affects the time domain of the high-pass filters, low-pass filters, and integrators used in the tuning loops. To generate hardware-deployable code for the Extremum Seeking Control block, use a discrete-time controller.
For more information, see Extremum Seeking Control.
Examples
Extremum Seeking Control for Reference Model Tracking of Uncertain Systems
Track a reference plant model by adapting feedforward and feedback gains for an uncertain dynamic system.
Anti-Lock Braking Using Extremum Seeking Control
Design an extremum seeking controller that maximizes the friction coefficient of an ABS system to achieve the shortest stopping distance.

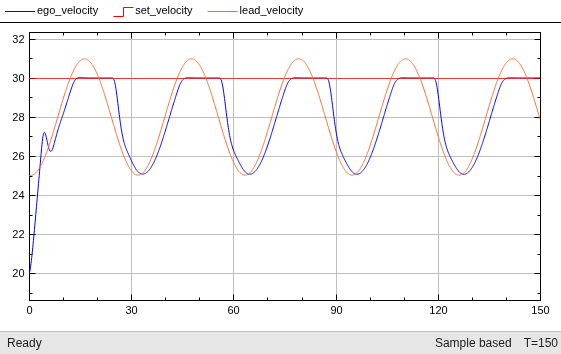

Adaptive Cruise Control Using Extremum Seeking Control
Design an extremum seeking controller to adjust controller gains for an adaptive cruise control system.

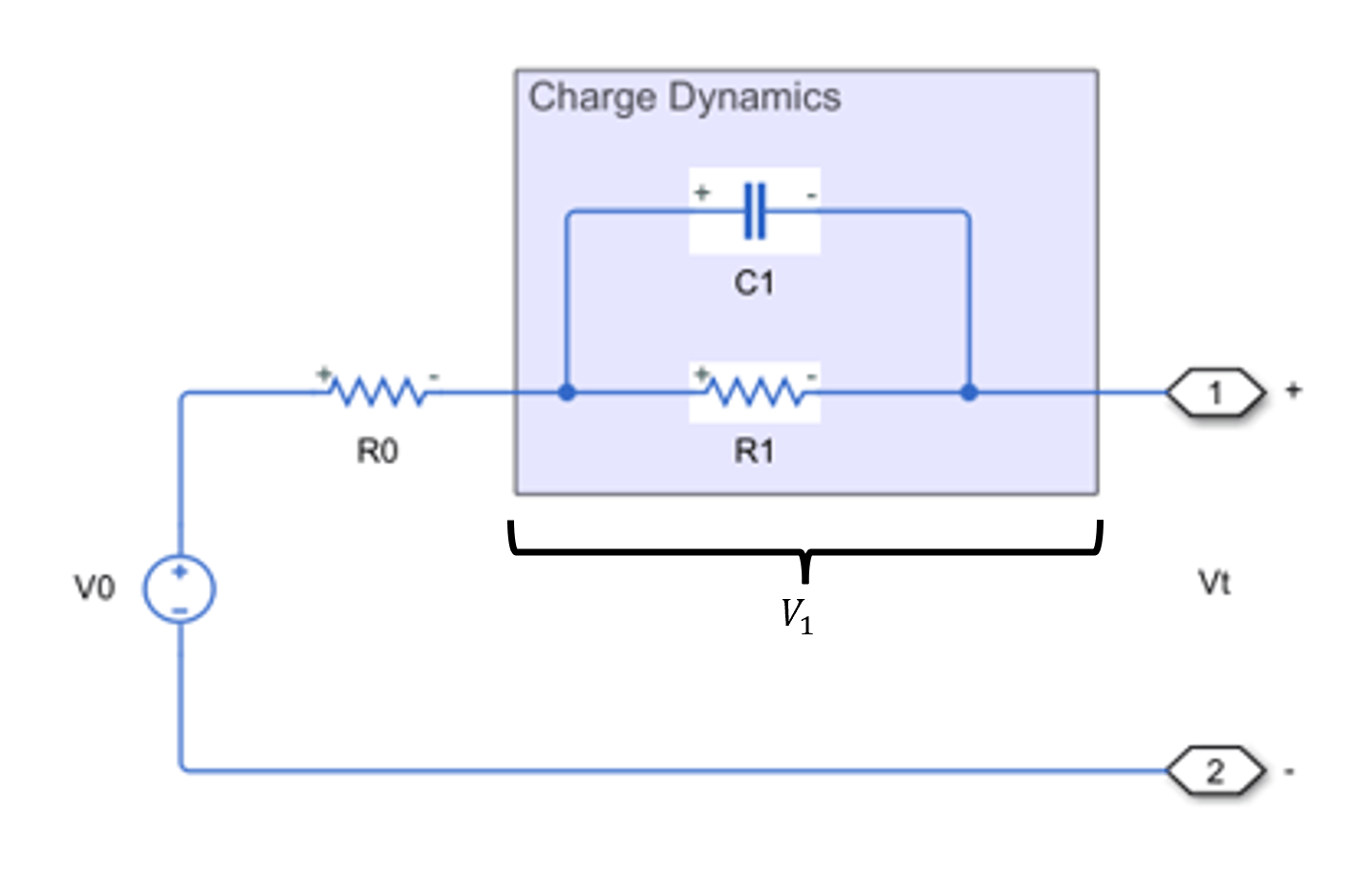

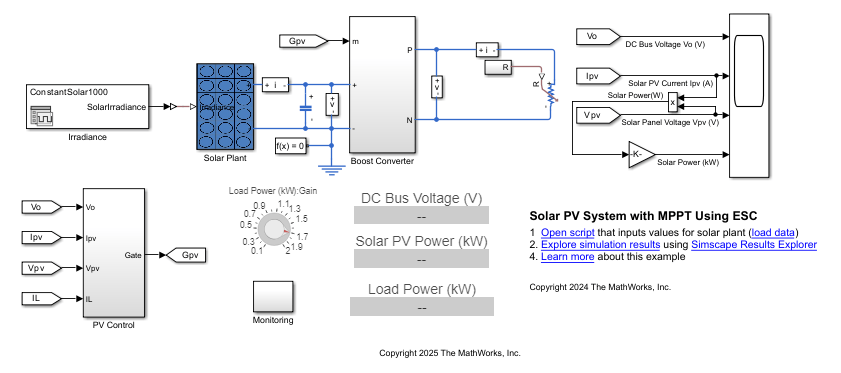

Ports
Input
J — Objective function
scalar
The objective function from the control system is perturbed as a result of the system response to the perturbed parameters theta. To compute parameter updates, the block filters and demodulates J.
Output
theta — Perturbed parameters
scalar | vector
Apply these perturbed parameters (θ) to your control system. The block uses the resulting perturbation of the objective function J to compute parameter updates.
If Number of parameters is 1
,
theta outputs a scalar signal. Otherwise,
theta outputs a vector signal with length equal to
Number of parameters.
theta_hat — Estimated parameters
scalar | vector
Use this output port to obtain the estimated parameter values () before they are perturbed by the modulation signal.
If Number of parameters is 1
,
theta_hat outputs a scalar signal. Otherwise,
theta_hat outputs a vector signal with length equal to
Number of parameters.
Dependencies
To enable this output port, select Output estimated parameters.
Parameters
Time Domain — Filter and integrator time domain
Continuous time (default) | Discrete time
Specify the time domain for the high-pass filters, low-pass filters, and integrators.
Continuous time — Use continuous-time filters and integrators.
Discrete time — Use discrete-time filters and integrators. Specify the sample time using the Sample time parameter, and specify the integration method using the Integration method parameter.
Programmatic Use
Block Parameter:
'timeDomainStatus' |
Type: character vector |
Values:
'Continuous Time' | 'Discrete Time' |
Default:
'Continuous Time' |
Sample time — Discrete-time filter and integrator sample time
0.1
(default) | finite positive scalar
Specify the sample time for the discrete-time high-pass filters, low-pass filters, and integrators.
When tuning multiple parameters, all tuning loops use the same sample time.
Dependencies
To enable this parameter, set the Time Domain property to Discrete time.
Programmatic Use
Block Parameter:
'SampleTime' |
Type: character vector |
Values: finite positive scalar |
Default:
'0.1' |
Integrator method — Discrete-time integration method
Forward Euler
(default) | Backward Euler
| Trapezoidal
You can select one of the following integration methods for the discrete-time integrators.
Forward Euler
:Backward Euler
:Trapezoidal
:
Here:
y is the integrator output
u is the input
n is the current sample time
Ts is the sample time
When tuning multiple parameters, the integrators in all tuning loops use the same integration method.
Dependencies
To enable this parameter, set the Time Domain property to Discrete time.
Programmatic Use
Block Parameter:
'IntegratorMethods' |
Type: character vector |
Values:
'Forward Euler' | 'Backward Euler' |
'Trapezoidal' |
Default:
'Forward Euler' |
Number of parameters — Number of parameters
1
(default) | positive integer less than or equal to 5
You can simultaneously tune up to five parameters. The block uses a separate tuning loop for each parameter.
Programmatic Use
Block Parameter:
'paramCount' |
Type: character vector |
Values: positive integer less than 5 |
Default:
'1' |
Initial condition x0 — Initial parameter values
0
(default) | finite scalar | vector
Initial parameter values, which correspond to the initial conditions of the parameter update integrators.
If Number of parameters is 1
, specify
Initial condition as a finite scalar.
To specify different initial conditions for multiple parameters, specify Initial condition as a vector of finite values with length equal to Number of parameters. Otherwise, to specify the same initial condition for all parameters, specify Initial condition as a finite scalar.
Programmatic Use
Block Parameter:
'initialVal' |
Type: character vector |
Values: finite scalar | vector |
Default:
'0' |
Forcing frequency omega (rad/s) — Forcing frequency
1
(default) | positive finite scalar | vector
Specify the frequency of the modulation and demodulation signals in radians per second. For a given parameter tuning loop, specify a forcing frequency that is lower than the frequencies of important system dynamics and higher than the high-pass and low-pass filter cutoff frequencies.
When tuning a single parameter, specify Forcing frequency as a positive finite scalar.
When tuning a multiple parameters, specify Forcing frequency as a vector of positive finite values with length equal to Number of parameters. Each forcing frequency must be unique, which allows convergence of the extremum-seeking algorithm.
Programmatic Use
Block Parameter:
'omega' |
Type: character vector |
Values: positive finite scalar | vector |
Default:
'1' |
Learning rate k — Parameter update rate
1
(default) | positive finite scalar | vector
The learning rate is a gain factor that controls the rate at which the block updates a parameter.
When tuning a single parameter, specify Learning rate as a positive finite scalar.
When tuning a multiple parameters, you can specify a different learning rate for each parameter tuning loop. To do so, specify Learning rate as a vector of positive finite values with length equal to Number of parameters. Otherwise, to specify the same learning rate for all tuning loops, specify Learning rate as a positive finite scalar.
Programmatic Use
Block Parameter:
'gain' |
Type: character vector |
Values: positive finite scalar | vector |
Default:
'1' |
Demodulation amplitude a — Demodulation signal amplitude
1
(default) | positive finite scalar | vector
Specify the amplitude of the signal used to demodulate the objective function. For most applications, specify Demodulation amplitude ≫ Modulation amplitude. The product of these amplitudes, along with the learning rate, controls the convergence speed of the algorithm.
When tuning a single parameter, specify Demodulation amplitude as a positive finite scalar.
When tuning multiple parameters, you can specify a different demodulation amplitude for each parameter tuning loop. To do so, specify Demodulation amplitude as a vector of positive finite values with length equal to Number of parameters. Otherwise, to specify the same amplitude for all tuning loops, specify Demodulation amplitude as a positive finite scalar.
Programmatic Use
Block Parameter:
'demodAmp' |
Type: character vector |
Default:
'1' |
Demodulation phase phi_1 (rad) — Demodulation signal phase
0
(default) | positive finite scalar | vector
Specify the phase ϕ1 of the signal used to demodulate the objective function in radians.
When tuning a single parameter, specify Demodulation phase as a positive finite scalar.
When tuning multiple parameters, you can specify a different demodulation phase for each parameter tuning loop. To do so, specify Demodulation phase as a vector of positive finite values with length equal to Number of parameters. Otherwise, to specify the same phase for all tuning loops, specify Demodulation phase as a positive finite scalar.
The demodulation and modulation phases must satisfy the condition cos(ϕ1–ϕ2) > 0.
Programmatic Use
Block Parameter:
'demodPhase' |
Type: character vector |
Values: positive finite scalar | vector |
Default:
'0' |
Modulation amplitude b — Modulation signal amplitude
0.1
(default) | positive finite scalar | vector
Amplitude of the perturbation signal added to the estimated parameters. For most applications, specify Modulation amplitude ≪ Demodulation amplitude. The product of these amplitudes, along with the learning rate, controls the convergence speed of the algorithm.
When tuning a single parameter, specify Modulation amplitude as a positive finite scalar.
When tuning multiple parameters, you can specify a different modulation amplitude for each parameter tuning loop. To do so, specify Modulation amplitude as a vector of positive finite values with length equal to Number of parameters. Otherwise, to specify the same amplitude for all tuning loops, specify Modulation amplitude as a positive finite scalar.
Programmatic Use
Block Parameter:
'modAmp' |
Type: character vector |
Values: positive finite scalar | vector |
Default:
'0.1' |
Modulation phase phi_2 (rad) — Modulation signal phase
0
(default) | positive finite scalar | vector
Phase ϕ2 of the perturbation signal added to the estimated parameters, specified in radians. You must select the demodulation phase ϕ1 and modulation phase ϕ2 such that cos(ϕ1–ϕ2) > 0.
When tuning a single parameter, specify Modulation phase as a positive finite scalar.
When tuning multiple parameters, you can specify a different modulation phase for each parameter tuning loop. To do so, specify Modulation phase as a vector of positive finite values with length equal to Number of parameters. Otherwise, to specify the same phase for all tuning loops, specify Modulation phase as a positive finite scalar.
Programmatic Use
Block Parameter:
'modPhase' |
Type: character vector |
Values: positive finite scalar | vector |
Default:
'0' |
Enable HPF — Enable high-pass filtering of objective function signal
off
(default) | on
Select this parameter to enable a high-pass filter that removes any signal bias from the objective function signal before the demodulation stage. To specify the filter cutoff frequency, use the HPF frequency parameter.
Programmatic Use
Block Parameter:
'highPassEnable' |
Type: character vector |
Values:
'off' | 'on' |
Default:
'off' |
HPF frequency omega_h (rad/s) — High-pass filter cutoff frequency
1
(default) | positive finite scalar | vector
Cutoff frequency ωh for high-pass filtering the objective function signal, specified in radians per second. For a given parameter tuning loop, specify a cutoff frequency such that ωh < ω/(2π), where ω is the corresponding forcing frequency.
When tuning a single parameter, specify HPF frequency as a positive finite scalar.
When tuning multiple parameters, you can specify a different frequency for each parameter tuning loop. To do so, specify HPF frequency as a vector of positive finite values with length equal to Number of parameters. Otherwise, to specify the same frequency for all tuning loops, specify HPF frequency as a positive finite scalar.
Dependencies
To enable this parameter, select the Enable HPF parameter.
Programmatic Use
Block Parameter:
'highPassCutoff' |
Type: character vector |
Values: positive finite scalar | vector |
Default:
'1' |
Enable LPF — Enable low-pass filtering of demodulated signal
off
(default) | on
Select this parameter to enable a low-pass filter that removes high-frequency components from the demodulated signal before the parameter update stage. To specify the filter cutoff frequency, use the LPF frequency parameter.
Dependencies
To enable this parameter, select the Enable LPF parameter.
Programmatic Use
Block Parameter:
'lowPassEnable' |
Type: character vector |
Values:
'off' | 'on' |
Default:
'off' |
LPF frequency omega_l (rad/s) — Low-pass filter cutoff frequency ωl
1
(default) | positive finite scalar | vector
Cutoff frequency ωl for low-pass filtering the demodulated signal, specified in radians per second. For a given parameter tuning loop, specify a cutoff frequency such that ωl > ω/(2π), where ω is the corresponding forcing frequency.
When tuning a single parameter, specify LPF frequency as a positive finite scalar.
When tuning multiple parameters, you can specify a different frequency for each parameter tuning loop. To do so, specify LPF frequency as a vector of positive finite values with length equal to Number of parameters. Otherwise, to specify the same frequency for all tuning loops, specify LPF frequency as a positive finite scalar.
Dependencies
To enable this parameter, select the Enable LPF parameter.
Programmatic Use
Block Parameter:
'lowPassCutoff' |
Type: character vector |
Values: positive finite scalar | vector |
Default:
'1' |
Output estimated parameters — Add estimated parameters output port
off
(default) | on
Select this parameter to add the theta_hat output port.
Programmatic Use
Block Parameter:
estimatedVarOn |
Type: character vector |
Values:
'off' | 'on' |
Default:
'off' |
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
The Extremum Seeking Control block supports code generation for double-precision signals only.
When running in Rapid Accelerator mode, the Extremum Seeking Control block does not support data logging.
To generate hardware-deployable code for the Extremum Seeking Control block, use a discrete-time controller. To do so, set the Time Domain parameter to Discrete time.
Version History
Introduced in R2021aR2023b: Library location changed
The Extremum Seeking Control block is now in the Simulink Control Design/Adaptive Control sublibrary.
In R2023b, when you open a model saved in a previous release, the library links for Extremum Seeking Control blocks update automatically.
R2021b: Discrete-time extremum seeking controller
You can now design an extremum seeking controller with discrete-time high-pass and low-pass filters and a discrete-time integrator. You can then generate code for this controller and deploy it to a hardware target.
