getOffsetsForLPV

Extract LPV offsets from linearization results

collapse all in page

Syntax

offsets = getOffsetsForLPV(info)

Description

offsets = getOffsetsForLPV(info) extracts linearization offsets from info and converts them to the array format supported by the LPV System block.

example

Examples

collapse all

Open Script

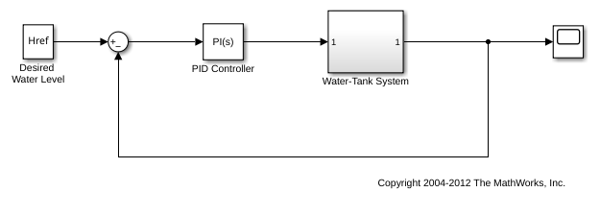

Open the Simulink® model.

model = 'watertank';
open_system(model)

Specify linearization I/Os.

io(1) = linio('watertank/Desired  Water Level',1,'input');
io(2) = linio('watertank/Water-Tank System',1,'output');

Vary plant parameters A and b, and create a 3-by-4 parameter grid.

[A_grid,b_grid] = ndgrid(linspace(0.9*A,1.1*A,3),linspace(0.9*b,1.1*b,4));
params(1).Name = 'A';
params(1).Value = A_grid;
params(2).Name = 'b';
params(2).Value = b_grid;

Create a linearization option set, setting the StoreOffsets option to true.

opt = linearizeOptions('StoreOffsets',true);

Linearize the model using the specified parameter grid, and return the linearization offsets in the info structure.

[sys,op,info] = linearize('watertank',io,params,opt);

Extract the linearization offsets.

offsets = getOffsetsForLPV(info)

offsets =

  struct with fields:

     x: [2×1×3×4 double]
     y: [1×1×3×4 double]
     u: [1×1×3×4 double]
    dx: [2×1×3×4 double]

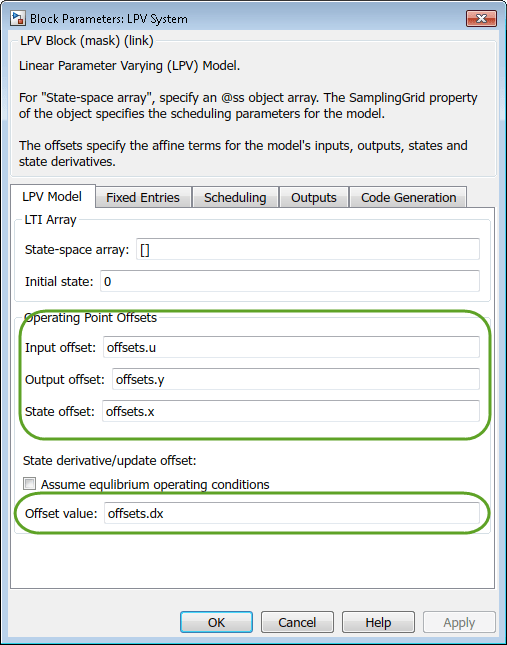

To configure an LPV System block, use the fields from offsets directly.

Input Arguments

collapse all

Linearization information returned by exact linearization commands, specified as a structure. This structure has an Offsets field that contains an N1-by-...-by-Nm array of structures, where N1 to Nm are the dimensions of the operating point array or parameter grid used for linearization. Each structure in info.Offsets contains offset information that corresponds to a specific operating point.

You can store and obtain linearization offsets when you linearize your model using one of the following commands:

For example:

opt = linearizeOptions('StoreOffsets',true);
[sys,op,info] = linearize(mdl,io,params,opt);

You can then extract the offset information using getOffsetsForLPV.

offsets = getOffsetsForLPV(info);

Output Arguments

collapse all

Linearization offsets corresponding to the operating points at which the model was linearized, returned as a structure with the following fields:

FieldDescription
xState offsets used for linearization, returned as an nx-by-1-by-N1-by-...-by-Nm array, where nx is the number of states in the linearized system.
yOutput offsets used for linearization, returned as an ny-by-1-by-N1-by-...-by-Nm array, where ny is the number of outputs in the linearized system.
uInput offsets used for linearization, returned as an nu-by-1-by-N1-by-...-by-Nm array, where nu is the number of inputs in the linearized system.
dxDerivative offsets for continuous time systems, or updated state values for discrete-time systems, returned as an nx-by-1-by-N1-by-...-by-Nm array.

For instance, suppose that your model has three inputs, two outputs, and four states. If you linearize your model using a 5-by-6 array of operating points, offsets contains arrays with the following dimensions:

  • offsets.x — 4-by-1-by-5-by-6

  • offsets.y — 2-by-1-by-5-by-6

  • offsets.u — 3-by-1-by-5-by-6

  • offsets.dx — 4-by-1-by-5-by-6

To configure an LPV System block, you can use the fields of offsets directly. For an example, see Approximate Nonlinear Behavior Using Array of LTI Systems.

Version History

Introduced in R2016b
