设计转移逻辑
R2026a在状态之间创建转移以控制图逻辑流。使用事件、数据条件和时序逻辑定义转移条件。使用转移动作在状态更改期间执行任务和计算。
主题
- Create Transitions Between States
Connect states in charts and define how your system moves between operating modes with transitions.
- Construct Decision Points by Using Junctions
Use junctions to branch paths between states, implement conditional logic, and design flow charts.
- Manage Transition Execution with Operators
Design Stateflow charts that respond to changes in data values by connecting transitions and actions to data conditions.
- Troubleshoot Condition Actions Executing Repeatedly or at Unexpected Times
Troubleshoot unexpected action execution or performance loss caused by branching paths in charts.
精选示例

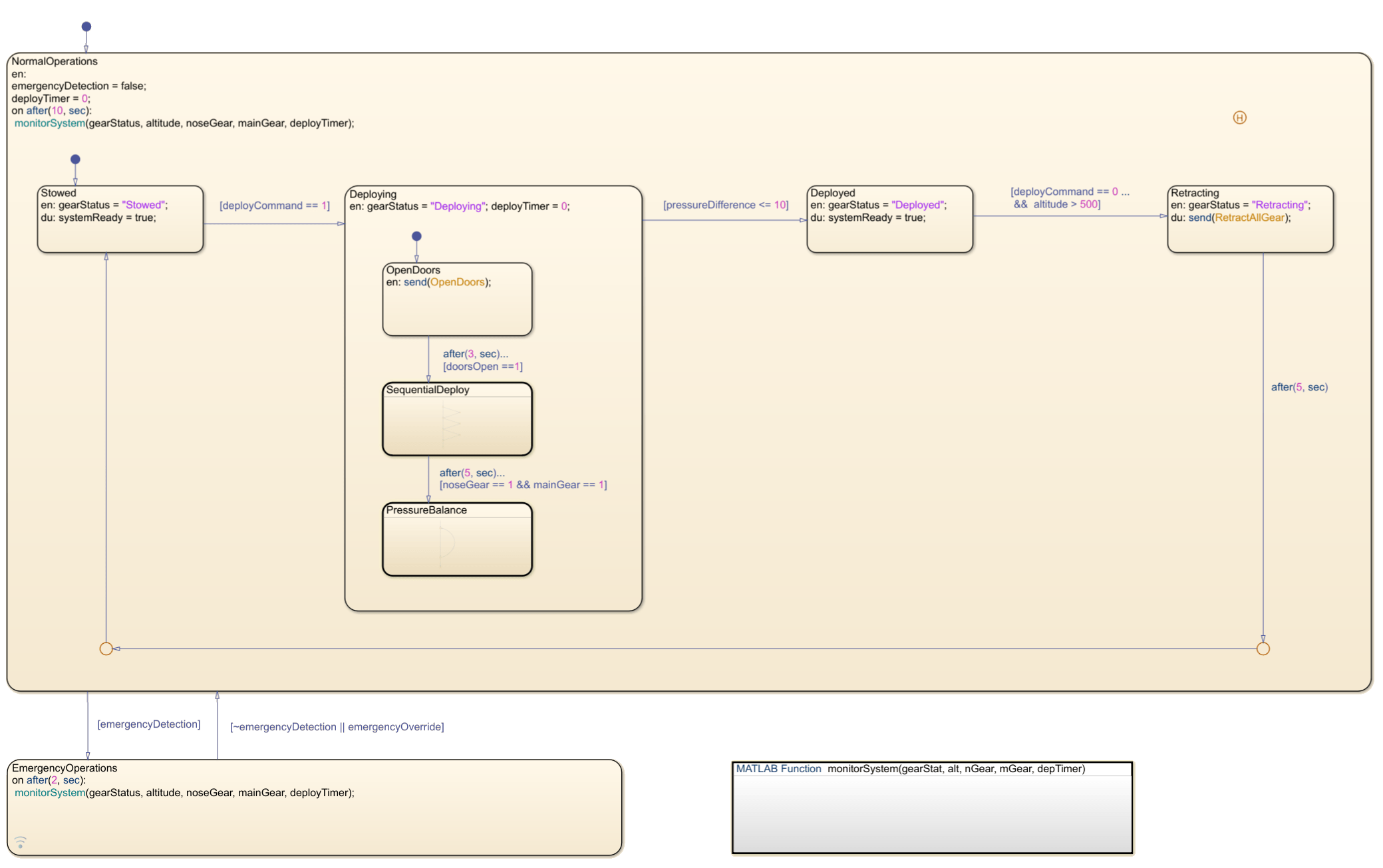

Schedule Operations in a Hydraulic Control System
Implement mode-based execution and event-driven scheduling in a hydraulic landing gear control system by using Stateflow® to coordinate multiple Simulink® subsystems. Hydraulic landing gear systems require mode-based scheduling to coordinate operations at different flight phases and event-driven control to respond to sensor feedback and safety conditions.
