Train Generalized Additive Model for Binary Classification

Load Sample Data

Load the 1994 census data stored in census1994.mat. The data set consists of demographic data from the US Census Bureau to predict whether an individual makes over $50,000 per year. The classification task is to fit a model that predicts the salary category of people given their age, working class, education level, marital status, race, and so on.

load census1994

census1994 contains the training data set adultdata and the test data set adulttest. To reduce the running time for this example, subsample 500 training observations and 500 test observations by using the datasample function.

rng(1) % For reproducibility
NumSamples = 5e2;
adultdata = datasample(adultdata,NumSamples,'Replace',false);
adulttest = datasample(adulttest,NumSamples,'Replace',false);

Train GAM with Optimal Hyperparameters

Train a GAM with hyperparameters that minimize the cross-validation loss by using the OptimizeHyperparameters name-value argument.

You can specify OptimizeHyperparameters as 'auto' or 'all' to find optimal hyperparameter values for both univariate and bivariate parameters. Alternatively, you can find optimal values for univariate parameters using the 'auto-univariate' or 'all-univariate' option, and then find optimal values for bivariate parameters using the 'auto-bivariate' or 'all-bivariate' option. This example uses 'auto-univariate' and 'auto-bivariate'.

Train a univariate GAM. Specify OptimizeHyperparameters as 'auto-univariate' so that fitcgam finds optimal values of the InitialLearnRateForPredictors and NumTreesPerPredictor name-value arguments. For reproducibility, use the 'expected-improvement-plus' acquisition function. Specify ShowPlots as false and Verbose as 0 to disable plot and message displays, respectively.

Mdl_univariate = fitcgam(adultdata,'salary','Weights','fnlwgt', ...
    'OptimizeHyperparameters','auto-univariate', ...
    'HyperparameterOptimizationOptions',struct('AcquisitionFunctionName','expected-improvement-plus', ...
    'ShowPlots',false,'Verbose',0))

Mdl_univariate =
  ClassificationGAM
                       PredictorNames: {'age'  'workClass'  'education'  'education_num'  'marital_status'  'occupation'  'relationship'  'race'  'sex'  'capital_gain'  'capital_loss'  'hours_per_week'  'native_country'}
                         ResponseName: 'salary'
                CategoricalPredictors: [2 3 5 6 7 8 9 13]
                           ClassNames: [<=50K    >50K]
                       ScoreTransform: 'logit'
                            Intercept: -1.3118
                      NumObservations: 500
    HyperparameterOptimizationResults: [1×1 BayesianOptimization]


  Properties, Methods

fitcgam returns a ClassificationGAM model object that uses the best estimated feasible point. The best estimated feasible point indicates the set of hyperparameters that minimizes the upper confidence bound of the objective function value based on the underlying objective function model of the Bayesian optimization process. You can obtain the best point from the HyperparameterOptimizationResults property or by using the bestPoint function.

x = Mdl_univariate.HyperparameterOptimizationResults.XAtMinEstimatedObjective

x=1×2 table
    InitialLearnRateForPredictors    NumTreesPerPredictor
    _____________________________    ____________________

               0.02257                       118

bestPoint(Mdl_univariate.HyperparameterOptimizationResults)

ans=1×2 table
    InitialLearnRateForPredictors    NumTreesPerPredictor
    _____________________________    ____________________

               0.02257                       118

For more details on the optimization process, see Optimize GAM Using OptimizeHyperparameters.

Train a bivariate GAM. Specify OptimizeHyperparameters as 'auto-bivariate' so that fitcgam finds optimal values of the Interactions, InitialLearnRateForInteractions, and NumTreesPerInteraction name-value arguments. Use the univariate parameter values in x so that the software finds optimal parameter values for interaction terms based on the x values.

Mdl = fitcgam(adultdata,'salary','Weights','fnlwgt', ...
    'InitialLearnRateForPredictors',x.InitialLearnRateForPredictors, ...
    'NumTreesPerPredictor',x.NumTreesPerPredictor, ...
    'OptimizeHyperparameters','auto-bivariate', ...
    'HyperparameterOptimizationOptions',struct('AcquisitionFunctionName','expected-improvement-plus', ...
    'ShowPlots',false,'Verbose',0))

Mdl =
  ClassificationGAM
                       PredictorNames: {'age'  'workClass'  'education'  'education_num'  'marital_status'  'occupation'  'relationship'  'race'  'sex'  'capital_gain'  'capital_loss'  'hours_per_week'  'native_country'}
                         ResponseName: 'salary'
                CategoricalPredictors: [2 3 5 6 7 8 9 13]
                           ClassNames: [<=50K    >50K]
                       ScoreTransform: 'logit'
                            Intercept: -1.4587
                         Interactions: [6×2 double]
                      NumObservations: 500
    HyperparameterOptimizationResults: [1×1 BayesianOptimization]


  Properties, Methods

Display the optimal bivariate hyperparameters.

Mdl.HyperparameterOptimizationResults.XAtMinEstimatedObjective

ans=1×3 table
    Interactions    InitialLearnRateForInteractions    NumTreesPerInteraction
    ____________    _______________________________    ______________________

         6                     0.0061954                        422

The model display of Mdl shows a partial list of the model properties. To view the full list of the model properties, double-click the variable name Mdl in the Workspace. The Variables editor opens for Mdl. Alternatively, you can display the properties in the Command Window by using dot notation. For example, display the ReasonForTermination property.

Mdl.ReasonForTermination

ans = struct with fields:
      PredictorTrees: 'Terminated after training the requested number of trees.'
    InteractionTrees: 'Terminated after training the requested number of trees.'

You can use the ReasonForTermination property to determine whether the trained model contains the specified number of trees for each linear term and each interaction term.

Display the interaction terms in Mdl.

Mdl.Interactions

ans = 6×2

     5    12
     1     6
     6    12
     1    12
     7     9
     2     6

Each row of Interactions represents one interaction term and contains the column indexes of the predictor variables for the interaction term. You can use the Interactions property to check the interaction terms in the model and the order in which fitcgam adds them to the model.

Display the interaction terms in Mdl using the predictor names.

Mdl.PredictorNames(Mdl.Interactions)

ans = 6×2 cell
    {'marital_status'}    {'hours_per_week'}
    {'age'           }    {'occupation'    }
    {'occupation'    }    {'hours_per_week'}
    {'age'           }    {'hours_per_week'}
    {'relationship'  }    {'sex'           }
    {'workClass'     }    {'occupation'    }

Assess Predictive Performance on New Observations

Assess the performance of the trained model by using the test sample adulttest and the object functions predict, loss, edge, and margin. You can use a full or compact model with these functions.

If you want to assess the performance of the training data set, use the resubstitution object functions: resubPredict, resubLoss, resubMargin, and resubEdge. To use these functions, you must use the full model that contains the training data.

Create a compact model to reduce the size of the trained model.

CMdl = compact(Mdl);
whos('Mdl','CMdl')

  Name      Size              Bytes  Class                                                 Attributes

  CMdl      1x1             5126918  classreg.learning.classif.CompactClassificationGAM
  Mdl       1x1             5272831  ClassificationGAM

Predict labels and scores for the test data set (adulttest), and compute model statistics (loss, margin, and edge) using the test data set.

[labels,scores] = predict(CMdl,adulttest);
L = loss(CMdl,adulttest,'Weights',adulttest.fnlwgt);
M = margin(CMdl,adulttest);
E = edge(CMdl,adulttest,'Weights',adulttest.fnlwgt);

Predict labels and scores and compute the statistics without including interaction terms in the trained model.

[labels_nointeraction,scores_nointeraction] = predict(CMdl,adulttest,'IncludeInteractions',false);
L_nointeractions = loss(CMdl,adulttest,'Weights',adulttest.fnlwgt,'IncludeInteractions',false);
M_nointeractions = margin(CMdl,adulttest,'IncludeInteractions',false);
E_nointeractions = edge(CMdl,adulttest,'Weights',adulttest.fnlwgt,'IncludeInteractions',false);

Compare the results obtained by including both linear and interaction terms to the results obtained by including only linear terms.

Create a confusion chart from the true labels adulttest.salary and the predicted labels.

tiledlayout(1,2);
nexttile
confusionchart(adulttest.salary,labels)
title('Linear and Interaction Terms')
nexttile
confusionchart(adulttest.salary,labels_nointeraction)
title('Linear Terms Only')

Display the computed loss and edge values.

table([L; E], [L_nointeractions; E_nointeractions], ...
    'VariableNames',{'Linear and Interaction Terms','Only Linear Terms'}, ...
    'RowNames',{'Loss','Edge'})

ans=2×2 table
            Linear and Interaction Terms    Only Linear Terms
            ____________________________    _________________

    Loss               0.1748                    0.17872
    Edge              0.57902                    0.54756

The model achieves a smaller loss value and a higher edge value when both linear and interaction terms are included.

Display the distributions of the margins using box plots.

figure
boxplot([M M_nointeractions],'Labels',{'Linear and Interaction Terms','Linear Terms Only'})
title('Box Plots of Test Sample Margins')

Interpret Prediction

Interpret the prediction for the first test observation by using the plotLocalEffects function. Also, create partial dependence plots for some important terms in the model by using the plotPartialDependence function.

Classify the first observation of the test data, and plot the local effects of the terms in CMdl on the prediction. To display an existing underscore in any predictor name, change the TickLabelInterpreter value of the axes to 'none'.

[label,score] = predict(CMdl,adulttest(1,:))

label = categorical
     <=50K

score = 1×2

    0.9895    0.0105

f1 = figure;
plotLocalEffects(CMdl,adulttest(1,:))
f1.CurrentAxes.TickLabelInterpreter = 'none';

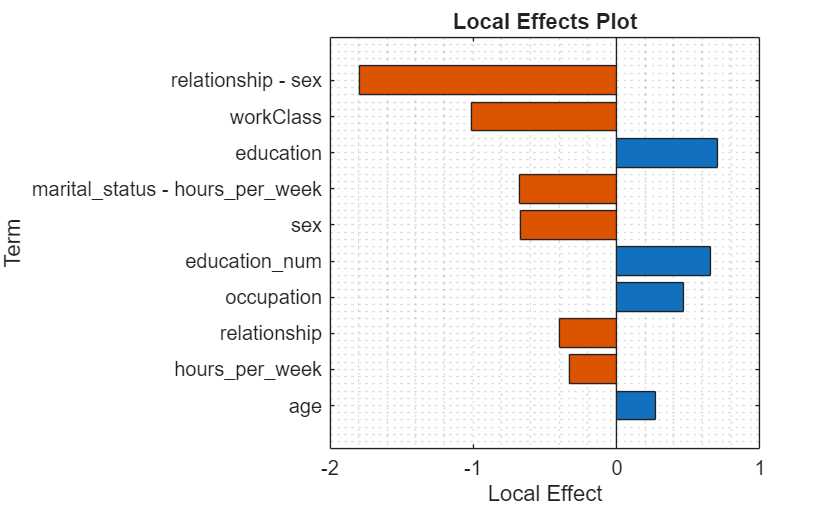

The predict function classifies the first observation adulttest(1,:) as '<=50K'. The plotLocalEffects function creates a horizontal bar graph that shows the local effects of the 10 most important terms on the prediction. Each local effect value shows the contribution of each term to the classification score for '<=50K', which is the logit of the posterior probability that the classification is '<=50K' for the observation.

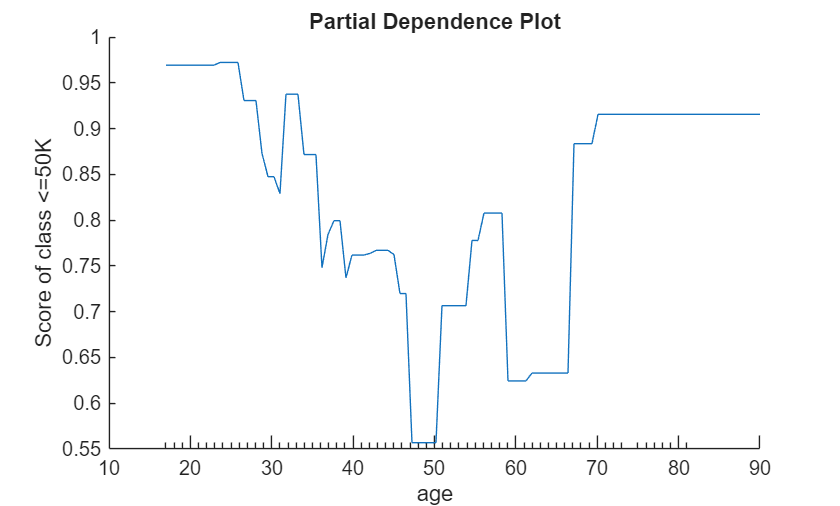

Create a partial dependence plot for the term age. Specify both the training and test data sets to compute the partial dependence values using both sets.

figure
plotPartialDependence(CMdl,'age',label,[adultdata; adulttest])

The plotted line represents the averaged partial relationships between the predictor age and the score of the class <=50K in the trained model. The x-axis minor ticks represent the unique values in the predictor age.

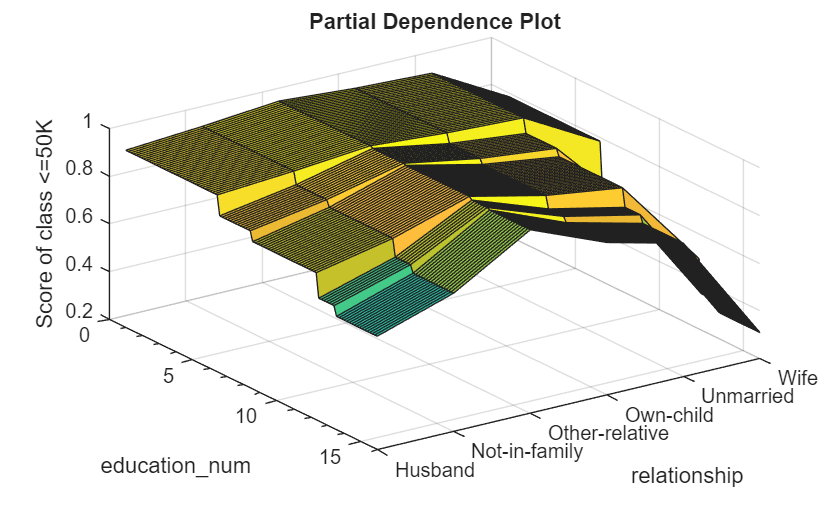

Create partial dependence plots for the terms education_num and relationship.

f2 = figure;
plotPartialDependence(CMdl,["education_num","relationship"],label,[adultdata; adulttest])
f2.CurrentAxes.TickLabelInterpreter = 'none';
view([55 40])

The plot shows the partial dependence of the score value for the class <=50 on education_num and relationship.
