functionalDerivative
Functional derivative (variational derivative)
Description
returns the functional derivative
of the functional with respect to the function y = y(x), where x represents one or more independent variables. The
functional derivative relates the change in the functional S[y] with respect to a small variation in y(x).The functional derivative is also known as the variational derivative.G
= functionalDerivative(f
,y
)
If y
is a vector of symbolic functions,
functionalDerivative
returns a vector of functional derivatives with
respect to the functions in y
, where all functions in
y
must depend on the same independent variables.
Examples
Functional Derivative with Respect to Single Function
Find the functional derivative of the functional with respect to the function , where the integrand is .
Declare y(x)
as a symbolic function and define f
as the integrand of . Use f
and y
as the parameters of functionalDerivative
.
syms y(x)
f = y*sin(y);
G = functionalDerivative(f,y)
G(x) =
Functional Derivative with Respect to Two Functions
Find the functional derivative of the functional with respect to the functions and , where the integrand is .
Declare u(x)
and v(x)
as symbolic functions, and define f
as the integrand of .
syms u(x) v(x) f = u^2*diff(v,x) + v*diff(u,x,x);
Specify a vector of symbolic functions [u v]
as the second input argument in functionalDerivative
.
G = functionalDerivative(f,[u v])
G(x) =
functionalDerivative
returns a vector of symbolic functions containing the functional derivatives of the integrand f
with respect to u
and v
, respectively.
Euler–Lagrange Equation of Simple Mass-Spring System
Find the Euler–Lagrange equation of a mass m
that is connected to a spring with spring constant k
.
Define the kinetic energy T
, potential energy V
, and Lagrangian L
of the system. The Lagrangian is the difference between the kinetic and potential energy.
syms m k x(t) T = 1/2*m*diff(x,t)^2; V = 1/2*k*x^2; L = T - V
L(t) =
In Lagrangian mechanics, the action functional of the system is equal to the integral of the Lagrangian over time, or . The Euler–Lagrange equation describes the motion of the system for which is stationary.
Find the Euler–Lagrange equation by taking the functional derivative of the integrand L
and setting it equal to 0
.
eqn = functionalDerivative(L,x) == 0
eqn(t) =
eqn
is the differential equation that describes mass-spring oscillation.
Solve eqn
using dsolve
. Assume the mass m
and spring constant k
are positive. Set the initial conditions for the oscillation amplitude as and the initial velocity of the mass as .
assume(m,'positive') assume(k,'positive') Dx(t) = diff(x(t),t); xSol = dsolve(eqn,[x(0) == 10, Dx(0) == 0])
xSol =
Clear assumptions for further calculations.
assume([k m],'clear')
Differential Equation of Brachistochrone Problem
The Brachistochrone problem is to find the quickest path of descent of a particle under gravity without friction. The motion is confined to a vertical plane. The time for a body to move along a curve from point to under gravity is given by
Find the quickest path by minimizing the change in with respect to small variations in the path . The condition for a minimum is .
Compute the functional derivative to obtain the differential equation that describes the Brachistochrone problem. Use simplify
to simplify the equation to its expected form.
syms g y(x) assume(g,'positive') f = sqrt((1 + diff(y)^2)/(2*g*y)); eqn = functionalDerivative(f,y) == 0; eqn = simplify(eqn)
eqn(x) =
This equation is the standard differential equation of the Brachistochrone problem. To find the solutions of the differential equation, use dsolve
. Specify the 'Implicit'
option to true
to return implicit solutions, which have the form .
sols = dsolve(eqn,'Implicit',true)
sols =
The symbolic solver dsolve
returns general solutions in the complex space. Symbolic Math Toolbox™ does not accept the assumption that the symbolic function is real.
Depending on the boundary conditions, there are two real-space solutions to the Brachistochrone problem. One of the two solutions below describes a cycloid curve in real space.
solCycloid1 = sols(3)
solCycloid1 =
solCycloid2 = sols(5)
solCycloid2 =
Another solution in real space is a horizontal straight line, where is a constant.
solStraight = simplify(sols(4))
solStraight =
To illustrate the cycloid solution, consider an example with boundary conditions and . In this case, the equation that can satisfy the given boundary conditions is solCycloid1
. Substitute the two boundary conditions into solCycloid1
.
eq1 = subs(solCycloid1,[x y(x)],[0 5]); eq2 = subs(solCycloid1,[x y(x)],[4 1]);
The two equations, eq1
and eq2
, have two unknown coefficients, and . Use vpasolve
to find numerical solutions for the coefficients. Substitute these solutions into solCycloid1
.
coeffs = vpasolve([eq1 eq2]); eqCycloid = subs(solCycloid1,{'C1','C3'},{coeffs.C1,coeffs.C3})
eqCycloid =
The implicit equation eqCycloid
describes the cycloid solution of the Brachistochrone problem in terms of and .

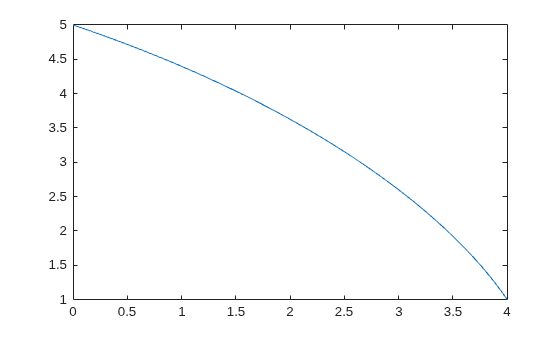

You can then use fimplicit
to plot eqCycloid
. Since fimplicit
only accepts implicit symbolic equations that contain symbolic variables and , convert the symbolic function to a symbolic variable . Use mapSymType
to convert to . Plot the cycloid solution within the boundary conditions and .
funToVar = @(obj) sym('y'); eqPlot = mapSymType(eqCycloid,'symfun',funToVar); fimplicit(eqPlot,[0 4 1 5])
Minimal Surface Equation in 3-D Space
For a function that describes a surface in 3-D space, the surface area can be determined by the functional
where and are the partial derivatives of with respect to and .
Find the functional derivative of the integrand f
with respect to u
.
syms u(x,y)
f = sqrt(1 + diff(u,x)^2 + diff(u,y)^2);
G = functionalDerivative(f,u)
G(x, y) =
The result is the equation G
that describes the minimal surface of a 3-D surface defined by u(x,y)
. The solutions to this equation describe minimal surfaces in 3-D space, such as soap bubbles.
Input Arguments
f
— Integrand of functional
symbolic variable | symbolic function | symbolic expression
Integrand of a functional, specified as a symbolic variable, function, or expression. The
argument f
represents the density of the functional.
y
— Differentiation function
unassigned symbolic function | vector of unassigned symbolic functions | matrix of unassigned symbolic functions | multidimensional array of unassigned symbolic functions
Differentiation function, specified as an unassigned symbolic function or a vector,
matrix, or multidimensional array of unassigned symbolic functions. The argument
y
can be a function of one or more independent variables. If
y
is a vector of symbolic functions,
functionalDerivative
returns a vector of functional derivatives with
respect to the functions in y
, where all functions in
y
must depend on the same independent variables.
Example: syms y(x); G = functionalDerivative(y*sin(y),y)
Output Arguments
G
— Functional derivative
symbolic function | vector of symbolic functions
Functional derivative, returned as a symbolic function or a vector of symbolic functions.
If input y
is a vector, matrix, or an array, then G
is a
vector.
More About
Functional Derivative
Consider a functional
which can take any path from a to b in the x-space.
For a small variation in the path y(x), define the change as in which ϕ(x) is an arbitrary test function. The change in the functional S is
The expression is the functional derivative of S with respect to y. The linear functional DS[y] is also known as the first variation or the Gateaux differential of the functional S.
One method to calculate the functional derivative is to apply Taylor expansion to the expression S[y + εϕ] with respect to ε. By keeping the first order terms in ε, performing integration by parts, and choosing the boundary conditions ϕ(a) = ϕ(b) = ϕ'(a) = ϕ'(b) = ... = 0, the functional derivative becomes
Version History
Introduced in R2015a
