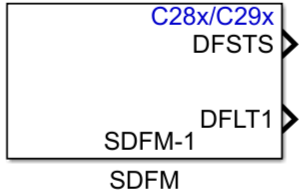

C28x/C29x SDFM
R2026bConfigure filter channel for SDFM Module
Libraries:
C2000 Microcontroller Blockset /
F28003x
C2000 Microcontroller Blockset /
F28004x
C2000 Microcontroller Blockset /
F2807x
C2000 Microcontroller Blockset /
F2837xD
C2000 Microcontroller Blockset /
F2837xS
C2000 Microcontroller Blockset /
F2838x /
C28x
C2000 Microcontroller Blockset /
F28p65x
C2000 Microcontroller Blockset /
F29H85x
Description
The sigma delta filter module (SDFM) is a four-channel digital filter designed specifically for current measurement and resolver position decoding in motor control applications. Each input channel can receive an independent delta-sigma (ΔΣ) modulator bit stream. The bit streams are processed by four individually-programmable digital decimation filters.
The filter set includes a fast comparator (secondary filter) for immediate digital threshold comparisons for over-current and under-current monitoring and a primary data filter.
Each SDFM module consists of:
Four independent configurable primary filter (data filter) units.
Four independent, configurable secondary filter (comparator) units.
Eight external pins (four sigma-delta data input pins and four sigma-delta clock input pins).
Four different configurable modulator clock modes.
For more information on configuring filter channels, refer to SDFM Configuration Parameters.
Ports
Output
Parameters
Programmatic Use: Add Block
To add the block programmatically, use the add_block function with one of these library block paths as the source.
"c28003xlib/SDFM"
"c28004xlib/SDFM"
"c2807xlib/SDFM"
"c2837xDlib/SDFM"
"c2837xSlib/SDFM"
"c2838xlib/SDFM"
"c28P65xlib/SDFM"
"c29H85xlib/SDFM"
Example: add_block("c28003xlib/SDFM","myModel/myBlock",MakeNameUnique="on")
Version History
Introduced in R2020b
