updateSensors

Update sensor readings in UAV scenario

collapse all in page

    Syntax

    updateSensors(scene)

    Description

    updateSensors(scene) updates all sensor readings based on latest states of all platforms in the UAV scenario, scene.

    Examples

    collapse all

    Open Live Script

    Create a UAV scenario and set its local origin.

    scene = uavScenario("UpdateRate",200,"StopTime",2,"ReferenceLocation",[46, 42, 0]);

    Add an inertial frame called MAP to the scenario.

    scene.addInertialFrame("ENU","MAP",trvec2tform([1 0 0]));

    Add one ground mesh and two cylindrical obstacle meshes to the scenario.

    scene.addMesh("Polygon", {[-100 0; 100 0; 100 100; -100 100],[-5 0]},[0.3 0.3 0.3]);
scene.addMesh("Cylinder", {[20 10 10],[0 30]}, [0 1 0]);
scene.addMesh("Cylinder", {[46 42 5],[0 20]}, [0 1 0], "UseLatLon", true);

    Create a UAV platform with a specified waypoint trajectory in the scenario. Define the mesh for the UAV platform.

    traj = waypointTrajectory("Waypoints", [0 -20 -5; 20 -20 -5; 20 0 -5],"TimeOfArrival",[0 1 2]);
uavPlat = uavPlatform("UAV",scene,"Trajectory",traj);
updateMesh(uavPlat,"quadrotor", {4}, [1 0 0],eul2tform([0 0 pi]));
addGeoFence(uavPlat,"Polygon", {[-50 0; 50 0; 50 50; -50 50],[0 100]},true,"ReferenceFrame","ENU");

    Attach an INS sensor to the front of the UAV platform.

    insModel = insSensor();
ins = uavSensor("INS",uavPlat,insModel,"MountingLocation",[4 0 0]);

    Visualize the scenario in 3-D.

    ax = show3D(scene);
axis(ax,"equal");

    Simulate the scenario.

    setup(scene);
while advance(scene)
    % Update sensor readings
    updateSensors(scene);

    % Visualize the scenario
    show3D(scene,"Parent",ax,"FastUpdate",true);
    drawnow limitrate
end

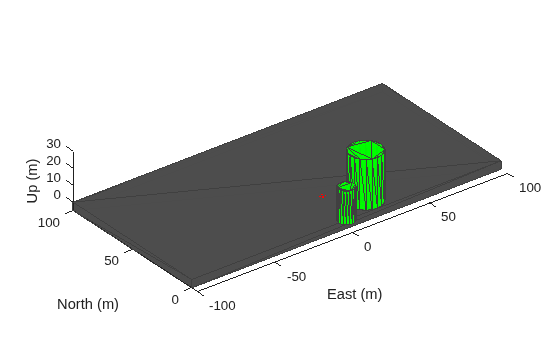

    Figure contains an axes object. The axes object with xlabel East (m), ylabel North (m) contains 4 objects of type patch.

    Input Arguments

    collapse all

    UAV scenario, specified as a uavScenario object.

    Version History

    Introduced in R2020b
