Create Custom YOLO v2 Object Detection Network

Load Pretrained Network

Load a pretrained MobileNet v2 network using the imagePretrainedNetwork function. This network requires the Deep Learning Toolbox Model for MobileNet v2 Network™ support package. If this support package is not installed, then the function provides a download link.

net = imagePretrainedNetwork("mobilenetv2")

net =
  dlnetwork with properties:

         Layers: [153×1 nnet.cnn.layer.Layer]
    Connections: [162×2 table]
     Learnables: [210×3 table]
          State: [104×3 table]
     InputNames: {'input_1'}
    OutputNames: {'Logits_softmax'}
    Initialized: 1

  View summary with summary.

Update Network Input Size

Update the network input size to meet the training data requirements. For example, assume the training data are 300-by-300 RGB images. Set the input size.

imageInputSize = [300 300 3];

Next, create a new image input layer with the same name as the original layer.

imgLayer = imageInputLayer(imageInputSize,Name="input_1")

imgLayer =
  ImageInputLayer with properties:

                      Name: 'input_1'
                 InputSize: [300 300 3]
        SplitComplexInputs: 0

   Hyperparameters
          DataAugmentation: 'none'
             Normalization: 'zerocenter'
    NormalizationDimension: 'auto'
                      Mean: []

Replace the old image input layer with the new image input layer.

net = replaceLayer(net,"input_1",imgLayer);

Display and inspect the layers in the network by using the analyzeNetwork function.

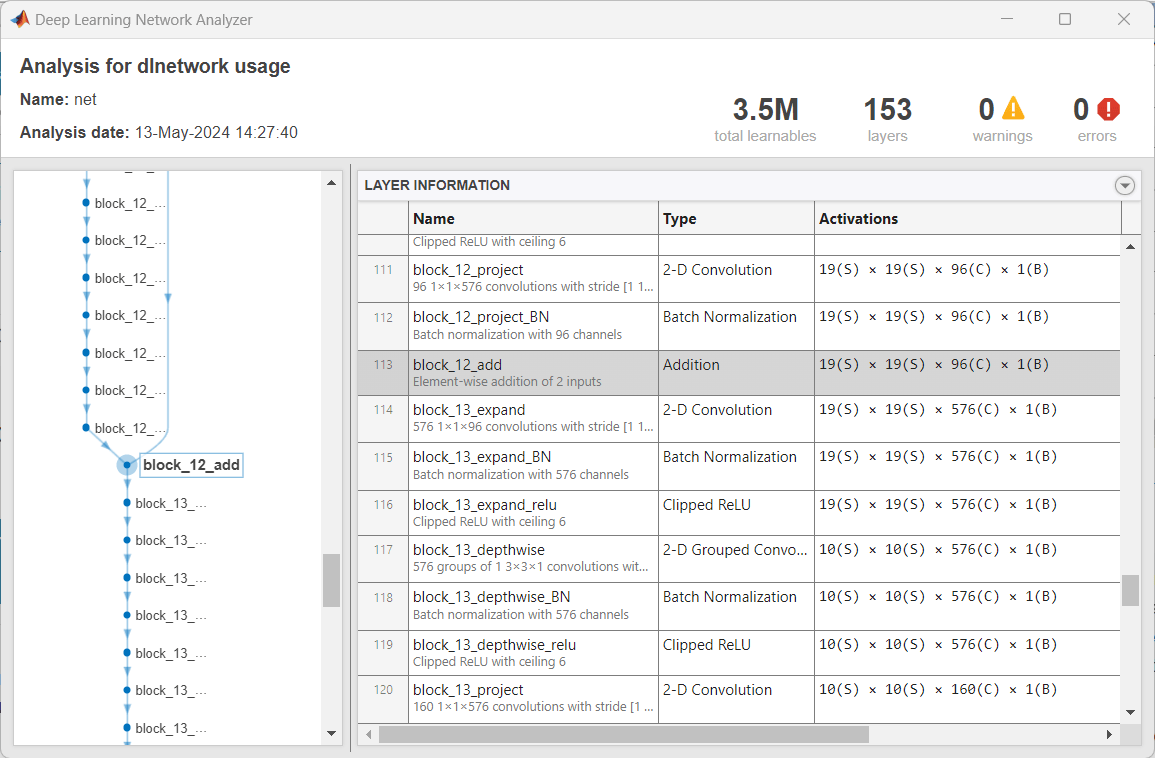

analyzeNetwork(net);

Select Feature Extraction Layer

A YOLO v2 feature extraction layer is most effective when the output feature width and height are between 8 and 16 times smaller than the input image. This amount of downsampling is a trade-off between spatial resolution and output-feature quality. You can use the analyzeNetwork function or the Deep Network Designer app to determine the output sizes of layers within a network. Note that selecting an optimal feature extraction layer requires empirical evaluation.

Set the feature extraction layer to "block_12_add". The output size of this layer is about 16 times smaller than the input image size of 300-by-300.

featureExtractionLayer = "block_12_add";

Remove Layers After Feature Extraction Layer

Remove all of the layers after the feature extraction layer by using the removeLayers function.

index = find(strcmp({net.Layers(1:end).Name},featureExtractionLayer));
net = removeLayers(net,{net.Layers(index+1:end).Name});

Create YOLO v2 Detection Sub-Network

The detection subnetwork consists of groups of serially connected convolution, ReLU, and batch normalization layers. These layers are followed by a yolov2TransformLayer.

First, create two groups of serially connected convolution, ReLU, and batch normalization layers. Set the convolution layer filter size to 3-by-3 and the number of filters to match the number of channels in the feature extraction layer output. Specify "same" padding in the convolution layer to preserve the input size.

filterSize = [3 3];
numFilters = 96;

detectionLayers = [
    convolution2dLayer(filterSize,numFilters,Name="yolov2Conv1", ...
        Padding="same",WeightsInitializer=@(sz)randn(sz)*0.01)
    batchNormalizationLayer(Name="yolov2Batch1")
    reluLayer(Name="yolov2Relu1")
    convolution2dLayer(filterSize,numFilters,Name="yolov2Conv2", ...
        Padding="same",WeightsInitializer=@(sz)randn(sz)*0.01)
    batchNormalizationLayer(Name="yolov2Batch2")
    reluLayer(Name="yolov2Relu2")
    ]

detectionLayers =
  6×1 Layer array with layers:

     1   'yolov2Conv1'    2-D Convolution       96 3×3 convolutions with stride [1  1] and padding 'same'
     2   'yolov2Batch1'   Batch Normalization   Batch normalization
     3   'yolov2Relu1'    ReLU                  ReLU
     4   'yolov2Conv2'    2-D Convolution       96 3×3 convolutions with stride [1  1] and padding 'same'
     5   'yolov2Batch2'   Batch Normalization   Batch normalization
     6   'yolov2Relu2'    ReLU                  ReLU

Next, create the final portion of the detection subnetwork, which has a convolution layer followed by a yolov2TransformLayer. The output of the convolution layer predicts the following for each anchor box:

Specify the anchor boxes and number of classes and compute the number of filters for the convolution layer.

numClasses = 5;

anchorBoxes = [16 16; 32 16];

numAnchors = size(anchorBoxes,1);
numPredictionsPerAnchor = 5;
numFiltersInLastConvLayer = numAnchors*(numClasses+numPredictionsPerAnchor);

Add the convolution2dLayer and yolov2TransformLayer to the detection subnetwork.

detectionLayers = [
    detectionLayers
    convolution2dLayer(1,numFiltersInLastConvLayer, ...
        Name="yolov2ClassConv",WeightsInitializer=@(sz)randn(sz)*0.01)
    yolov2TransformLayer(numAnchors,Name="yolov2Transform")
    ]

detectionLayers =
  8×1 Layer array with layers:

     1   'yolov2Conv1'       2-D Convolution           96 3×3 convolutions with stride [1  1] and padding 'same'
     2   'yolov2Batch1'      Batch Normalization       Batch normalization
     3   'yolov2Relu1'       ReLU                      ReLU
     4   'yolov2Conv2'       2-D Convolution           96 3×3 convolutions with stride [1  1] and padding 'same'
     5   'yolov2Batch2'      Batch Normalization       Batch normalization
     6   'yolov2Relu2'       ReLU                      ReLU
     7   'yolov2ClassConv'   2-D Convolution           20 1×1 convolutions with stride [1  1] and padding [0  0  0  0]
     8   'yolov2Transform'   YOLO v2 Transform Layer   YOLO v2 Transform Layer with 2 anchors

Complete YOLO v2 Detection Network

Attach the detection subnetwork to the feature extraction network.

net = addLayers(net,detectionLayers);
net = connectLayers(net,featureExtractionLayer,"yolov2Conv1");

Use analyzeNetwork function to check the network.

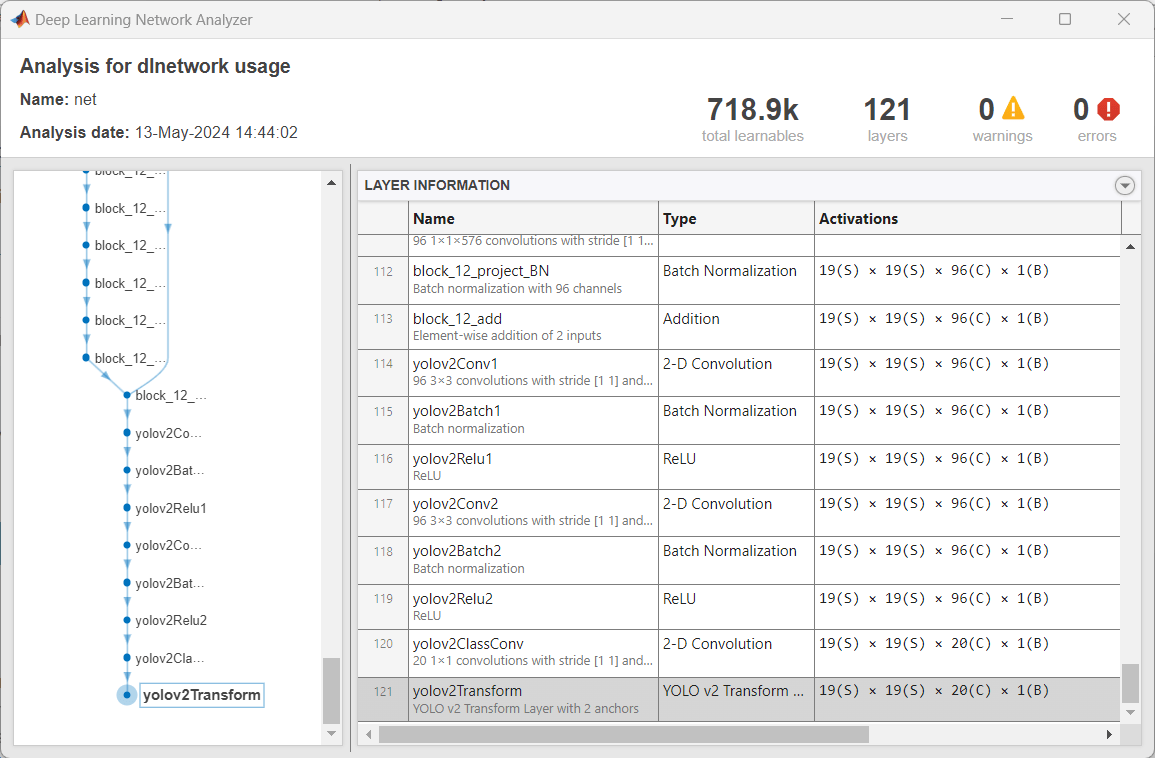

analyzeNetwork(net)

Create a yolov2ObjectDetector object from the network. You can then train the network by using the trainYOLOv2ObjectDetector function.

 classNames = ["person" "bicycle" "car" "bus" "truck"];
 detector = yolov2ObjectDetector(net,classNames,anchorBoxes)

detector =
  yolov2ObjectDetector with properties:

                  Network: [1×1 dlnetwork]
                InputSize: [300 300 3]
        TrainingImageSize: [300 300]
              AnchorBoxes: [2×2 double]
               ClassNames: [5×1 categorical]
    ReorganizeLayerSource: ''
              LossFactors: [5 1 1 1]
                ModelName: ''
