Spherical Conformal Map

版本 1.5.0.2 (3.3 MB) 作者: Gary Choi
Conformally map a genus-0 closed triangle mesh to the unit sphere
4.9
(7)
615.0 次下载
更新时间 2020/4/30

查看许可证

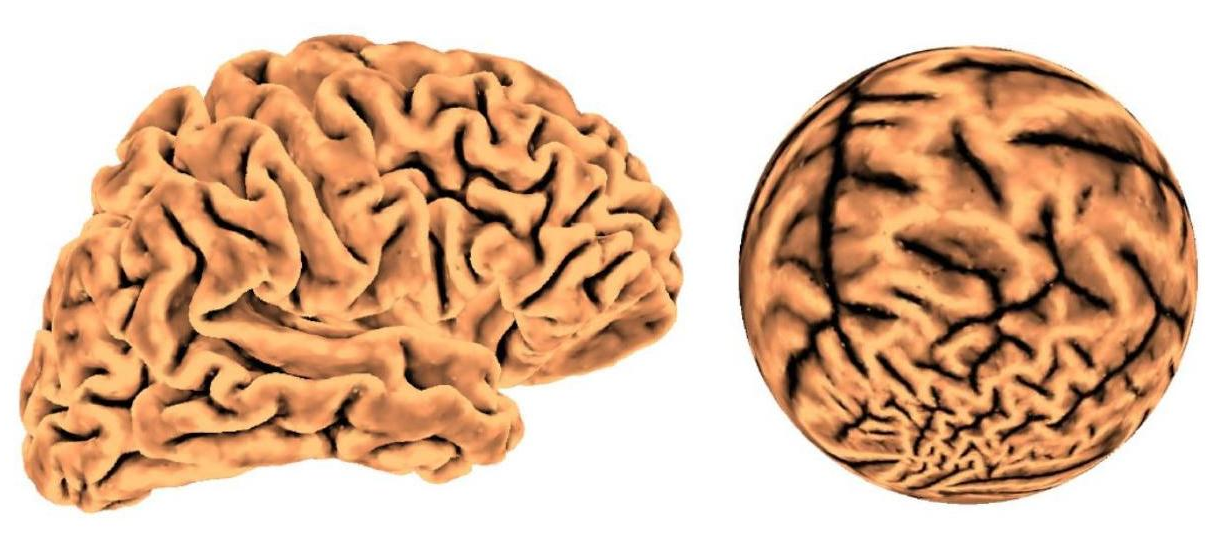

This code computes the spherical conformal parameterizations (i.e. angle-preserving mappings onto the unit sphere) of genus-0 closed triangle meshes using the linear method in [1], which has been applied for human brain mapping, texture mapping, surface registration, cardiac mapping and so on. Any comments and suggestions are welcome.

If you use this code in your own work, please cite the following paper:
[1] P. T. Choi, K. C. Lam, and L. M. Lui,
"FLASH: Fast Landmark Aligned Spherical Harmonic Parameterization for Genus-0 Closed Brain Surfaces."
SIAM Journal on Imaging Sciences, vol. 8, no. 1, pp. 67-94, 2015.

Remark:
1. Please make sure that the input mesh is a manifold mesh with spherical topology. The existence of holes or non-manifold vertices/edges may affect the computation.
2. While our method focuses on spherical conformal parameterizations, it can be extended for further reducing the area distortion without affecting the conformality (see demo_extension.m and the codes in the directory /extension).

For more information, please visit: https://scholar.harvard.edu/choi

引用格式

P. T. Choi, K. C. Lam, and L. M. Lui, "FLASH: Fast Landmark Aligned Spherical Harmonic Parameterization for Genus-0 Closed Brain Surfaces." SIAM Journal on Imaging Sciences, vol. 8, no. 1, pp. 67-94, 2015.

MATLAB 版本兼容性
创建方式 R2016a
兼容任何版本
平台兼容性
Windows macOS Linux
类别
在 Help Center 和 MATLAB Answers 中查找有关 Multimodal 的更多信息

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!

extension

mfile

版本 已发布 发行说明
1.5.0.2

- Minor fixes.
1.5.0.1

- Uploaded a missing file.
1.5.0.0

Added a more recent approach for reducing the global area distortion of the spherical conformal parameterization while maintaining the conformality (see demo_extension.m).
1.4.0.0

- Slightly modified the description.
- Added a simple extension of our proposed method to achieve a more area-preserving map (see demo_extension.m and the codes in /extension).
- Slightly modified the description.
1.3.0.0

- Added a remark on the input mesh.
- Adjusted a parameter in the south-pole step for better stability.
- Added comments on the parameters.
- Modified the remark on the input mesh.
1.2.0.0

- Slightly modified the description.
1.1.0.0

- Made minor amendments in the description of the functions.
- Edited the plot_mesh function.
- Added angle_distortion for evaluating the angle-preserving property.
1.0.0.0
