Deep Learning Data Synthesis for 5G Channel Estimation

This example uses:

This example shows how to train a convolutional neural network (CNN) for channel estimation using Deep Learning Toolbox™ and data generated with 5G Toolbox™. Using the trained CNN, you perform channel estimation in single-input single-output (SISO) mode, utilizing the physical downlink shared channel (PDSCH) demodulation reference signal (DM-RS).

Introduction

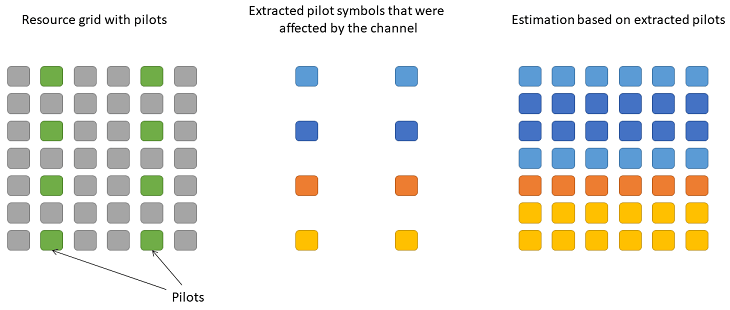

The general approach to channel estimation is to insert known reference pilot symbols into the transmission and then interpolate the rest of the channel response by using these pilot symbols.

For an example showing how to use this channel estimation approach, see NR PDSCH Throughput.

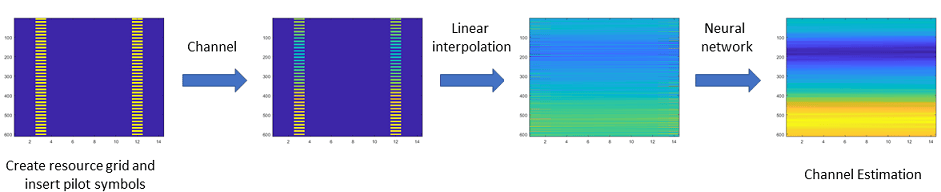

You can also use deep learning techniques to perform channel estimation. For example, by viewing the resource grid as a 2-D image, you can turn the problem of channel estimation into an image processing problem, similar to denoising or super-resolution, where CNNs are effective.

Using 5G Toolbox, you can customize and generate standard-compliant waveforms and channel models to use as training data. Using Deep Learning Toolbox, you can use this training data to train a channel estimation CNN. This example shows how to generate such training data and how to train a channel estimation CNN. The example also shows how to use the channel estimation CNN to process images that contain linearly interpolated received pilot symbols. The example concludes by visualizing the results of the neural network channel estimator in comparison to practical and perfect estimators.

Neural Network Training

Neural network training consists of these steps:

Data generation
Splitting the generated data into training and validation sets
Defining the CNN architecture
Specifying the training options, optimizer, and learning rate
Training the network

Due to the large number of signals and possible scenarios, training can take several minutes. By default, training is disabled, a pretrained model is used. You can enable training by setting trainModel to true.

trainModel = false;

Train the neural network using the trainnet (Deep Learning Toolbox) function. For regression, use mean squared error loss. By default, the trainnet function uses a GPU if one is available. Using a GPU requires a Parallel Computing Toolbox™ license and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox). Otherwise, the trainnet function uses the CPU. To specify the execution environment, use the ExecutionEnvironment training option.

Data generation is set to produce 256 training examples or training data sets, with batch size set to 8. This amount of data is sufficient to train a functional channel estimation network on a CPU in a reasonable time. For comparison, the pretrained model is based on 16,384 training examples and a batch size of 32.

Training data of the CNN model has a fixed size dimensionality, the network can only accept 612-by-14-by-1 grids, i.e. 612 subcarriers, 14 OFDM symbols and 1 antenna. Therefore, the model can only operate on a fixed bandwidth allocation, cyclic prefix length, and a single receive antenna.

The CNN treats the resource grids as 2-D images, hence each element of the grid must be a real number. In a channel estimation scenario, the resource grids have complex data. Therefore, the real and imaginary parts of these grids are input separately to the CNN. In this example, the training data is converted from a complex 612-by-14 matrix into a real-valued 612-by-14-by-2 matrix, where the third dimension denotes the real and imaginary components. Because you have to input the real and imaginary grids into the neural network separately when making predictions, the example converts the training data into 4-D arrays of the form 612-by-14-by-1-by-2N, where N is the number of training examples.

To ensure that the CNN does not overfit the training data, the training data is split into validation and training sets. The validation data is used for monitoring the performance of the trained neural network at regular intervals, as defined by valFrequency, approximately 5 per epoch. Stop training when the validation loss stops improving. In this instance, the validation data size is the same as the size of a single mini-batch due to the small size of the data set.

The returned channel estimation CNN is trained on various channel configurations based on different delay spreads, doppler shifts, and SNR ranges between 0 and 10 dB.

% Set the random seed for reproducibility (this has no effect if a GPU is
% used)
rng(42,"twister")

if trainModel
    % Generate the training data
    [trainData,trainLabels] = hGenerateTrainingData(256,true);

    % Set the number of examples per mini-batch
    batchSize = 8;

    % Split real and imaginary grids into 2 image sets, then concatenate
    trainData = cat(4,trainData(:,:,1,:),trainData(:,:,2,:));
    trainLabels = cat(4,trainLabels(:,:,1,:),trainLabels(:,:,2,:));

    % Split into training and validation sets
    valData = trainData(:,:,:,1:batchSize);
    valLabels = trainLabels(:,:,:,1:batchSize);

    trainData = trainData(:,:,:,batchSize+1:end);
    trainLabels = trainLabels(:,:,:,batchSize+1:end);

    % Validate roughly 5 times every epoch
    valFrequency = round(size(trainData,4)/batchSize/5);

    % Define the CNN structure
    layers = [
        imageInputLayer([624 14 1],Normalization="none")
        convolution2dLayer([9 9],2,Padding="same")
        reluLayer
        convolution2dLayer([9 9],2,Padding="same")
        reluLayer
        convolution2dLayer([5 5],2,Padding="same")
        reluLayer
        convolution2dLayer([5 5],2,Padding="same")
        reluLayer
        convolution2dLayer([5 5],1,Padding="same")
        ];

    % Set up a training policy
    options = trainingOptions("adam", ...
        "InitialLearnRate",3e-4, ...
        "MaxEpochs",10, ...
        "Shuffle","every-epoch", ...
        "Verbose",false, ...
        "Plots","training-progress", ...
        "MiniBatchSize",batchSize, ...
        "ValidationData",{valData, valLabels}, ...
        "ValidationFrequency",valFrequency, ...
        "ValidationPatience",5);

    lossFunction = "mean-squared-error";

    % Train the network. The saved structure trainingInfo contains the
    % training progress for later inspection. This structure is useful for
    % comparing optimal convergence speeds of different optimization
    % methods.
    [channelEstimationCNN,trainingInfo] = trainnet(trainData,trainLabels,layers,lossFunction,options);

else
    % Load pretrained network if trainModel is set to false
    load("trainedChannelEstimationNetwork.mat")
end

Inspect the composition and individual layers of the model. The model has 5 convolutional layers. The input layer expects matrices of size 612-by-14, where 612 is the number of subcarriers and 14 is the number of OFDM symbols. Each element is a real number, since the real and imaginary parts of the complex grids are input separately.

channelEstimationCNN.Layers

ans =

  10x1 Layer array with layers:

     1   'imageinput'   Image Input       624x14x1 images
     2   'conv_1'       2-D Convolution   2 9x9x1 convolutions with stride [1  1] and padding 'same'
     3   'relu_1'       ReLU              ReLU
     4   'conv_2'       2-D Convolution   2 9x9x2 convolutions with stride [1  1] and padding 'same'
     5   'relu_2'       ReLU              ReLU
     6   'conv_3'       2-D Convolution   2 5x5x2 convolutions with stride [1  1] and padding 'same'
     7   'relu_3'       ReLU              ReLU
     8   'conv_4'       2-D Convolution   2 5x5x2 convolutions with stride [1  1] and padding 'same'
     9   'relu_4'       ReLU              ReLU
    10   'conv_5'       2-D Convolution   1 5x5x2 convolutions with stride [1  1] and padding 'same'

Create Channel Model for Simulation

Set the simulation noise level in dB. For an explanation of the SNR definition that this example uses, see SNR Definition Used in Link Simulations.

SNRdB = 10;

Load the predefined simulation parameters, including the PDSCH parameters and DM-RS configuration.

simParameters = hDeepLearningChanEstSimParameters();
carrier = simParameters.Carrier;
pdsch = simParameters.PDSCH;

Create a TDL channel model and set channel parameters. To compare different channel responses of the estimators, you can change these parameters later.

channel = nrTDLChannel;
channel.Seed = 0;
channel.DelayProfile = "TDL-A";
channel.DelaySpread = 3e-7;
channel.MaximumDopplerShift = 50;

% Set the channel response output to "ofdm-response" to obtain the OFDM
% channel response directly from the channel.
channel.ChannelResponseOutput = "ofdm-response";

% This example supports only SISO configuration
channel.NumTransmitAntennas = 1;
channel.NumReceiveAntennas = 1;

waveformInfo = nrOFDMInfo(carrier);
channel.SampleRate = waveformInfo.SampleRate;

Get the maximum channel delay.

chInfo = info(channel);
maxChDelay = chInfo.MaximumChannelDelay;

Simulate PDSCH DM-RS Transmission

Simulate a PDSCH DM-RS transmission by performing these steps:

Generate the resource grid
Insert DM-RS symbols
Perform OFDM modulation
Send modulated waveform through the channel model
Add white Gaussian noise
Perform perfect timing synchronization
Perform OFDM demodulation

The DM-RS symbols in the grid are used for channel estimation. This example does not transmit any data, therefore, the resource grid does not include any PDSCH symbols.

% Generate DM-RS indices and symbols
dmrsSymbols = nrPDSCHDMRS(carrier,pdsch);
dmrsIndices = nrPDSCHDMRSIndices(carrier,pdsch);

% Create resource grid
pdschGrid = nrResourceGrid(carrier);

% Map PDSCH DM-RS symbols to the grid
pdschGrid(dmrsIndices) = dmrsSymbols;

% OFDM-modulate associated resource elements
txWaveform = nrOFDMModulate(carrier,pdschGrid);

To flush the channel content, append zeros at the end of the transmitted waveform. These zeros take into account any delay introduced in the channel, such as multipath and implementation delay. The number of zeros depends on the sampling rate, delay profile, and delay spread.

txWaveform = [txWaveform; zeros(maxChDelay,size(txWaveform,2))];

Send data through the TDL channel model.

[rxWaveform,ofdmChannelResponse,offset] = channel(txWaveform,carrier);

Add additive white Gaussian noise (AWGN) to the received time-domain waveform. To take into account sampling rate, normalize the noise power. The SNR is defined per resource element (RE) for each receive antenna (3GPP TS 38.101-4). For an explanation of the SNR definition that this example uses, see SNR Definition Used in Link Simulations.

SNR = 10^(SNRdB/10); % Calculate linear SNR
N0 = 1/sqrt(simParameters.NRxAnts*double(waveformInfo.Nfft)*SNR);
noise = N0*randn(size(rxWaveform),"like",rxWaveform);
rxWaveform = rxWaveform + noise;

Perform perfect synchronization. To find the strongest multipath component, use the information provided by the channel.

rxWaveform = rxWaveform(1+offset:end, :);

OFDM-demodulate the received data to recreate the resource grid.

rxGrid = nrOFDMDemodulate(carrier,rxWaveform);

% Pad the grid with zeros in case an incomplete slot has been demodulated
[K,L,R] = size(rxGrid);
if (L < carrier.SymbolsPerSlot)
    rxGrid = cat(2,rxGrid,zeros(K,carrier.SymbolsPerSlot-L,R));
end

Compare and Visualize Various Channel Estimations

You can perform and compare the results of perfect, practical, and neural network estimations of the same channel model.

Perfect channel estimation is obtained from the channel object when ChannelResponseOutput = "ofdm-response".

estChannelGridPerfect = ofdmChannelResponse;

To perform practical channel estimation, use the nrChannelEstimate function.

[estChannelGrid,~] = nrChannelEstimate(carrier,rxGrid,dmrsIndices, ...
    dmrsSymbols,"CDMLengths",pdsch.DMRS.CDMLengths);

To perform channel estimation using the neural network, you must interpolate the received grid. Then split the interpolated image into its real and imaginary parts and input these images together into the neural network as a single batch. Use the predict (Deep Learning Toolbox) function to make predictions on the real and imaginary images. Finally, concatenate and transform the results back into complex data.

% Interpolate the received resource grid using pilot symbol locations
interpChannelGrid = hPreprocessInput(rxGrid,dmrsIndices,dmrsSymbols);

% Concatenate the real and imaginary grids along the batch dimension
nnInput = cat(4,real(interpChannelGrid),imag(interpChannelGrid));

% Use the neural network to estimate the channel
if canUseGPU
    nnInput = gpuArray(nnInput);
end
estChannelGridNN = predict(channelEstimationCNN,nnInput);

% Convert results to complex
estChannelGridNN = complex(estChannelGridNN(:,:,:,1),estChannelGridNN(:,:,:,2));

Calculate the mean squared error (MSE) of each estimation method.

neural_mse = mean(abs(estChannelGridPerfect(:) - estChannelGridNN(:)).^2);
interp_mse = mean(abs(estChannelGridPerfect(:) - interpChannelGrid(:)).^2);
practical_mse = mean(abs(estChannelGridPerfect(:) - estChannelGrid(:)).^2);

Plot the individual channel estimations and the actual channel realization obtained from the channel filter taps. Both the practical estimator and the neural network estimator outperform linear interpolation.

plotChEstimates(interpChannelGrid,estChannelGrid,estChannelGridNN,estChannelGridPerfect,...
    interp_mse,practical_mse,neural_mse);

To analyze the performance of the network over different channel realizations, generate 32 test samples. Use the network to predict the channel estimates, and calculate the MSE for each channel.

testingSize = 32;
[testData,testLabels] = hGenerateTrainingData(testingSize,false);
testData = reshape(testData,612,14,1,[]); % Interleave the real and imaginary parts of the test data
testPredictions = minibatchpredict(channelEstimationCNN,testData);
testPredictions = cat(3,testPredictions(:,:,:,1:2:2*testingSize),testPredictions(:,:,:,2:2:2*testingSize));
testResults = mean(abs(reshape(testLabels,[],testingSize) - reshape(testPredictions,[],testingSize)).^2);
figure;

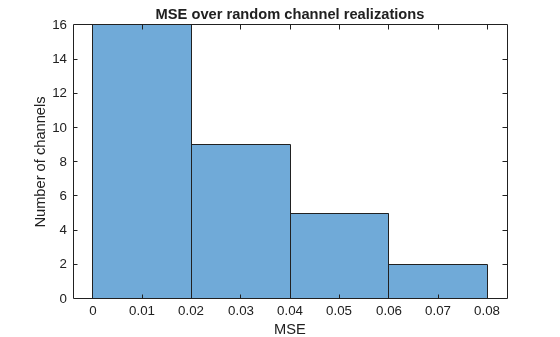

histogram(testResults)
hold on
title("MSE over random channel realizations")
xlabel("MSE")
ylabel("Number of channels")

References

van de Beek, Jan–Jaap, Ove Edfors, Magnus Sandell, Sarah Kate Wilson, and Per Ola Borjesson. “On Channel Estimation in OFDM Systems.” In 1995 IEEE 45th Vehicular Technology Conference. Countdown to the Wireless Twenty–First Century, 2:815–19, July 1995.
Ye, Hao, Geoffrey Ye Li, and Biing-Hwang Juang. “Power of Deep Learning for Channel Estimation and Signal Detection in OFDM Systems.” IEEE Wireless Communications Letters 7, no. 1 (February 2018): 114–17.
Soltani, Mehran, Vahid Pourahmadi, Ali Mirzaei, and Hamid Sheikhzadeh. “Deep Learning–Based Channel Estimation.” Preprint, submitted October 13, 2018.

Local Functions

function hest = hPreprocessInput(rxGrid,dmrsIndices,dmrsSymbols)
% Perform linear interpolation of the grid and input the result to the
% neural network This helper function extracts the DM-RS symbols from
% dmrsIndices locations in the received grid rxGrid and performs linear
% interpolation on the extracted pilots.

    % Obtain pilot symbol estimates
    dmrsRx = rxGrid(dmrsIndices);
    dmrsEsts = dmrsRx .* conj(dmrsSymbols);

    % Create empty grids to fill after linear interpolation
    [rxDMRSGrid, hest] = deal(zeros(size(rxGrid)));
    rxDMRSGrid(dmrsIndices) = dmrsSymbols;

    % Find the row and column coordinates for a given DMRS configuration
    [rows,cols] = find(rxDMRSGrid ~= 0);
    dmrsSubs = [rows,cols,ones(size(cols))];
    [l_hest,k_hest] = meshgrid(1:size(hest,2),1:size(hest,1));

    % Perform linear interpolation
    f = scatteredInterpolant(dmrsSubs(:,2),dmrsSubs(:,1),dmrsEsts);
    hest = f(l_hest,k_hest);

end

function [trainData,trainLabels] = hGenerateTrainingData(dataSize,printProgress)
% Generate training data examples for channel estimation. Run dataSize
% number of iterations to create random channel configurations and pass an
% OFDM-modulated fixed resource grid with only the DM-RS symbols inserted.
% Perform perfect timing synchronization and OFDM demodulation, extracting
% the pilot symbols and performing linear interpolation at each iteration.
% Use perfect channel information to create the label data. The function
% returns 2 arrays - the training data and labels.

    if printProgress
        fprintf("Starting data generation...\n")
    end

    % List of possible channel profiles
    delayProfiles = {"TDL-A", "TDL-B", "TDL-C", "TDL-D", "TDL-E"};

    simParameters = hDeepLearningChanEstSimParameters();
    carrier = simParameters.Carrier;
    pdsch = simParameters.PDSCH;

    % Create the channel model object
    nTxAnts = simParameters.NTxAnts;
    nRxAnts = simParameters.NRxAnts;

    channel = nrTDLChannel; % TDL channel object
    channel.NumTransmitAntennas = nTxAnts;
    channel.NumReceiveAntennas = nRxAnts;

    % Set the channel response output to "ofdm-response" to obtain the OFDM
    % channel response directly from the channel
    channel.ChannelResponseOutput = "ofdm-response";

    % Use the value returned from <matlab:edit('nrOFDMInfo') nrOFDMInfo> to
    % set the channel model sample rate
    waveformInfo = nrOFDMInfo(carrier);
    channel.SampleRate = waveformInfo.SampleRate;

    % Get the maximum channel delay.
    chInfo = info(channel);
    maxChDelay = chInfo.MaximumChannelDelay;

    % Return DM-RS indices and symbols
    dmrsSymbols = nrPDSCHDMRS(carrier,pdsch);
    dmrsIndices = nrPDSCHDMRSIndices(carrier,pdsch);

    % Create resource grid
    grid = nrResourceGrid(carrier,nTxAnts);

    % PDSCH DM-RS precoding and mapping
    [~,dmrsAntIndices] = nrExtractResources(dmrsIndices,grid);
    grid(dmrsAntIndices) = dmrsSymbols;

    % OFDM modulation of associated resource elements
    txWaveform_original = nrOFDMModulate(carrier,grid);

    % Acquire linear interpolator coordinates for neural net preprocessing
    [rows,cols] = find(grid ~= 0);
    dmrsSubs = [rows, cols, ones(size(cols))];
    hest = zeros(size(grid));
    [l_hest,k_hest] = meshgrid(1:size(hest,2),1:size(hest,1));

    % Preallocate memory for the training data and labels
    numExamples = dataSize;
    [trainData, trainLabels] = deal(zeros([612 14 2 numExamples]));

    % Main loop for data generation, iterating over the number of examples
    % specified in the function call. Each iteration of the loop produces a
    % new channel realization with a random delay spread, doppler shift,
    % and delay profile. Every perturbed version of the transmitted
    % waveform with the DM-RS symbols is stored in trainData, and the
    % perfect channel realization in trainLabels.
    for i = 1:numExamples
        % Release the channel to change nontunable properties
        channel.release

        % Pick a random seed to create different channel realizations
        channel.Seed = randi([1001 2000]);

        % Pick a random delay profile, delay spread, and maximum doppler shift
        channel.DelayProfile = string(delayProfiles(randi([1 numel(delayProfiles)])));
        channel.DelaySpread = randi([1 300])*1e-9;
        channel.MaximumDopplerShift = randi([5 400]);

        % Send data through the channel model. Append zeros at the end of
        % the transmitted waveform to flush channel content. These zeros
        % take into account any delay introduced in the channel, such as
        % multipath delay and implementation delay. This value depends on
        % the sampling rate, delay profile, and delay spread
        txWaveform = [txWaveform_original; zeros(maxChDelay, size(txWaveform_original,2))];
        [rxWaveform,ofdmChannelResponse,offset] = channel(txWaveform,carrier);

        % Add additive white Gaussian noise (AWGN) to the received time-domain
        % waveform. To take into account sampling rate, normalize the noise power.
        % The SNR is defined per RE for each receive antenna (3GPP TS 38.101-4).
        SNRdB = randi([0 10]);  % Random SNR values between 0 and 10 dB
        SNR = 10^(SNRdB/10);    % Calculate linear SNR
        N0 = 1/sqrt(2.0*nRxAnts*double(waveformInfo.Nfft)*SNR);
        noise = N0*complex(randn(size(rxWaveform)),randn(size(rxWaveform)));
        rxWaveform = rxWaveform + noise;
        rxWaveform = rxWaveform(1+offset:end, :);

        % Perform OFDM demodulation on the received data to recreate the
        % resource grid, including padding in case practical
        % synchronization results in an incomplete slot being demodulated
        rxGrid = nrOFDMDemodulate(carrier,rxWaveform);
        [K,L,R] = size(rxGrid);
        if (L < carrier.SymbolsPerSlot)
            rxGrid = cat(2,rxGrid,zeros(K,carrier.SymbolsPerSlot-L,R));
        end

        % Linear interpolation
        dmrsRx = rxGrid(dmrsIndices);
        dmrsEsts = dmrsRx .* conj(dmrsSymbols);
        f = scatteredInterpolant(dmrsSubs(:,2),dmrsSubs(:,1),dmrsEsts);
        hest = f(l_hest,k_hest);

        % Split interpolated grid into real and imaginary components and
        % concatenate them along the third dimension, as well as for the
        % true channel response
        rx_grid = cat(3, real(hest), imag(hest));
        est_grid = cat(3, real(ofdmChannelResponse), ...
            imag(ofdmChannelResponse));

        % Add generated training example and label to the respective arrays
        trainData(:,:,:,i) = rx_grid;
        trainLabels(:,:,:,i) = est_grid;

        % Data generation tracker
        if printProgress
            if mod(i,round(numExamples/25)) == 0
                fprintf("%3.2f%% complete\n",i/numExamples*100);
            end
        end
    end
    if printProgress
        fprintf("Data generation complete!\n")
    end
end

function simParameters = hDeepLearningChanEstSimParameters()
% Set simulation parameters for Deep Learning Data Synthesis for 5G Channel Estimation example

    % Carrier configuration
    simParameters.Carrier = nrCarrierConfig;
    simParameters.Carrier.NSizeGrid = 51;            % Bandwidth in number of resource blocks (51 RBs at 30 kHz SCS for 20 MHz BW)
    simParameters.Carrier.SubcarrierSpacing = 30;    % 15, 30, 60, 120, 240 (kHz)
    simParameters.Carrier.CyclicPrefix = "Normal";   % "Normal" or "Extended" (Extended CP is relevant for 60 kHz SCS only)
    simParameters.Carrier.NCellID = 2;               % Cell identity

    % Number of transmit and receive antennas
    simParameters.NTxAnts = 1;                      % Number of PDSCH transmission antennas
    simParameters.NRxAnts = 1;                      % Number of UE receive antennas

    % PDSCH and DM-RS configuration
    simParameters.PDSCH = nrPDSCHConfig;
    simParameters.PDSCH.PRBSet = 0:simParameters.Carrier.NSizeGrid-1; % PDSCH PRB allocation
    simParameters.PDSCH.SymbolAllocation = [0, simParameters.Carrier.SymbolsPerSlot];           % PDSCH symbol allocation in each slot
    simParameters.PDSCH.MappingType = "A";     % PDSCH mapping type ("A"(slot-wise),"B"(non slot-wise))
    simParameters.PDSCH.NID = simParameters.Carrier.NCellID;
    simParameters.PDSCH.RNTI = 1;
    simParameters.PDSCH.VRBToPRBInterleaving = 0; % Disable interleaved resource mapping
    simParameters.PDSCH.NumLayers = 1;            % Number of PDSCH transmission layers
    simParameters.PDSCH.Modulation = "16QAM";                       % "QPSK", "16QAM", "64QAM", "256QAM"

    % DM-RS configuration
    simParameters.PDSCH.DMRS.DMRSPortSet = 0:simParameters.PDSCH.NumLayers-1; % DM-RS ports to use for the layers
    simParameters.PDSCH.DMRS.DMRSTypeAPosition = 2;      % Mapping type A only. First DM-RS symbol position (2,3)
    simParameters.PDSCH.DMRS.DMRSLength = 1;             % Number of front-loaded DM-RS symbols (1(single symbol),2(double symbol))
    simParameters.PDSCH.DMRS.DMRSAdditionalPosition = 1; % Additional DM-RS symbol positions (max range 0...3)
    simParameters.PDSCH.DMRS.DMRSConfigurationType = 2;  % DM-RS configuration type (1,2)
    simParameters.PDSCH.DMRS.NumCDMGroupsWithoutData = 1;% Number of CDM groups without data
    simParameters.PDSCH.DMRS.NIDNSCID = 1;               % Scrambling identity (0...65535)
    simParameters.PDSCH.DMRS.NSCID = 0;                  % Scrambling initialization (0,1)
end

function plotChEstimates(interpChannelGrid,estChannelGrid,estChannelGridNN,estChannelGridPerfect,...
                         interp_mse,practical_mse,neural_mse)
% Plot the different channel estimates and display the measured MSE

    % To CPU in case estChannelGridNN and neural_mse are gpuArrays
    estChannelGridNN = gather(estChannelGridNN);
    neural_mse = gather(neural_mse);

    figure;
    cmax = max(abs([estChannelGrid(:); estChannelGridNN(:); estChannelGridPerfect(:)]));

    subplot(1,4,1)
    imagesc(abs(interpChannelGrid));
    xlabel("OFDM Symbol");
    ylabel("Subcarrier");
    title(["Linear Interpolation", "MSE: "+interp_mse]);
    clim([0 cmax]);

    subplot(1,4,2)
    imagesc(abs(estChannelGrid));
    xlabel("OFDM Symbol");
    ylabel("Subcarrier");
    title(["Practical Estimator", "MSE: "+practical_mse]);
    clim([0 cmax]);

    subplot(1,4,3)
    imagesc(abs(estChannelGridNN));
    xlabel("OFDM Symbol");
    ylabel("Subcarrier");
    title(["Neural Network", "MSE: "+neural_mse]);
    clim([0 cmax]);

    subplot(1,4,4)
    imagesc(abs(estChannelGridPerfect));
    xlabel("OFDM Symbol");
    ylabel("Subcarrier");
    title("Actual Channel");
    clim([0 cmax]);

end
