Audio Plugin Creation and Hosting

VST and AU generation, testing, validation, and hosting

Audio Toolbox™ enables you to debug and validate your MATLAB^® audio plugins using a series of static and dynamic tests. You can then generate VST or AU audio plugins and deploy to your preferred digital audio workstation (DAW). You can also host VST, VST3, and AU plugins in MATLAB by using the loadAudioPlugin function. Use the Audio Test Bench app to debug and tune your audio plugins in MATLAB.

Functions

expand all

Audio Plugin Creation

`audioPluginInterface`	Specify audio plugin interface
`audioPluginParameter`	Specify audio plugin parameters
`audioPluginGridLayout`	Specify layout for audio plugin UI
`validateAudioPlugin`	Test MATLAB source code for audio plugin
`generateAudioPlugin`	Generate audio plugin from MATLAB class

Audio Plugin Hosting

loadAudioPlugin Load VST, VST 3, and AU plugins into MATLAB environment

Simulink Support

generateSimulinkAudioPlugin Create object class compatible with Simulink (Since R2022b)

Classes

expand all

Audio Plugin Creation

`audioPlugin`	Base class for audio plugins
`audioPluginConfig`	Specify coder configuration of audio plugin (Since R2021b)
`audioPluginSource`	Base class for audio source plugins

Audio Plugin Hosting

`externalAudioPlugin`	Base class for external audio plugins
`externalAudioPluginSource`	Base class for external audio source plugins

Blocks

Audio Plugin

Include audio plugin in model (Since R2022b)

Apps

Audio Test Bench

Debug, test, and tune audio plugins

Topics

Design an Audio Plugin
Create a simple audio plugin in MATLAB and then use it to generate a VST plugin.
Audio Plugins in MATLAB
Learn about the role, definition, and design of audio plugins in Audio Toolbox.
Design User Interface for Audio Plugin
Define custom graphical user interfaces for audio plugins.
Convert MATLAB Code to an Audio Plugin
Repackage a procedural stream processing algorithm as a valid audio plugin object.
Audio Plugin Example Gallery
Analyze design patterns of Audio Toolbox plugins to develop your own plugins.
Tips and Tricks for Plugin Authoring
Learn best practices and avoid common pitfalls of plugin authoring.
Export a MATLAB Plugin to a DAW
Design and generate audio plugins for use in a DAW.
Host External Audio Plugins
Walk through the process for hosting externally authored plugins in MATLAB.
Develop, Analyze, and Debug Plugins In Audio Test Bench
Debug, visualize, and configure I/O for audio plugins by using the Audio Test Bench.

Featured Examples

Ambisonic Plugin Generation

This examples shows how to create ambisonic plugins using MATLAB® higher order ambisonic (HOA) demo functions. Ambisonics is a spatial audio technique which represents a three-dimensional sound field using spherical harmonics. This example contains an encoder plugin, a function to generate custom encoder plugins, a decoder plugin, and a function to generate custom decoder plugins. The customization of plugin generation enables a user to specify various ambisonic orders and various device lists for a given ambisonic configuration.

Open Live Script

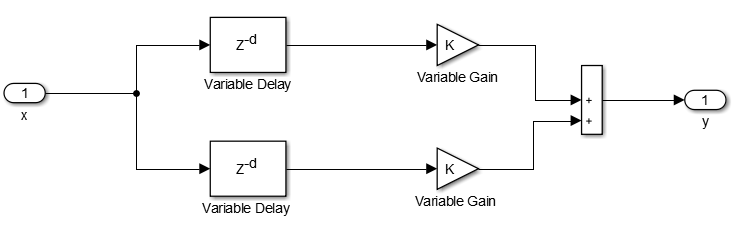

Delay-Based Pitch Shifter

An audio plugin designed to shift the pitch of a sound in real time.

Open Script

Psychoacoustic Bass Enhancement for Band-Limited Signals

An audio plugin designed to enhance the perceived sound level in the lower part of the audible spectrum.

Open Live Script

Tunable Filtering and Visualization Using Audio Plugins

Visualize the magnitude response of a tunable filter. The filters in this example are implemented as audio plugins. This example uses the visualize and audioTestBench functionality of the Audio Toolbox™.

Open Live Script

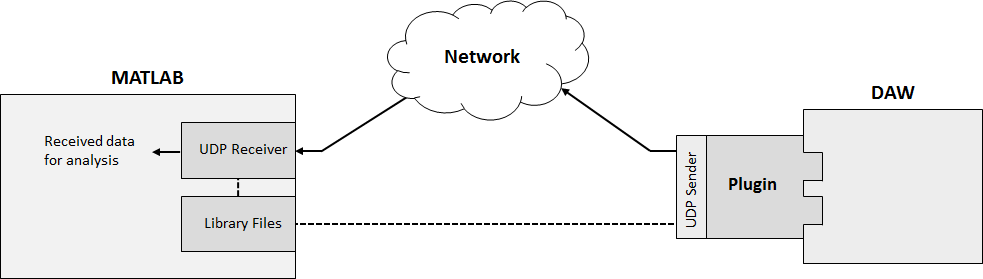

Communicate Between a DAW and MATLAB Using UDP

Communicate between a digital audio workstation (DAW) and MATLAB® using the user datagram protocol (UDP). The information shared between the DAW and MATLAB can used to perform visualization in real time in MATLAB on parameters that are being changed in the DAW.

Open Live Script
