perceptron

Simple single-layer binary classifier

collapse all in page

Syntax

perceptron(hardlimitTF,perceptronLF)

Description

Note

Deep Learning Toolbox™ supports perceptrons for historical interest. For better results, you should instead use patternnet, which can solve nonlinearly separable problems. Sometimes the term “perceptrons” refers to feed-forward pattern recognition networks; but the original perceptron, described here, can solve only simple problems.

perceptron(hardlimitTF,perceptronLF) takes a hard limit transfer function, hardlimitTF, and a perceptron learning rule, perceptronLF, and returns a perceptron.

In addition to the default hard limit transfer function, perceptrons can be created with the hardlims transfer function. The other option for the perceptron learning rule is learnpn.

Perceptrons are simple single-layer binary classifiers, which divide the input space with a linear decision boundary.

Perceptrons can learn to solve a narrow range of classification problems. They were one of the first neural networks to reliably solve a given class of problem, and their advantage is a simple learning rule.

example

Examples

collapse all

Open Live Script

This example shows how to use a perceptron to solve a simple classification logical-OR problem.

x = [0 0 1 1; 0 1 0 1];
t = [0 1 1 1];
net = perceptron;
net = train(net,x,t);

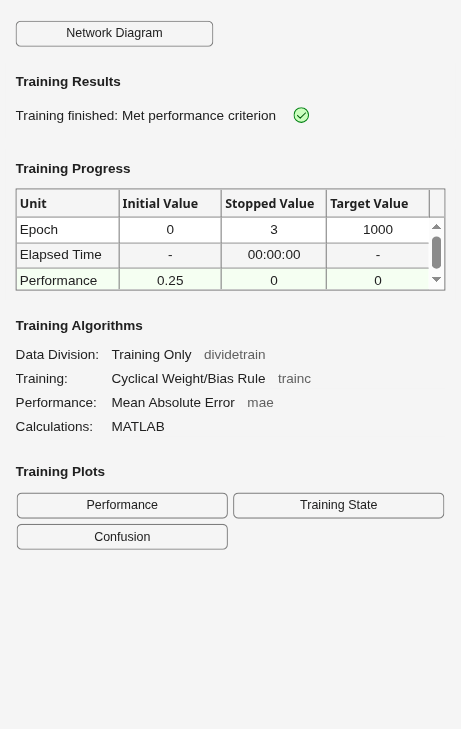

Figure Neural Network Training (05-Sep-2024 18:40:20) contains an object of type uigridlayout.

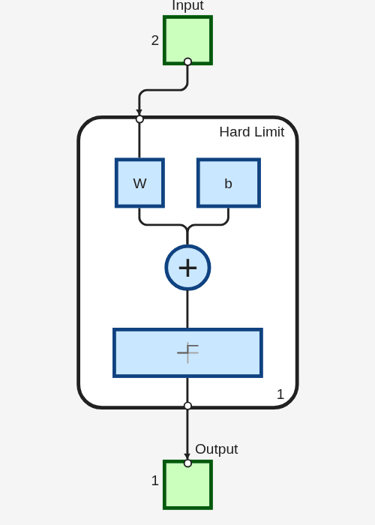

view(net)

y = net(x);

Input Arguments

collapse all

Hard limit transfer function.

Perceptron learning rule.

Version History

Introduced in R2010b
