targetPoses

Get positions and orientations of targets in sensor range relative to host vehicle

Since R2023a

Description

poses = targetPoses(sensorSim,sensorID) returns poses of all the targets that are in the range of the sensor specified by sensorID, with respect to its host vehicle actor. The sensor simulation object sensorSim specifies the RoadRunner scenario that contains the host vehicle actor.

example

Examples

collapse all

Define sensor models in MATLAB®, and add them to vehicle actors in a RoadRunner Scenario. Then, obtain ground truth measurements from RoadRunner Scenario, process them into detections for visualization.

Set Up RoadRunner Scenario — MATLAB Interface

Configure your RoadRunner installation and project folder properties. Open the RoadRunner app.

rrInstallationPath = "C:\Program Files\RoadRunner R2024a\bin\win64";
rrProjectPath = "D:\RR\TestProjects";

s = settings;
s.roadrunner.application.InstallationFolder.PersonalValue = rrInstallationPath;
rrApp = roadrunner(rrProjectPath);

To open the scenario this example uses, you must add the TrajectoryCutIn-longRun.rrscenario file from the example folder to your RoadRunner project folder. Then, open the scenario.

copyfile("TrajectoryCutIn-longRun.rrscenario",fullfile(rrProjectPath,"Scenarios/"))
openScenario(rrApp,"TrajectoryCutIn-longRun")

Create a ScenarioSimulation object to connect MATLAB to the RoadRunner Scenario simulation and set the step size.

scenarioSim = createSimulation(rrApp);
stepSize = 0.1;
set(scenarioSim,"StepSize",stepSize);

Create a SensorSimulation object to control the sensor configuration for the RoadRunner Scenario simulation.

sensorSim = get(scenarioSim,"SensorSimulation");

Configure Sensors and Add to RoadRunner Scenario

Configure sensor models for vision, radar and lidar sensors to add to the ego vehicle using visionDetectionGenerator, drivingRadarDataGenerator and lidarPointCloudGenerator objects. Specify unique IDs for each sensor.

visionSensor = visionDetectionGenerator(SensorIndex=1, ...
            SensorLocation=[2.4 0], MaxRange=50, ...
            DetectorOutput="Lanes and objects", ...
            UpdateInterval=stepSize);

radarSensor = drivingRadarDataGenerator(SensorIndex=2,...
    MountingLocation=[1.8 0 0.2], FieldOfView=[80 5],...
    AzimuthResolution=1,UpdateRate=1/stepSize);

lidarSensor = lidarPointCloudGenerator(SensorIndex=3,UpdateInterval=stepSize);

Add the sensor to the ego vehicle actor in the RoadRunner scenario. Specify the Actor ID property for the vehicle.

egoVehicleID = 1;
addSensors(sensorSim,{visionSensor,radarSensor,lidarSensor},egoVehicleID);

Set up bird's-eye-plot for visualization.

[visionDetPlotter,radarDetPlotter,pcPlotter,lbGTPlotter,lbDetPlotter,bepAxes] = helperSetupBEP(visionSensor,radarSensor);

Simulate RoadRunner Scenario and Visualize Sensor Data

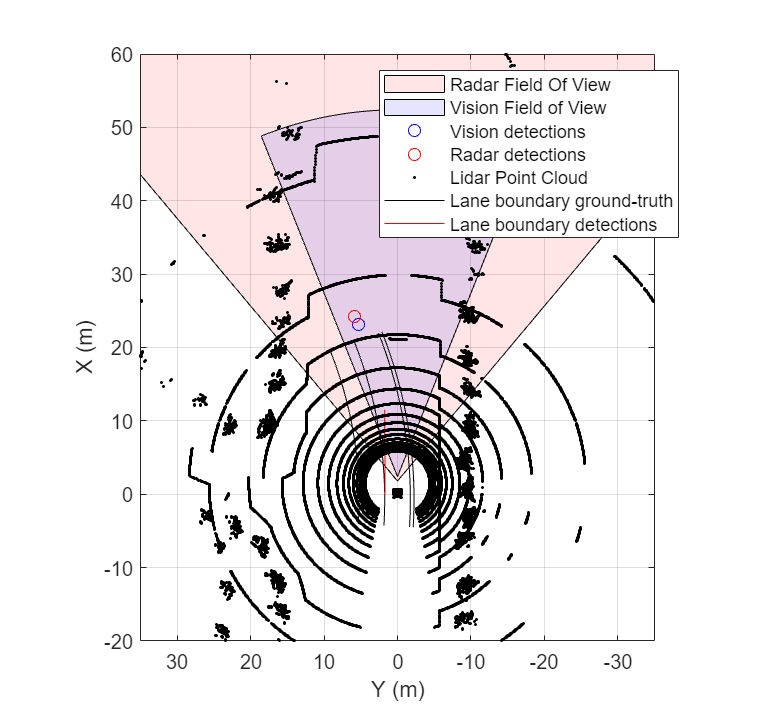

Use the ScenarioSimulation object to step through the RoadRunner scenario. Retrieve target poses in the sensor range using the targetPoses function, and process them into detections using the sensor model. Visualize detections and ground truth lane boundaries using birdsEyePlot.

simTime = 0.0;
set(scenarioSim,"SimulationCommand","Step");
pause(0.1)
legend(bepAxes,"show")

while ~isequal(get(scenarioSim,"SimulationStatus"),"Stopped")

    % Get ground truth target poses and lane boundaries from the sensor
    tgtPoses = targetPoses(sensorSim,1);
    gTruthLbs = laneBoundaries(sensorSim,1,OutputOption="EgoAdjacentLanes",inHostCoordinate=true);

    if ~isempty(gTruthLbs)

        % Get detections from vision and radar sensors
        [visionDets,numVisionDets,visionDetsValid,lbDets,numLbDets,lbDetsValid] = visionSensor(tgtPoses,gTruthLbs,simTime);
        [radarDets,numRadarDets,radarDetsValid] = radarSensor(tgtPoses,simTime);

        % Get point cloud from lidar sensor
        [ptCloud,ptCloudValid] = lidarSensor();

        % Plot ground-truth and detected lane boundaries
        helperPlotLaneBoundaries(lbGTPlotter,gTruthLbs)


        % Plot vision and radar detections
        if visionDetsValid
            detPos = cellfun(@(d)d.Measurement(1:2),visionDets,UniformOutput=false);
            detPos = vertcat(zeros(0,2),cell2mat(detPos')');
            plotDetection(visionDetPlotter,detPos)
        end

        if lbDetsValid
            plotLaneBoundary(lbDetPlotter,vertcat(lbDets.LaneBoundaries))
        end

        if radarDetsValid
            detPos = cellfun(@(d)d.Measurement(1:2),radarDets,UniformOutput=false);
            detPos = vertcat(zeros(0,2),cell2mat(detPos')');
            plotDetection(radarDetPlotter,detPos)
        end

        % Plot lidar point cloud
        if ptCloudValid
            plotPointCloud(pcPlotter,ptCloud);
        end
    end

    if ~isequal(get(scenarioSim,"SimulationStatus"),"Stopped")
        set(scenarioSim,"SimulationCommand","Step");
    end

    simTime = simTime + stepSize;
    pause(0.1)
end

Helper Functions

helperSetupBEP function creates a bird's-eye-plot and configures all the plotters for visualization.

helperPlotLaneBoundaries function plots the lane boundaries on the birds'eye-plot.

Input Arguments

collapse all

Sensor simulation object, specified as a SensorSimulation object. The sensor simulation object must correspond to the desired scenario created in RoadRunner Scenario.

Unique index of the sensor in the RoadRunner scenario, specified as a positive integer. This must be same as the SensorIndex property of the detection generator object that corresponds to the desired sensor.

Output Arguments

collapse all

Target poses, in ego vehicle coordinates, returned as a structure or as an array of structures. This output does not include the pose of the host vehicle actor.

A target pose defines the position, velocity, and orientation of a target in ego vehicle coordinates. Target poses also include the rates of change in actor position and orientation.

Each pose structure has these fields.

FieldDescription
ActorID

Scenario-defined actor identifier, returned as a positive integer.

ClassIDClassification identifier, returned as a nonnegative integer. 0 represents an object of an unknown or unassigned class.
Position

Position of actor, returned as a real-valued vector of the form [x y z]. Units are in meters.

Velocity

Velocity (v) of actor in the x-, y-, and z-directions, returned as a real-valued vector of the form [vx vy vz]. Units are in meters per second.

Roll

Roll angle of actor, returned as a real scalar. Units are in degrees.

Pitch

Pitch angle of actor, returned as a real scalar. Units are in degrees.

Yaw

Yaw angle of actor, returned as a real scalar. Units are in degrees.

AngularVelocity

Angular velocity (ω) of actor in the x-, y-, and z-directions, returned as a real-valued vector of the form [ωx ωy ωz]. Units are in degrees per second.

For full definitions of these structure fields, see the actor and vehicle functions.

Version History

Introduced in R2023a
